PLATUS – plataforma Jormax
PLATUS – plataforma Jormax

PLATUS

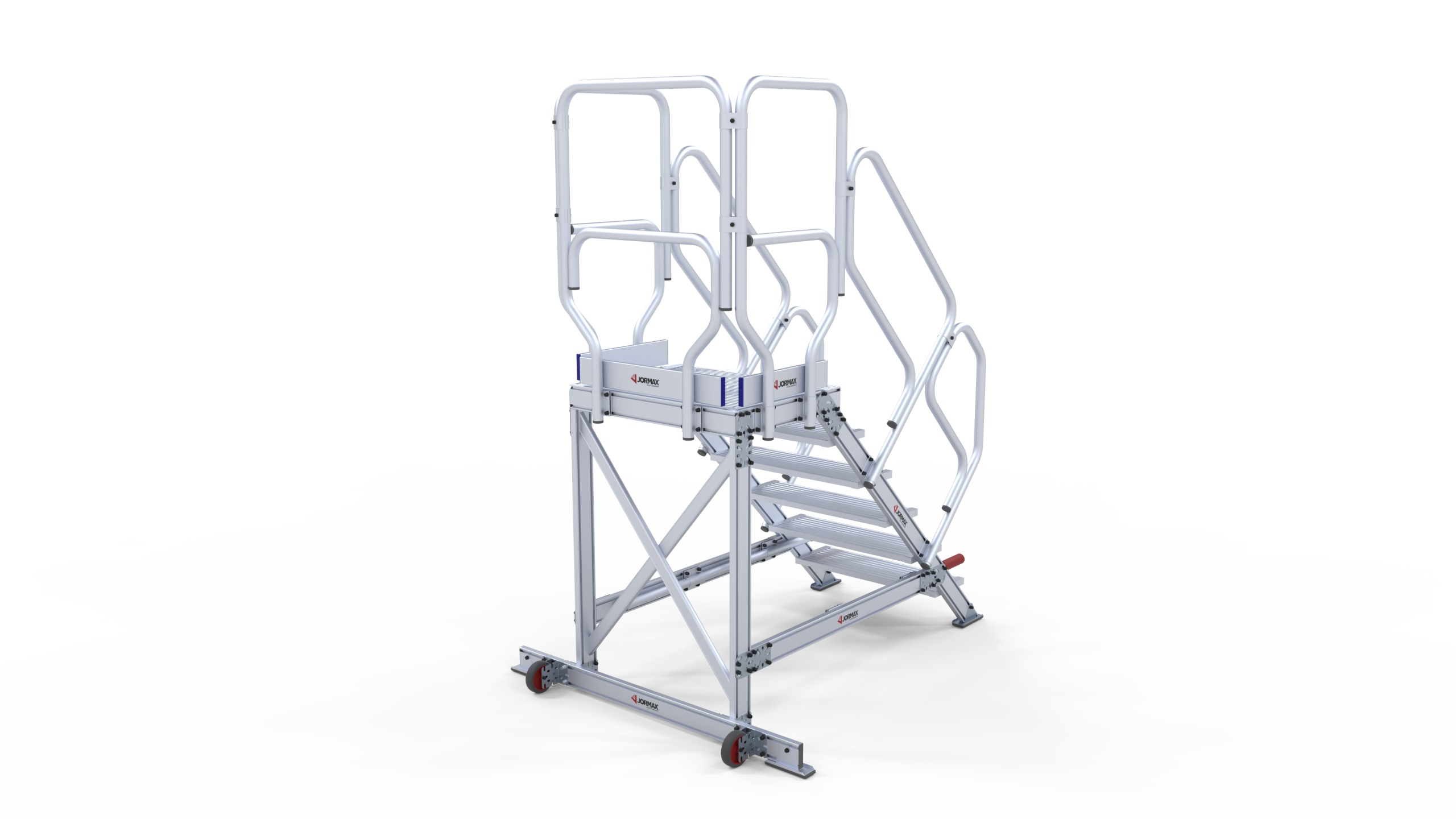

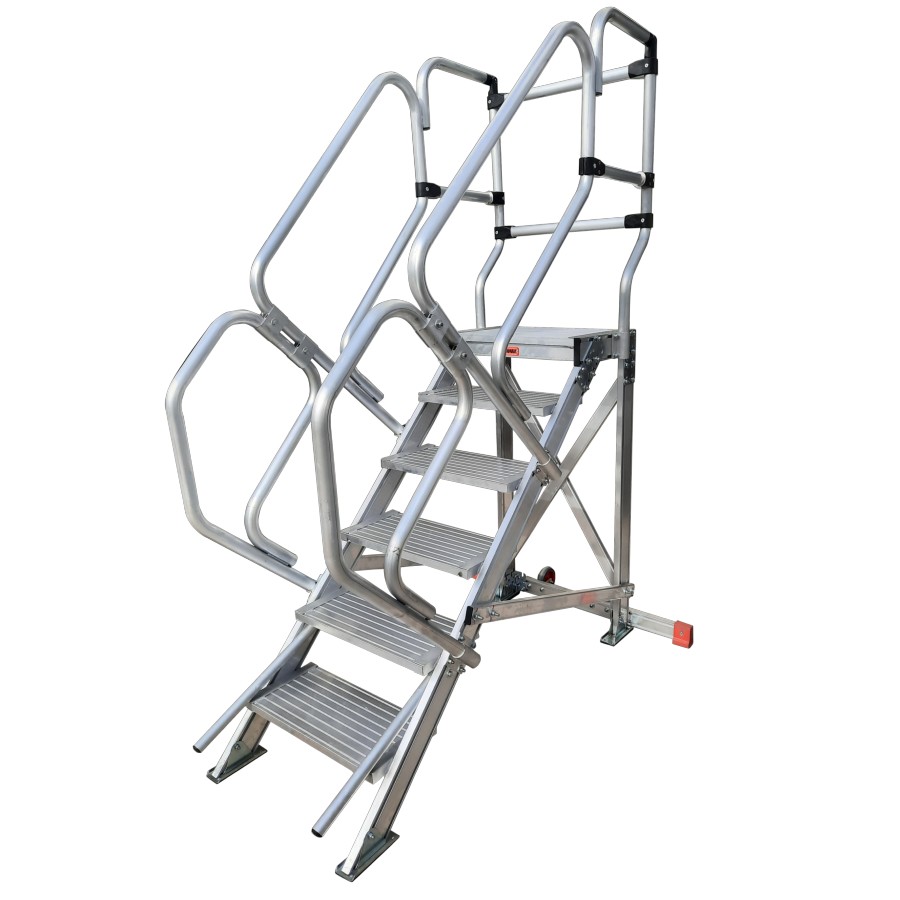

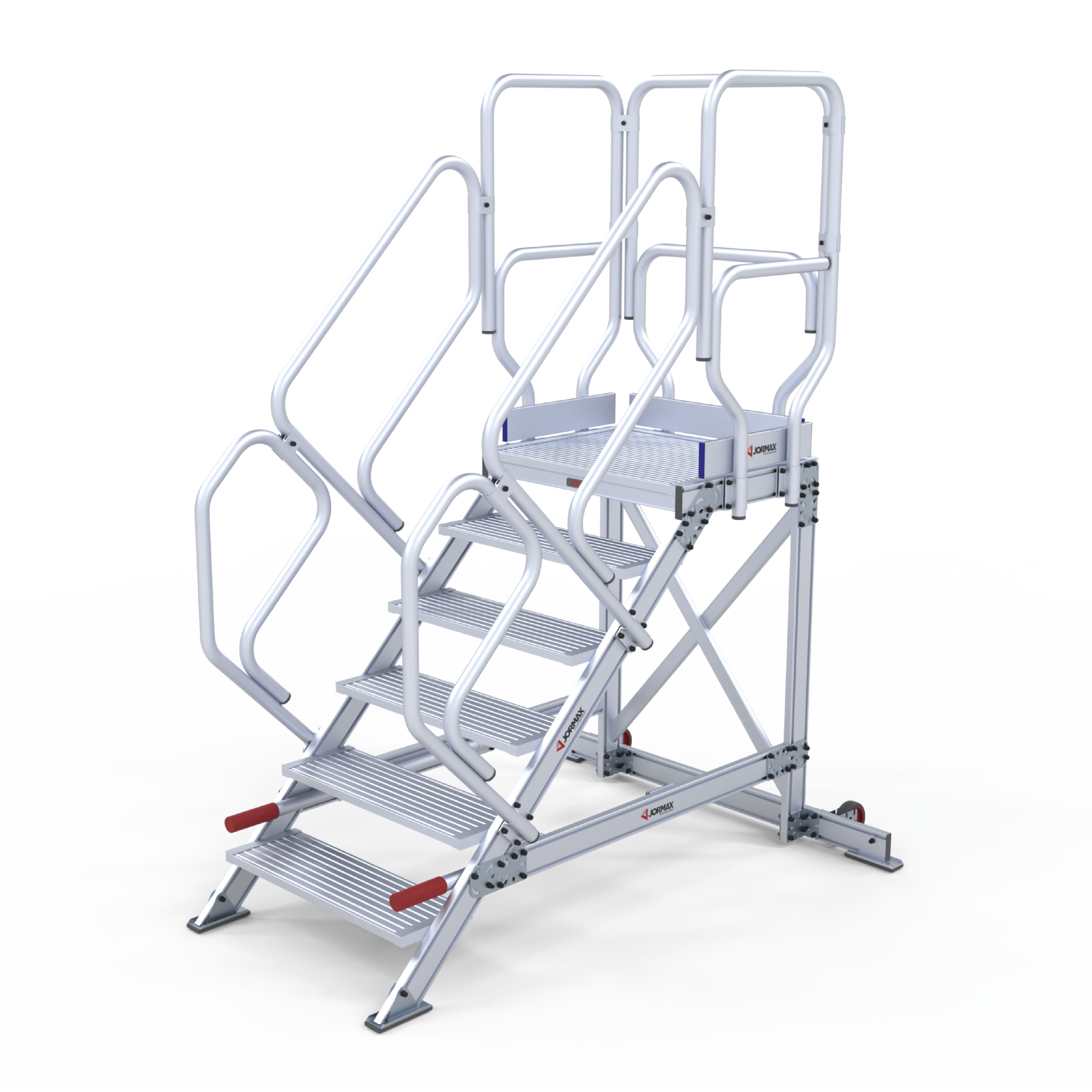

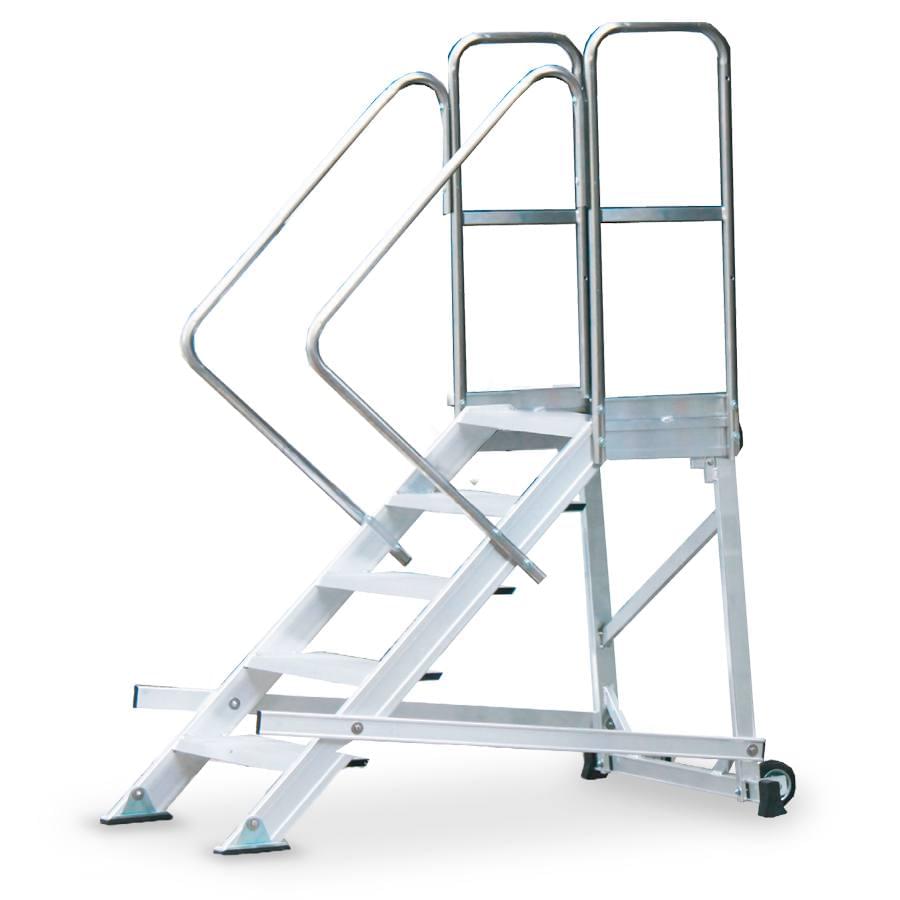

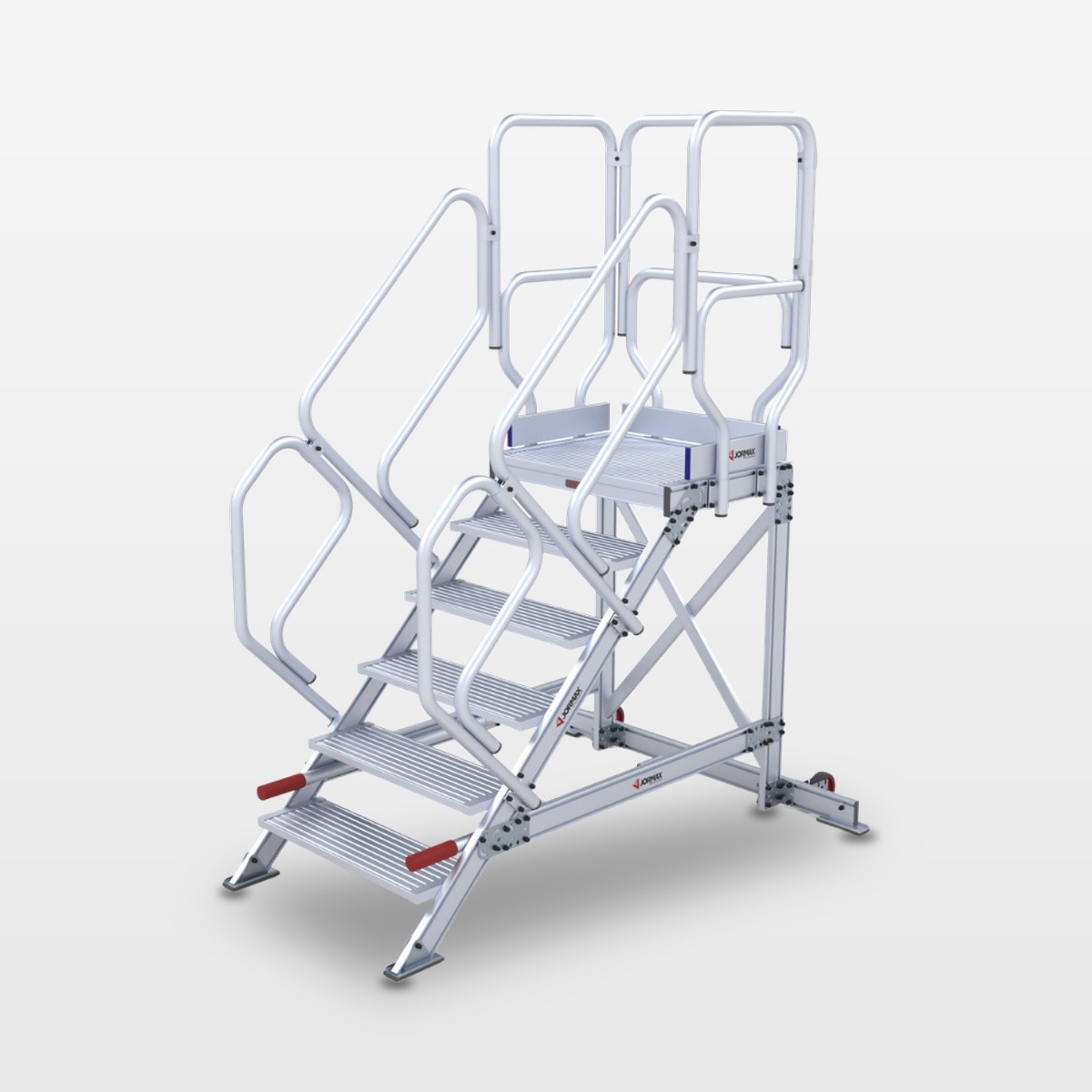

A range of heavy-duty professional access platforms for inspecting and maintaining vehicles, elevated floors and machinery.

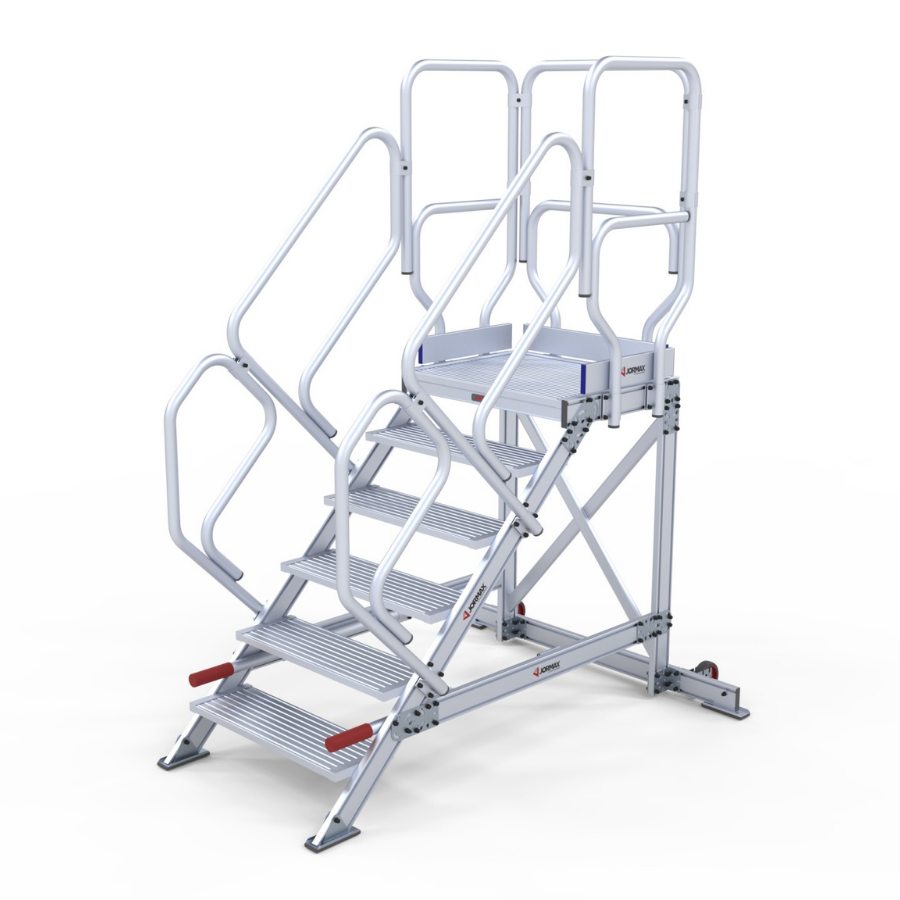

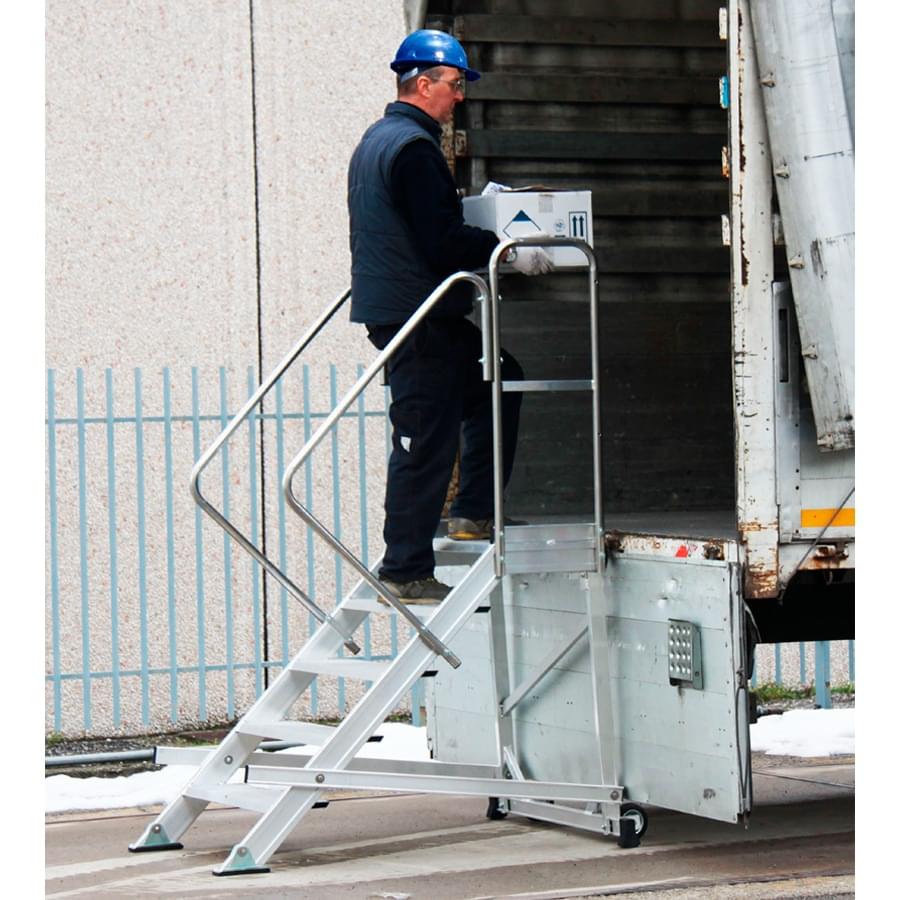

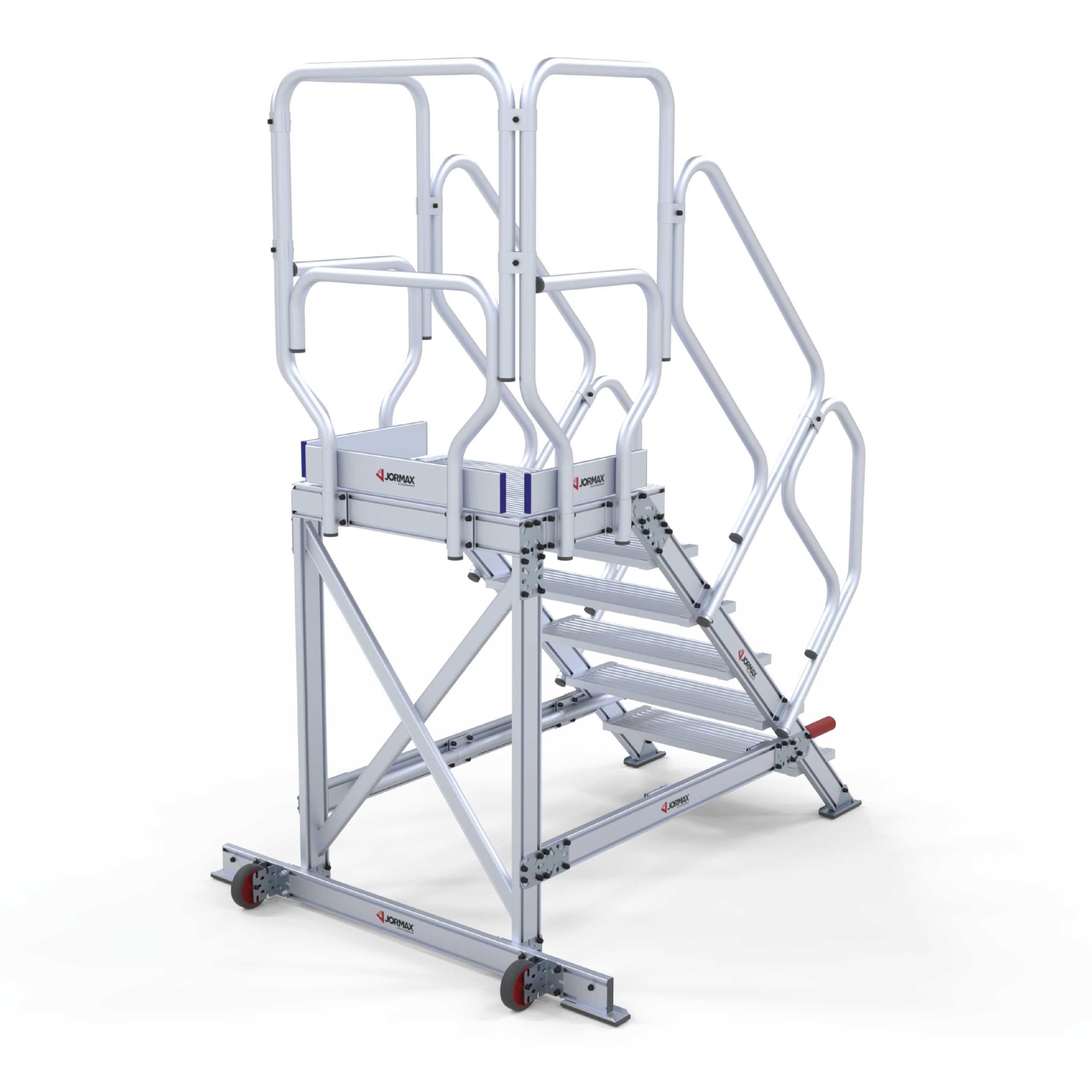

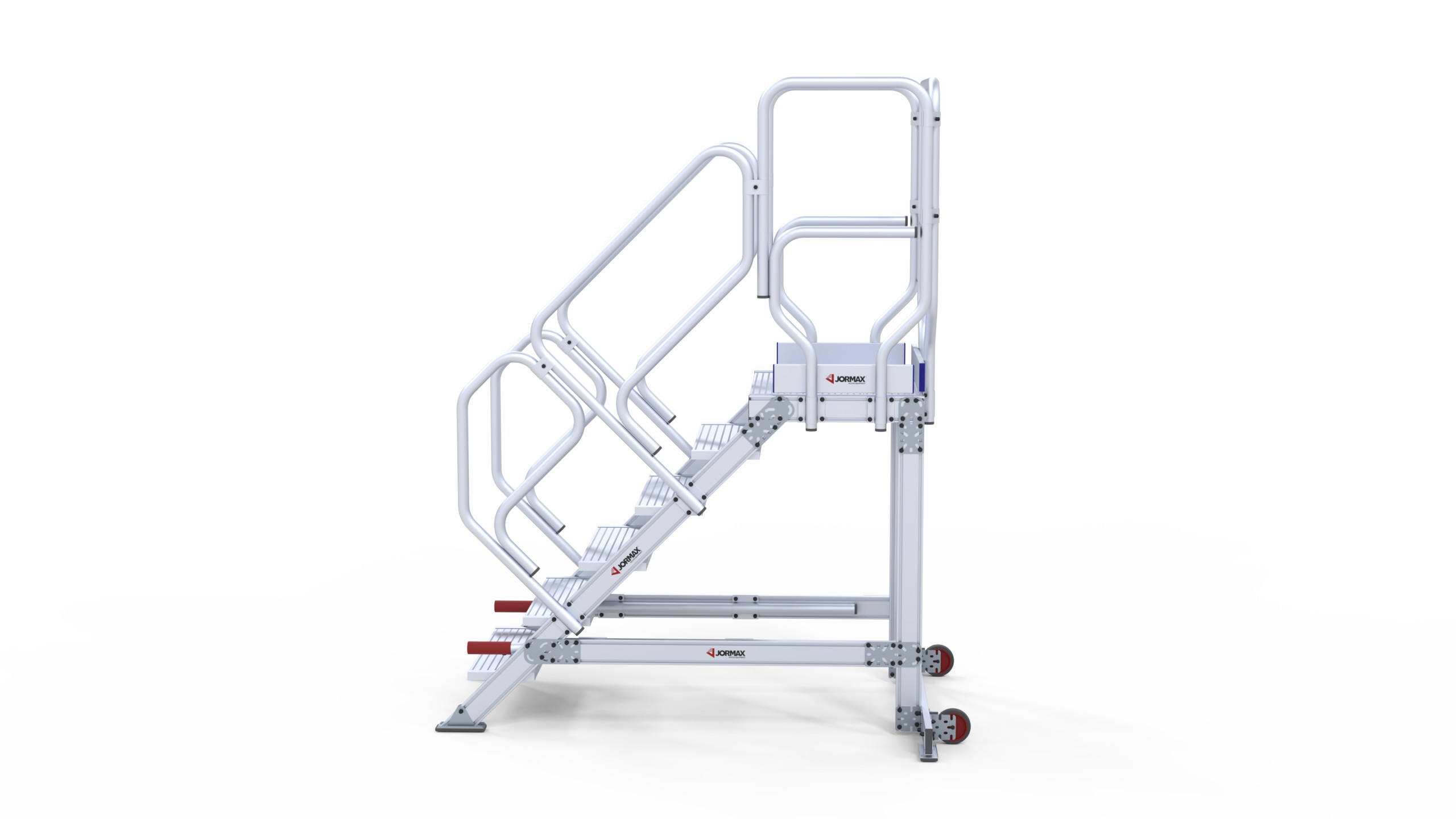

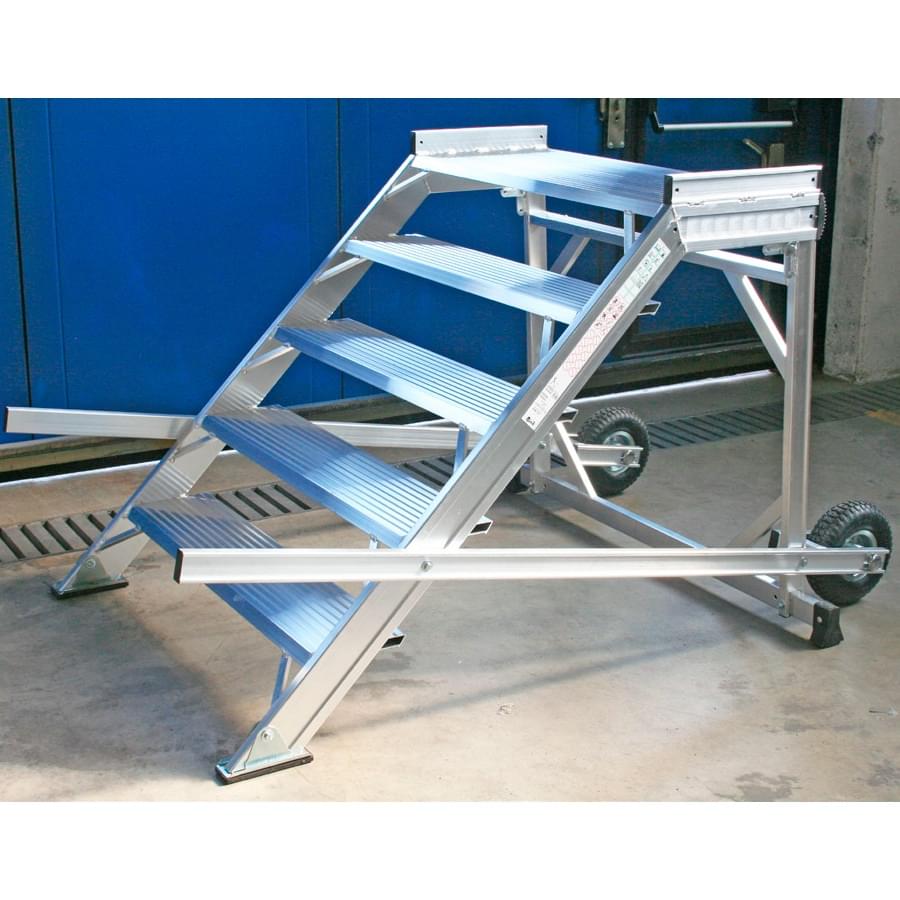

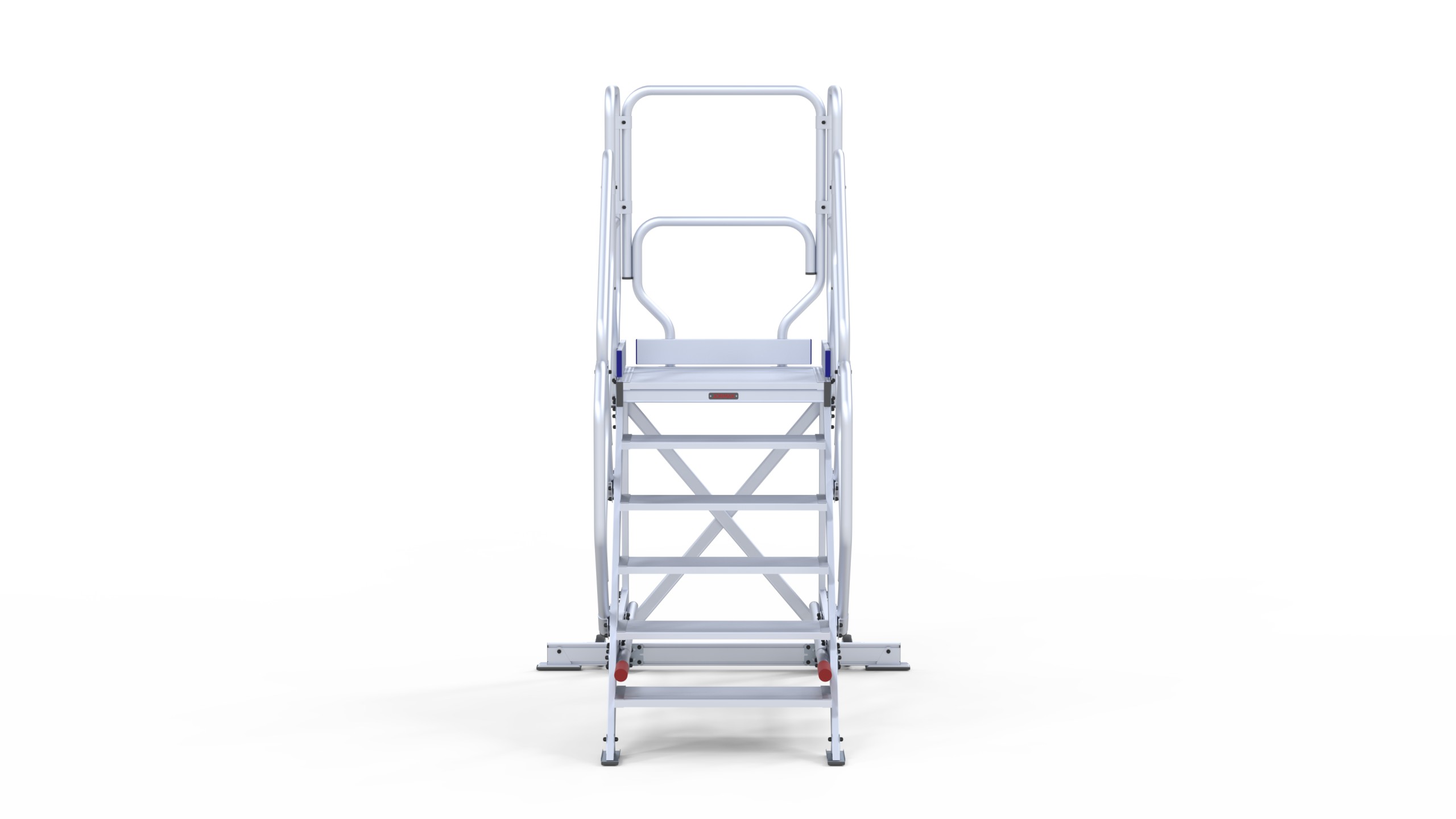

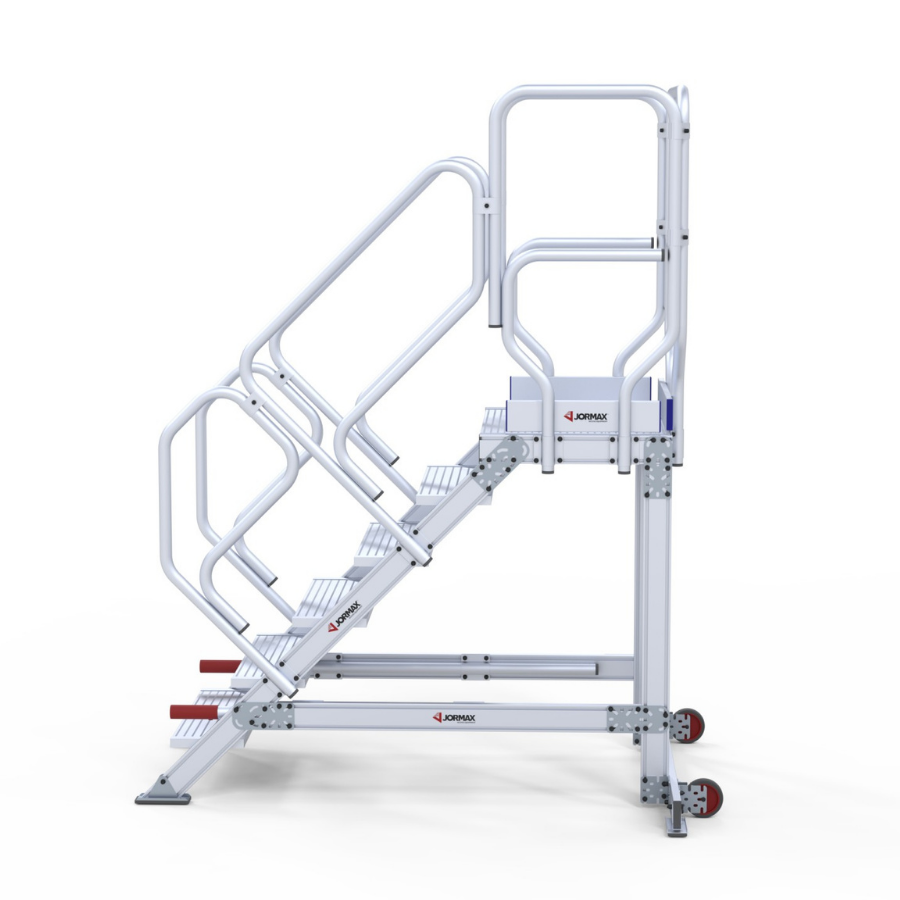

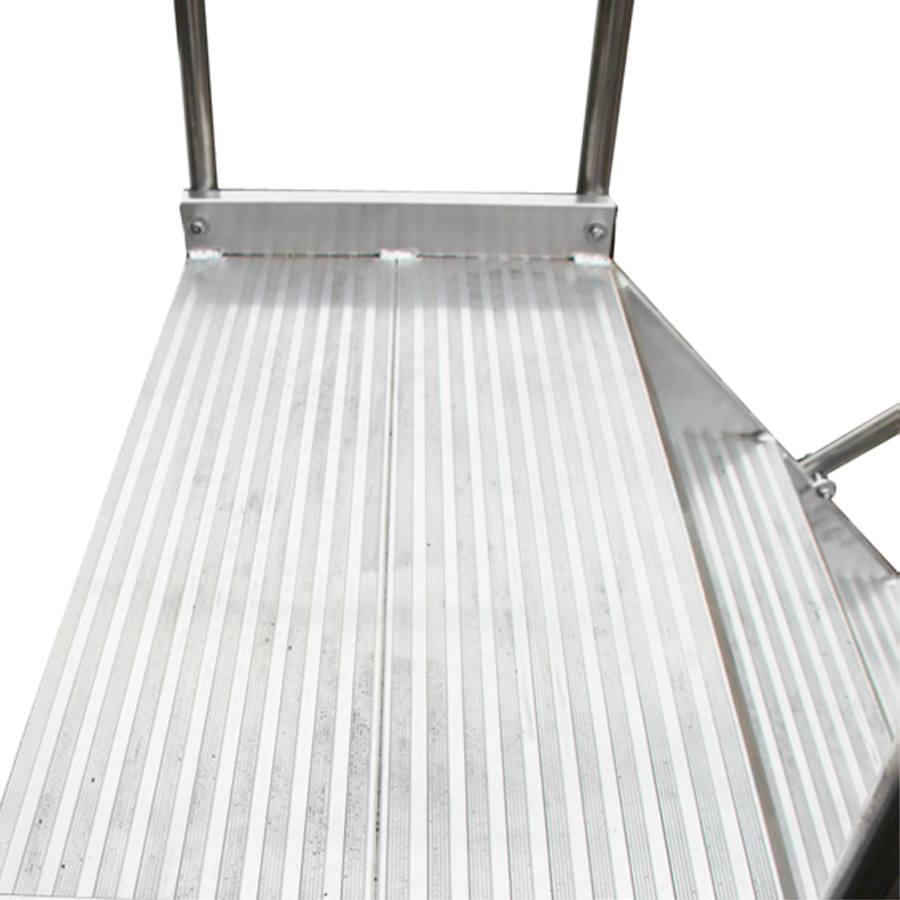

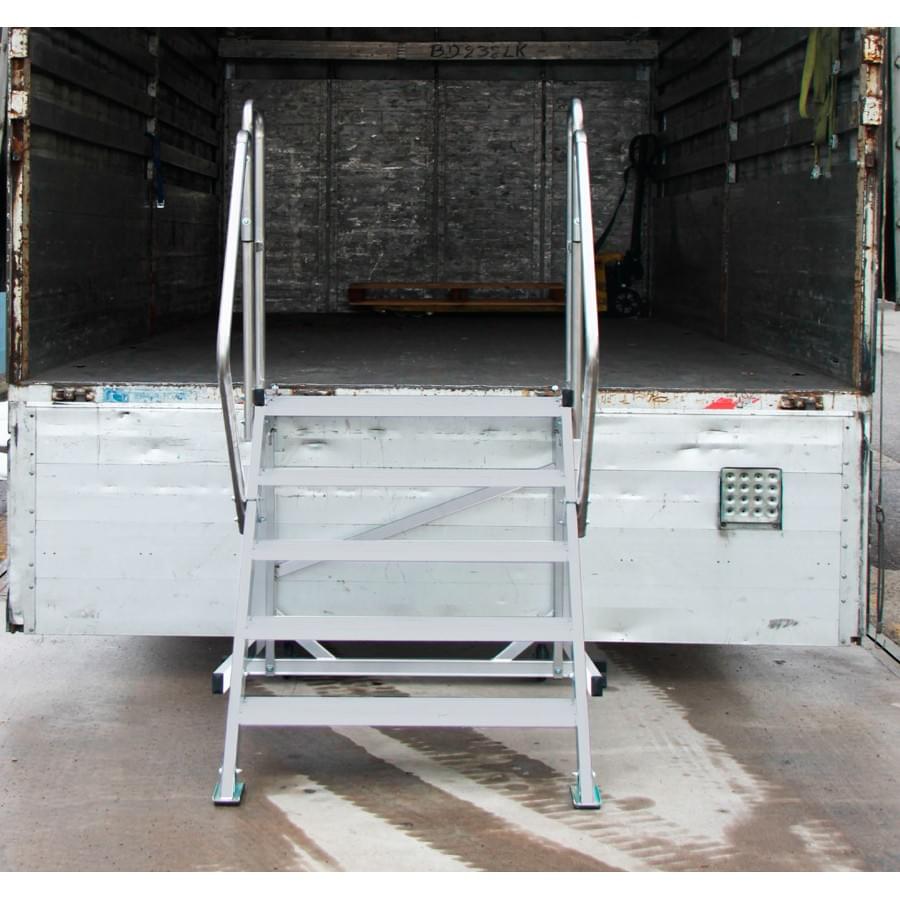

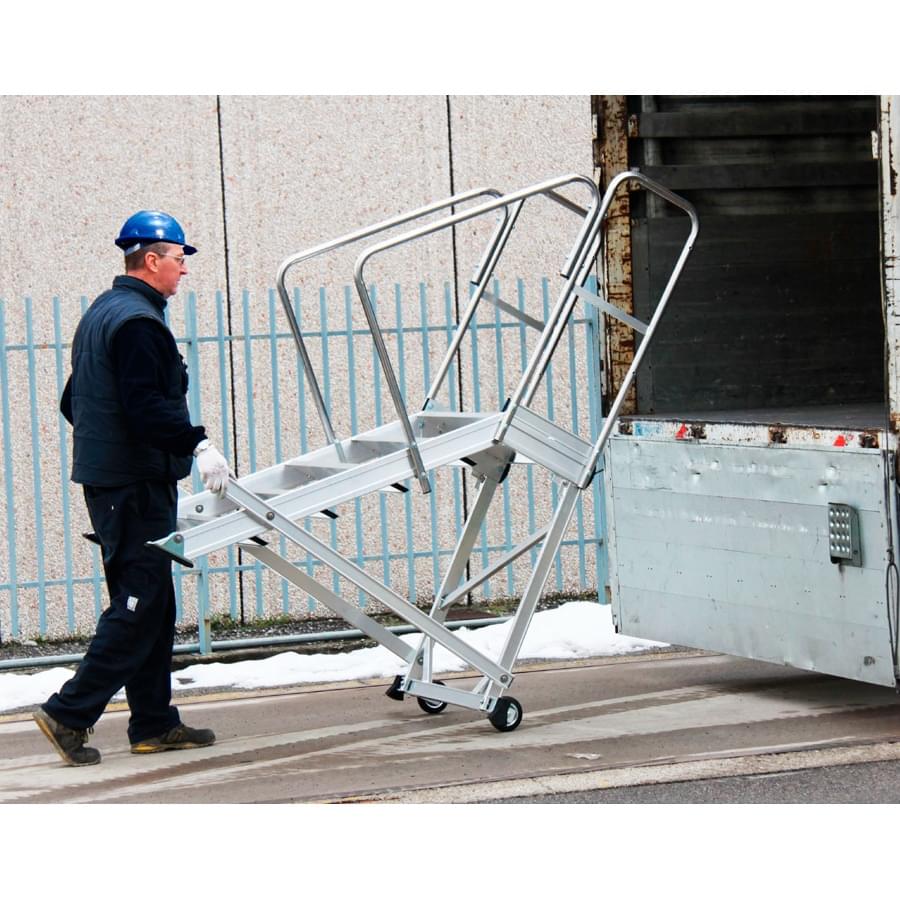

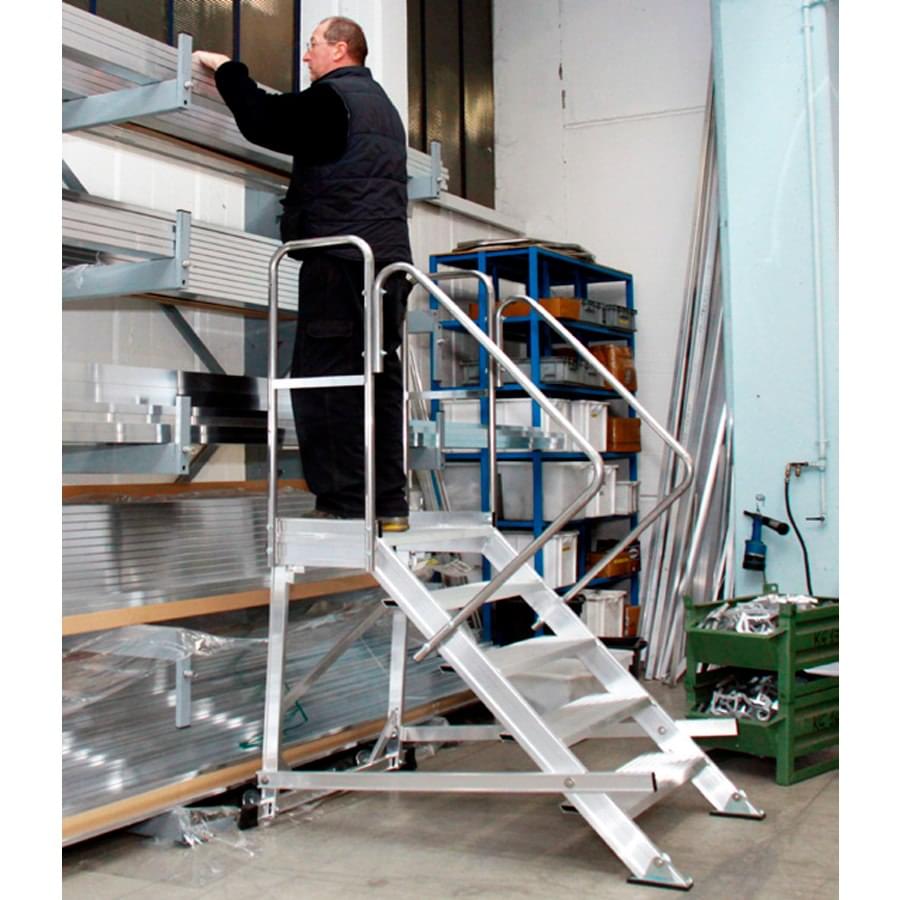

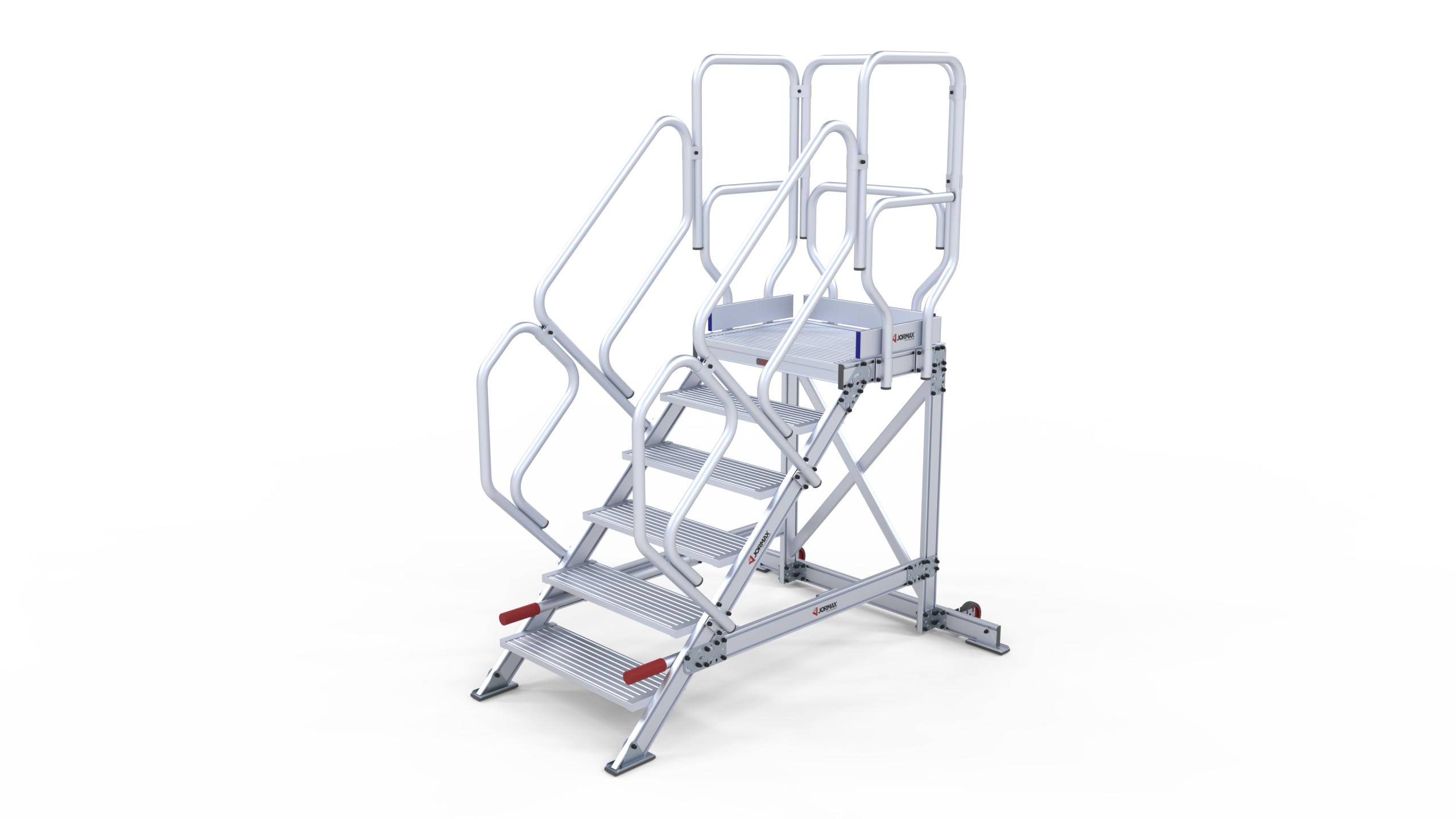

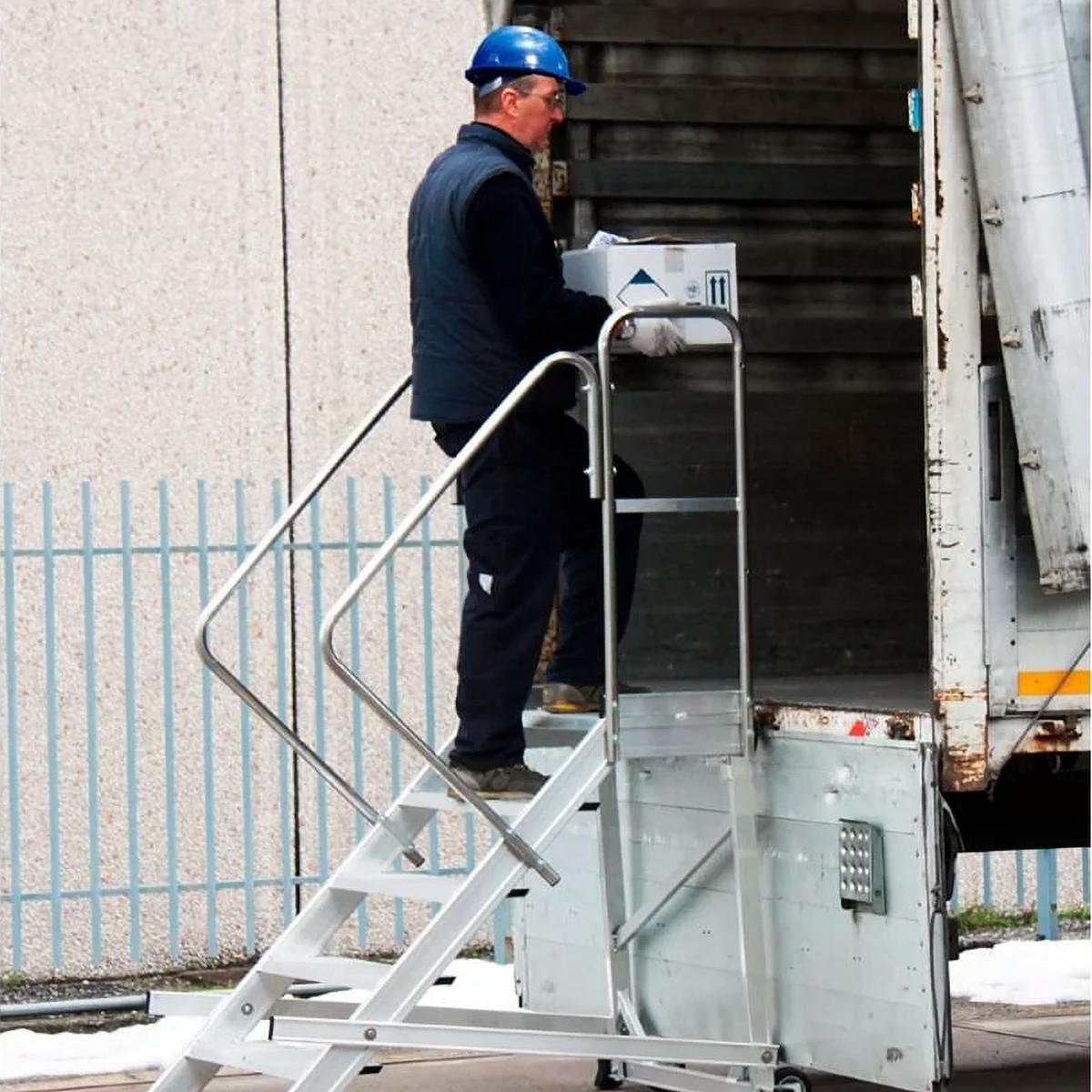

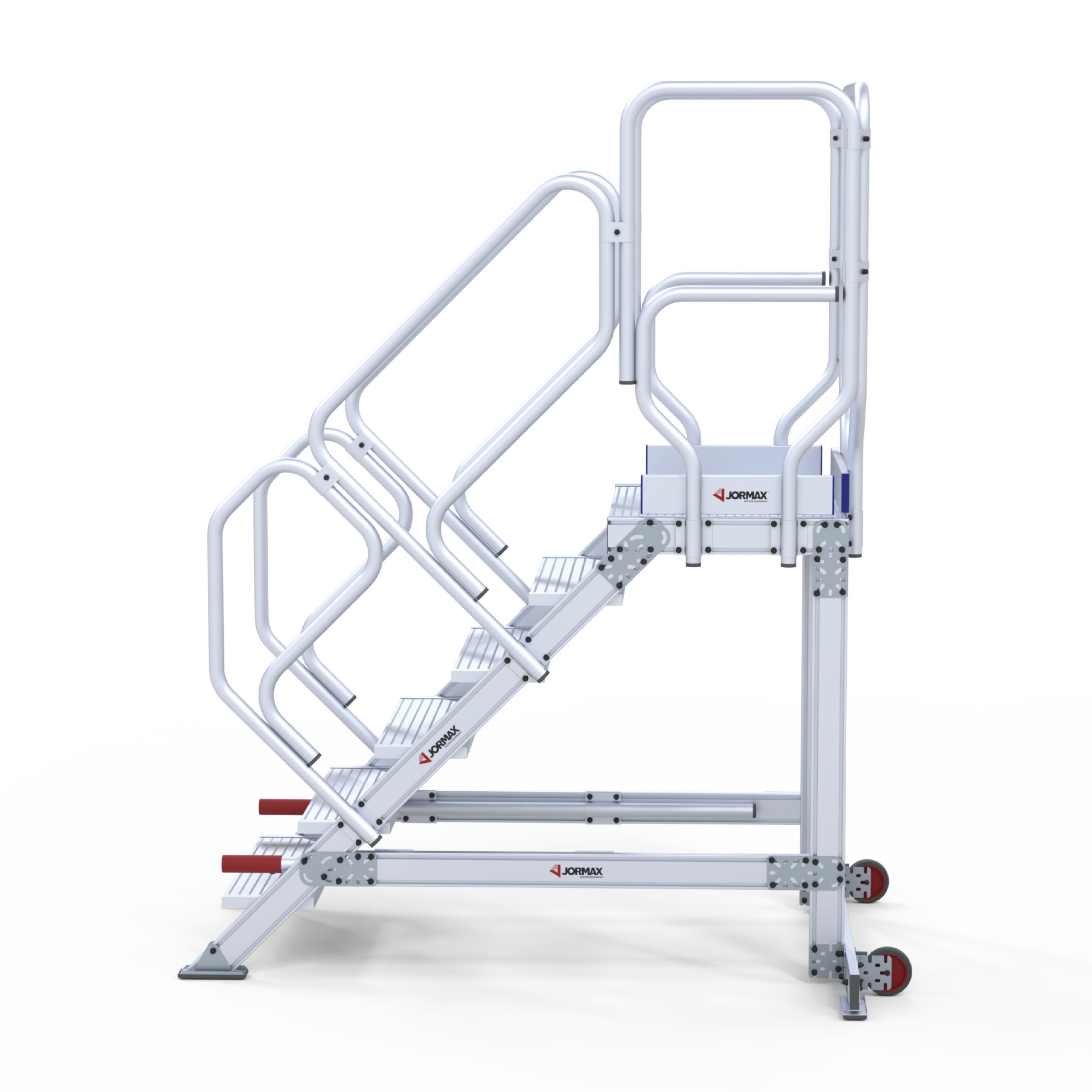

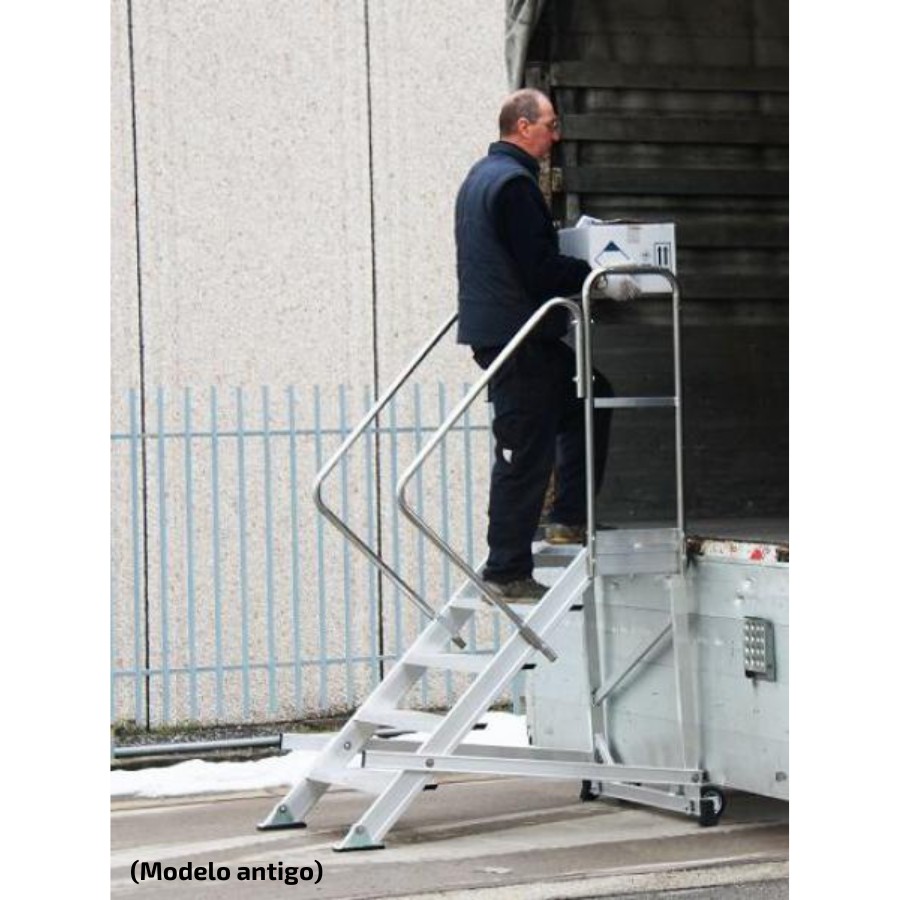

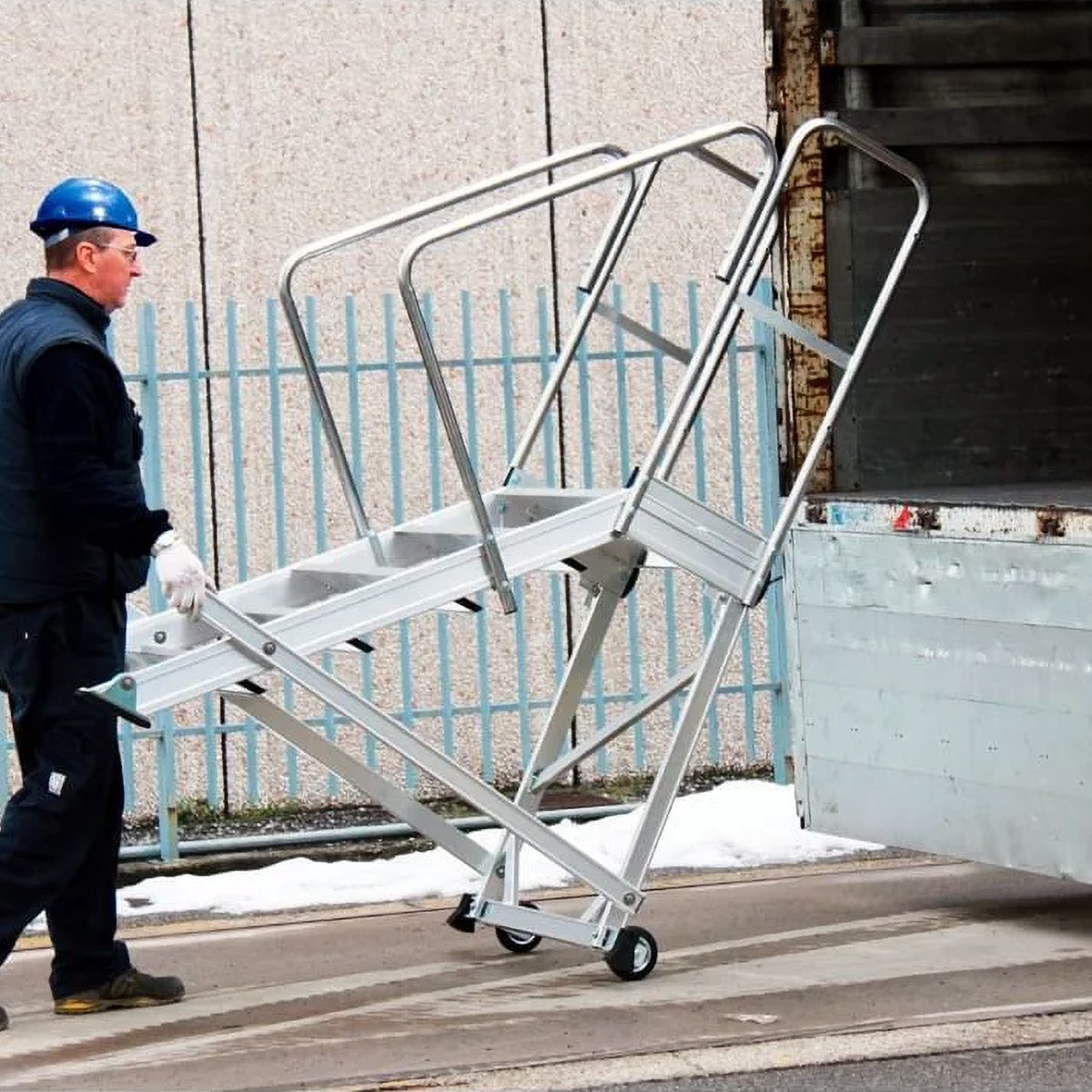

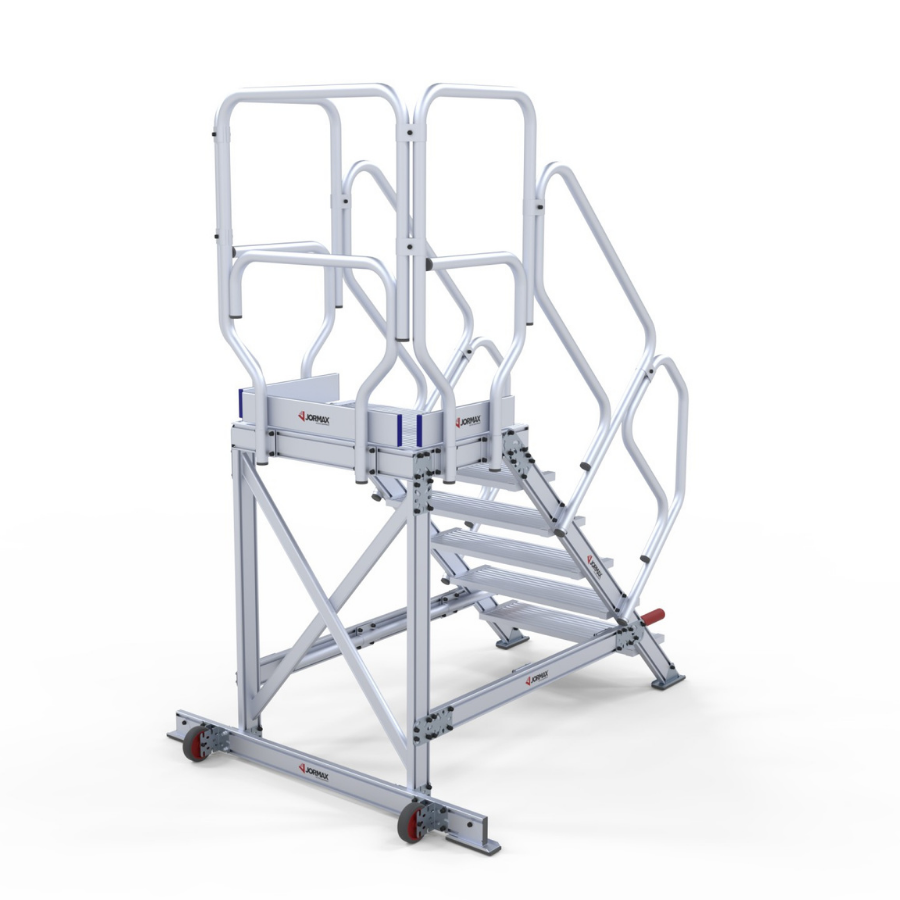

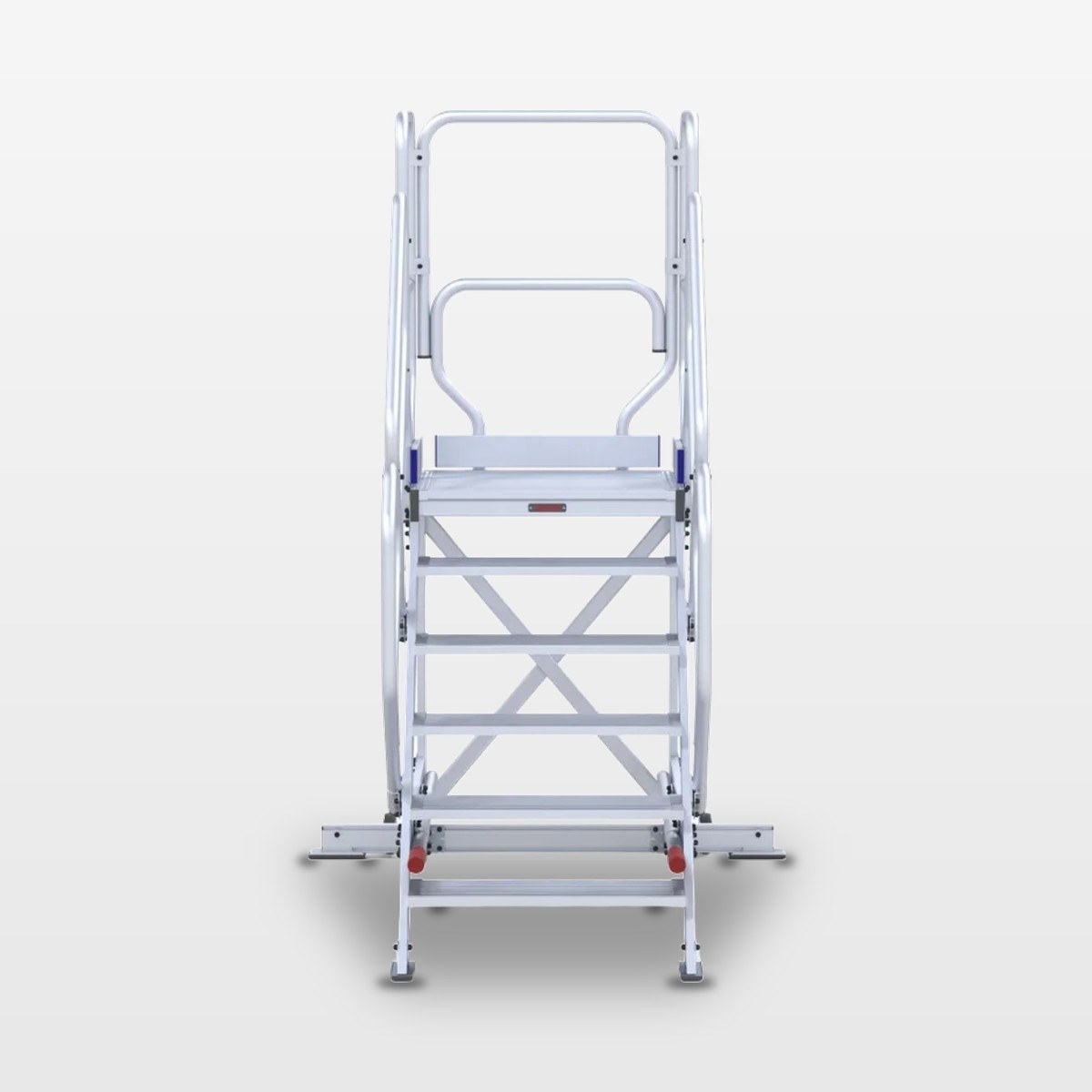

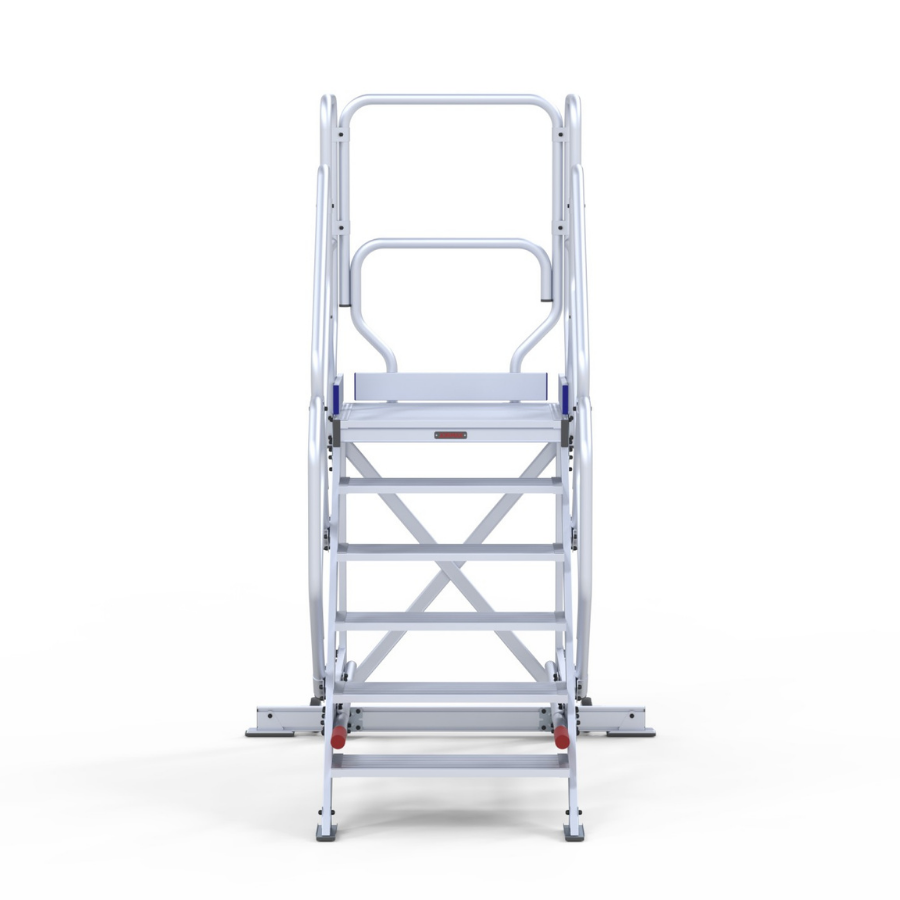

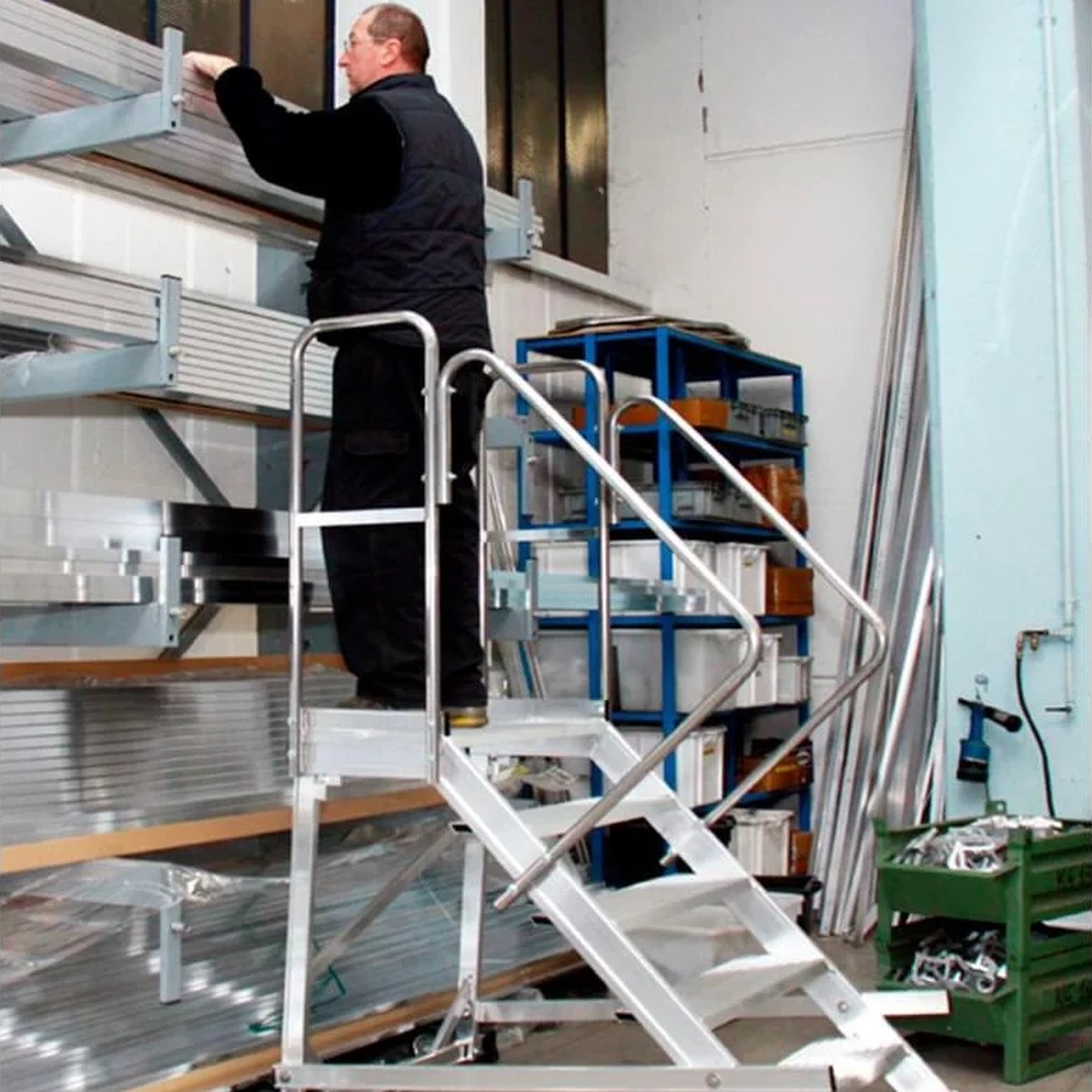

A professional access platform made of extruded aluminium, with 20 cm-deep steps spaced 20 cm apart. Width, height and exit arrangements can be specified to suit the application. Operators can climb while keeping their hands free and descend facing forwards. Ideal for vehicle, elevated-floor and machine access and maintenance.
The PLATUS platform is certified to European standard EN 14122.
Jormax reserves the right to change its products or technical specifications without prior notice.



PLATUS 60 – PLATFORM DIMENSIONS 600 × 600 (width x depth)
Number of steps 2 3 4 5 6 7 8 9 10
Platform height (m) 0.40 0.60 0.80 1.00 1.20 1.40 1.60 1.80 2.00
Working height (m) 2.40 2.60 2.80 3.00 3.20 3.40 3.60 3.80 4.00
Width (m) 0.68 0.68 0.68 0.68 0.68 0.68 0.68 0.68 0.68
Weight (kg) 14.00 17.00 21.00 24.00 27.00 31.00 35.00 39.00 43.00
Reference 40100 40101 40102 40103 40104 40105 40106 40107 40108



PLATUS 80 – PLATFORM DIMENSIONS 800 × 600 (width x depth)
Number of steps 2 3 4 5 6 7 8 9 10
Platform height (m) 0.40 0.60 0.80 1.00 1.20 1.40 1.60 1.80 2.00
Working height (m) 2.40 2.60 2.80 3.00 3.20 3.40 3.60 3.80 4.00
Width (m) 0.88 0.88 0.88 0.88 0.88 0.88 0.88 0.88 0.88
Weight (kg) 14.00 17.00 21.00 24.00 27.00 31.00 35.00 39.00 43.00
Reference 40109 40110 40111 40112 40113 40114 40115 40116 40117



PLATUS 100 – PLATFORM DIMENSIONS 1000 × 600 (width x depth)
Number of steps 2 3 4 5 6 7 8 9 10
Platform height (m) 0.40 0.60 0.80 1.00 1.20 1.40 1.60 1.80 2.00
Working height (m) 2.40 2.60 2.80 3.00 3.20 3.40 3.60 3.80 4.00
Width (m) 1.08 1.08 1.08 1.08 1.08 1.08 1.08 1.08 1.08
Weight (kg) 16.00 19.00 23.00 28.00 32.00 36.00 41.00 45.00 49.00
Reference 40118 40119 40120 40121 40122 40123 40124 40125 40126

Description

A range of heavy-duty professional access platforms for inspecting and maintaining vehicles, elevated floors and machinery.

A professional access platform made of extruded aluminium, with 20 cm-deep steps spaced 20 cm apart. Width, height and exit arrangements can be specified to suit the application. Operators can climb while keeping their hands free and descend facing forwards. Ideal for vehicle, elevated-floor and machine access and maintenance.
The PLATUS platform is certified to European standard EN 14122.
Jormax reserves the right to change its products or technical specifications without prior notice.



Feature Specification
Number of steps 2 to 10
Rung spacing 20 cm
Step depth 24 cm
Platform length 60 cm
External width 60, 80 or 100 cm
Guardrail height 1.10 m

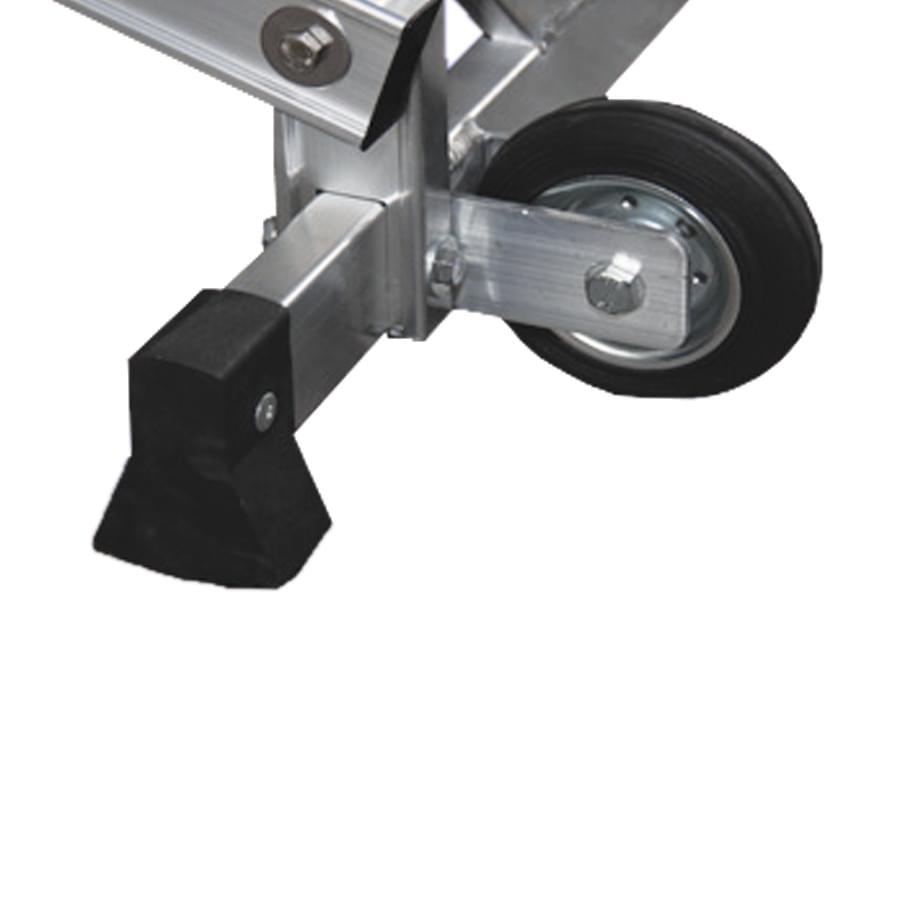

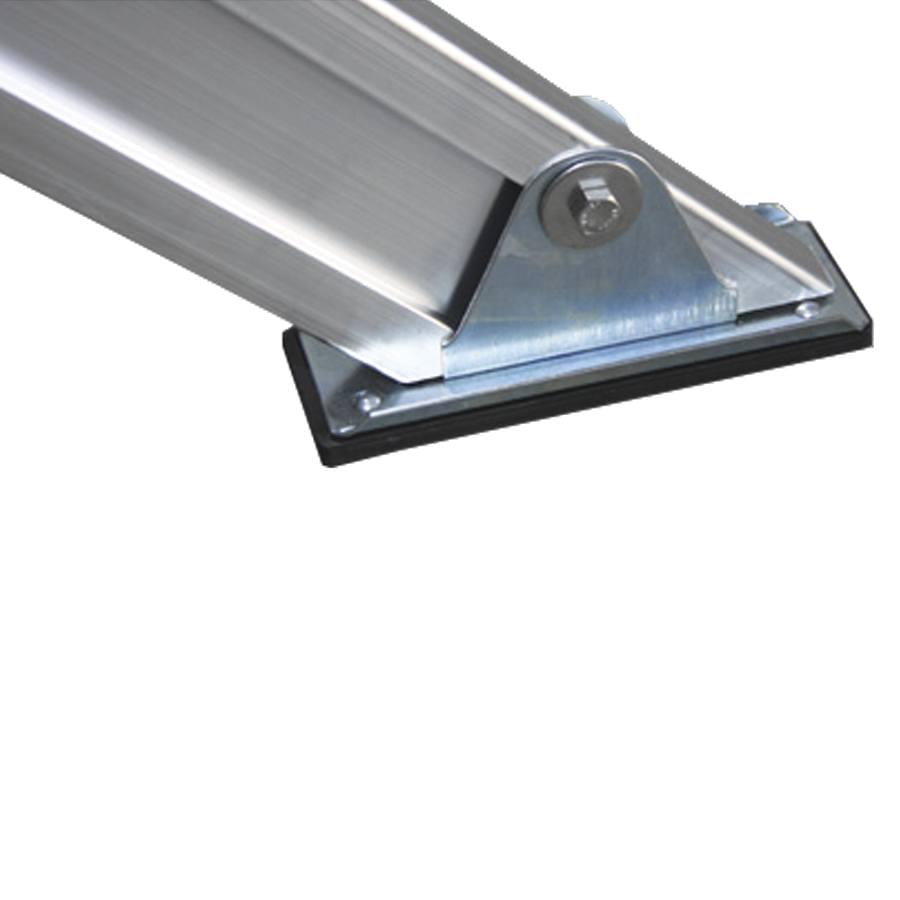

Non-slip feet Rubber
Ladder angle 45º
Manual User and maintenance manual included
Certification EN14122
Label of identification Included
Note: Product dimensions may vary by +/- 2 cm.
