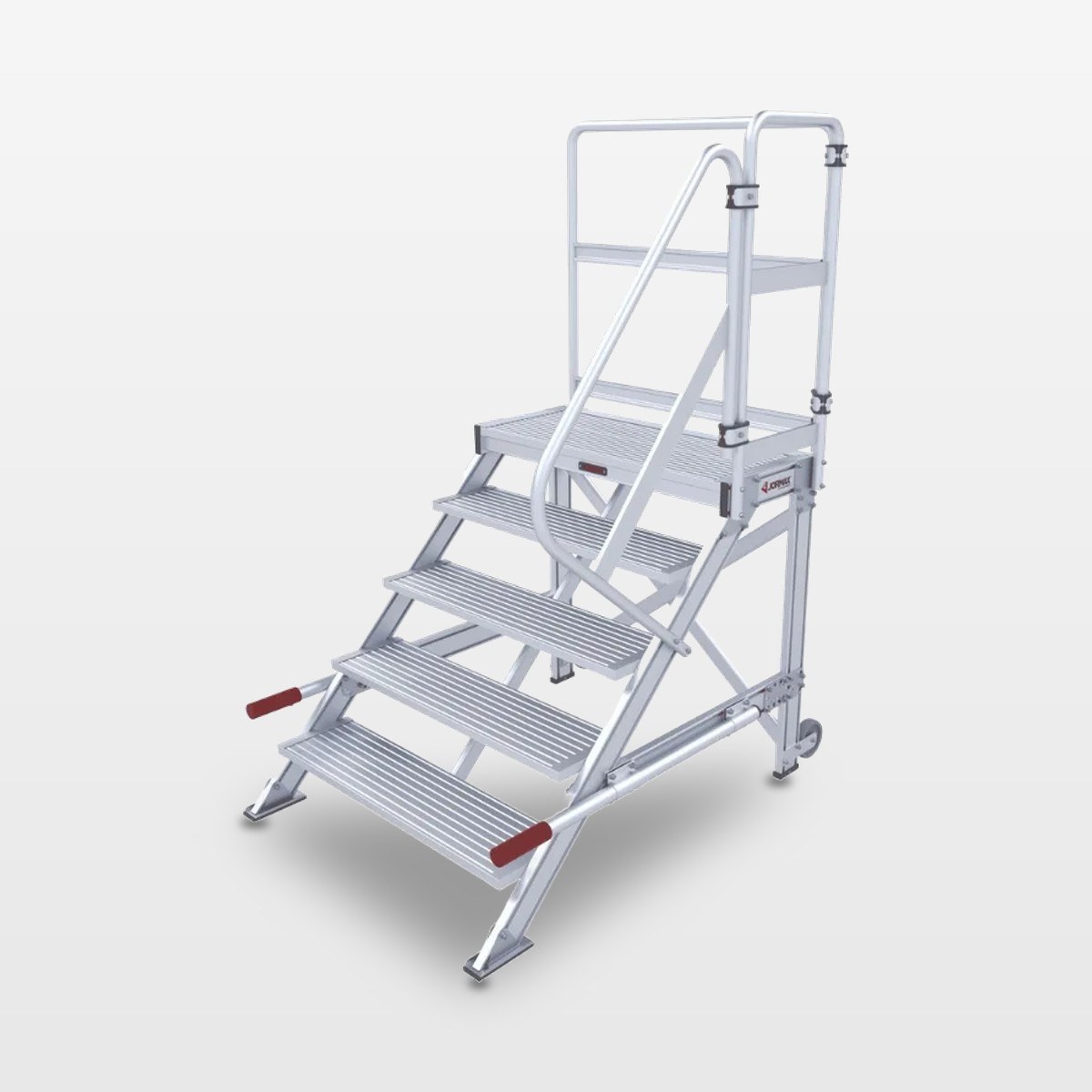

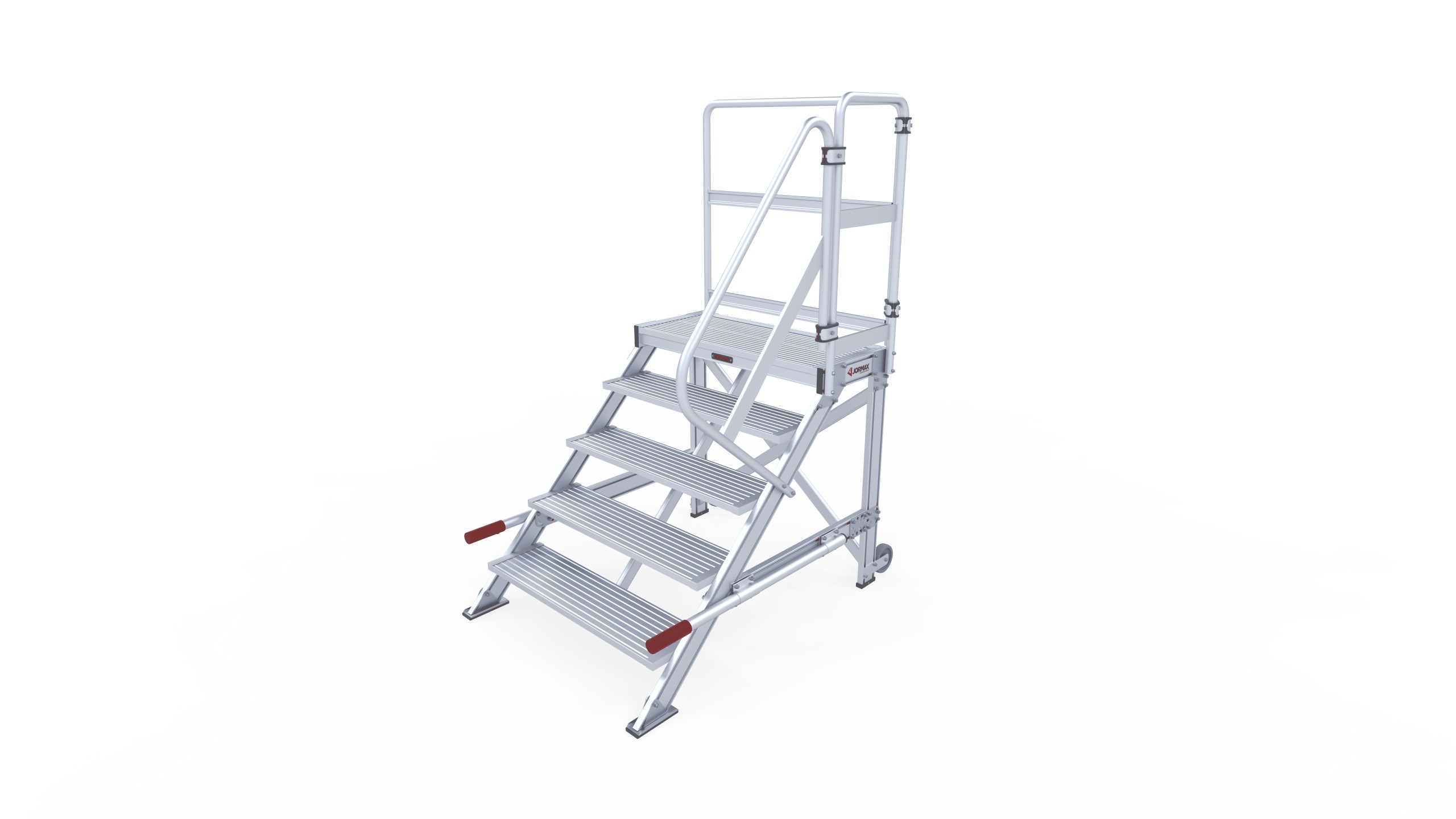

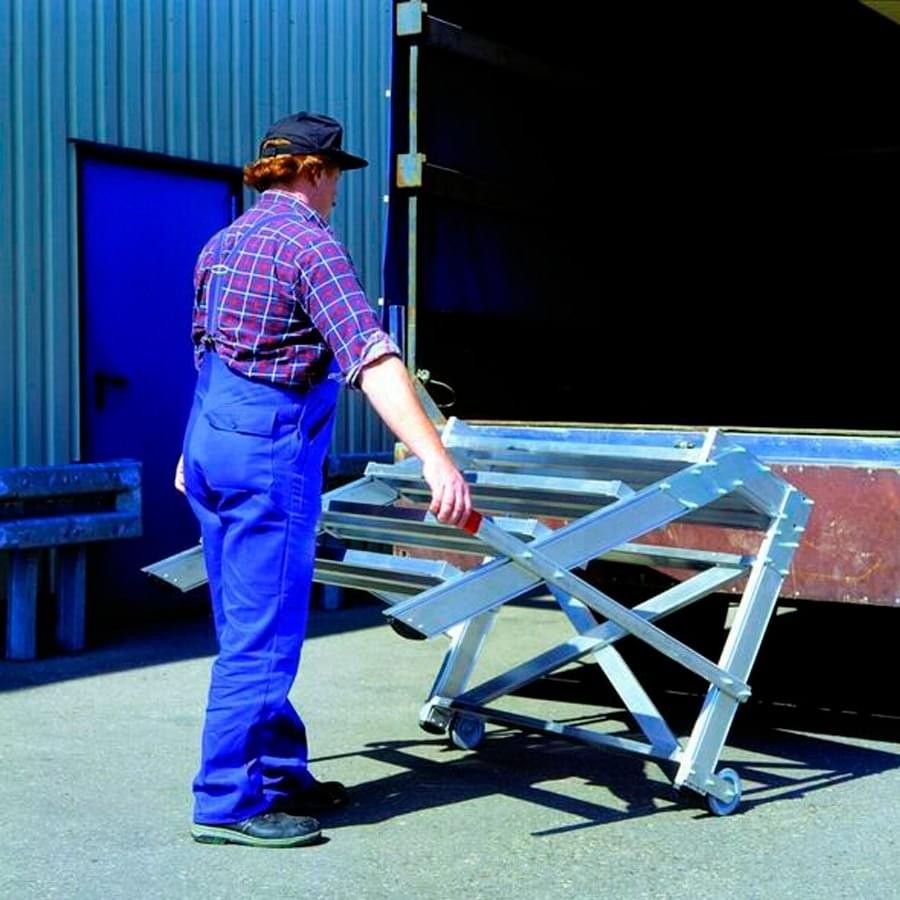

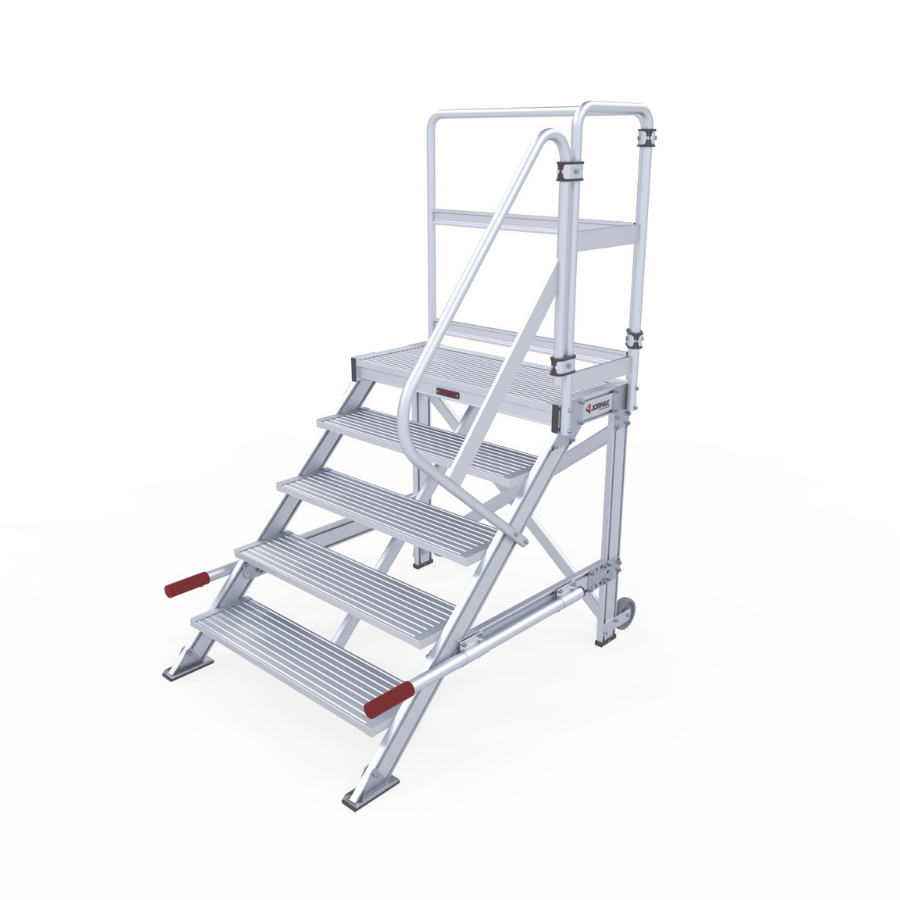

Platform fixed with 2 wheels of movement and with handles.

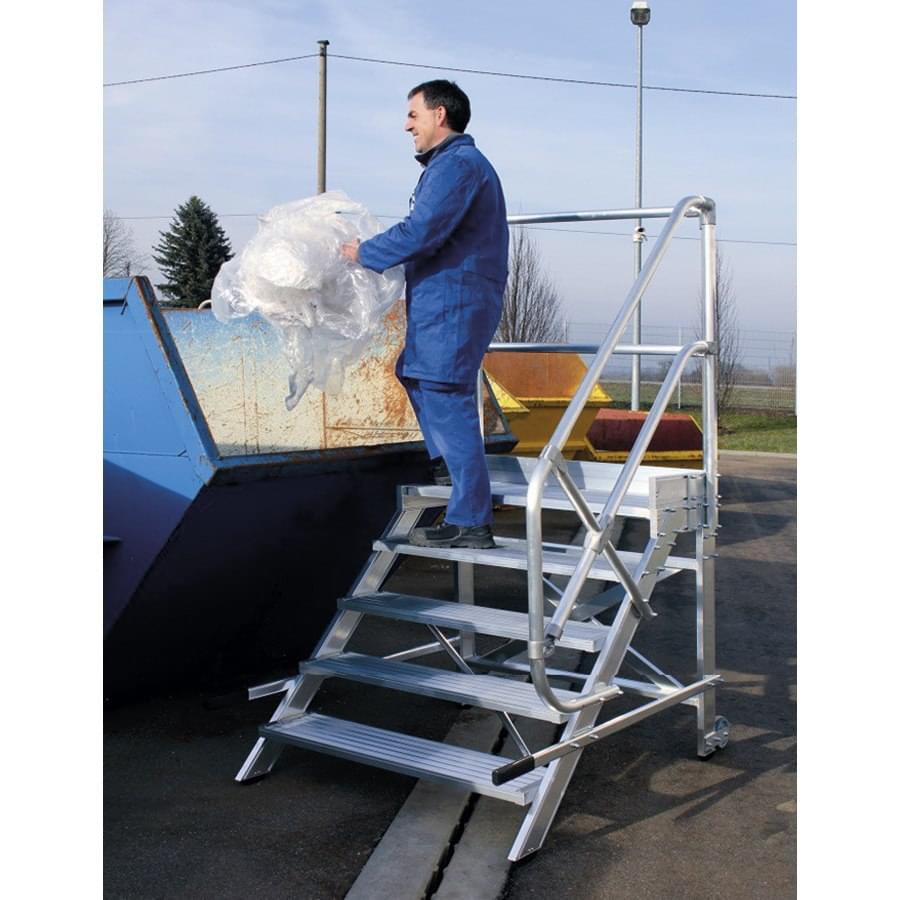

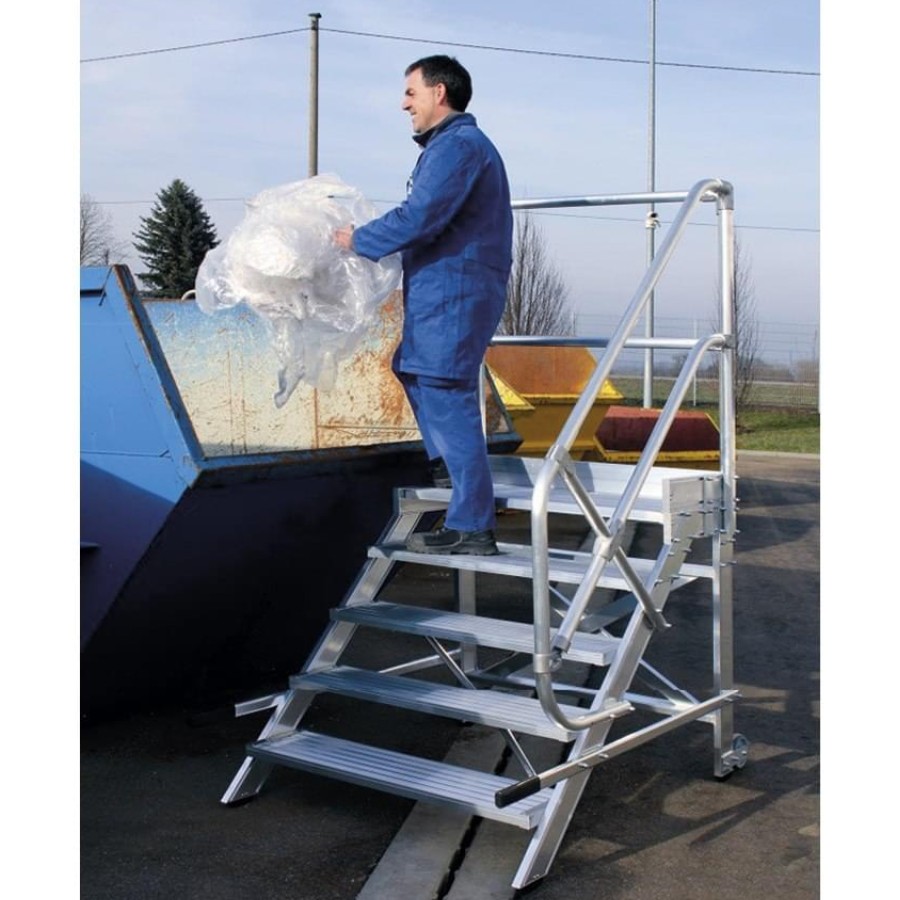

A professional fixed work platform made of ribbed extruded aluminium, with 24 cm-deep steps spaced 20 cm apart and a 48-degree access angle. Its vertical rear allows the user to get close to walls or machinery. Ideal for accessing lorries, machines and industrial equipment.
The PALCO COMPACT platform is certified to European standard EN 14183.
Jormax reserves the right to change its products or technical specifications without prior notice.
| Number of steps | 2 | 3 | 4 | 5 |
| Platform/overall height (m) | 0.39 | 0.59 | 0.79 | 0.99 |
| Length (m) | 0.85 | 1.05 | 1.25 | 1.45 |
| Weight at 60 cm width (kg) | 16.00 | 20.00 | 25.00 | 29.00 |
| Weight at 80 cm width (kg) | 18.00 | 22.00 | 28.00 | 33.00 |
| Weight at 100 cm width (kg) | 20.00 | 25.00 | 33.00 | 38.00 |
| Reference WIDTH 60cm | 30011 | 30012 | 30013 | 30014 |
| Reference WIDTH 80cm | 30015 | 30016 | 30017 | 30018 |
| Reference WIDTH 100cm | 30019 | 30020 | 30021 | 30022 |
Platform fixed with 2 wheels of movement and with handles.
A professional fixed work platform made of ribbed extruded aluminium, with 24 cm-deep steps spaced 20 cm apart and a 48-degree access angle. Its vertical rear allows the user to get close to walls or machinery. Ideal for accessing lorries, machines and industrial equipment.
The PALCO COMPACT platform is certified to European standard EN 14183.
Jormax reserves the right to change its products or technical specifications without prior notice.
| Feature | Specification |
|---|---|
| Number of steps | 2 to 5 |
| Rung spacing | 20 cm |
| Steps | 24 cm |
| Platform length | 40 cm |
| Access angle | 48º |
| Handrail height | 1.00 m |
| Width | 60, 80 or 100 cm |
| Wheels | Ø 125mm |
| Manual | User and maintenance manual included |
| Certification | EN14183 |
| Label of identification | Included |
| Note: Product dimensions may vary by +/- 2 cm. | |
