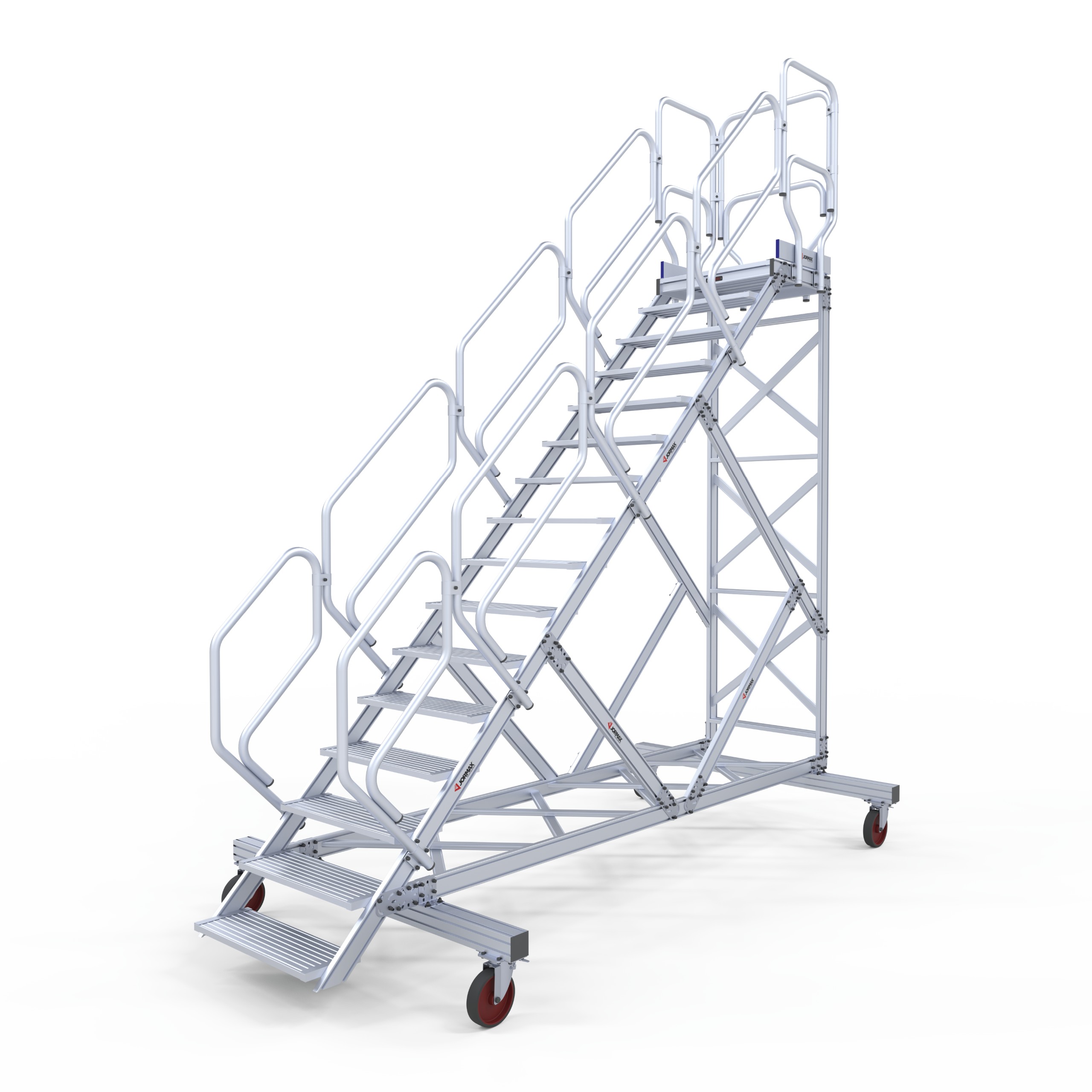

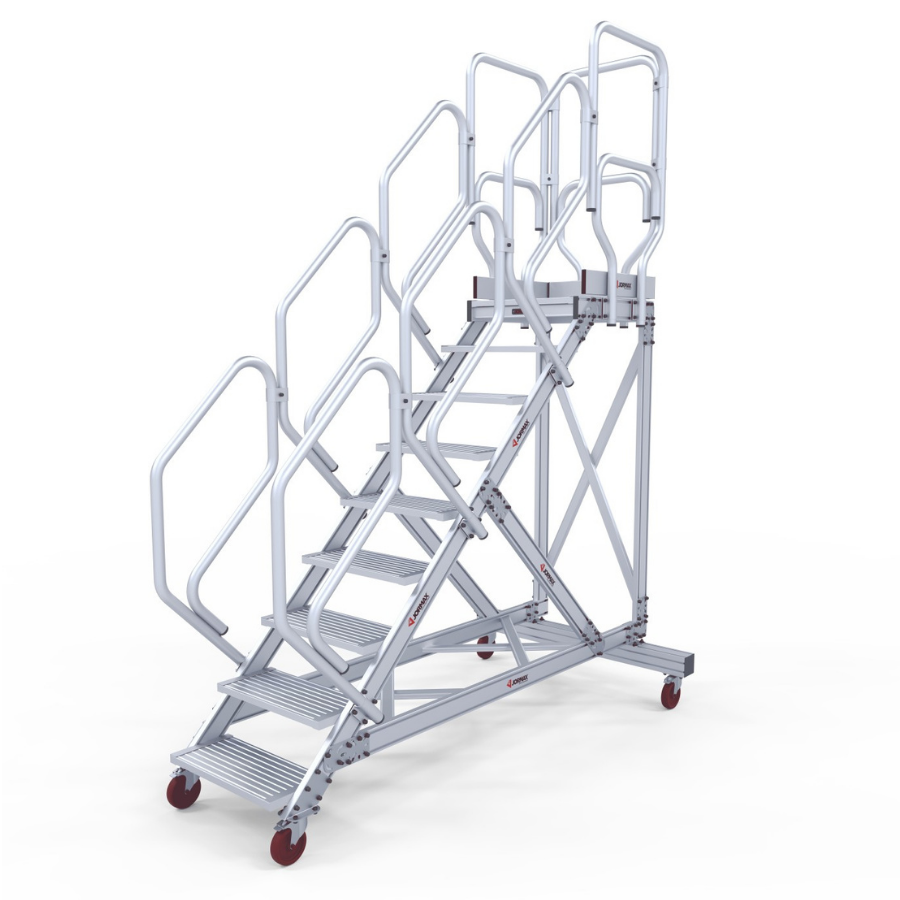

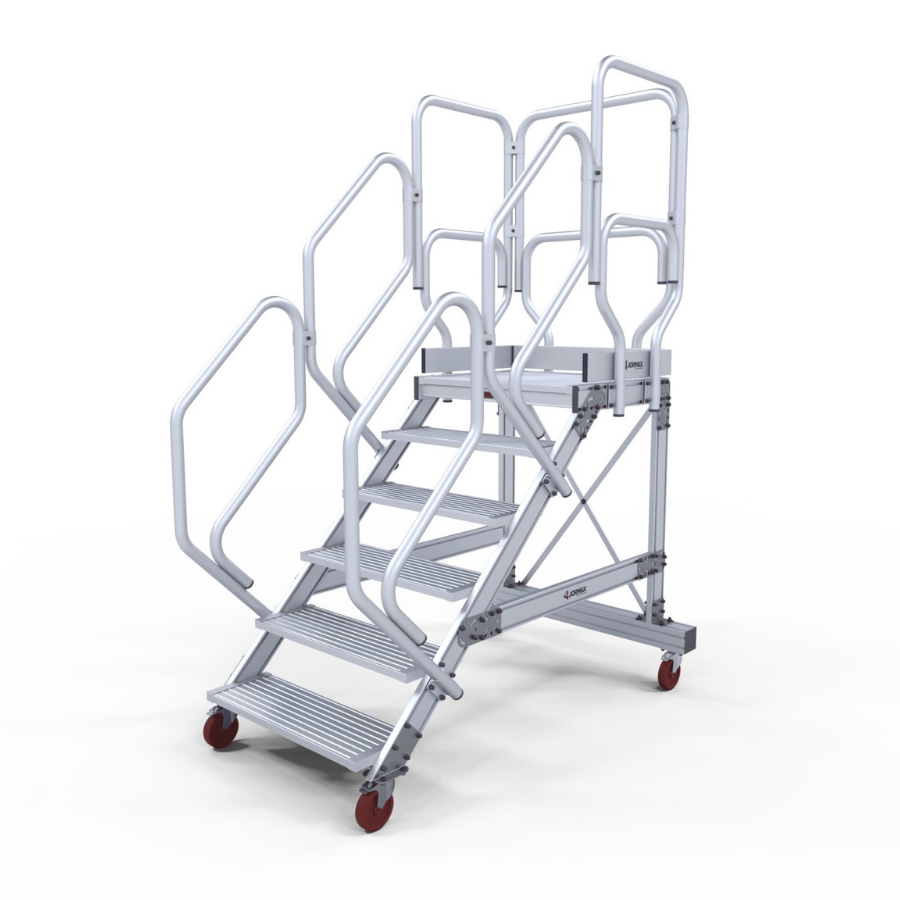

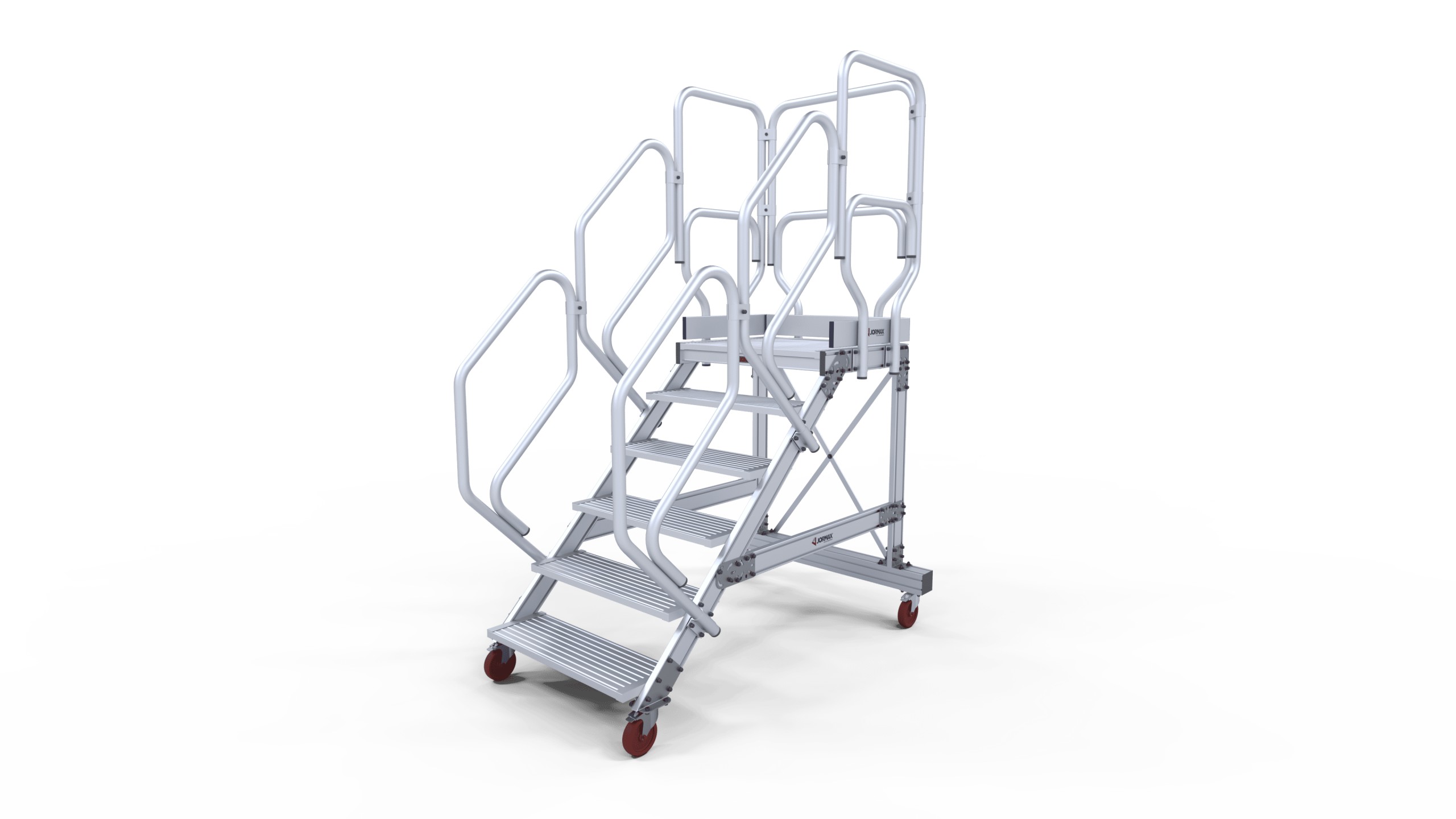

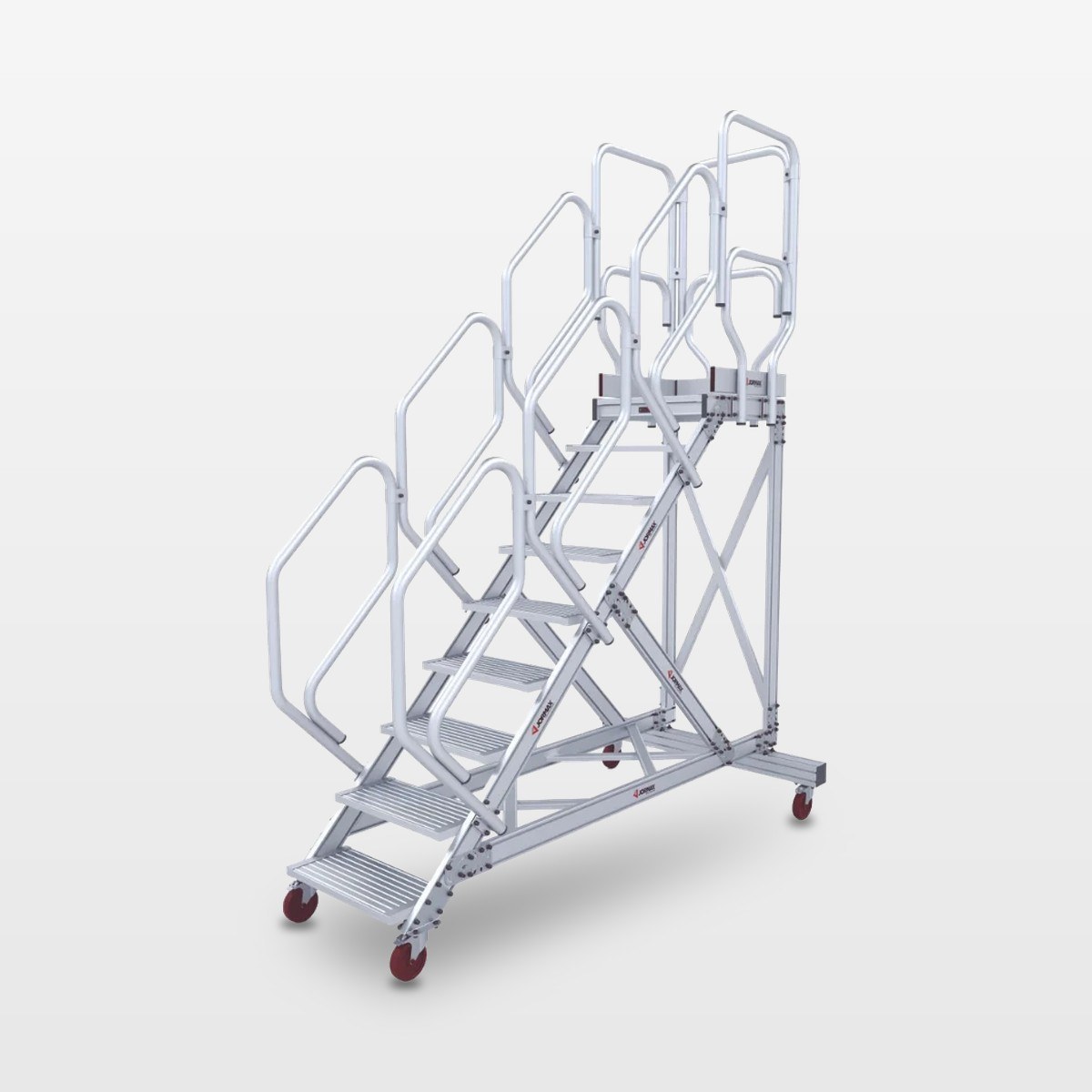

PLATAFORMA MÓVEL 45º

Spacious work platform.

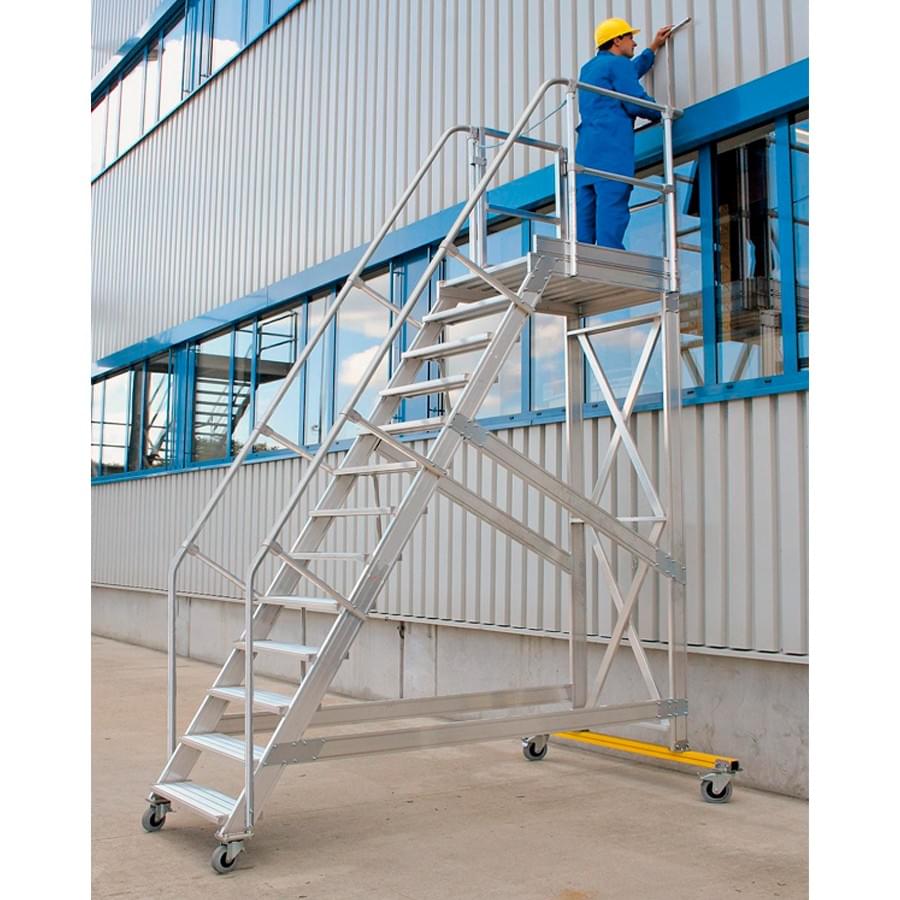

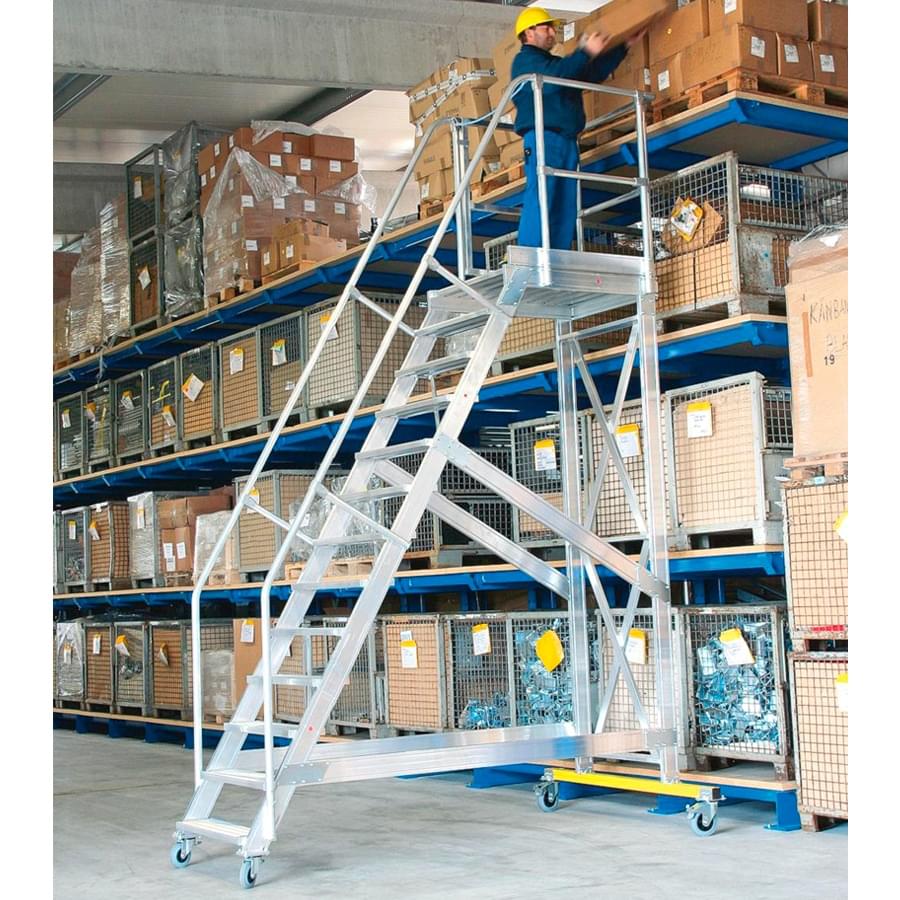

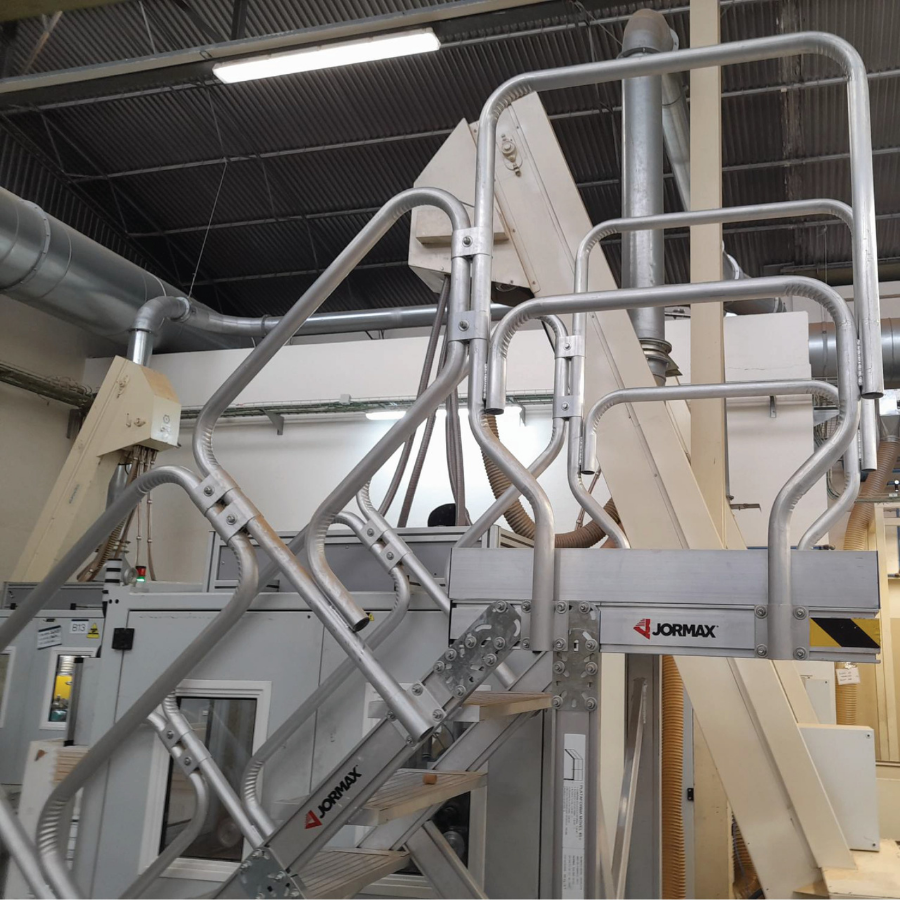

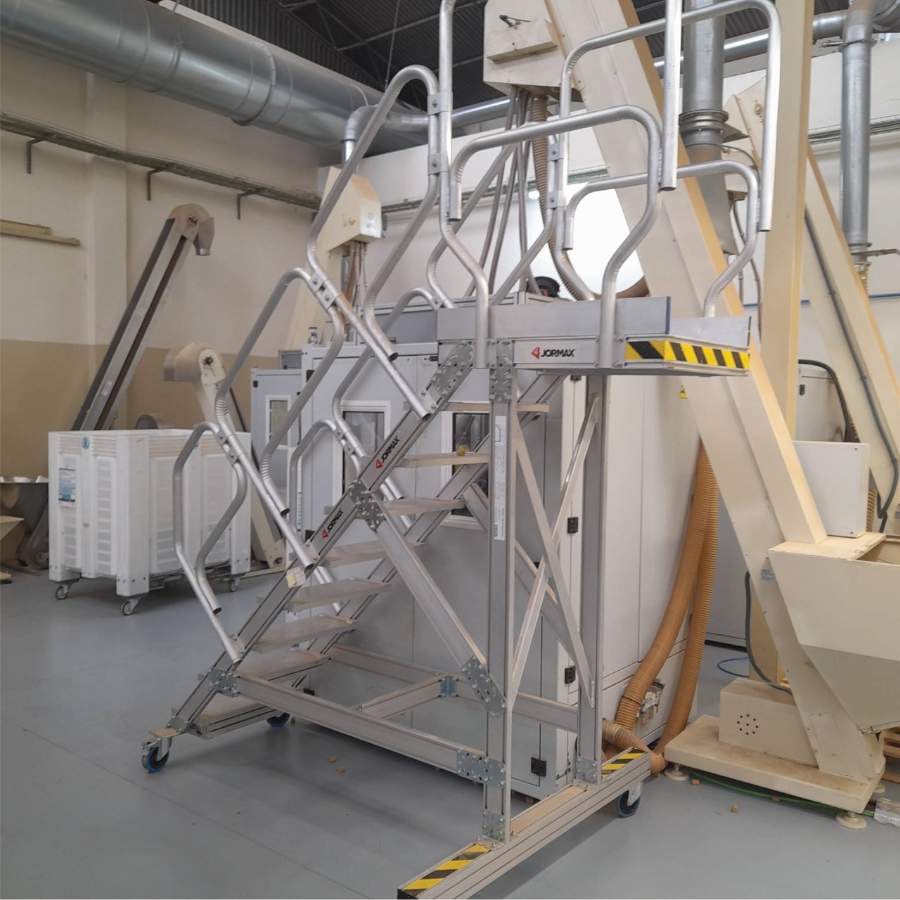

A professional mobile aluminium platform with a 45-degree access angle, 24 cm-deep steps spaced 25 cm apart and easy assembly. Available in widths of 60, 80 or 100 cm for comfortable access. Its vertical rear makes it easier to work close to a wall or machine. Ideal for reaching elevated areas.
The PLATAFORMA MÓVEL 45º is certified to European standard EN 14122.
Jormax reserves the right to change its products or technical specifications without prior notice.

Decree-Law50/2005PortugalCertifiedEN 14122Standard5 yearsWarrantyprofessional use

Follow Jormax

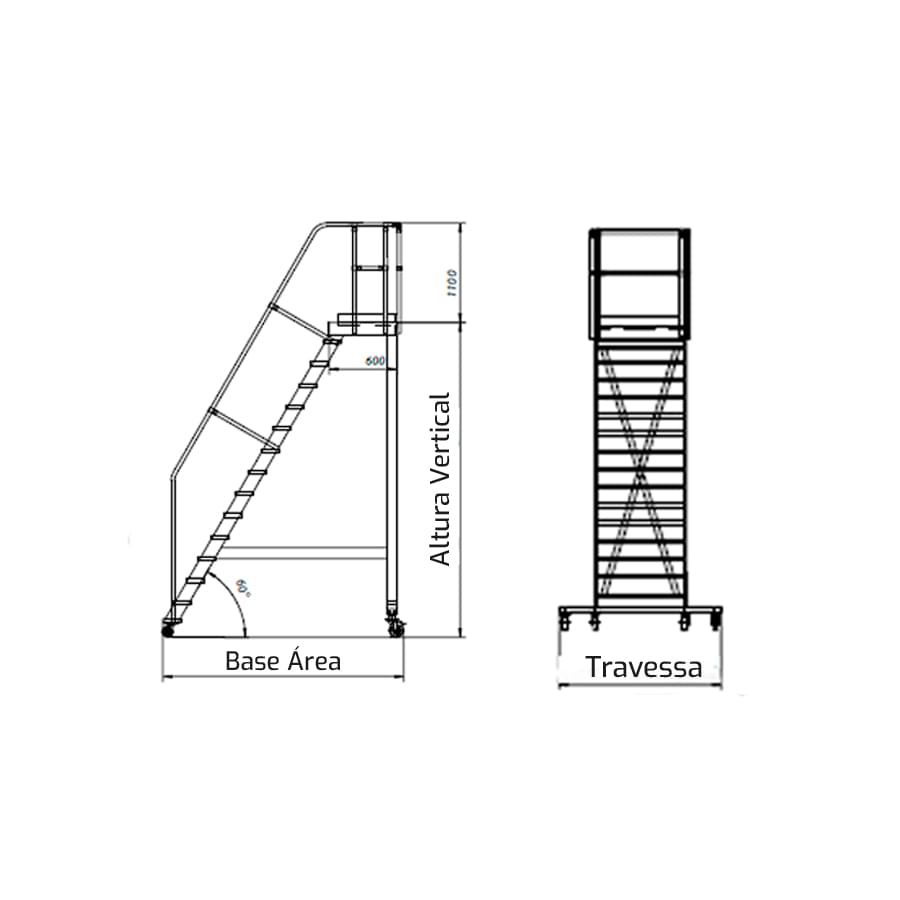

Number of steps 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
Platform height (m) 0.82 1.02 1.22 1.42 1.62 1.82 2.02 2.22 2.42 2.62 2.82 3.02 3.22 3.42 3.62 3.82
Overall height (m) 1.92 2.12 2.32 2.52 2.72 2.92 3.12 3.32 3.52 3.72 3.92 4.12 4.32 4.52 4.72 4.92
Length (m) 1.22 1.42 1.62 1.82 2.02 2.22 2.45 2.65 2.85 3.05 3.25 3.45 3.65 3.85 4.05 4.25
Ladder width (m)
60-24cm 0.69 0.69 0.69 0.69 0.69 0.69 0.69 0.69 0.69 0.69 0.69 0.69 0.69 0.69 0.69 0.69
80-24cm 0.89 0.89 0.89 0.89 0.89 0.89 0.89 0.89 0.89 0.89 0.89 0.89 0.89 0.89 0.89 0.89
100-24cm 1.09 1.09 1.09 1.09 1.09 1.09 1.09 1.09 1.09 1.09 1.09 1.09 1.09 1.09 1.09 1.09
Crossbar (m)
60-24cm 1.20 1.20 1.20 1.20 1.20 1.20 1.20 1.20 1.20 1.20 1.20 1.20 1.20 1.20 1.20 1.20
80-24cm 1.40 1.40 1.40 1.40 1.40 1.40 1.40 1.40 1.40 1.40 1.40 1.40 1.40 1.40 1.40 1.40
100-24cm 1.60 1.60 1.60 1.60 1.60 1.60 1.60 1.60 1.60 1.60 1.60 1.60 1.60 1.60 1.60 1.60
Reference
60-24cm 200764 200765 200766 200767 200768 200769 200770 200771 200772 200773.1 200774.1 200775.1 200776.1 200777.1 200778.1 200779.1
80-24cm 200884 200885 200886 200887 200888 200889 200890 200891 200892 200893 200894 200895 200896 200897 200898 200899
100-24cm 200834 200835 200836 200837 200838 200839 200840 200841 200842 200843 200844 200845 200846 200847 200848 200849

Description

Spacious work platform.

A professional mobile aluminium platform with a 45-degree access angle, 24 cm-deep steps spaced 25 cm apart and easy assembly. Available in widths of 60, 80 or 100 cm for comfortable access. Its vertical rear makes it easier to work close to a wall or machine. Ideal for reaching elevated areas.
The PLATAFORMA MÓVEL 45º is certified to European standard EN 14122.
Jormax reserves the right to change its products or technical specifications without prior notice.

Decree-Law50/2005PortugalCertifiedEN 14122Standard5 yearsWarrantyprofessional use

Feature Specification
Number of steps 4 to 19
Rung spacing 25 cm
Step depth 24 cm
Platform 80×60, 80 or 100 cm
Toeboards + guardrails 1.10 m
4 wheels with brake Ø125 mm
Stile profile 130×25 mm
Access angle 45º
Manual User and maintenance manual included
Certification EN14122
Identification label Included
Note: Product dimensions may vary by +/- 2 cm.
Option without wheels available on request.
