Ladder of access in aluminium

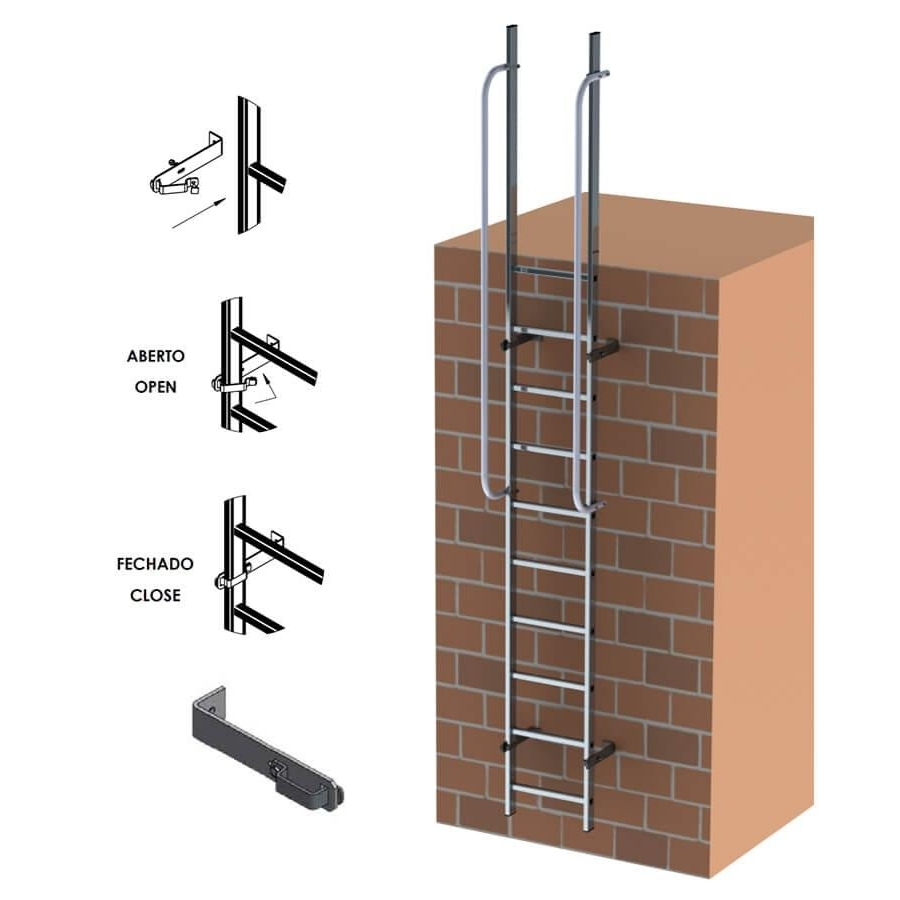

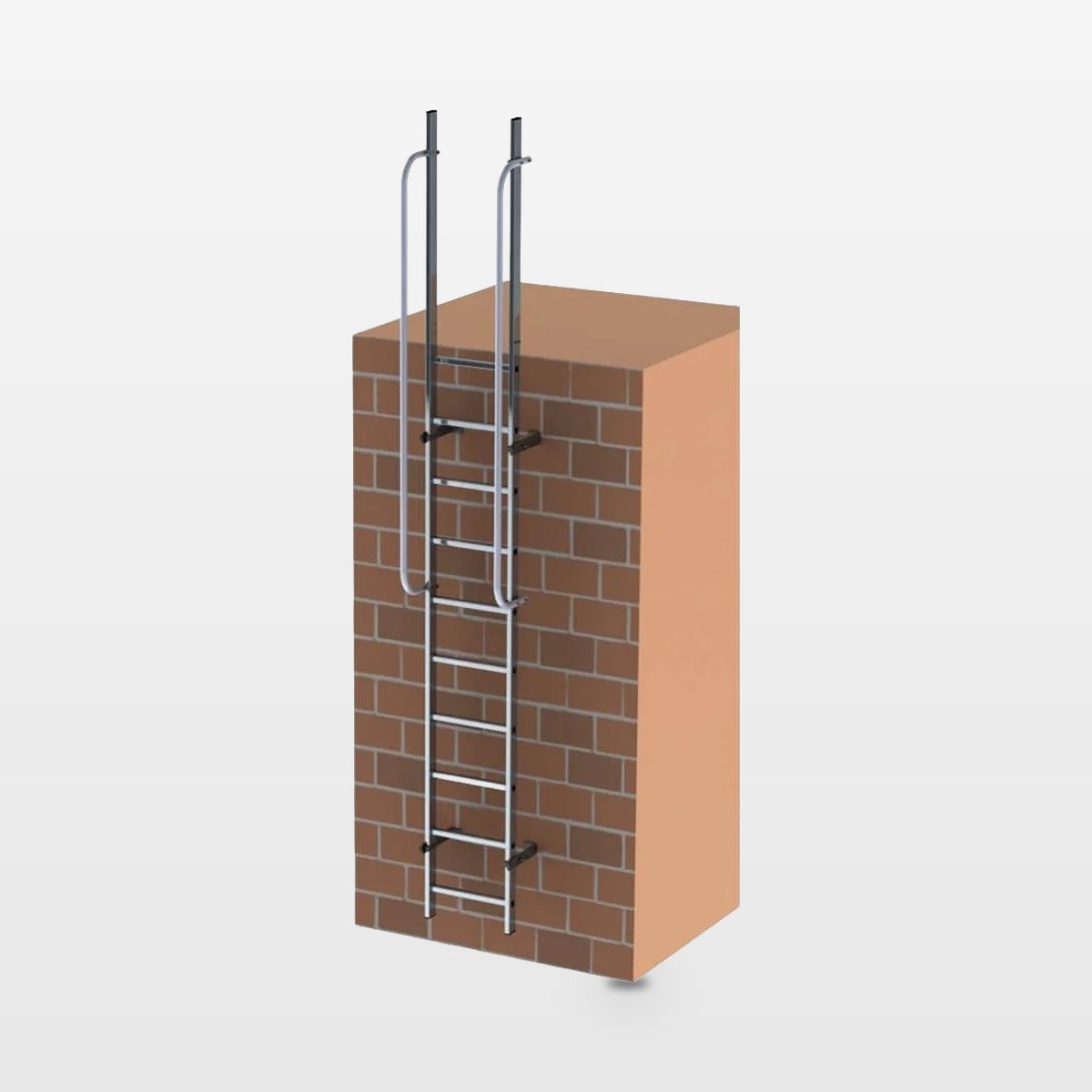

A professional vertical access ladder made of extruded aluminium, with 3 cm-deep rungs riveted to the stiles and spaced 28 cm apart. Includes handrails extending a further 1.10 m above the ladder. Ideal for accessing upper floors and elevated points in buildings. Access equipment does not replace appropriate training or the use of safety equipment for the work undertaken.
The VERTICAL WITH EXIT ladder is certified to standard DIN 18799-1.
Jormax reserves the right to change its products or technical specifications without prior notice.
| Number of steps | 7 | 10 | 13 | 17 | |
|---|---|---|---|---|---|
| Height of top step (m) | 2.06 | 2.90 | 3.74 | 4.86 | |
| Overall height (m) | 3.04 | 3.88 | 4.72 | 5.83 | |
| External width (m) | 0.45 | 0.45 | 0.45 | 0.45 | |
| Weight (kg) | 5.00 | 8.00 | 11.00 | 15.00 | |
| Reference | 10100 | 10103 | 10106 | 10108 | |
| * To comply with DIN 18799-1, a safety cage must be fitted above 3.00 m. | |||||
Ladder of access in aluminium

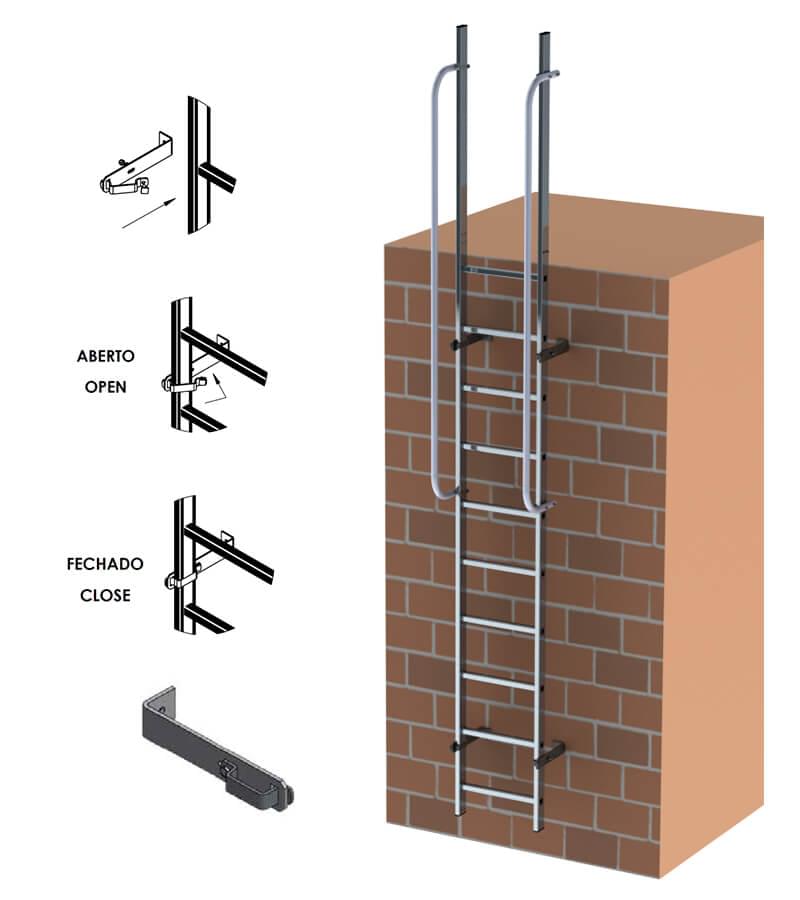

A professional vertical access ladder made of extruded aluminium, with 3 cm-deep rungs riveted to the stiles and spaced 28 cm apart. Includes handrails extending a further 1.10 m above the ladder. Ideal for accessing upper floors and elevated points in buildings. Access equipment does not replace appropriate training or the use of safety equipment for the work undertaken.
The VERTICAL WITH EXIT ladder is certified to standard DIN 18799-1.
Jormax reserves the right to change its products or technical specifications without prior notice.
| Feature | Specification |
|---|---|
| Number of steps | 7 to 17 |
| Rung spacing | 28 cm |
| Steps | 3 cm |
| Profile | 65×25 mm |
| External width | 45 cm |
| Handrail height | 1.10 m |
| Number of fixings | 4 to 6 |
| Manual | User and maintenance manual included |
| Certification | DIN 18799-1 |
| Label of identification | Included |
| Note: Product dimensions may vary by +/- 2 cm. | |
