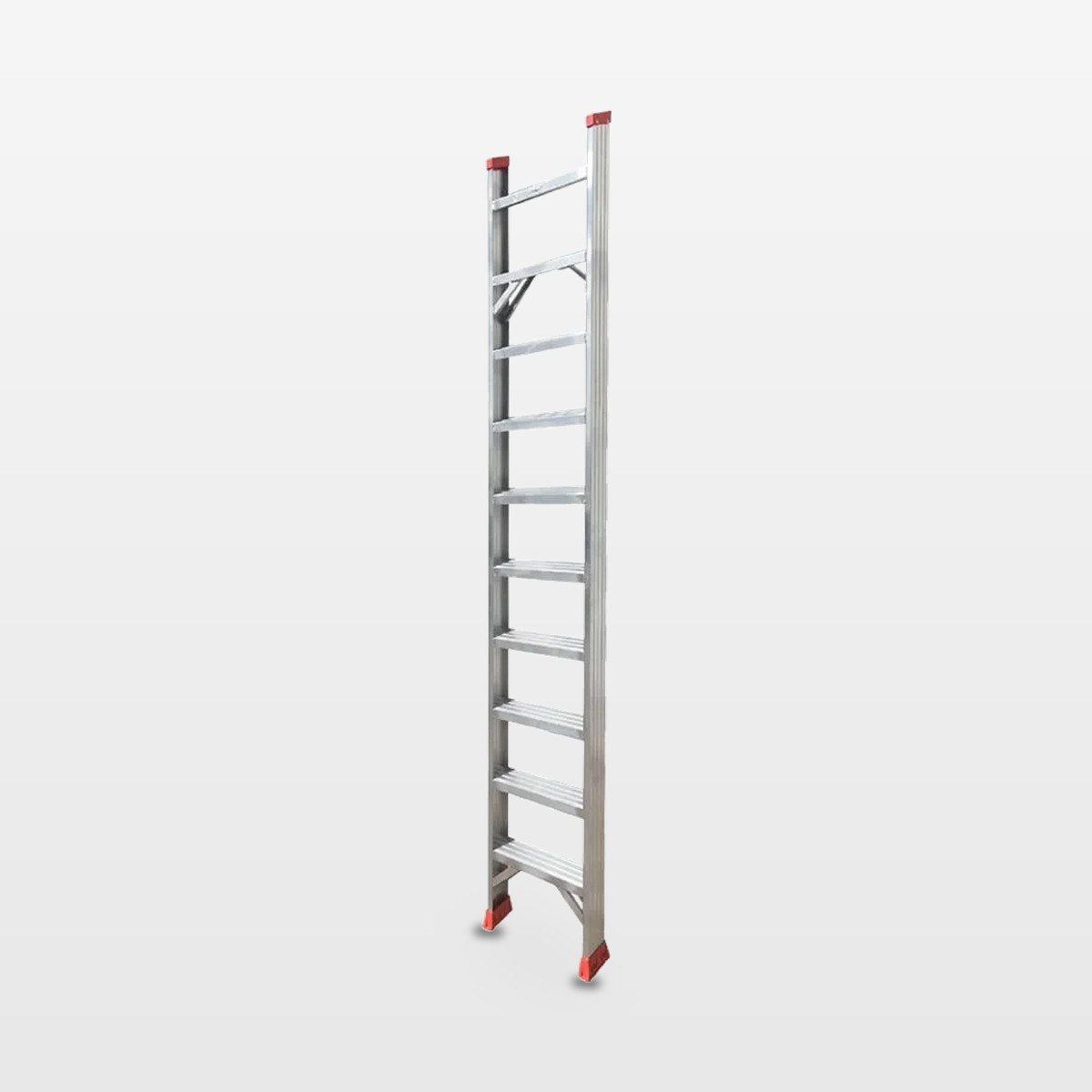

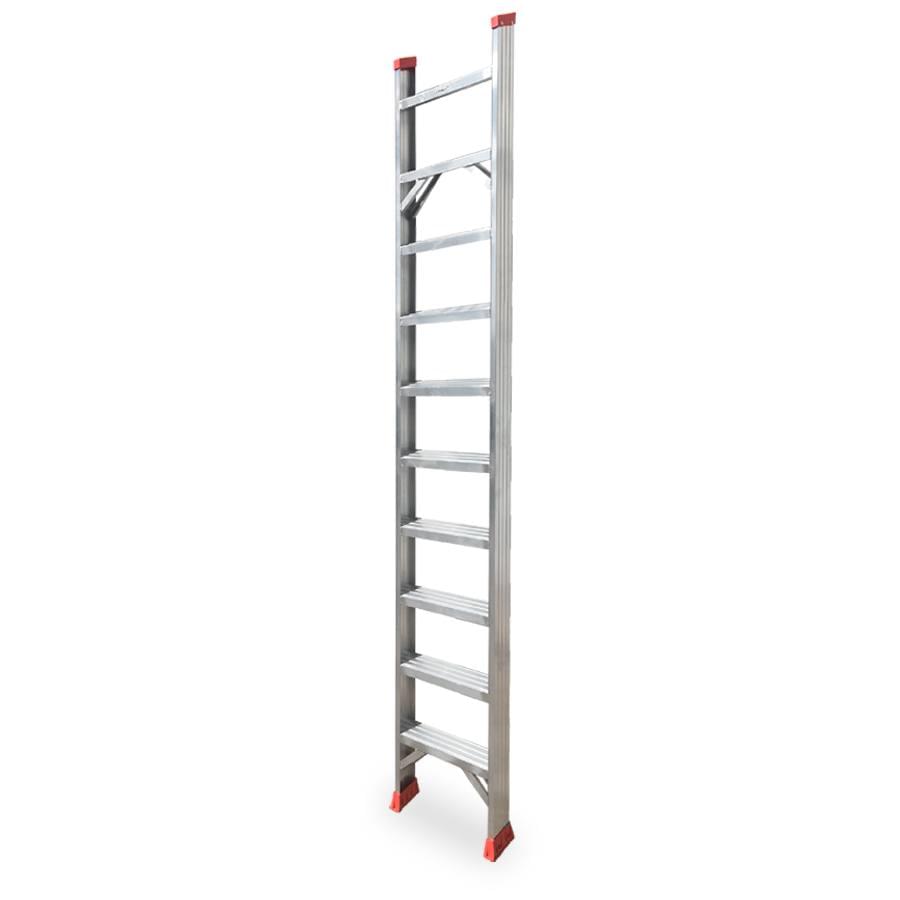

Single-section wide-rung leaning ladder, 450 mm overall width.

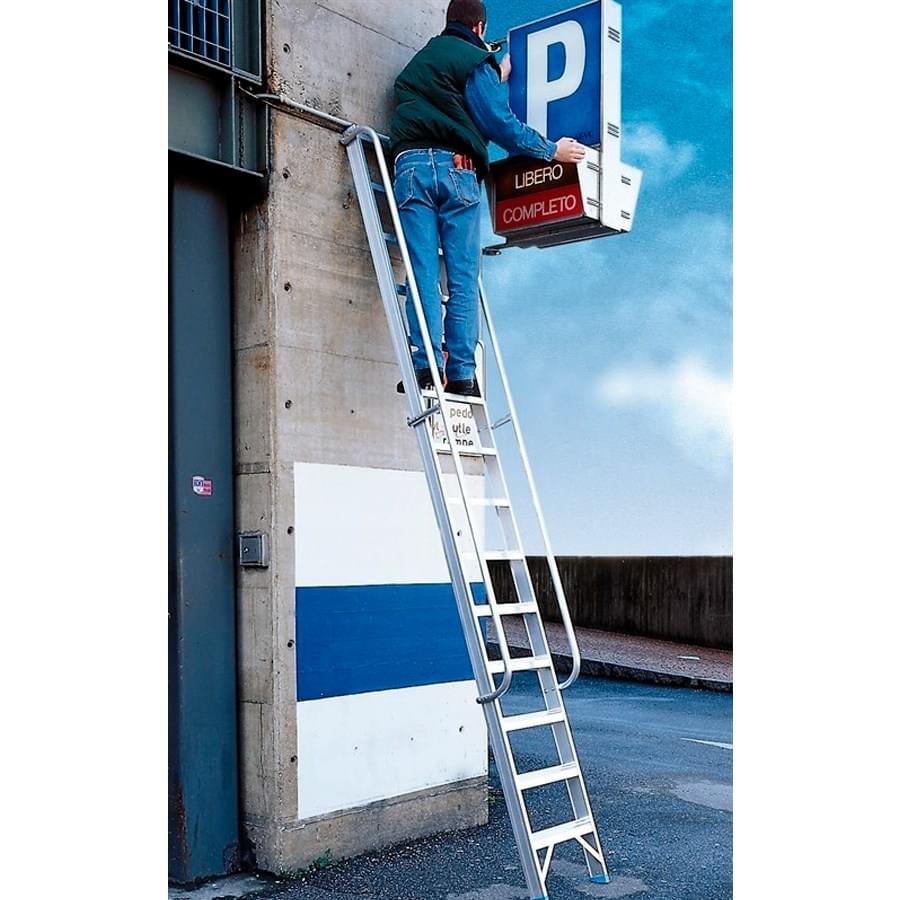

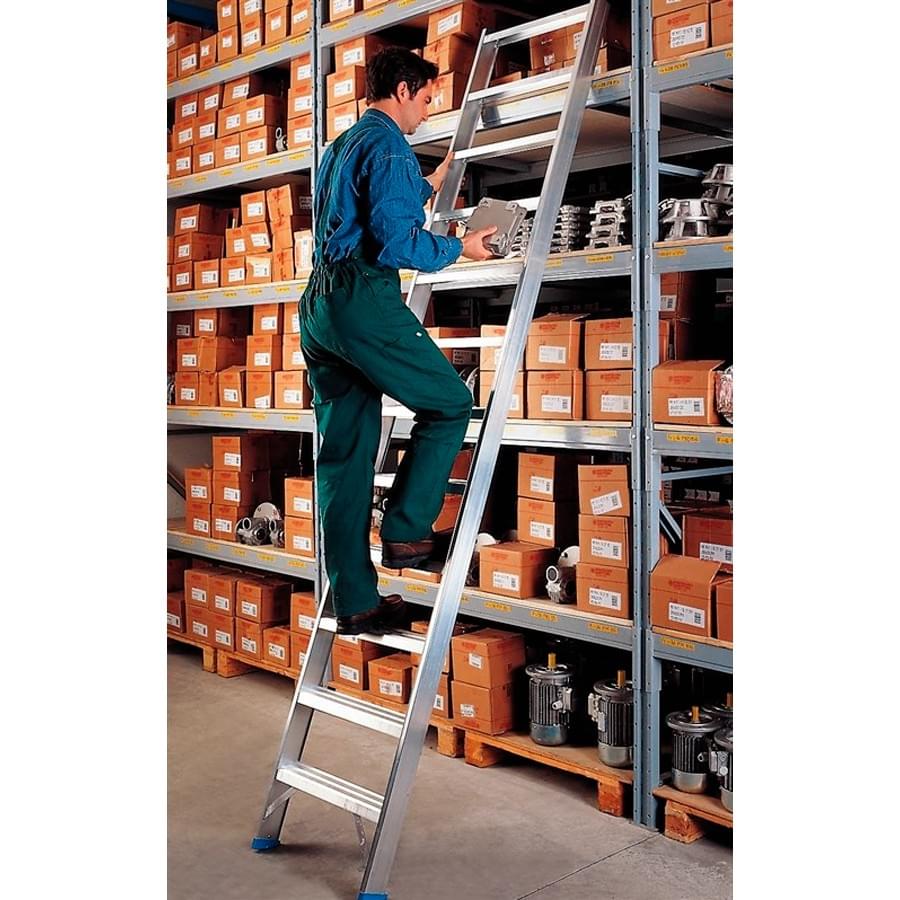

A heavy-duty professional single-section leaning ladder made of high-strength ribbed aluminium. It has wide, 8 cm-deep rungs spaced 25 cm apart, with a tray and tool holder at the top. Ideal for prolonged professional tasks, such as agricultural work and industrial maintenance.
The STRAIGHT SINGLE-SECTION ladder is certified to European standard EN 131.
Jormax reserves the right to change its products or technical specifications without prior notice.
| Number of steps | 8 | 10 | 12 | 14 | 16 | 18 |
|---|---|---|---|---|---|---|
| Overall height (m) | 2.16 | 2.66 | 3.16 | 3.66 | 4.16 | 4.66 |
| Working height (m) | 2.86 | 3.36 | 3.86 | 4.36 | 4.86 | 5.36 |
| Width (m) | 0.45 | 0.45 | 0.45 | 0.45 | 0.45 | 0.45 |
| Weight without handrails (kg) | 5.00 | 6.50 | 8.00 | 9.50 | 12.00 | 13.50 |
| Weight with handrails (kg) | 6.00 | 8.50 | 10.00 | 13.00 | 14.50 | 15.50 |
| Reference with handrail | 10134 | 10135 | 10136 | 10137 | 10138 | 10139 |
| Reference without handrail | 10140 | 10141 | 10142 | 10143 | 10144 | 10145 |
Single-section wide-rung leaning ladder, 450 mm overall width.
A heavy-duty professional single-section leaning ladder made of high-strength ribbed aluminium. It has wide, 8 cm-deep rungs spaced 25 cm apart, with a tray and tool holder at the top. Ideal for prolonged professional tasks, such as agricultural work and industrial maintenance.
The STRAIGHT SINGLE-SECTION ladder is certified to European standard EN 131.
Jormax reserves the right to change its products or technical specifications without prior notice.
| Feature | Specification |
|---|---|
| Number of steps | 8 to 18 |
| Rung spacing | 25 cm |
| Profile | 80×25 mm |

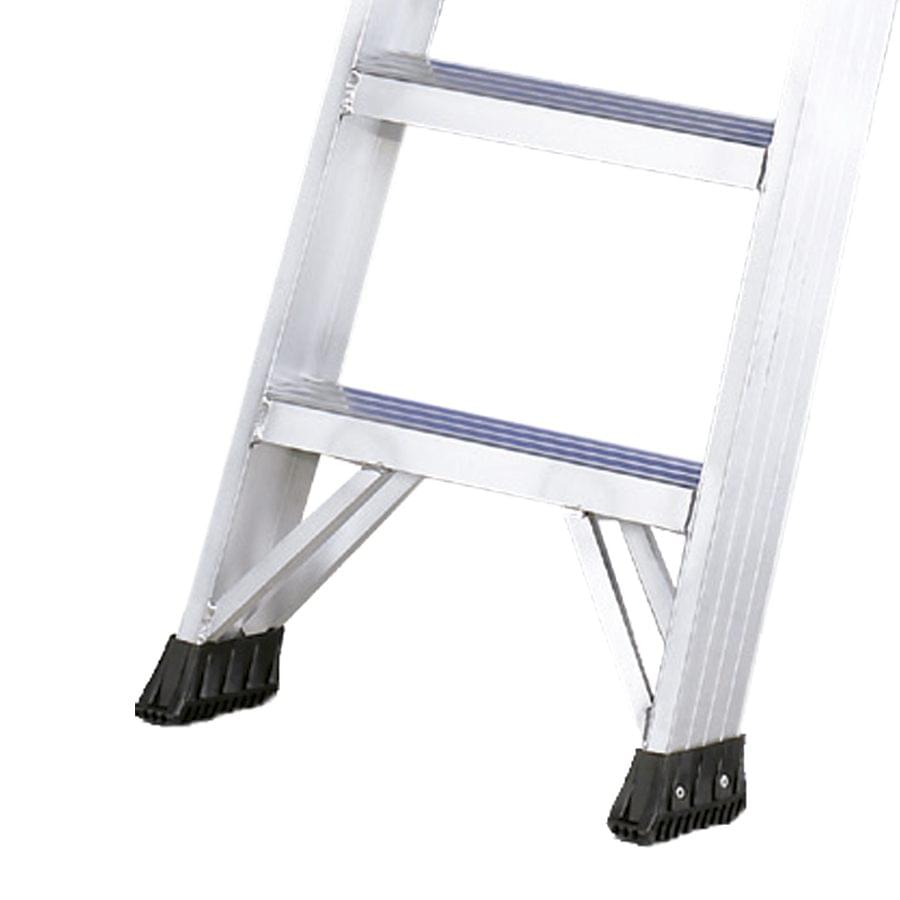

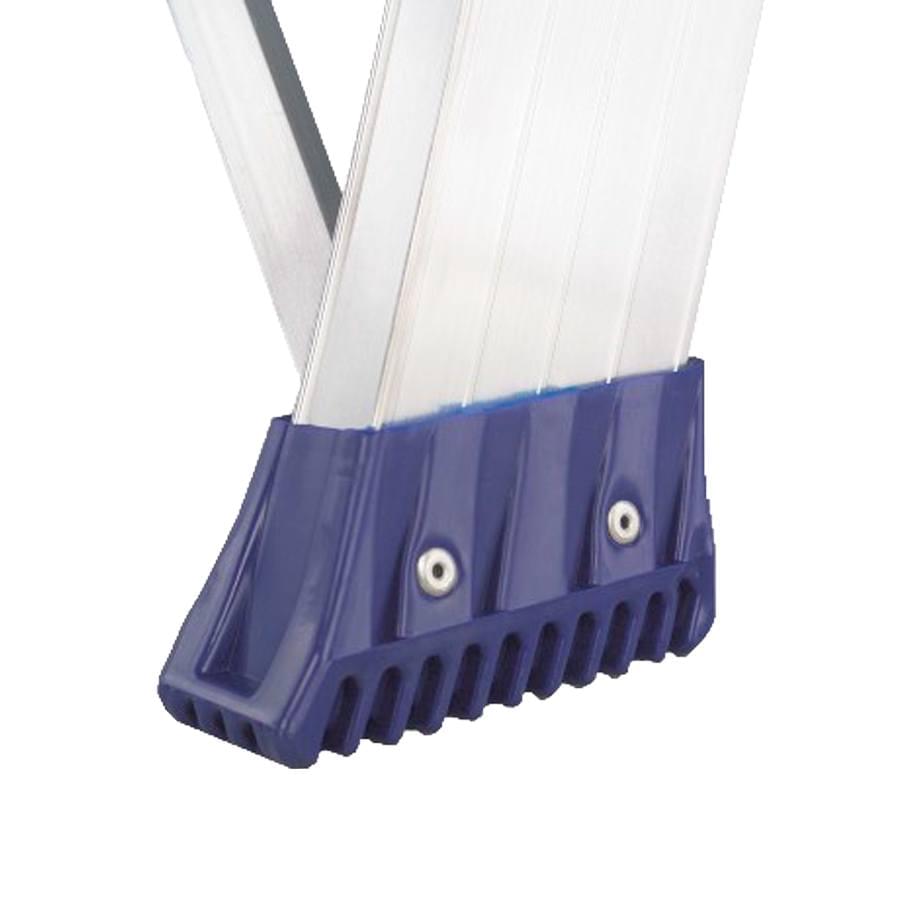

| Non-slip feet | With design ergonomic |
| Stiles | With reinforcement |

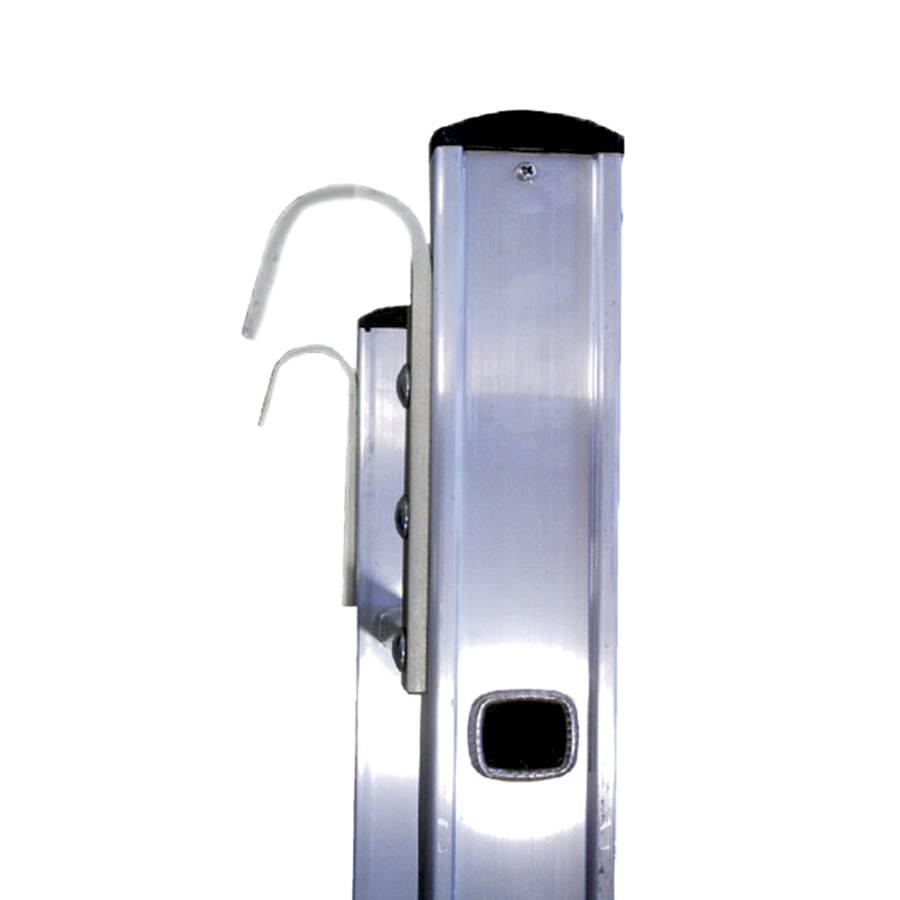

| Hook of safety | Safety device preventing the platform from opening accidentally |
| Strap of safety | Anti-opening |

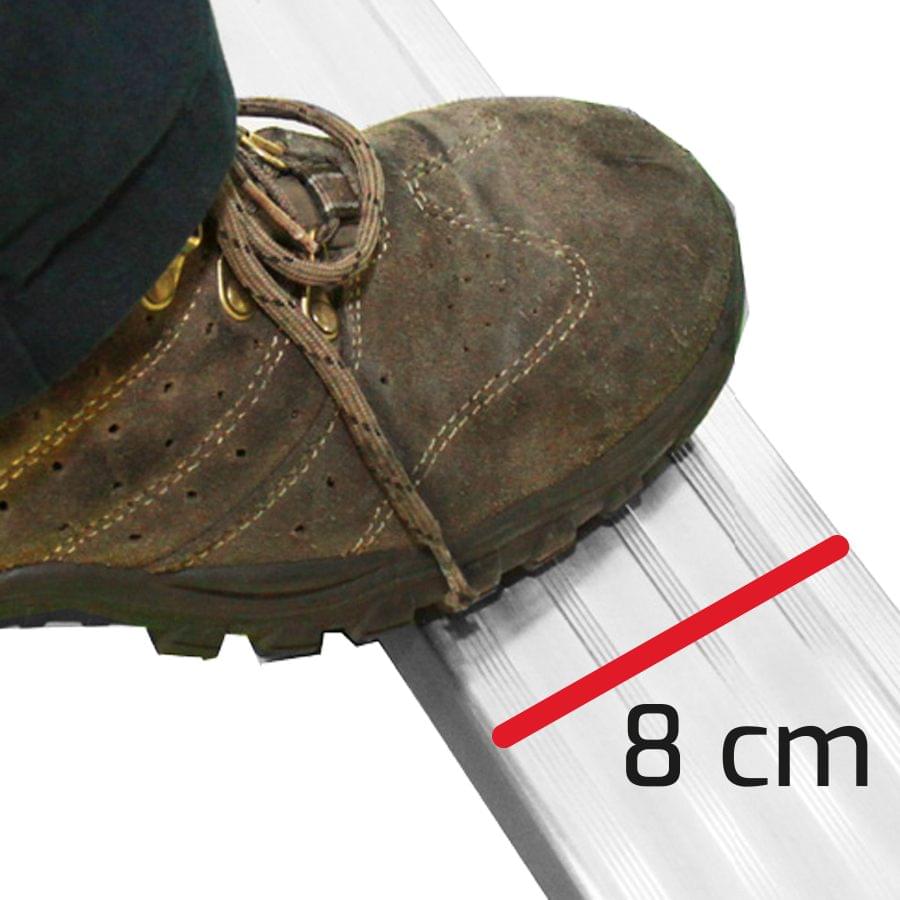

| Step depth | 8 cm |
| Manual | User and maintenance manual included |
| Certification | EN131 |
| Label of identification | Included |
| Note: Product dimensions may vary by +/- 2 cm. | |
