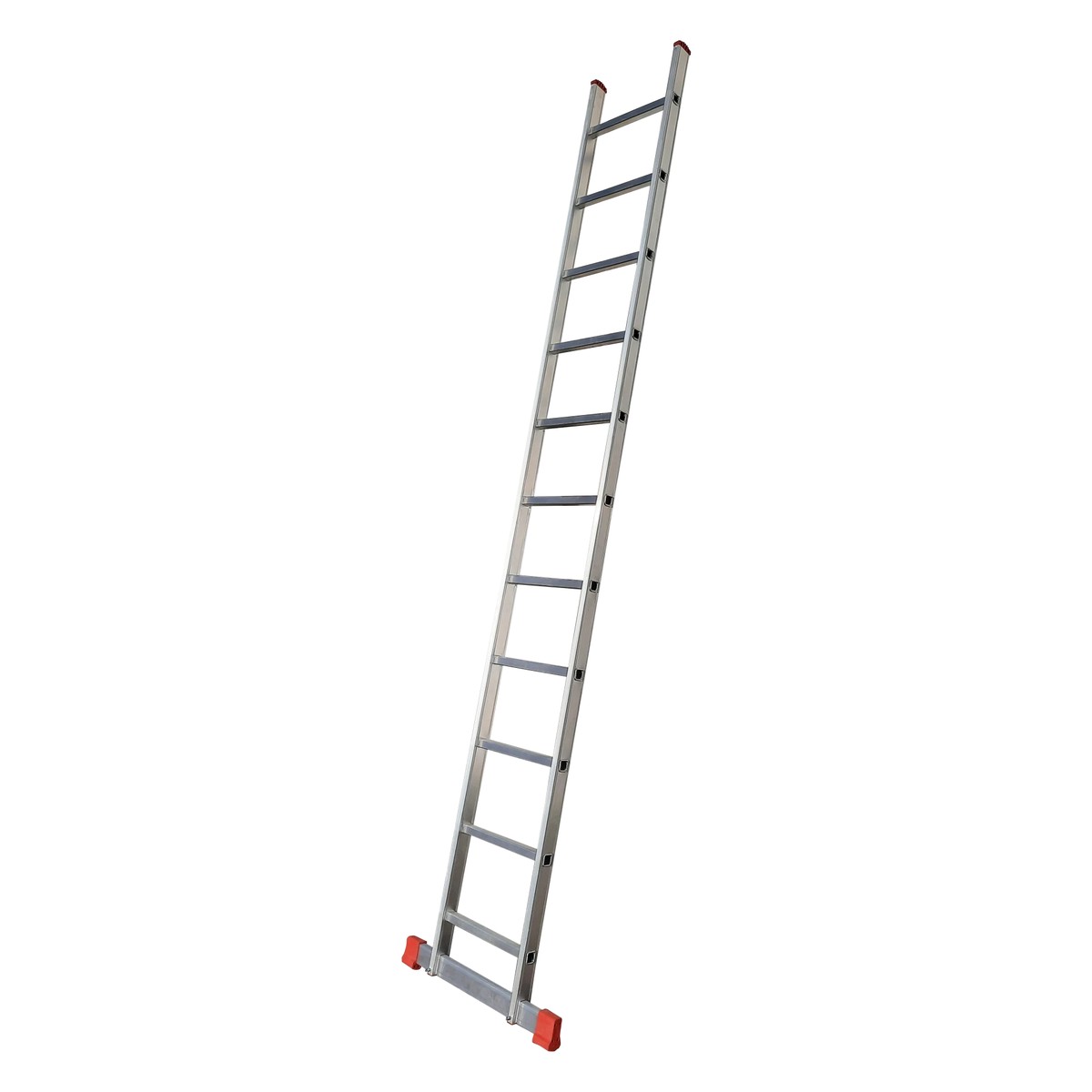

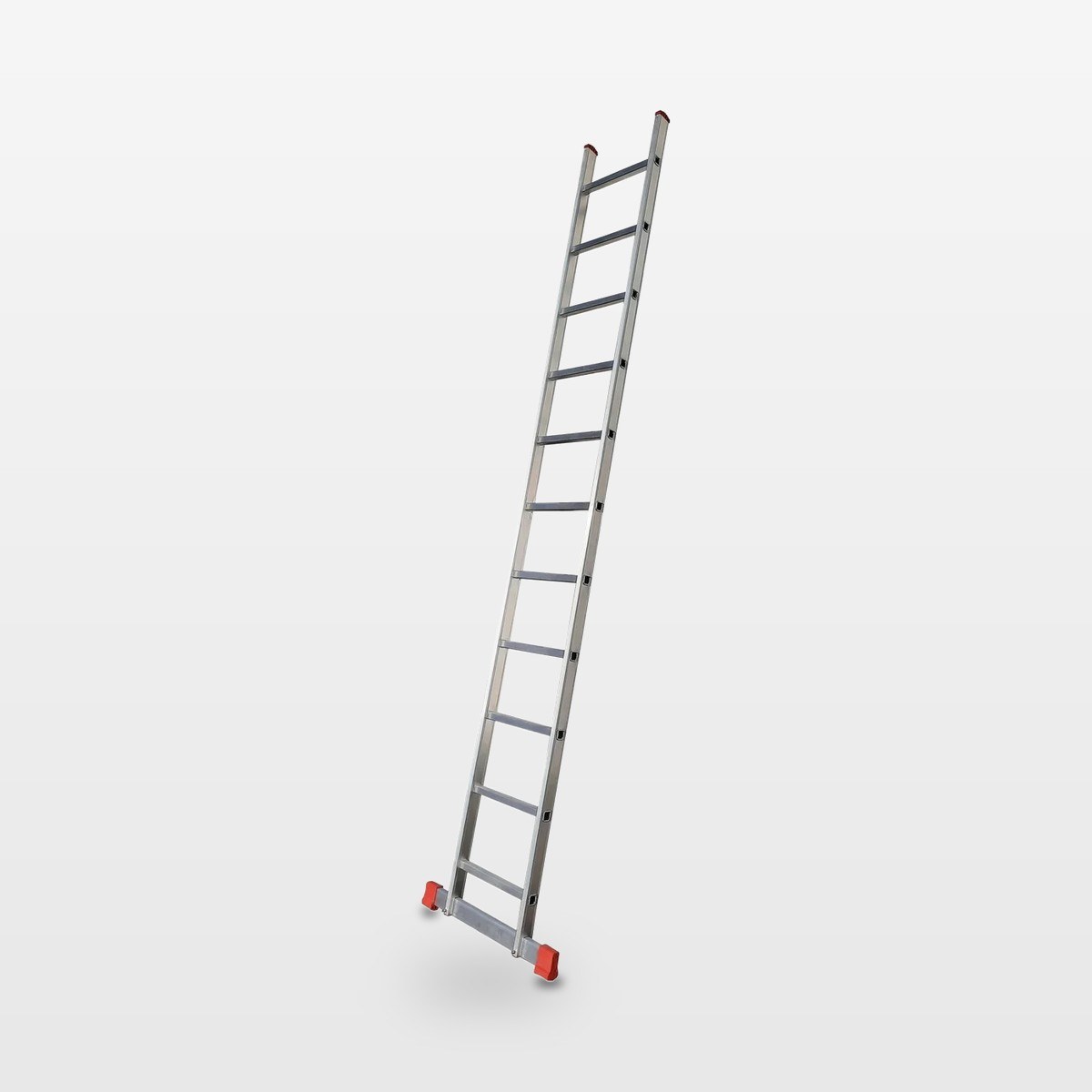

A single-section leaning ladder made of ribbed extruded aluminium.

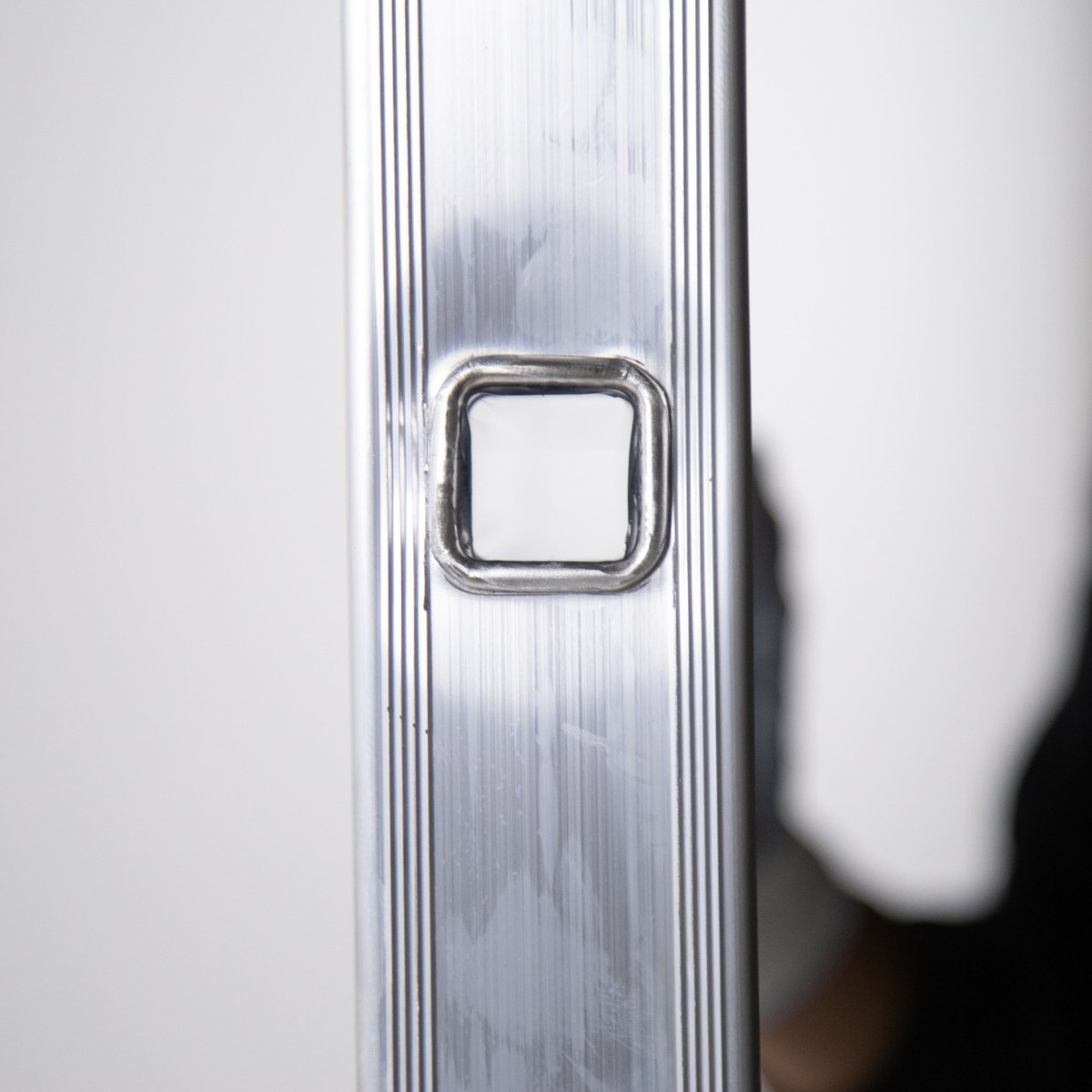

A premium professional single-section leaning ladder made of ribbed extruded aluminium for comfort and durability. Rungs are spaced 28 cm apart and secured permanently to the stiles by an advanced automatic riveting system. Suitable for a wide variety of professional tasks.
The MAXILADDER SINGLE-SECTION ladder is certified to European standard EN 131.
Jormax reserves the right to change its products or technical specifications without prior notice.
| Number of steps | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 17 | 20 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Overall height (m) | 1.80 | 2.08 | 2.36 | 2.64 | 2.92 | 3.20 | 3.48 | 3.76 | 4.04 | 4.88 | 5.72 |
| Width (m) | 0.43 | 0.43 | 0.43 | 0.43 | 0.43 | 0.43 | 0.43 | 0.43 | 0.43 | 0.43 | 0.43 |
| Profile (mm) | 65 x 25 | 65 x 25 | 65 x 25 | 65 x 25 | 65 x 25 | 65 x 25 | 65 x 25 | 65 x 25 | 65 x 25 | 73 x 25 | 73 x 25 |
| Weight (kg) | 4.00 | 5.00 | 6.00 | 7.00 | 8.00 | 9.00 | 10.00 | 11.00 | 12.00 | 15.00 | 18.00 |
| Reference | 10165 | 10166 | 10167 | 10168 | 10169 | 10170 | 10171 | 10172 | 10173 | 10174 | 10175 |
A single-section leaning ladder made of ribbed extruded aluminium.
A premium professional single-section leaning ladder made of ribbed extruded aluminium for comfort and durability. Rungs are spaced 28 cm apart and secured permanently to the stiles by an advanced automatic riveting system. Suitable for a wide variety of professional tasks.
The MAXILADDER SINGLE-SECTION ladder is certified to European standard EN 131.
Jormax reserves the right to change its products or technical specifications without prior notice.
| Feature | Specification |
|---|---|
| Number of steps | 6 to 20 |
| Rung spacing | 28 cm |
| Ladder width | 43 cm |
| Feet of rubber non-slip | Yes |
| Stabiliser bar (from 3.00 m in height) | Yes |
| Non-slip steps | Yes |
| Manual | User and maintenance manual included |
| Certification | EN131 |
| Label of identification | Included |
| Note: Product dimensions may vary by +/- 2 cm. | |
