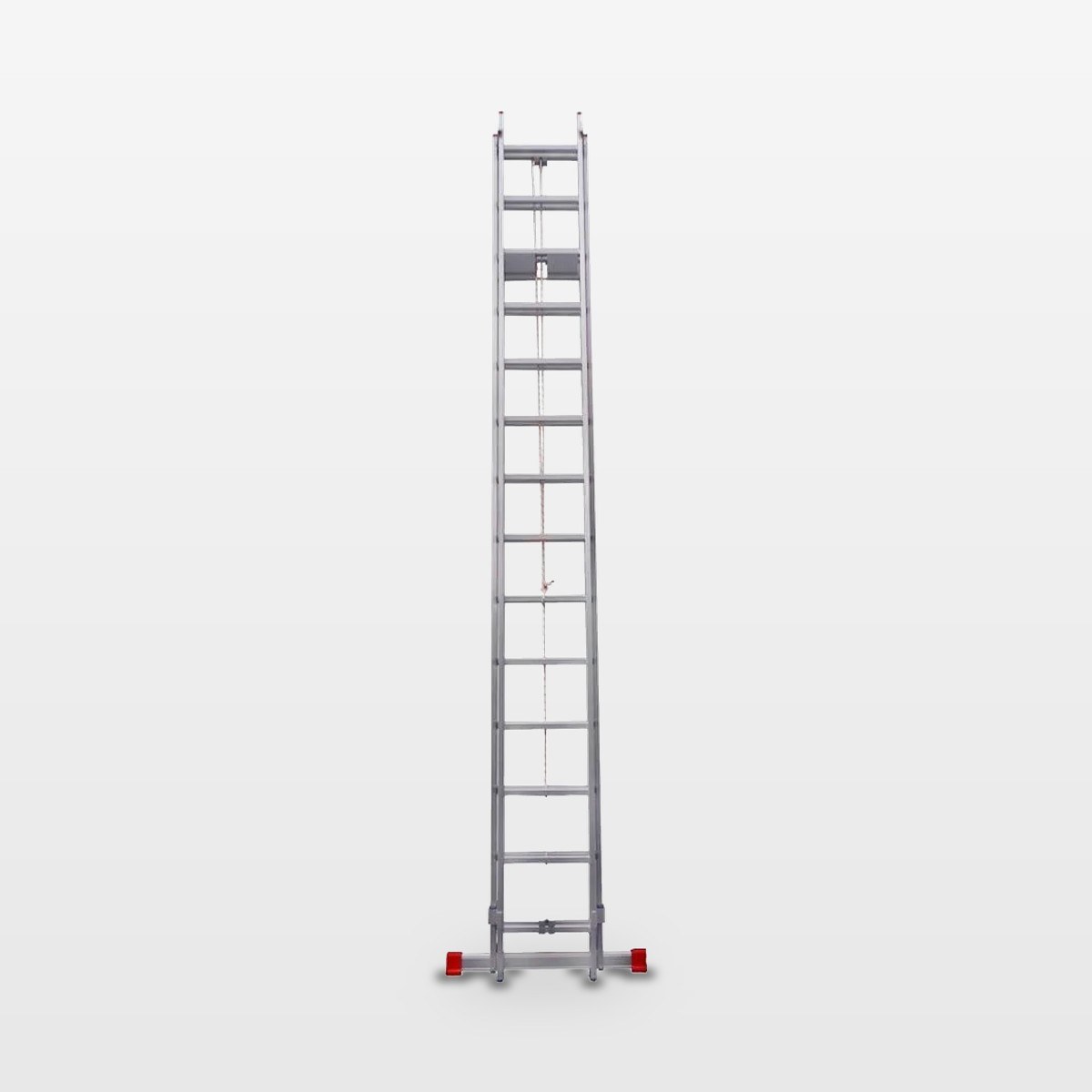

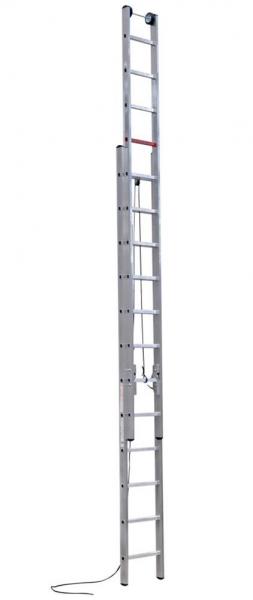

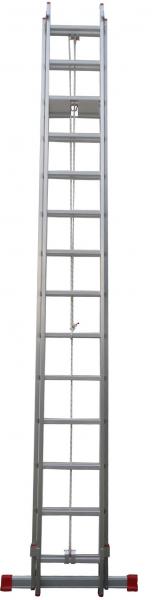

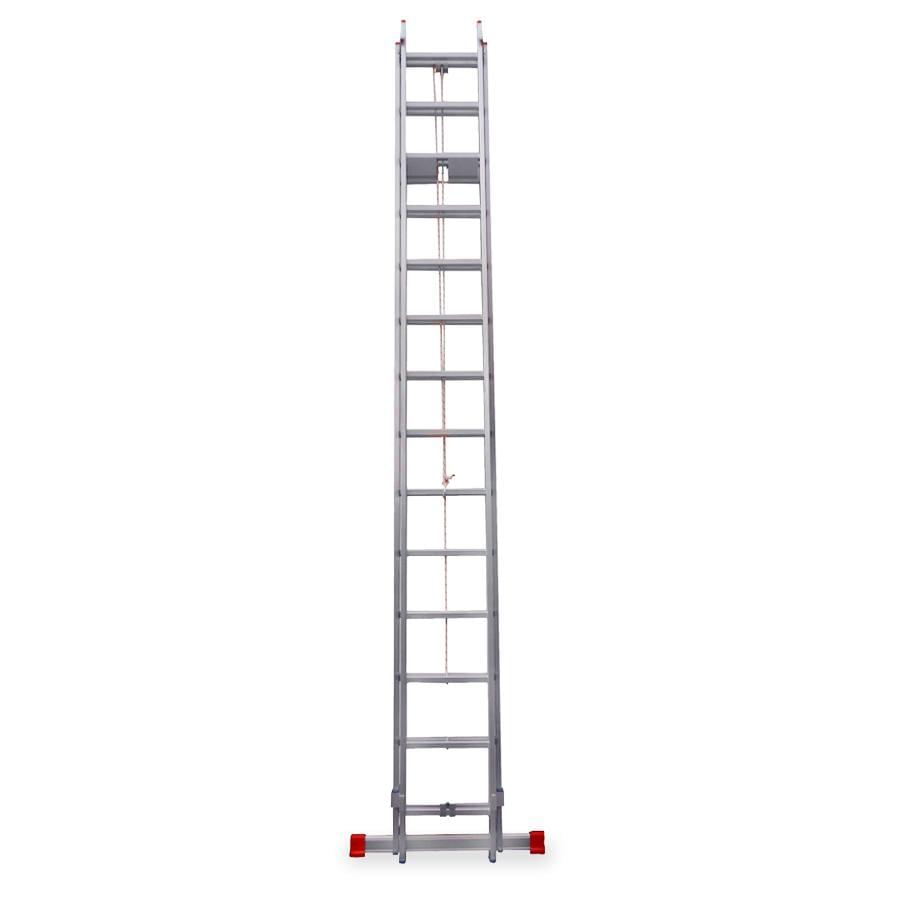

Ladder of two and three parts convertible with rope: position support.

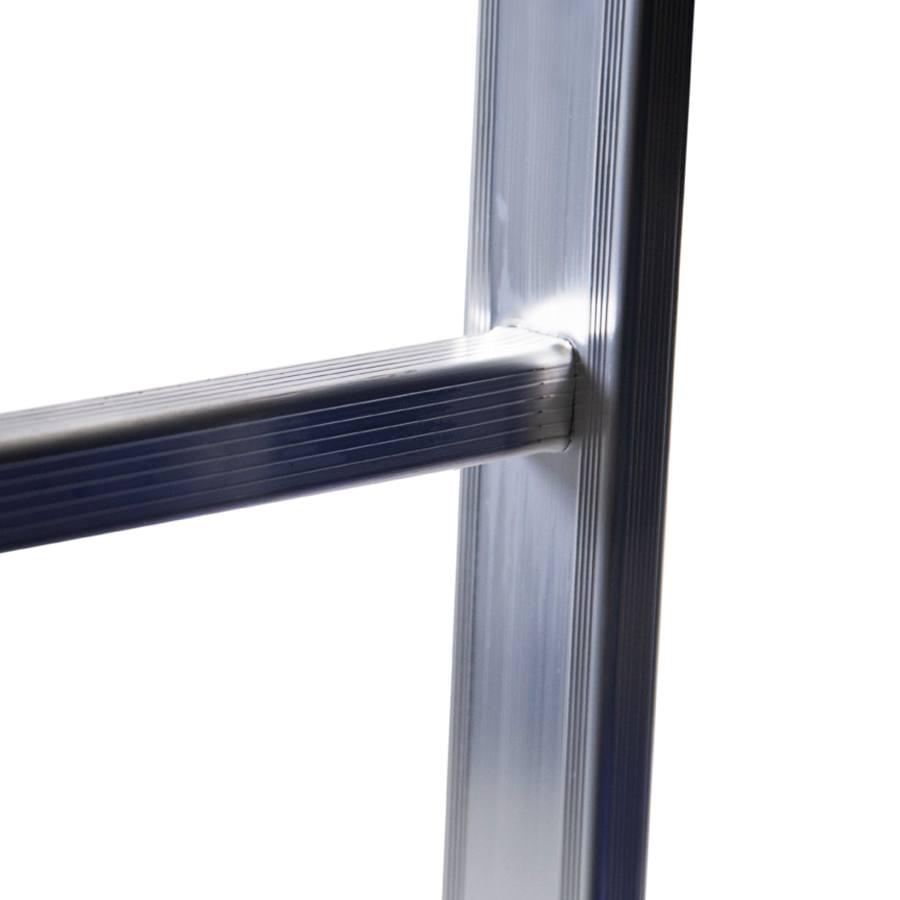

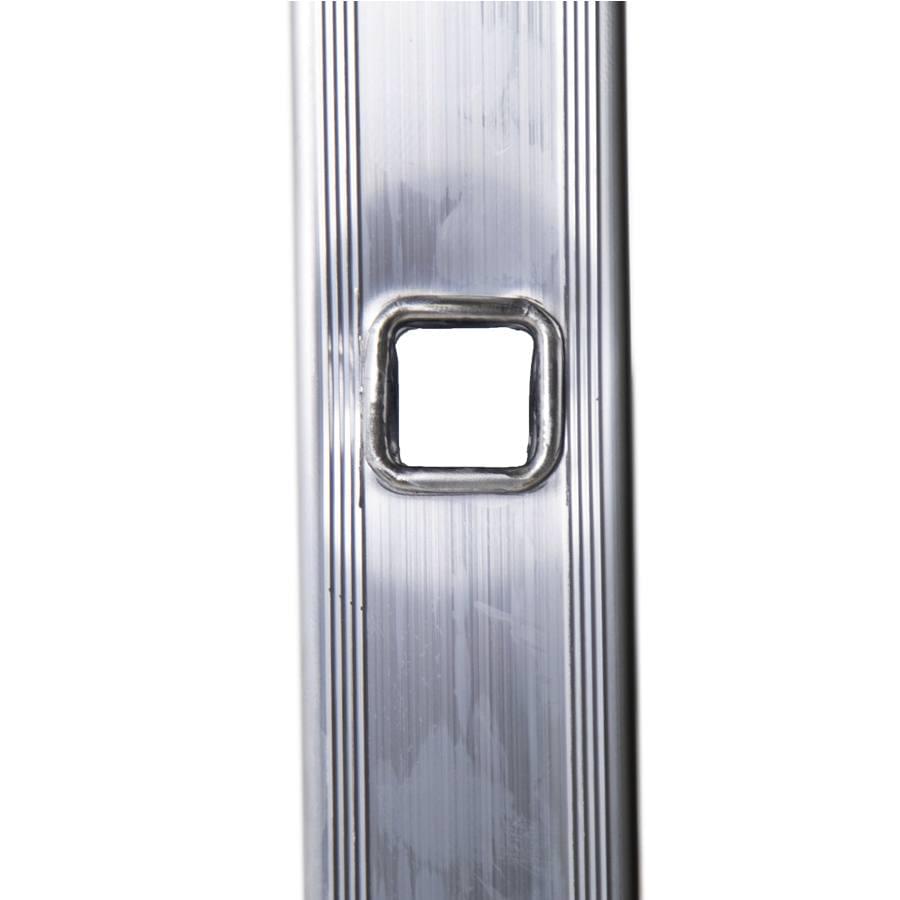

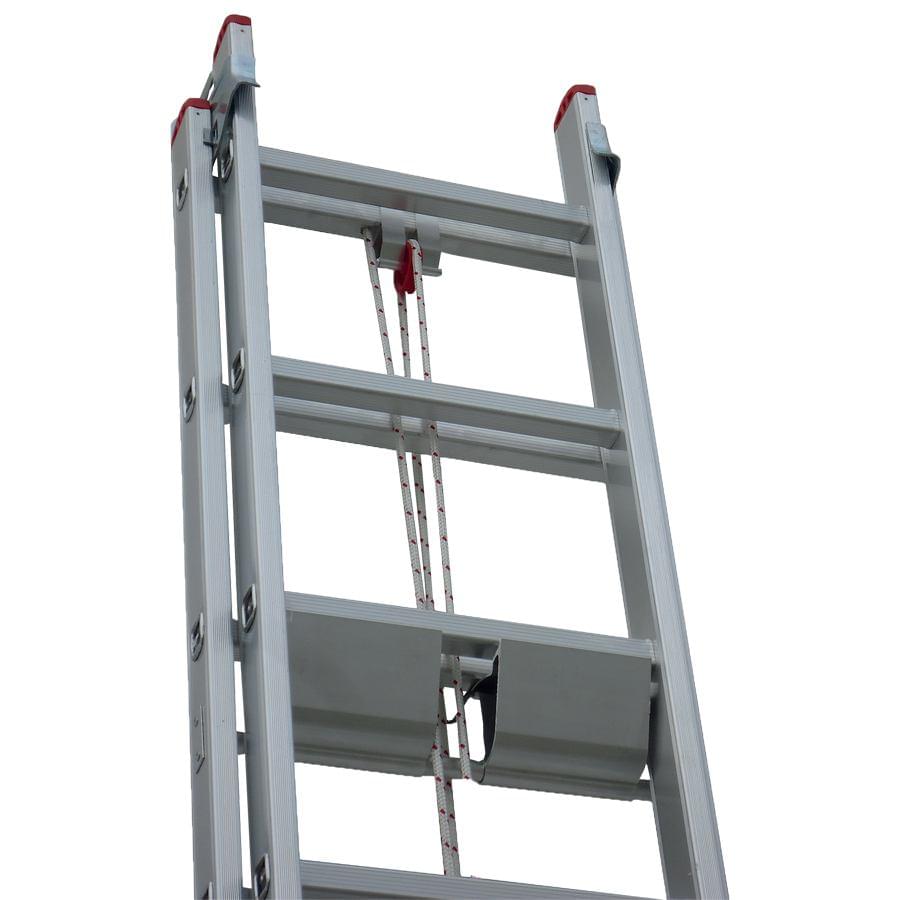

A professional two- or three-section combination ladder made of ribbed extruded aluminium, for use as a leaning ladder. Rungs are spaced 28 cm apart. A rope-operated system helps extend the ladder to greater heights. Fully equipped for maximum comfort and suitable for a wide variety of professional applications.
The MAXILADDER series is certified to European standard EN 131.
Jormax reserves the right to change its products or technical specifications without prior notice.
| Maxiladder Double with Rope | Maxiladder Three-section with Rope | |||
|---|---|---|---|---|
| Number of steps | 2 x 14 | 3 x 10 | 3 x 12 | 3 x 14 |
| Overall folded height (m) | 4.04 | 2.79 | 3.35 | 3.91 |
| Overall extended height (m) | 6.79 | 6.56 | 7.97 | 8.53 |
| Width of both ladder sections (m) | 0.50 + 0.41 | 0.50 + 0.41 + 0.36 | 0.50 + 0.41 + 0.36 | 0.50 + 0.41 + 0.36 |
| Weight (kg) | 21.00 | 22.00 | 27.00 | 32.00 |
| Reference | 10198 | 10201 | 10202 | 10203 |
Ladder of two and three parts convertible with rope: position support.
A professional two- or three-section combination ladder made of ribbed extruded aluminium, for use as a leaning ladder. Rungs are spaced 28 cm apart. A rope-operated system helps extend the ladder to greater heights. Fully equipped for maximum comfort and suitable for a wide variety of professional applications.
The MAXILADDER series is certified to European standard EN 131.
Jormax reserves the right to change its products or technical specifications without prior notice.
| Feature | Specification |
|---|---|
| Number of steps | 10 to 14 |
| Rung spacing | 28 cm |

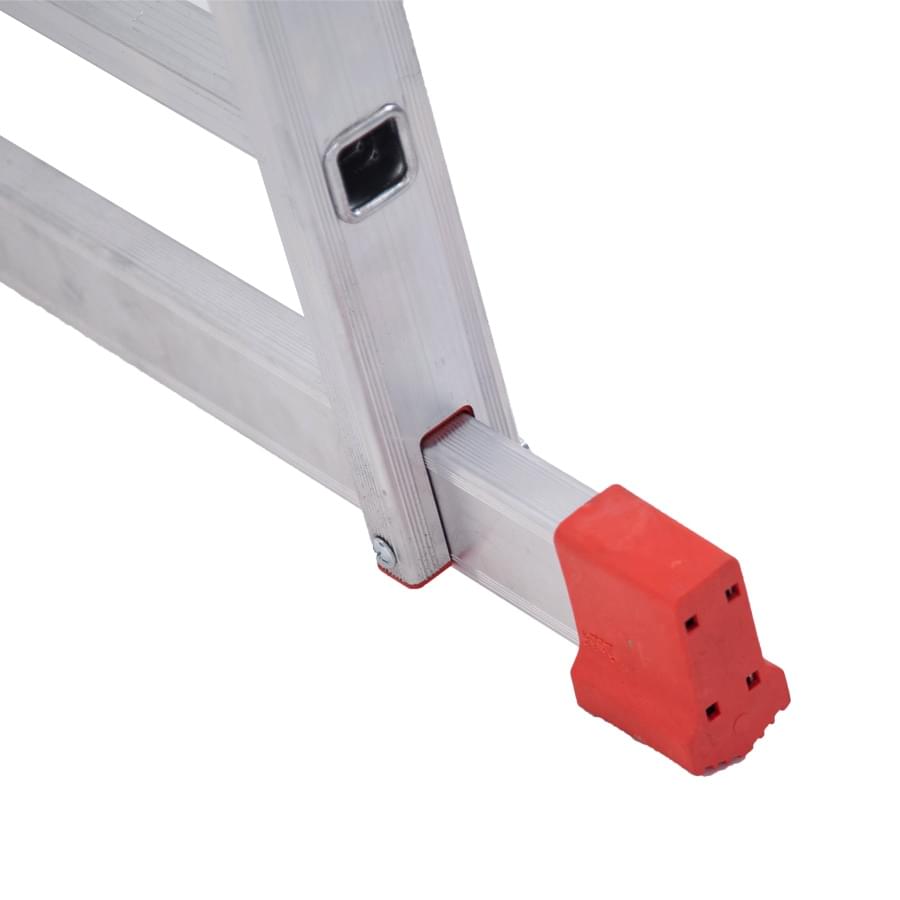

| Stabiliser base | Included |
| Crossbar | From 3.00 m in height |

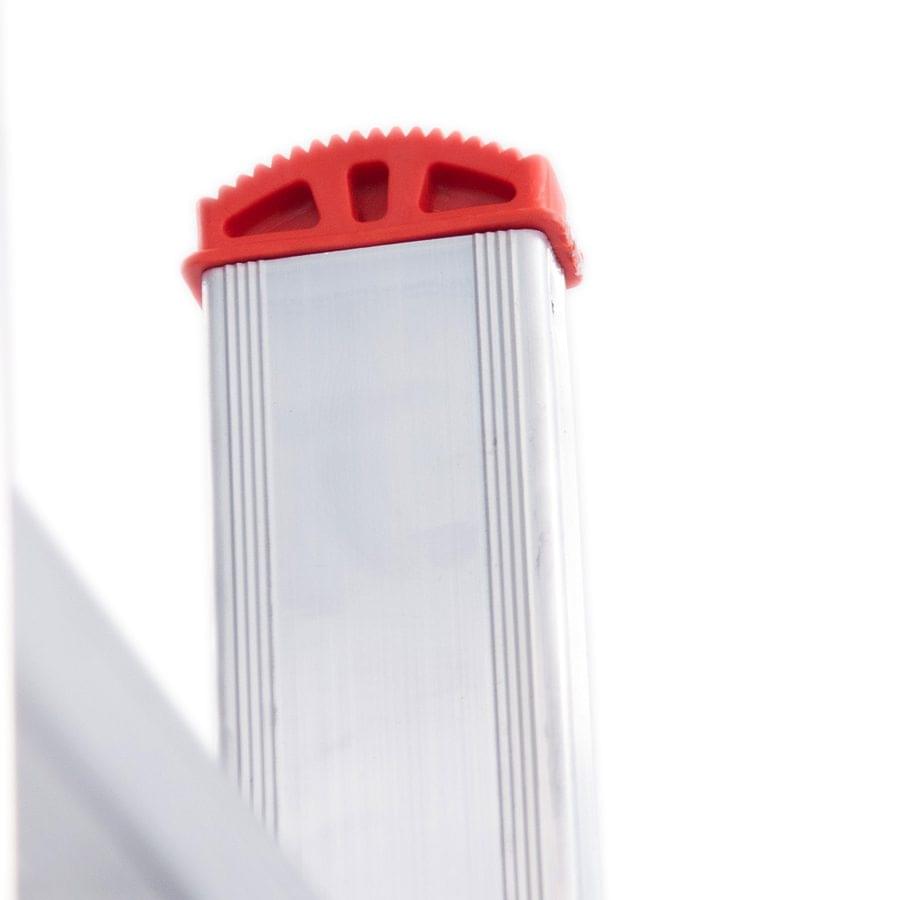

| Feet non-slip | Rubber |
| Manual | User and maintenance manual included |
| Certified | EN131 |
| Label of identification | Included |
| Note: Product dimensions may vary by +/- 2 cm. | |
WHAT MAKES THE ROPE-OPERATED MAXILADDER DIFFERENT?
• Reach a greater height than with the Maxiladder Double/Triple
– reaches a maximum height of 8.53 m;
• Only is used as ladder of support;
• Greater safety (system of rope);
