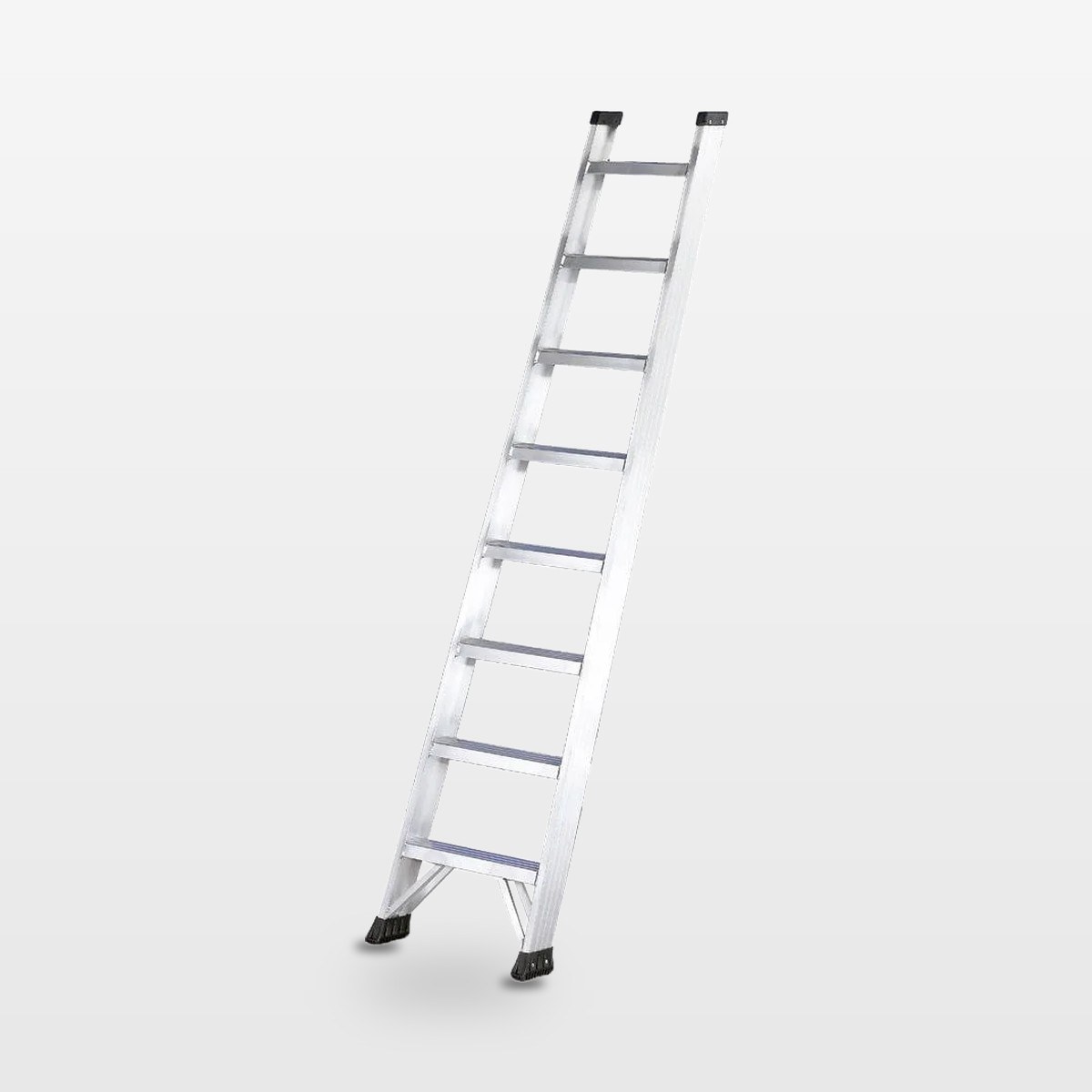

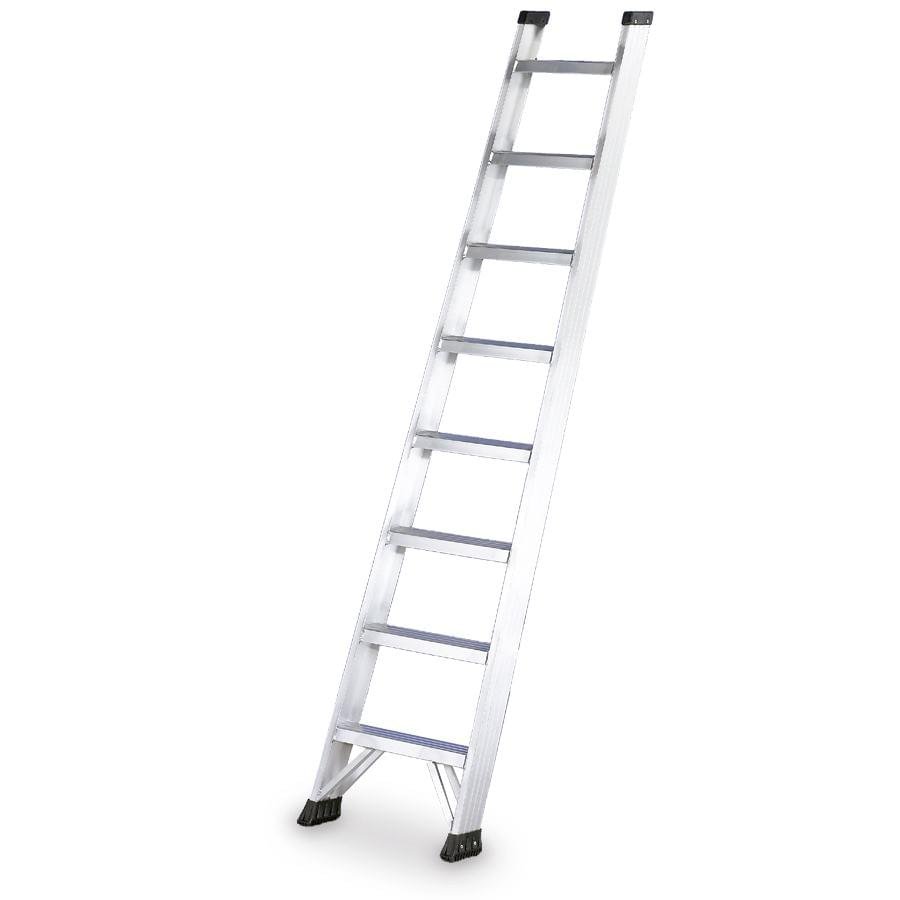

Ladder simple of support with wide steps measuring 8 cm.

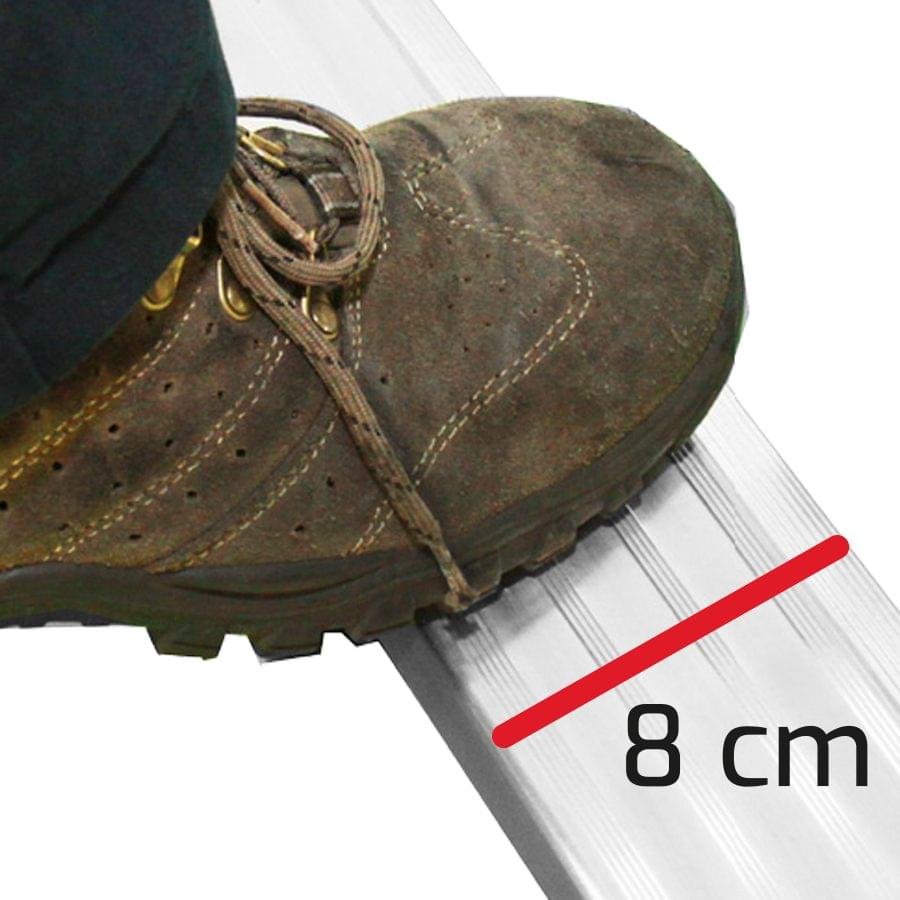

A heavy-duty professional single-section leaning ladder made of high-strength ribbed aluminium. It has wide, 8 cm-deep rungs spaced 25 cm apart, with a tray and tool holder at the top. Ideal for prolonged professional tasks, such as agricultural work and industrial maintenance.
The CONICAL SINGLE-SECTION ladder is certified to European standard EN 131.
Jormax reserves the right to change its products or technical specifications without prior notice.
| Number of steps | 8 | 10 | 12 | 14 | 16 | 18 |
|---|---|---|---|---|---|---|
| Overall height (m) | 2.16 | 2.66 | 3.16 | 3.66 | 4.16 | 4.66 |
| Working height (m) | 2.86 | 3.36 | 3.86 | 4.36 | 4.86 | 5.36 |
| Width (m) | 0.54 | 0.59 | 0.64 | 0.69 | 0.74 | 0.79 |
| Weight without handrails (kg) | 4.50 | 6.00 | 7.50 | 9.00 | 10.50 | 12.00 |
| Weight with handrails (kg) | 6.50 | 8.00 | 9.50 | 11.00 | 12.50 | 14.00 |
| Reference without handrail | 10122 | 10123 | 10124 | 10125 | 10126 | 10127 |
| Reference with handrail | 10128 | 10129 | 10130 | 10131 | 10132 | 10133 |
Ladder simple of support with wide steps measuring 8 cm.
A heavy-duty professional single-section leaning ladder made of high-strength ribbed aluminium. It has wide, 8 cm-deep rungs spaced 25 cm apart, with a tray and tool holder at the top. Ideal for prolonged professional tasks, such as agricultural work and industrial maintenance.
The CONICAL SINGLE-SECTION ladder is certified to European standard EN 131.
Jormax reserves the right to change its products or technical specifications without prior notice.
| Feature | Specification |
|---|---|
| Number of steps | 8 to 18 |
| Rung spacing | 25 cm |

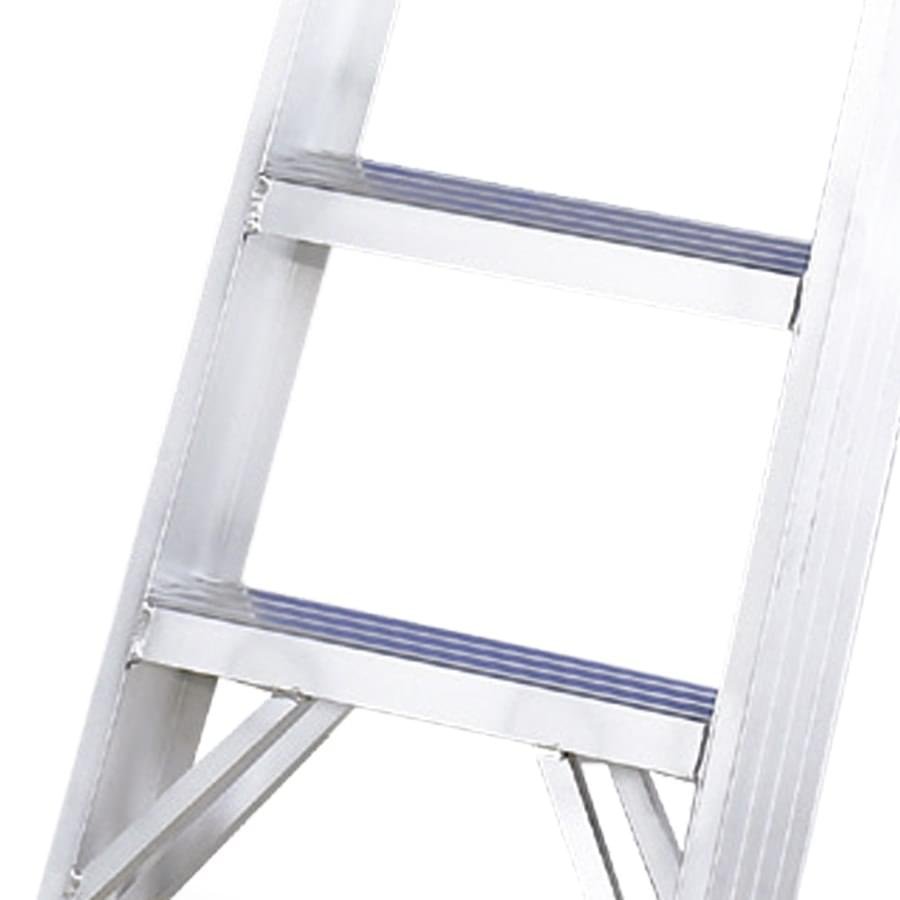

| Depth steps | 8 cm |
| Profile | 80×25 mm |

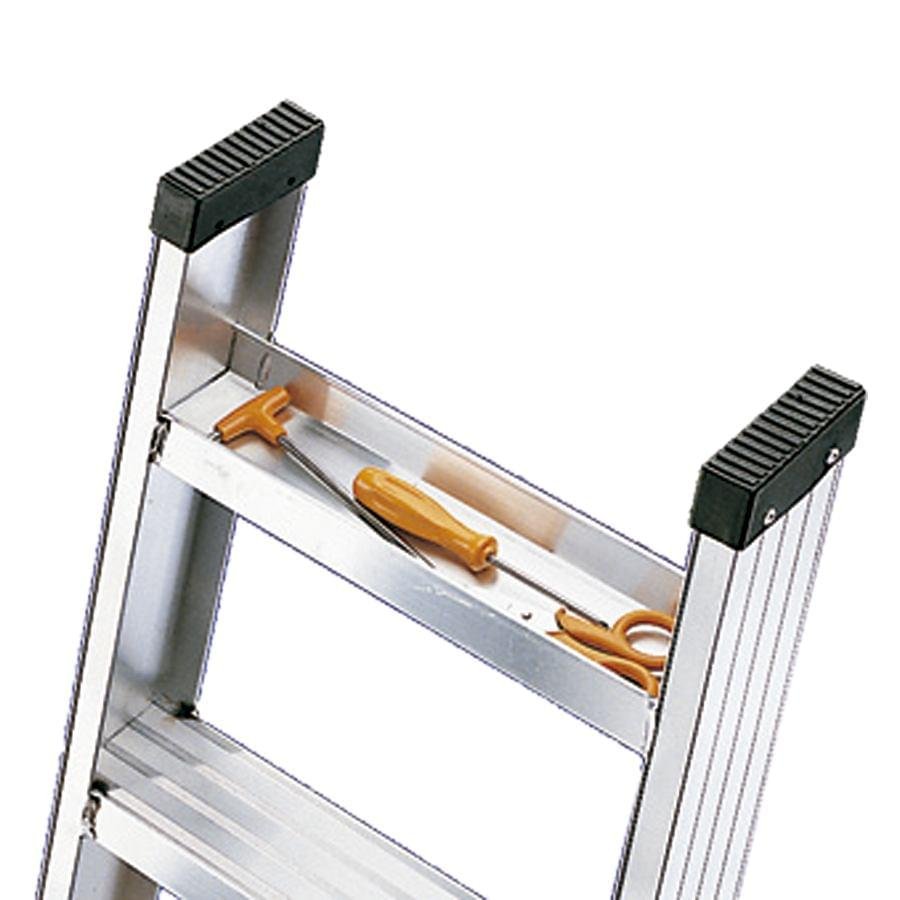

| Tool tray and tool holder | Yes |
| Reinforcing bars on the widest step | Yes |

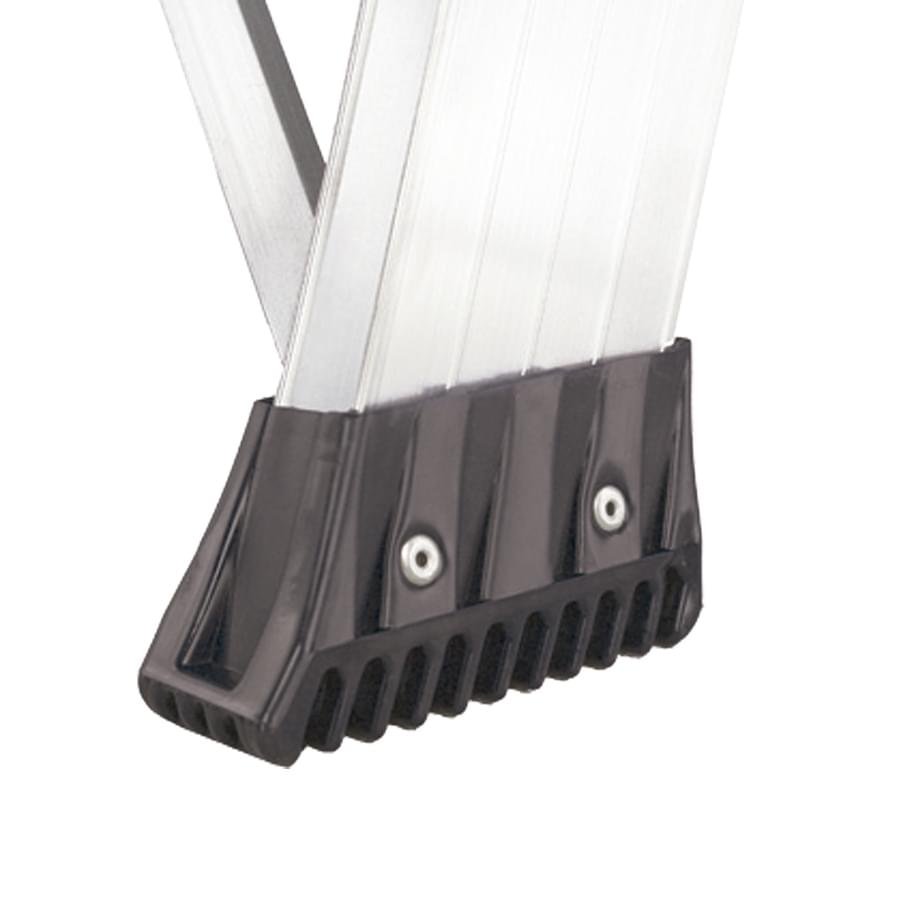

| Feet non-slip with design ergonomic | Yes |
| Tapered stiles | Yes |
| Manual | User and maintenance manual included |
| Certification | EN131 |
| Label of identification | Included |
| Note: Product dimensions may vary by +/- 2 cm. | |
