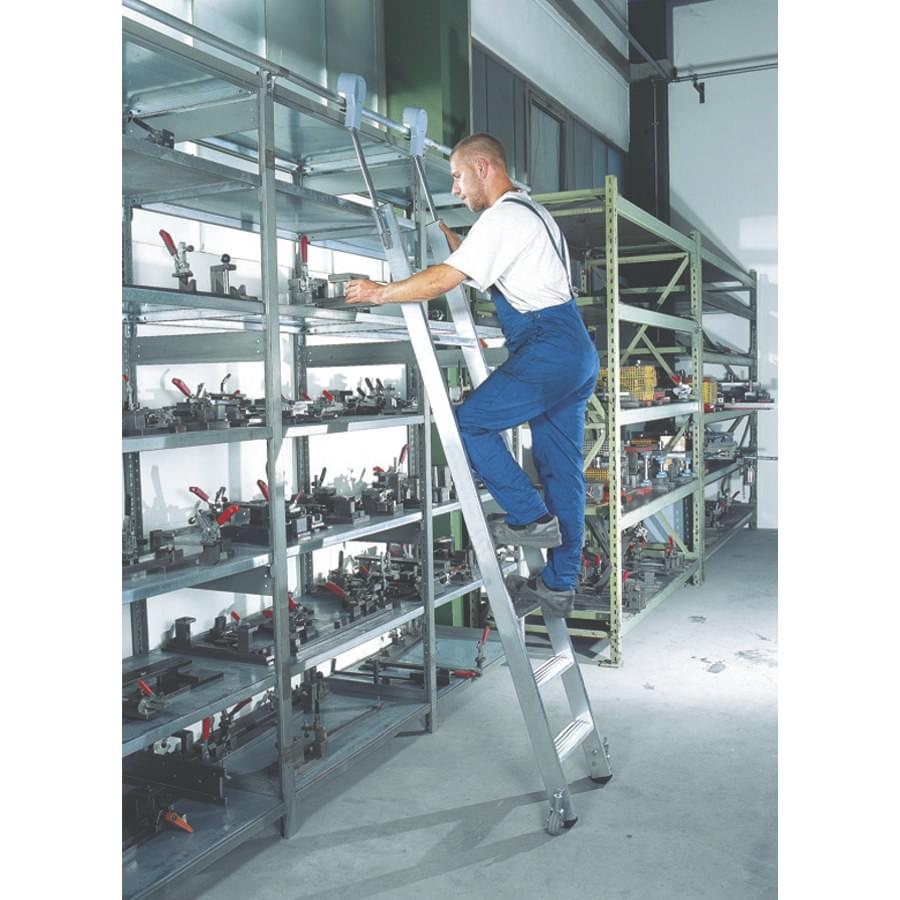

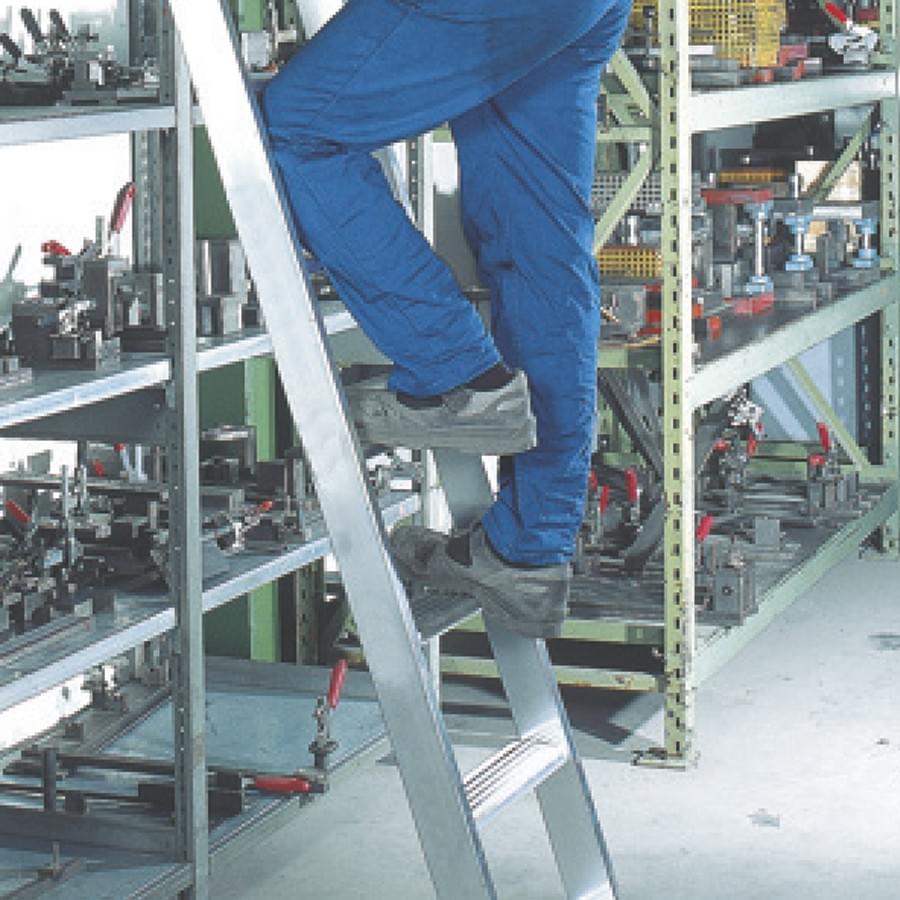

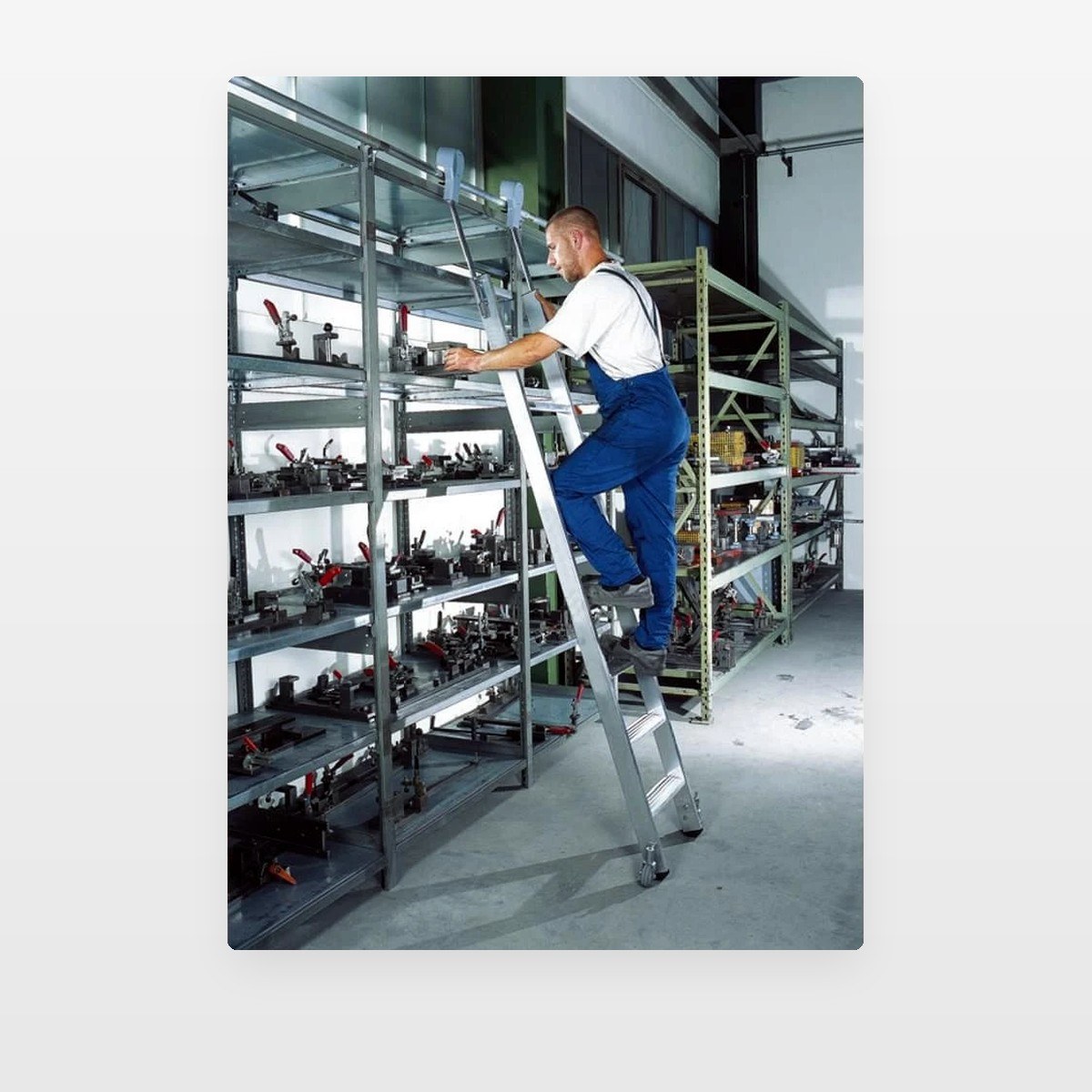

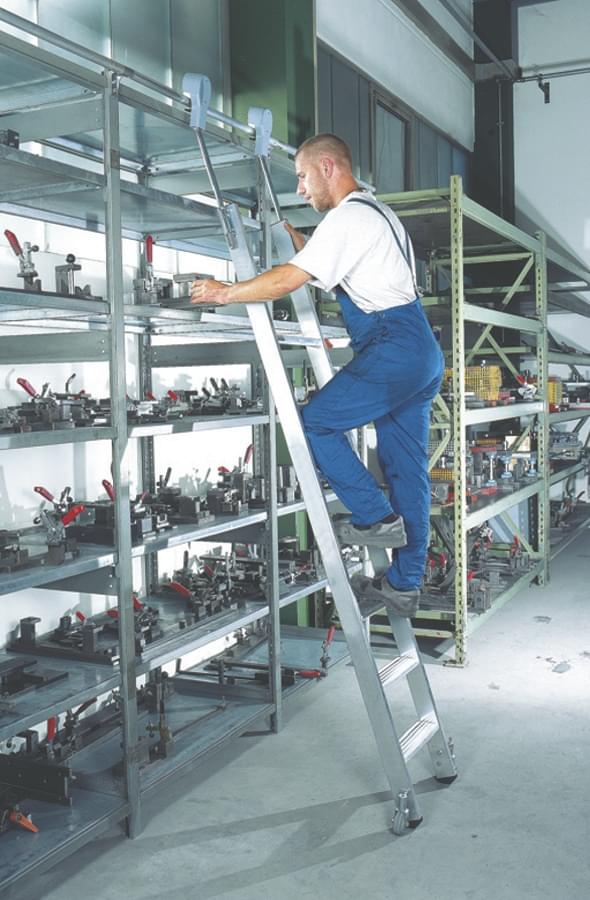

Sliding ladder for shelves, libraries, archives and similar installations.

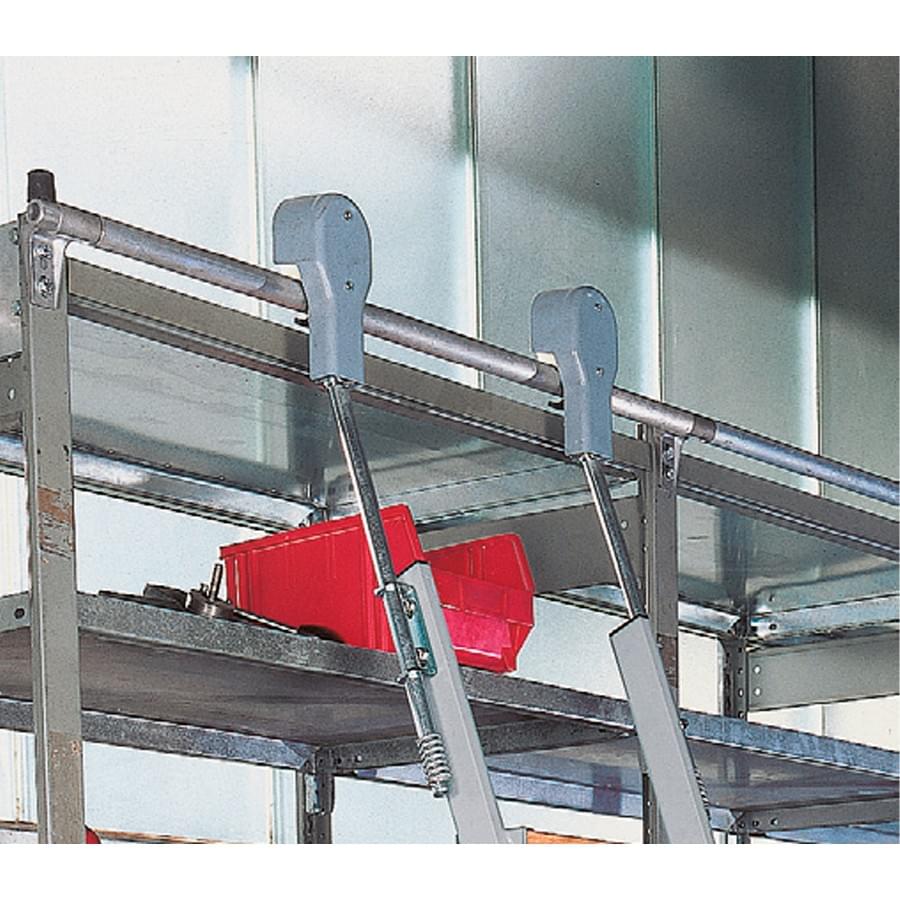

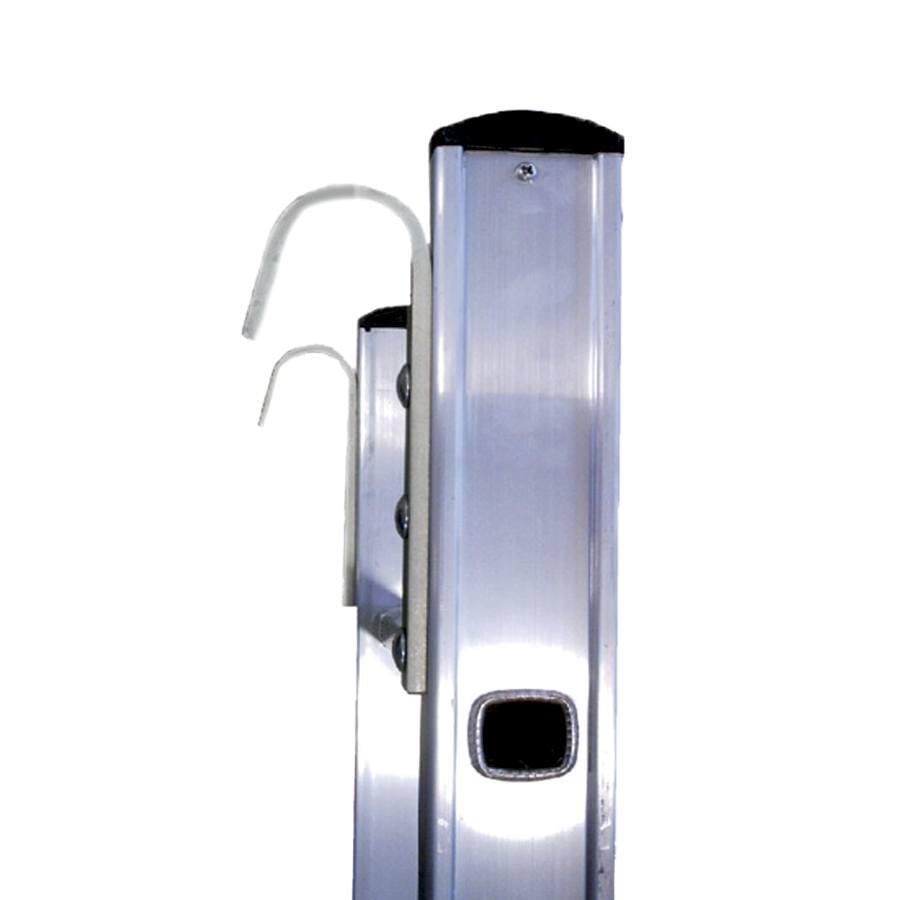

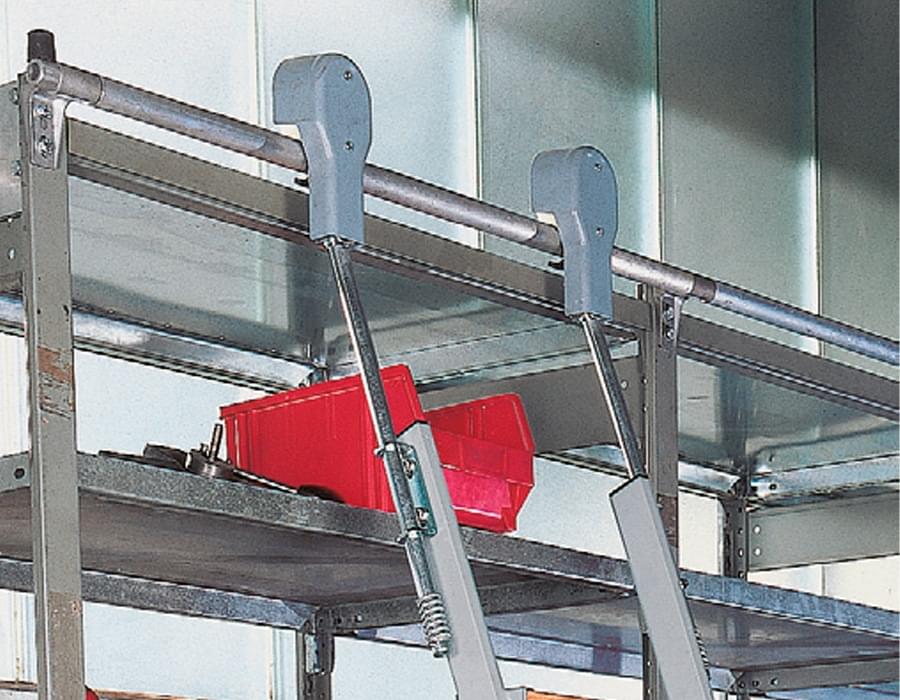

A professional sliding ladder made of extruded aluminium, with an advanced rail-mounted sliding and connection system. It has an external width of 38.50 cm and 8 cm-deep steps spaced 25 cm apart. The ladder can be left extended or moved into its parked position. Ideal for shelving units, libraries and archives.
The DESLIZ ladder is certified to European standard EN 131.
Jormax reserves the right to change its products or technical specifications without prior notice.
| Number of steps | 8 | 10 | 12 | 14 | 16 | 18 |
|---|---|---|---|---|---|---|
| Overall height (m) | 2.32 | 2.78 | 3.26 | 3.70 | 4.17 | 4.63 |
| Working height (m) | 3.82 | 4.28 | 4.76 | 5.20 | 5.67 | 6.13 |
| Wall-mounted access ladder | 0.98 | 1.16 | 1.35 | 1.54 | 1.73 | 1.91 |
| Weight (kg) | 7.20 | 8.50 | 9.30 | 10.80 | 12.00 | 13.10 |
| Reference | 10846 | 10847 | 10848 | 10849 | 10849.1 | 10849.2 |
Sliding ladder for shelves, libraries, archives and similar installations.
A professional sliding ladder made of extruded aluminium, with an advanced rail-mounted sliding and connection system. It has an external width of 38.50 cm and 8 cm-deep steps spaced 25 cm apart. The ladder can be left extended or moved into its parked position. Ideal for shelving units, libraries and archives.
The DESLIZ ladder is certified to European standard EN 131.
Jormax reserves the right to change its products or technical specifications without prior notice.
| Feature | Specification |
|---|---|
| Number of steps | 8 to 18 |
| Rung spacing | 25 cm |
| Steps | 8 cm |
| Profile | 80×25 mm |
| Wheels | Ø8 cm |
| System auto locking | Automatic |
| Manual | User and maintenance manual included |
| Certification | EN131 |
| Label of identification | Included |
| Note: Product dimensions may vary by +/- 2 cm. | |
