| Number of steps | 2 | 3 | 4 | 5 |
|---|---|---|---|---|
| Platform height (m) | 0.42 | 0.63 | 0.84 | 1.05 |
| Overall height (m) | 1.33 | 1.54 | 1.75 | 1.96 |
| Working height (m) | 2.42 | 2.63 | 2.84 | 3.05 |
| Weight (kg) | 16.00 | 20.00 | 25.00 | 30.00 |
| Reference | 10307 | 10308 | 10309 | 10310 |

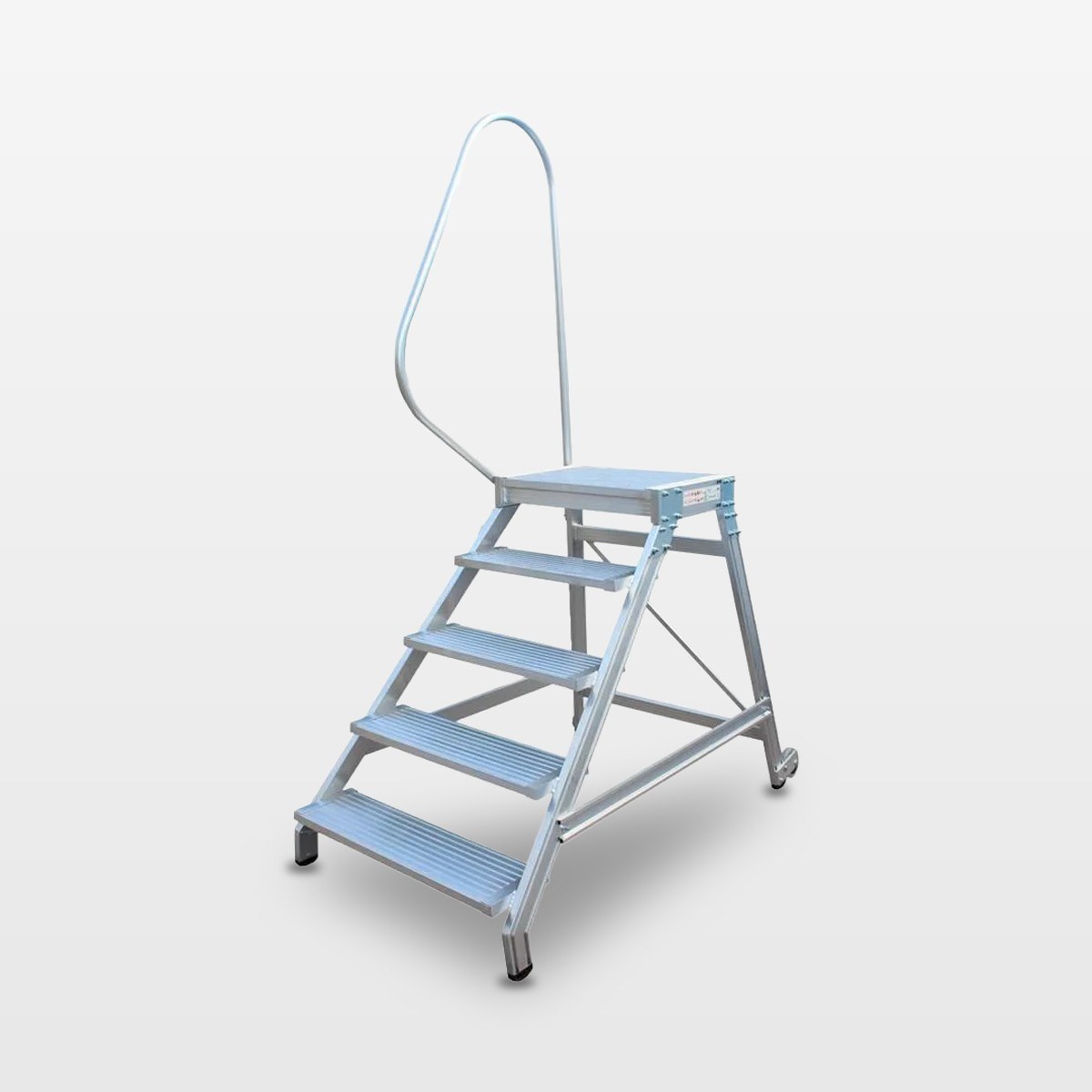

Stage Compact 400×500 mm.

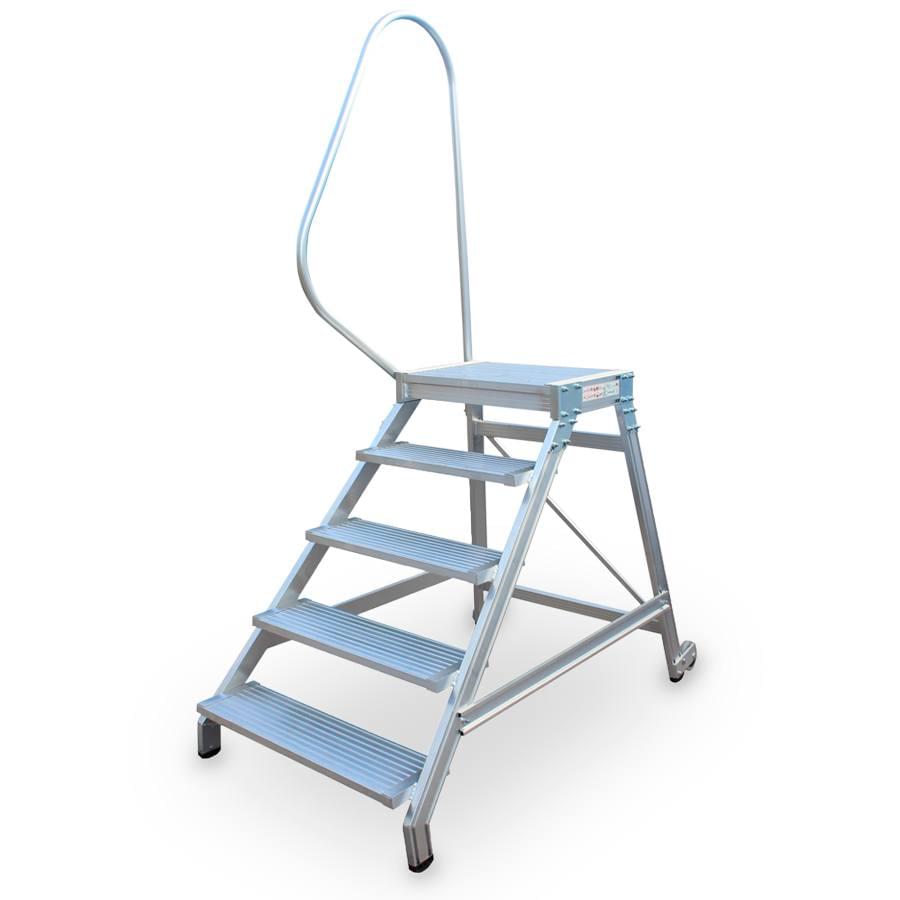

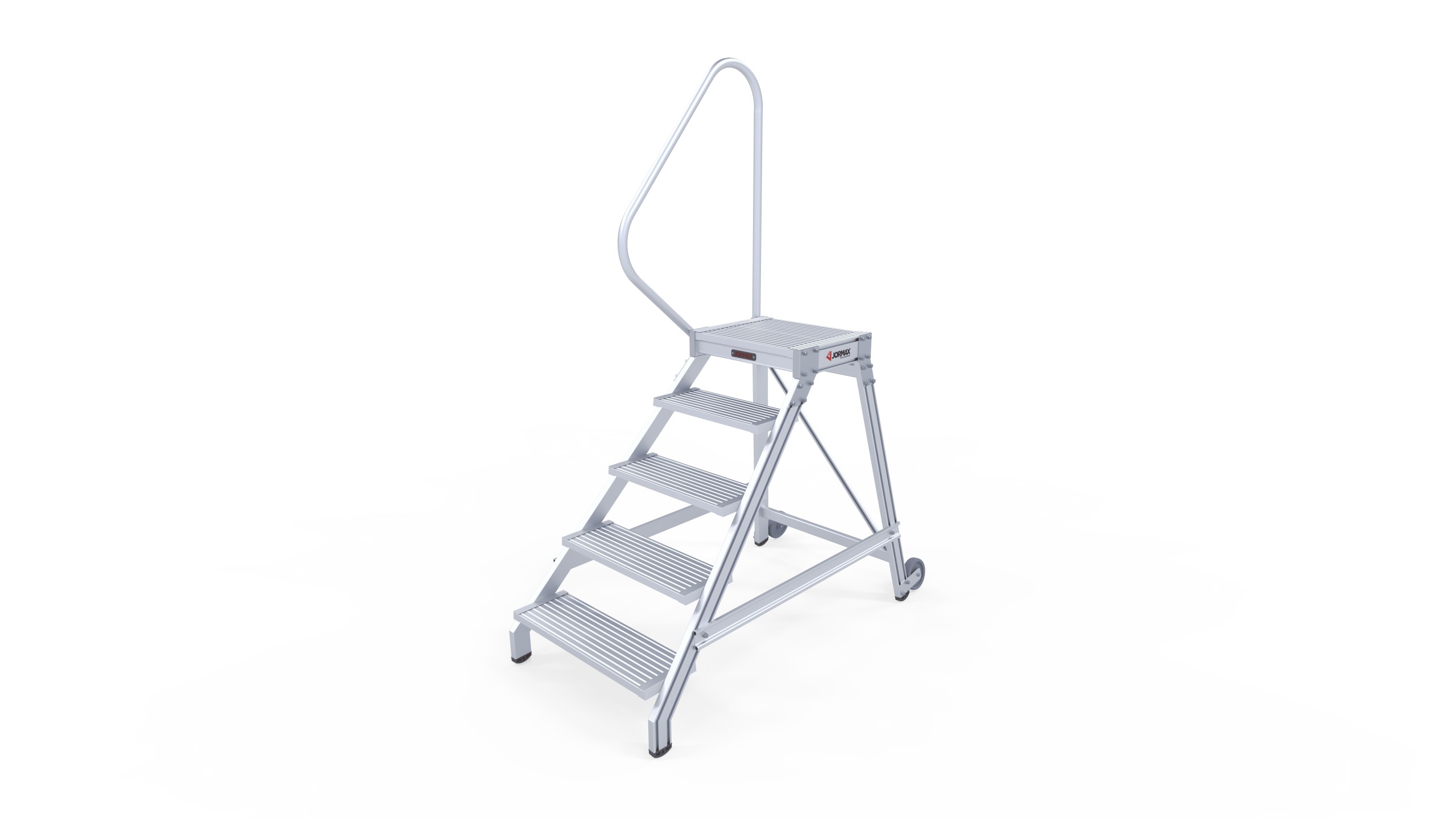

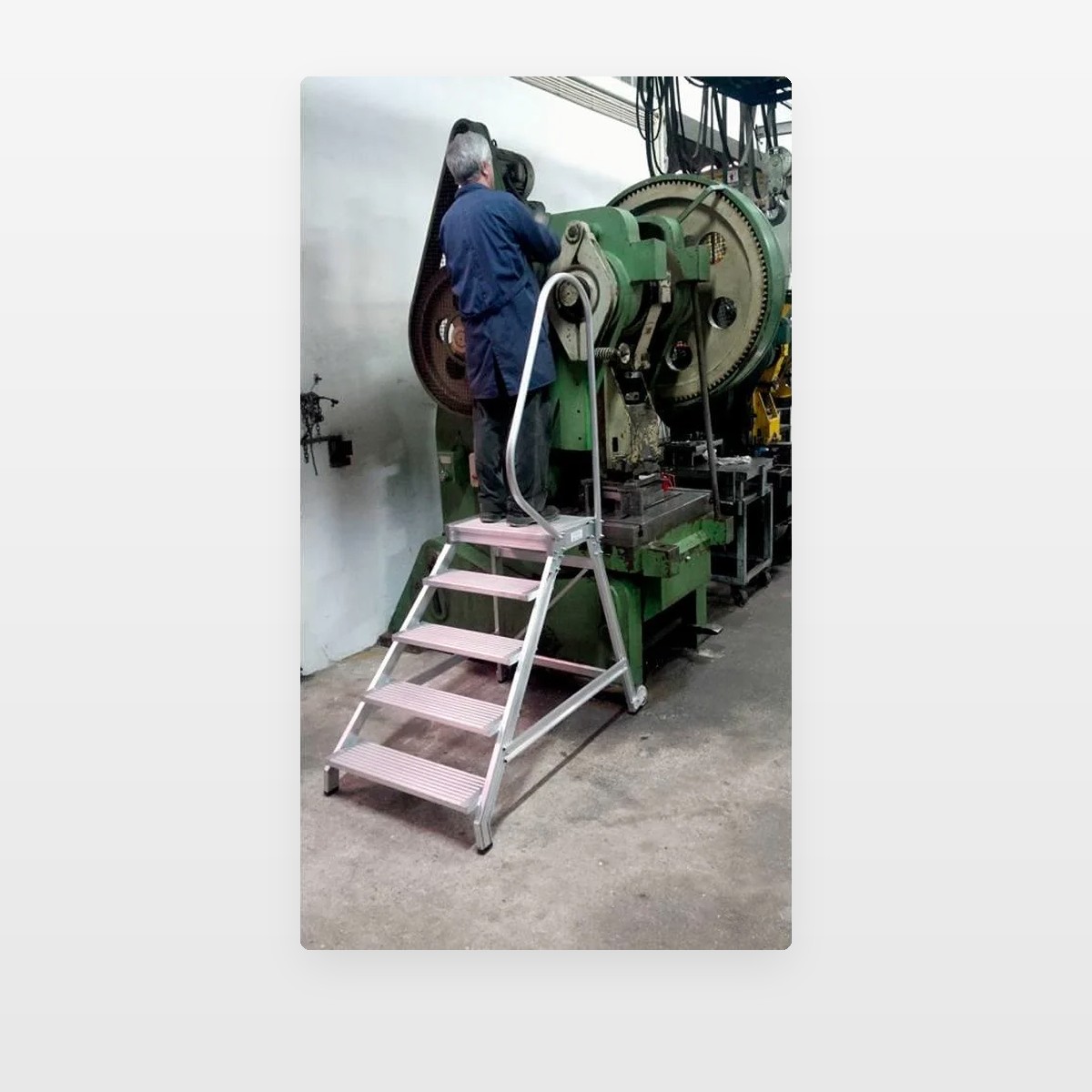

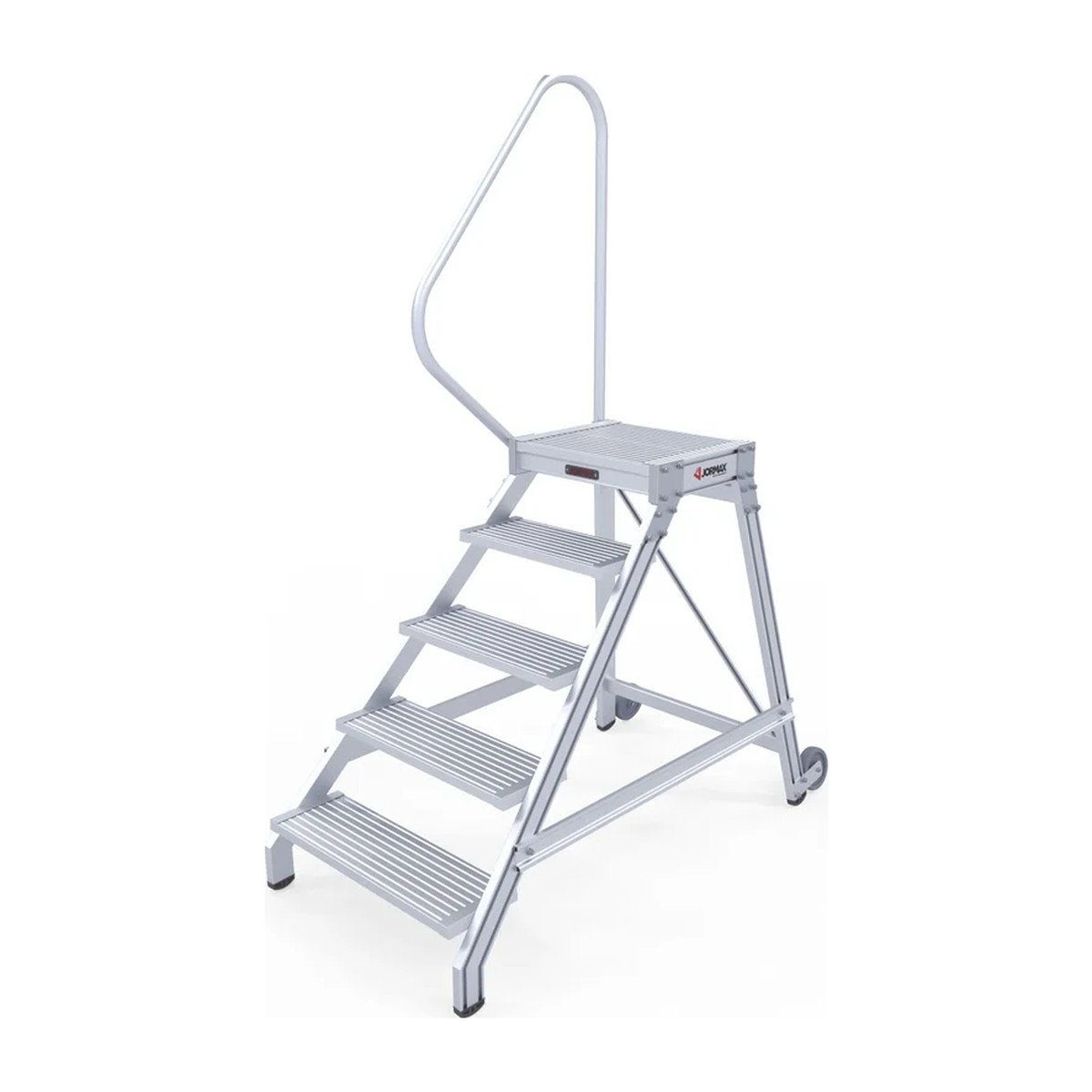

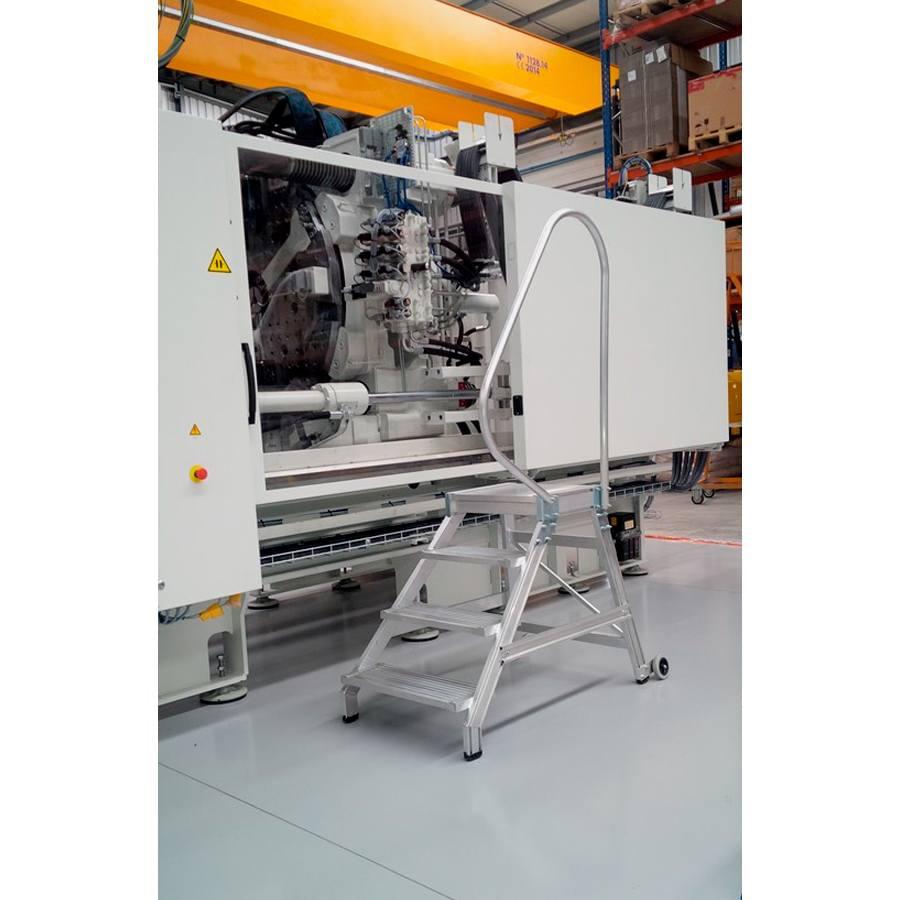

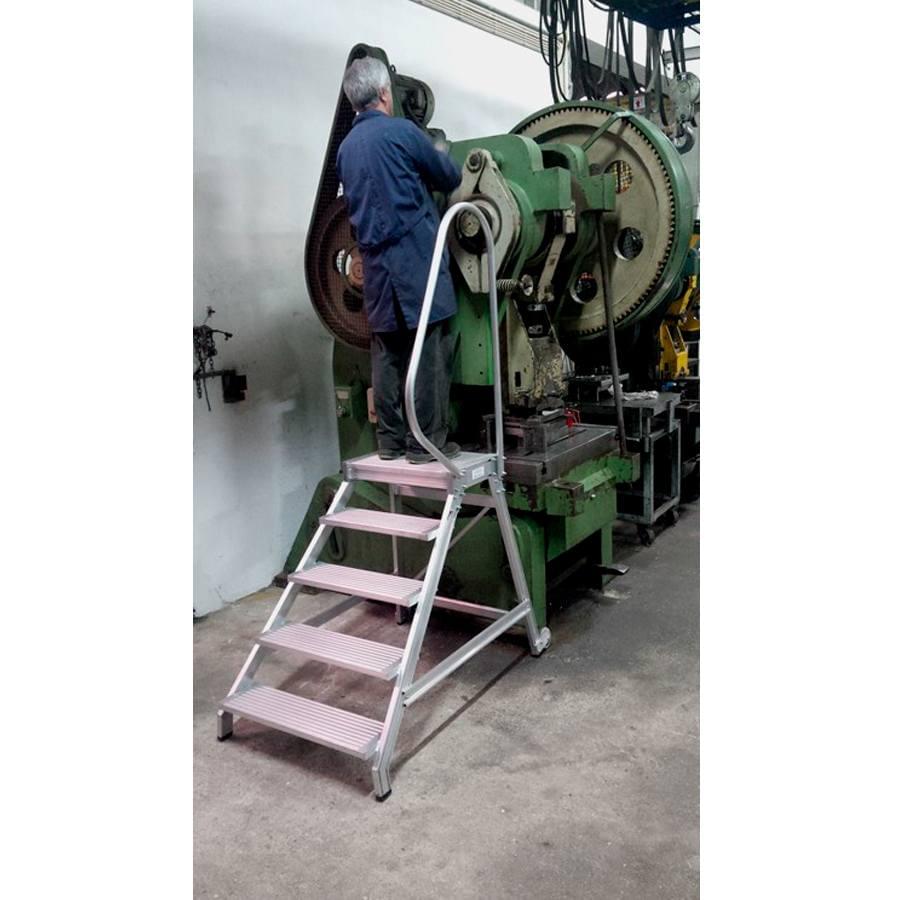

A professional warehouse platform made of ribbed extruded aluminium, with 20 cm-deep steps spaced 21 cm apart. Features a 40 x 50 cm platform, a 48-degree access angle and a 1.00 m-high handrail. Its near-vertical rear allows the user to work close to a machine or wall. Ideal for professional tasks.
The PALCO COMPACT platform is certified to European standard EN 14183.
Jormax reserves the right to change its products or technical specifications without prior notice.
| Number of steps | 2 | 3 | 4 | 5 |
|---|---|---|---|---|
| Platform height (m) | 0.42 | 0.63 | 0.84 | 1.05 |
| Overall height (m) | 1.33 | 1.54 | 1.75 | 1.96 |
| Working height (m) | 2.42 | 2.63 | 2.84 | 3.05 |
| Weight (kg) | 16.00 | 20.00 | 25.00 | 30.00 |
| Reference | 10307 | 10308 | 10309 | 10310 |
Stage Compact 400×500 mm.
A professional warehouse platform made of ribbed extruded aluminium, with 20 cm-deep steps spaced 21 cm apart. Features a 40 x 50 cm platform, a 48-degree access angle and a 1.00 m-high handrail. Its near-vertical rear allows the user to work close to a machine or wall. Ideal for professional tasks.
The PALCO COMPACT platform is certified to European standard EN 14183.
Jormax reserves the right to change its products or technical specifications without prior notice.
| Feature | Specification |
|---|---|
| Number of steps | 2 to 5 |
| Rung spacing | 21 cm |
| Steps | 20 cm |
| Platform | 40×50 cm |
| Access angle | 48º |
| Handrail height | 1.00 m |
| Access width | 60 cm |

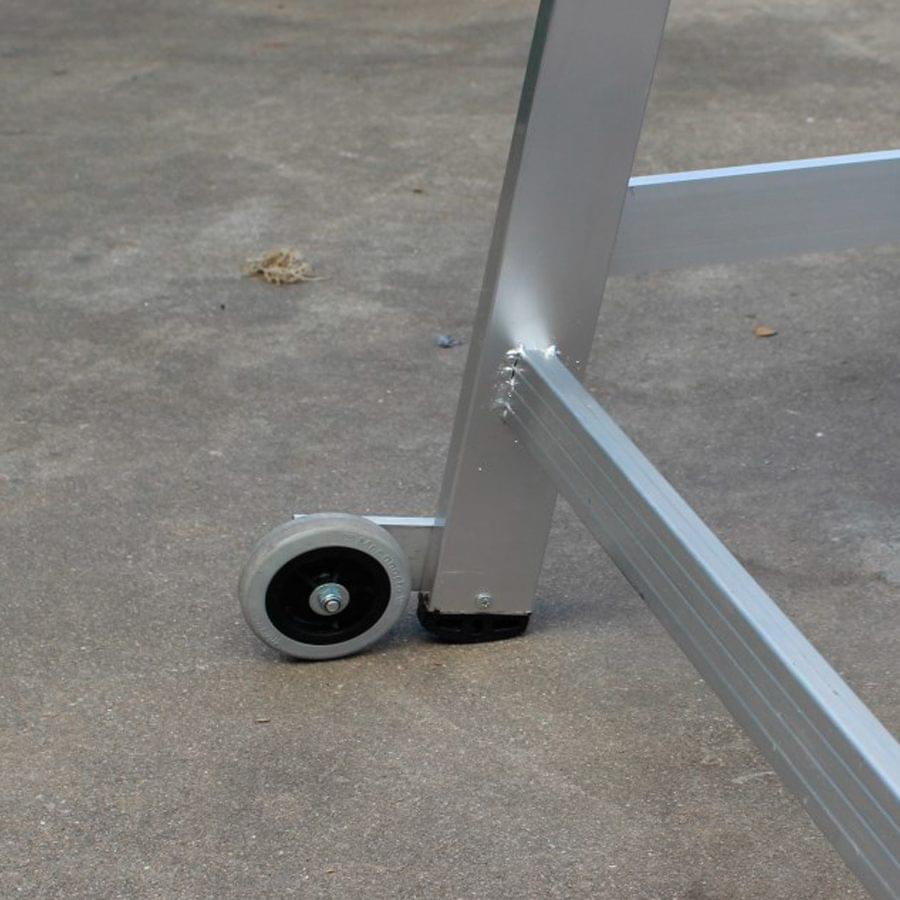

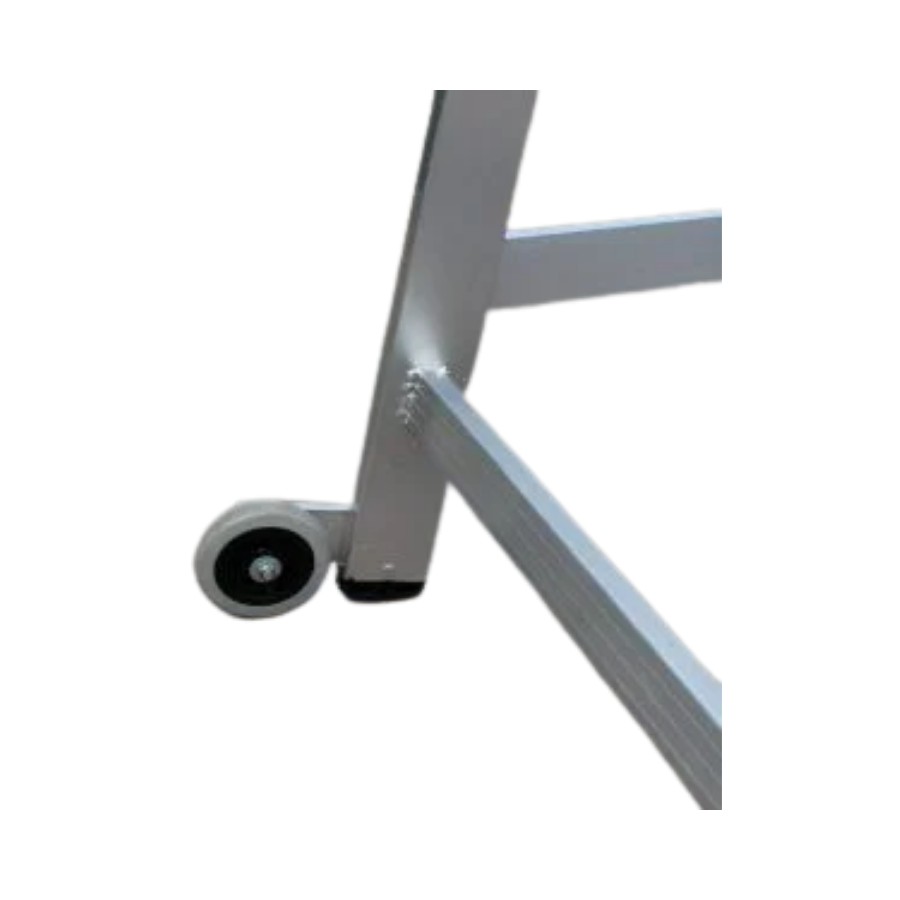

| Wheels | Ø 125mm |
| Manual | User and maintenance manual included |
| Certification | EN14183 |
| Label of identification | Included |
| Note: Product dimensions may vary by +/- 2 cm. | |
