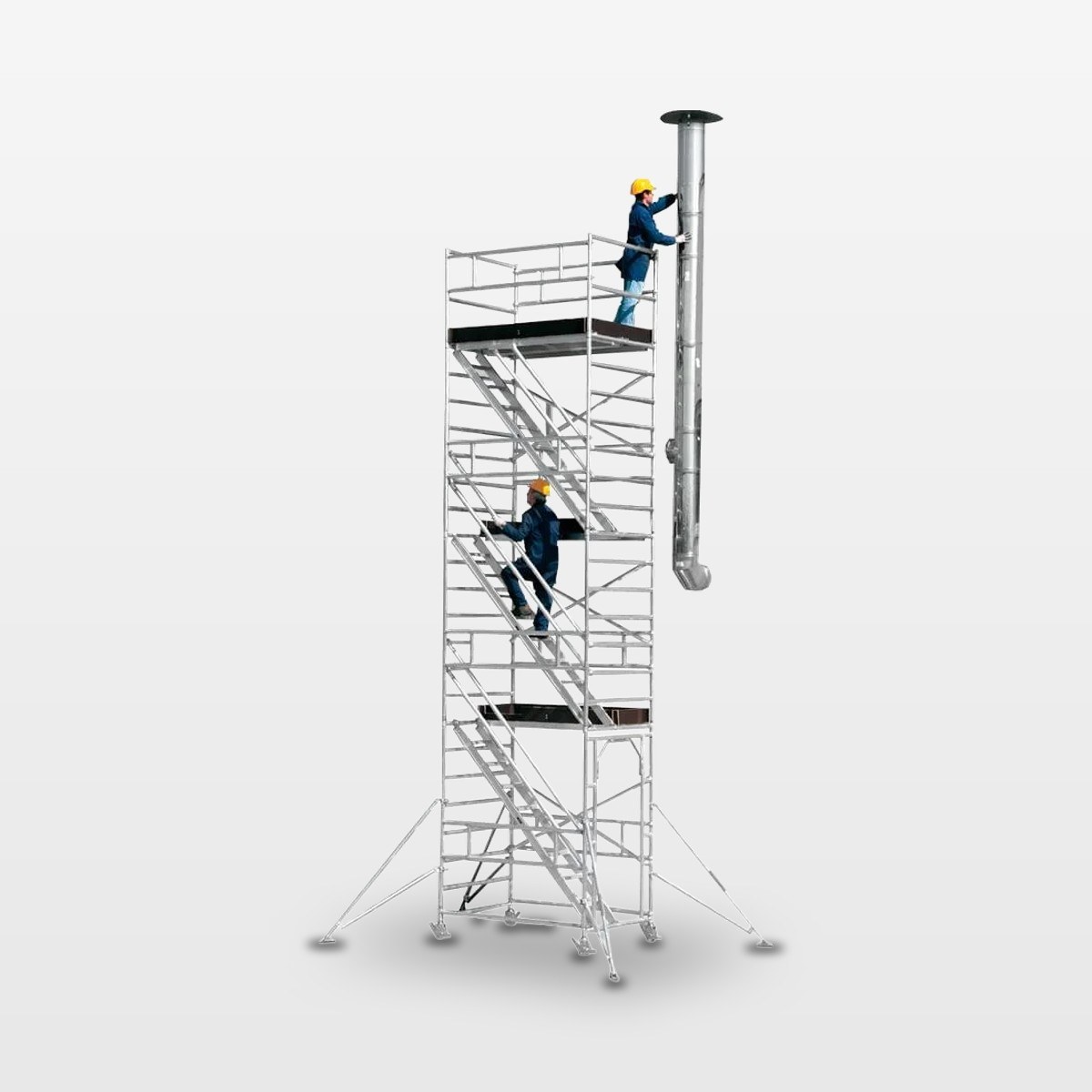

TEMPO CONFORT – andaime Jormax
TEMPO CONFORT – andaime Jormax

TEMPO CONFORT

Ideal for construction workers, installation teams, painters and maintenance technicians.

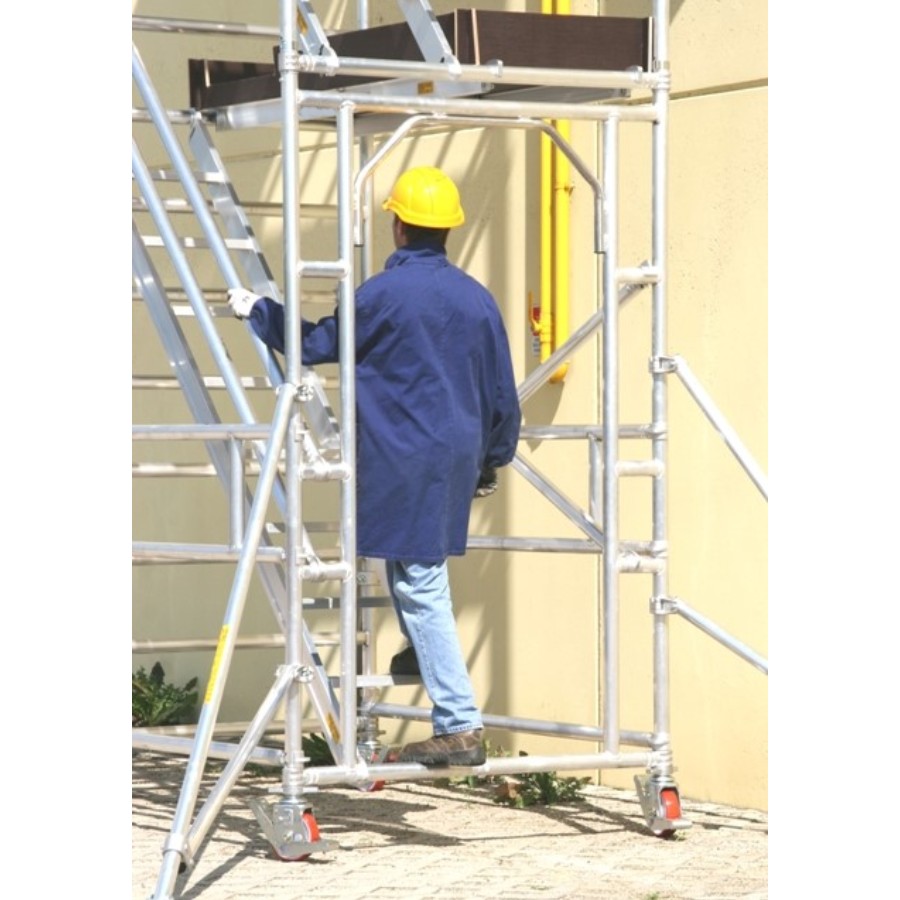

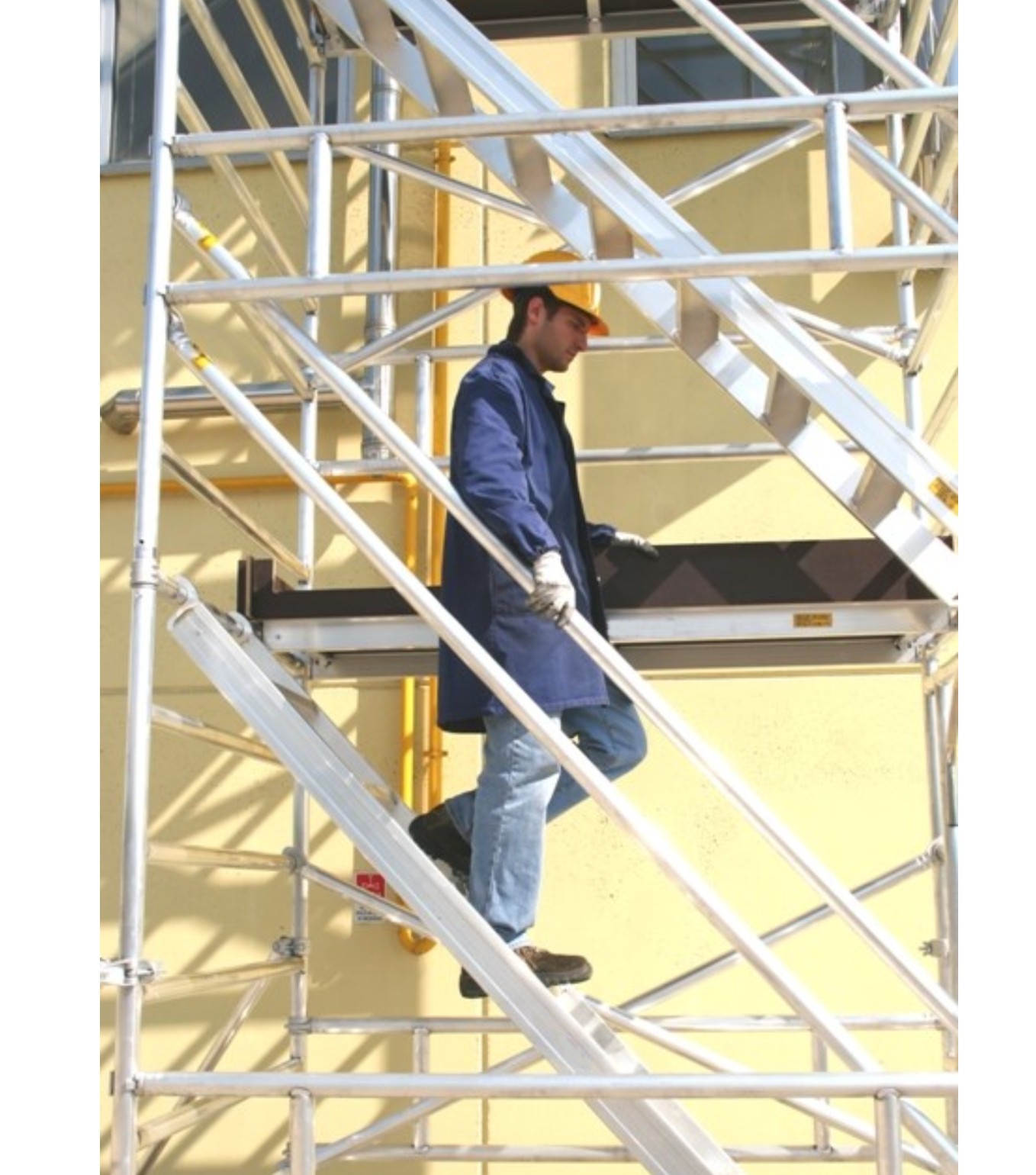

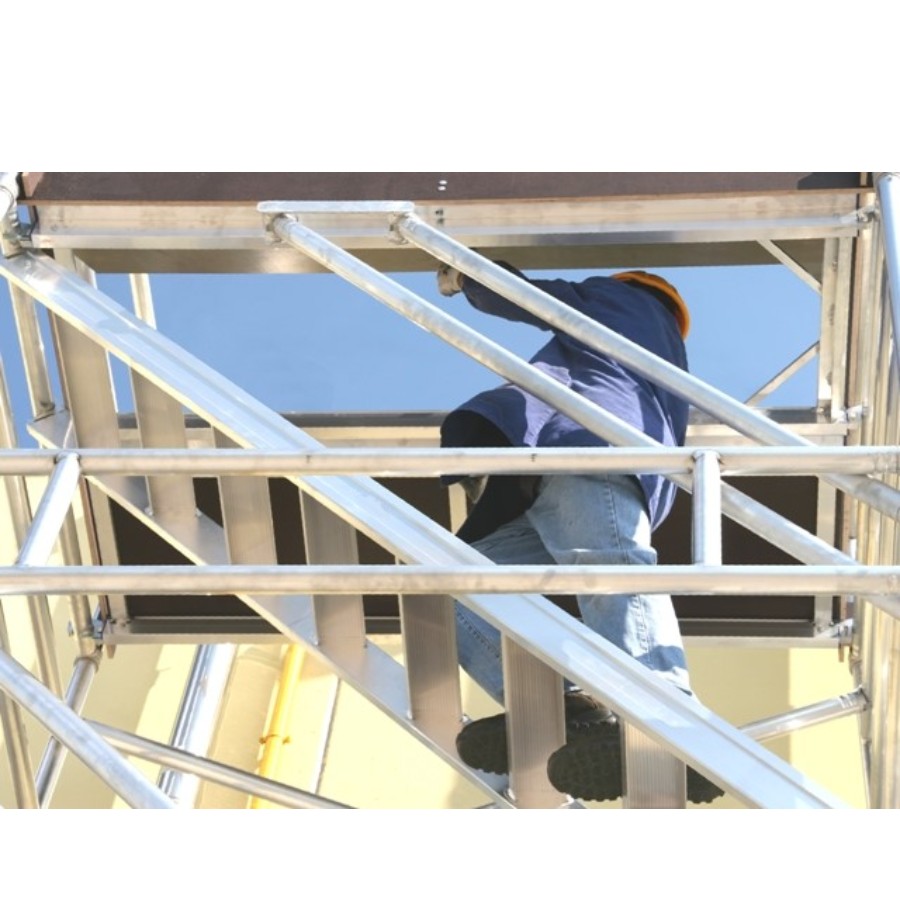

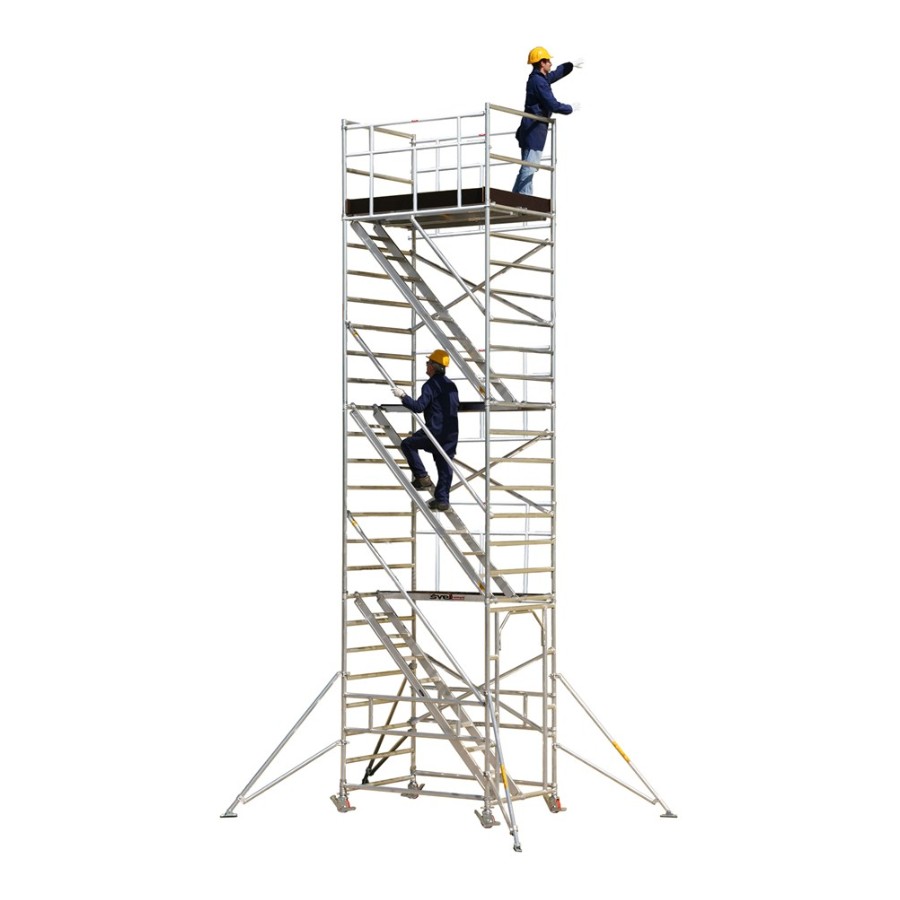

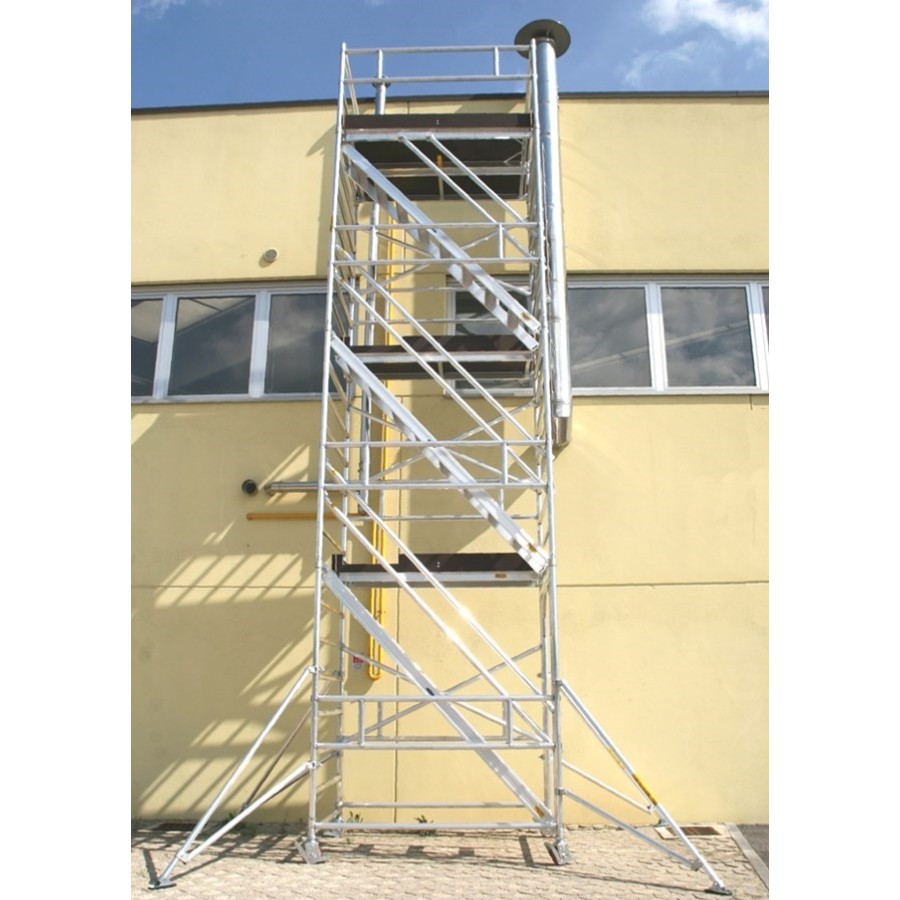

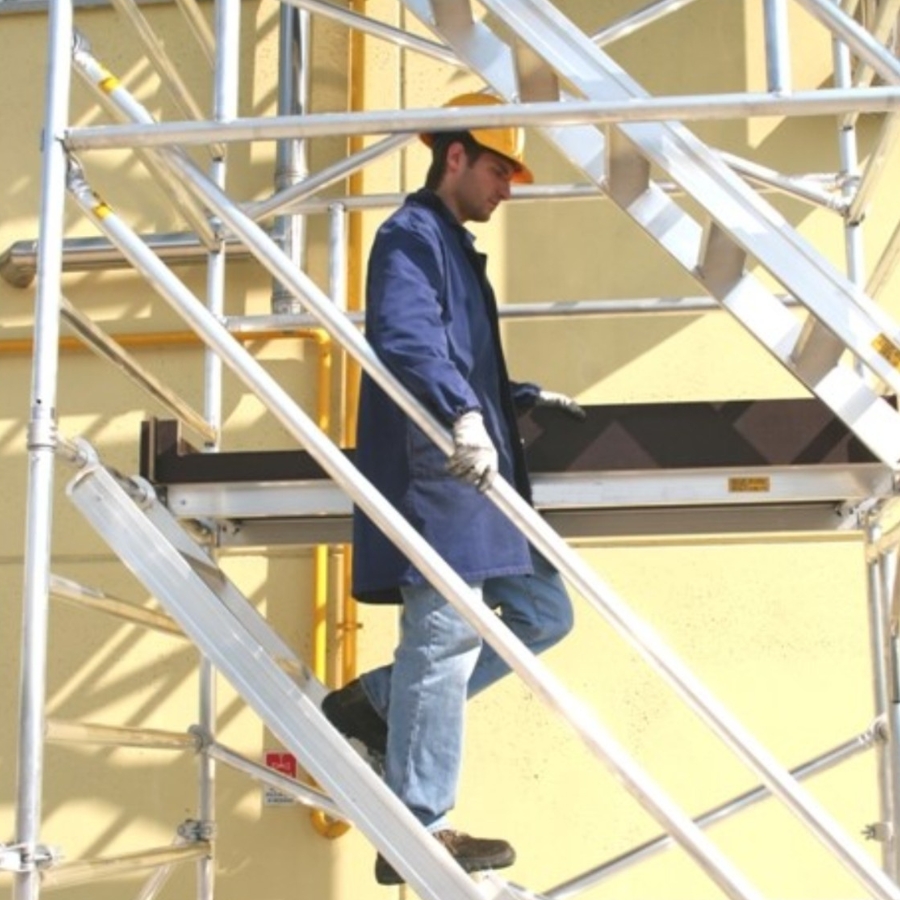

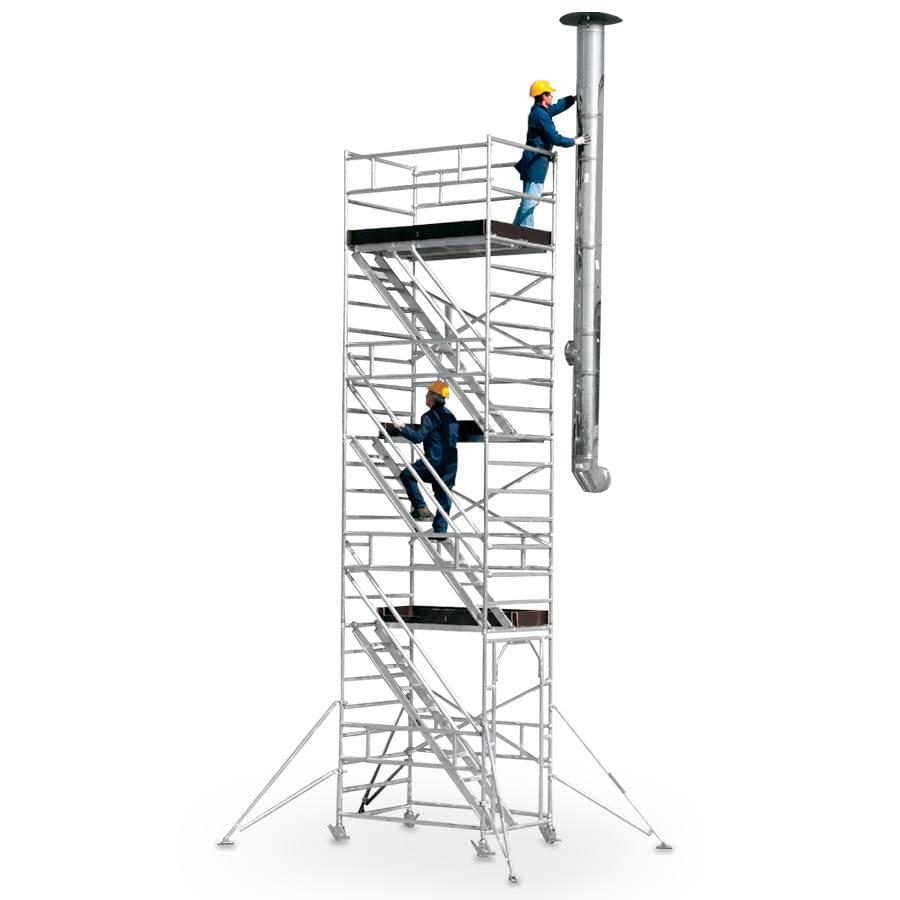

A professional aluminium scaffold designed for quick assembly and continuous worker protection with 360° handrails. Access is from within the scaffold using comfortable 45° stairways, with intermediate platforms between levels for safe ascent and descent. Ideal for maintenance and repair work.
The TEMPO CONFORT scaffold is certified to European standard EN 1004.
Jormax reserves the right to change its products or technical specifications without prior notice.

Platform height 2.39 2.69 2.99 3.29 3.59 3.89 4.19 4.49 4.79 5.09 5.39 5.69 5.99 6.29 6.59 6.89 7.19 7.49 7.79*
Overall height 3.90 4.20 4.50 4.80 5.10 5.40 5.70 6.00 6.30 6.60 6.90 7.20 7.50 7.80 8.10 8.40 8.70 9.00 9.30*
Working height 4.39 4.69 4.99 5.29 5.59 5.89 6.19 6.49 6.79 7.09 7.39 7.69 7.99 8.29 8.59 8.89 9.19 9.49 9.79*
Platform
With trapdoor 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
Without trapdoor 1 2 2 2 2 2 1 2 3 3 3 3 3 2 3 4 4 4 4
Components
Toeboards 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
Stabilisers 4P 4P 4P 4P 4M 4M 4M 4M 4M 4M 4M 4G 4G 4G 4G 4G 4G 4G 4G
Reference
2.00m 390200 420200 450200 480200 510200 540200 570200 600200 630200 660200 690200 720200 750200 780200 810200 840200 870200 900200 930200
2.50m 390250 420250 450250 480250 510250 540250 570250 600250 630250 660250 690250 720250 750250 780250 810250 840250 870250 900250 930250
3.00m 390300 420300 450300 480300 510300 540300 570300 600300 630300 660300 690300 720300 750300 780300 810300 840300 870300 900300 930300
Note: maximum height for use outdoor with stabilisers.

Description

Ideal for construction workers, installation teams, painters and maintenance technicians.

A professional aluminium scaffold designed for quick assembly and continuous worker protection with 360° handrails. Access is from within the scaffold using comfortable 45° stairways, with intermediate platforms between levels for safe ascent and descent. Ideal for maintenance and repair work.
The TEMPO CONFORT scaffold is certified to European standard EN 1004.
Jormax reserves the right to change its products or technical specifications without prior notice.

Feature Specification
Width 1.35 m

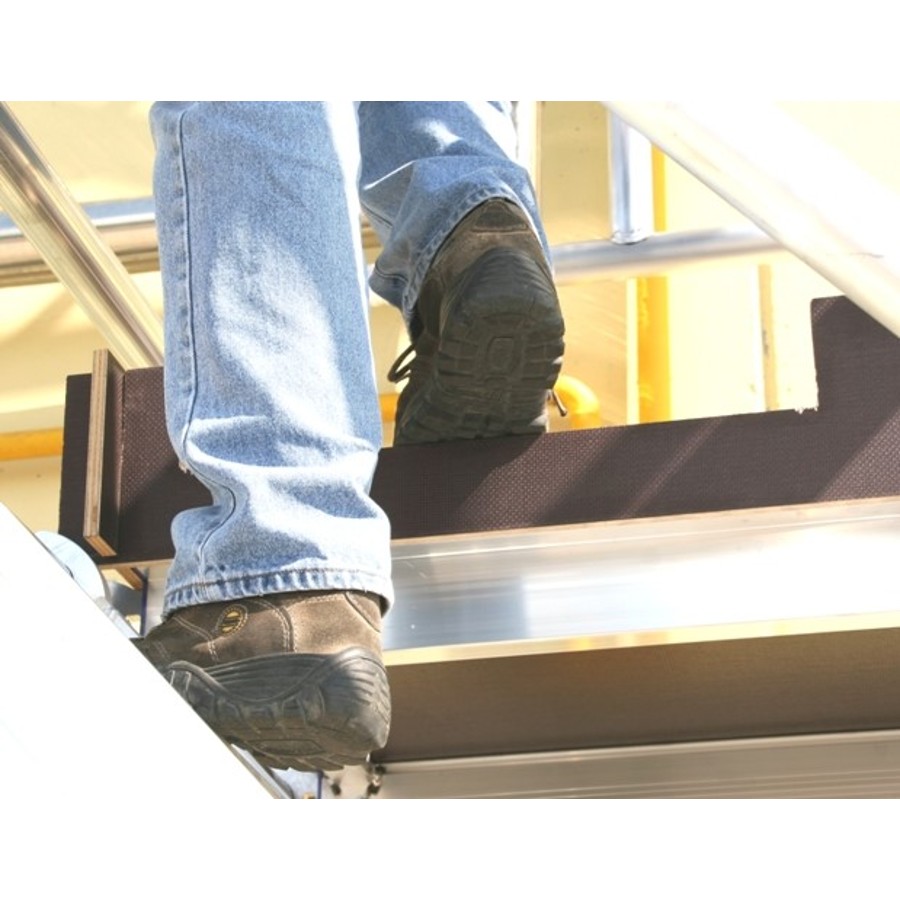

45° access ladders With handrails
Length 2.00, 2.50 or 3.00 m
Maximum working height 9.79 m
Wheels with brake Ø150 mm
Steps 10 cm
Rung spacing 30 cm
4 wheels of nylon with brake of pedal double Ø150 mm
Manual User and maintenance manual included
Certification EN1004
Note: Product dimensions may vary by +/- 2 cm.

Download da Ficha Técnica

This scaffold follows the assembly procedure specified in European standard EN 1004-1:2020:
• Distance from the ground to the platform < 3.40 m
• Distance between platforms successive < 2.25m

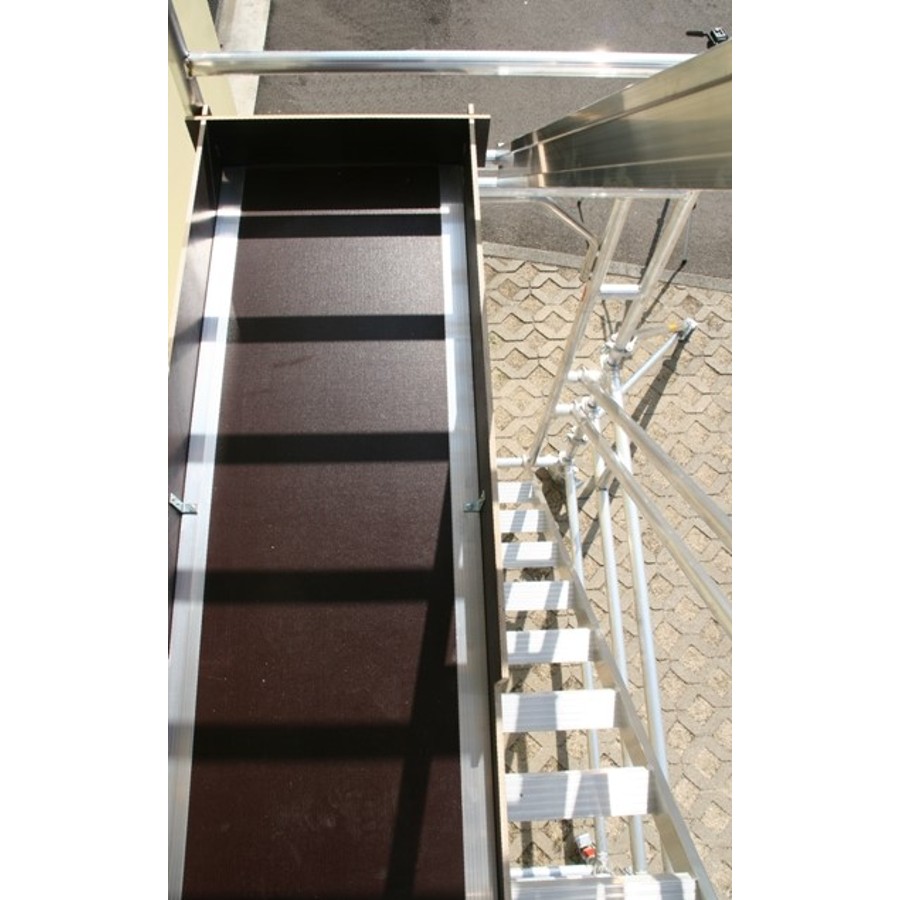

- Additional platforms fitted to Module P to make assembly and dismantling easier
