| LENGTH | KG |
|---|---|
| 4.00m | 30.00 |
| 5.00m | 40.00 |
| 6.00m | 48.00 |
| 7.00m | 54.00 |
| 8.00m | 66.00 |
Jormax reserves the right to alter its products or technical specifications without prior notice. Product dimensions may vary by +/- 2 cm.
| LENGTH | KG |
|---|---|
| 4.00m | 30.00 |
| 5.00m | 40.00 |
| 6.00m | 48.00 |
| 7.00m | 54.00 |
| 8.00m | 66.00 |
Jormax reserves the right to alter its products or technical specifications without prior notice. Product dimensions may vary by +/- 2 cm.
| Feature | Specification |
|---|---|
| Height | 1.90 m |
| External width | 0.60 m |
| Maximum concentrated load at centre | 180 kg |
| Maximum total load capacity | 250 kg (2 people) |
| Maximum inclination | 15%/20% |
| Note: Product dimensions may vary by +/- 2 cm. | |

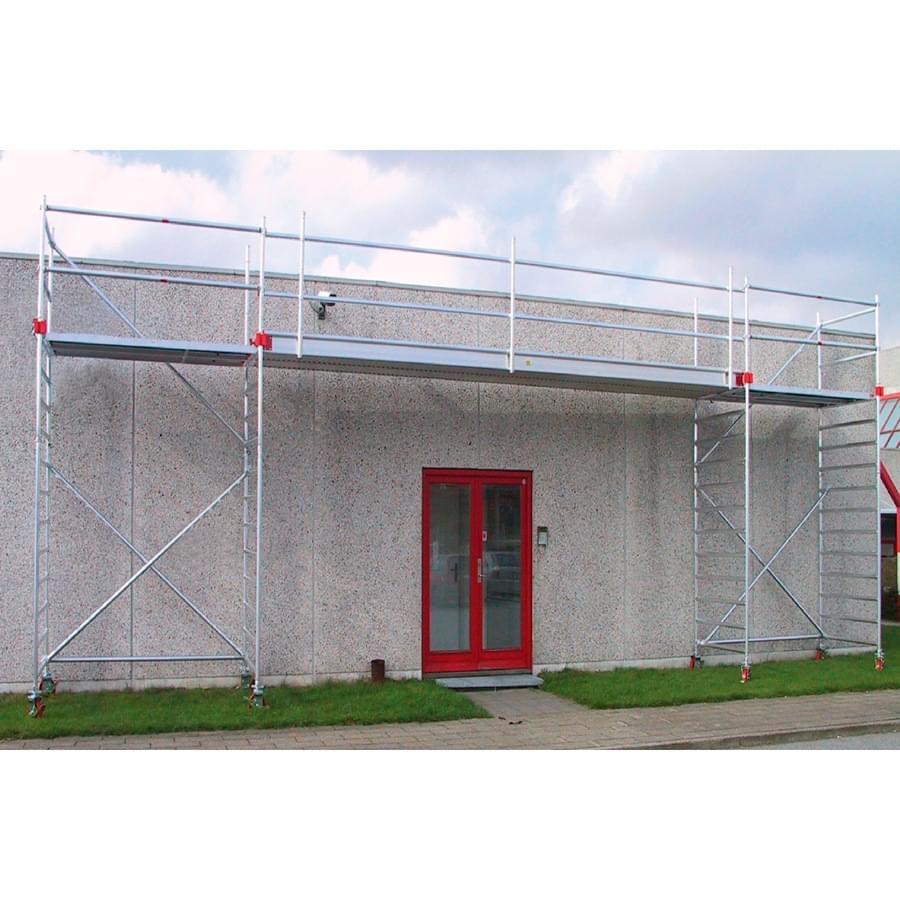

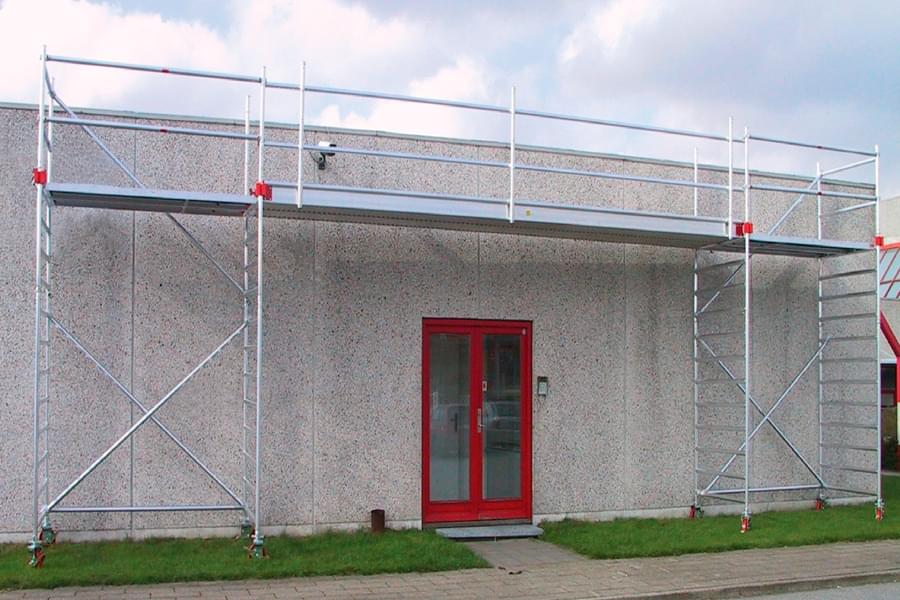

STANDARD MARINE-PLYWOOD WALKWAY KIT, 3.00 M: KIT S''S''S – connecting walkway for use between two Tempo S towers, made of marine plywood, 3.00 × 0.74 m wide, with possible overall spans of 7 to 9 m.
For installation at the top of the tower. KIT L''S''S – connecting walkway between one Tempo L tower and one Tempo S tower, made of marine plywood, 3.00 × 0.74 m wide, with possible overall spans of 7 to 9 m.
For installation at the top of the tower. KIT L''L''L – connecting walkway between two Tempo L towers, made of marine plywood, 3.00 × 0.74 m wide, with possible overall spans of 7 to 9 m.
For installation at the top of the tower. KIT L''S''L – connecting walkway between two Tempo L towers, made of marine plywood, 3.00 × 1.35 m wide, with possible overall spans of 7 to 9 m.
For installation at the top of the tower. KIT L''L''L – connecting walkway between two Tempo L towers, made of marine plywood, 3.00 × 1.35 m wide, with possible overall spans of 7 to 9 m.
Fitted to the middle of the tower to provide a walkway between towers.
