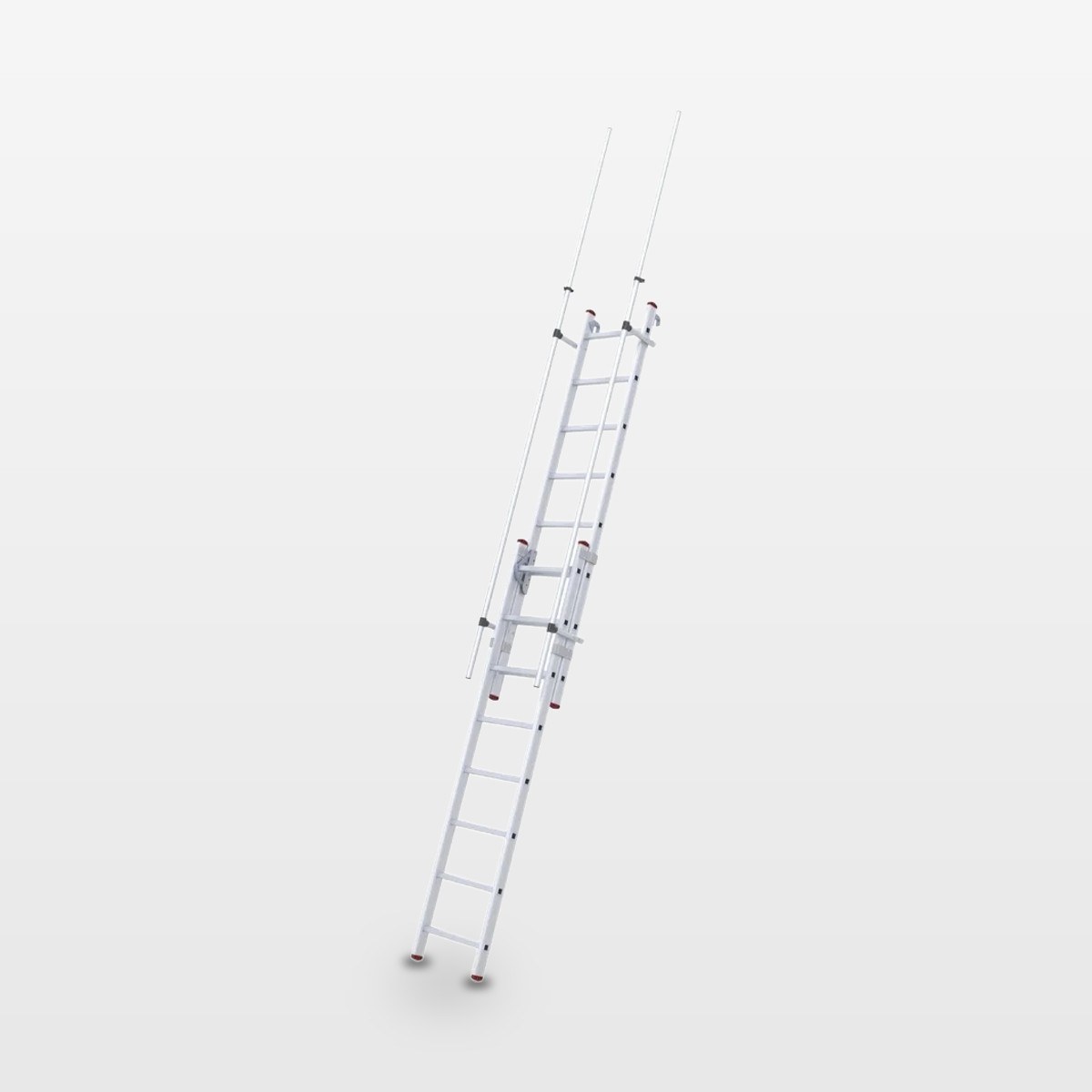

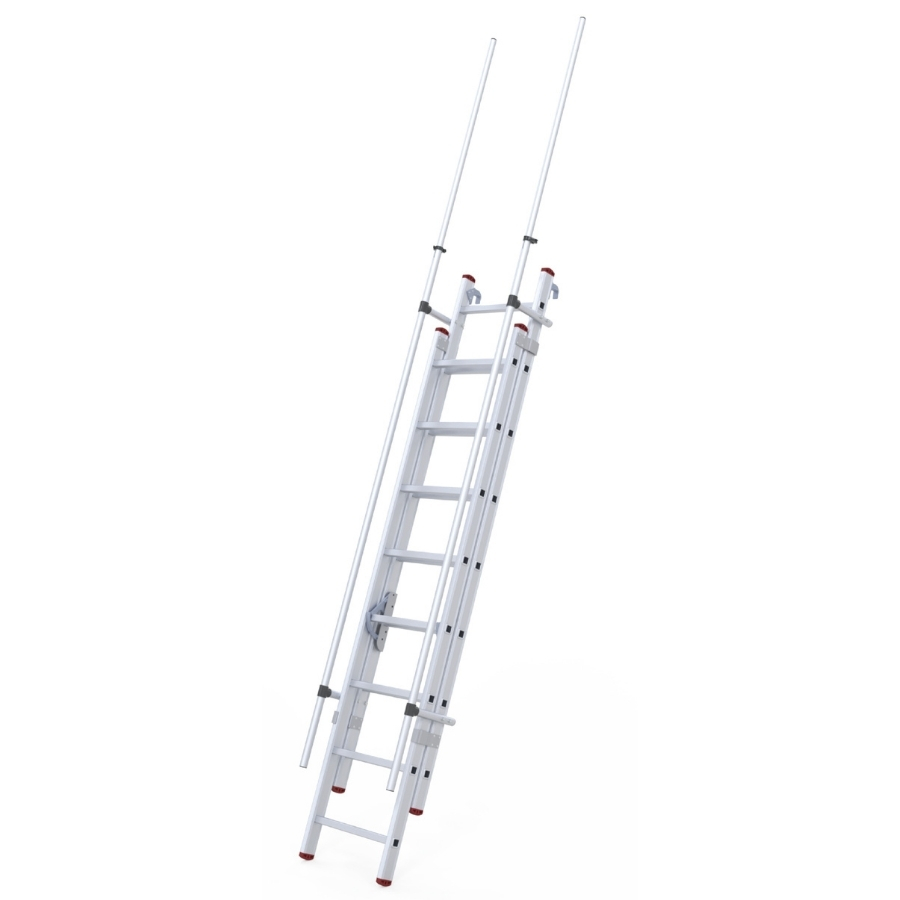

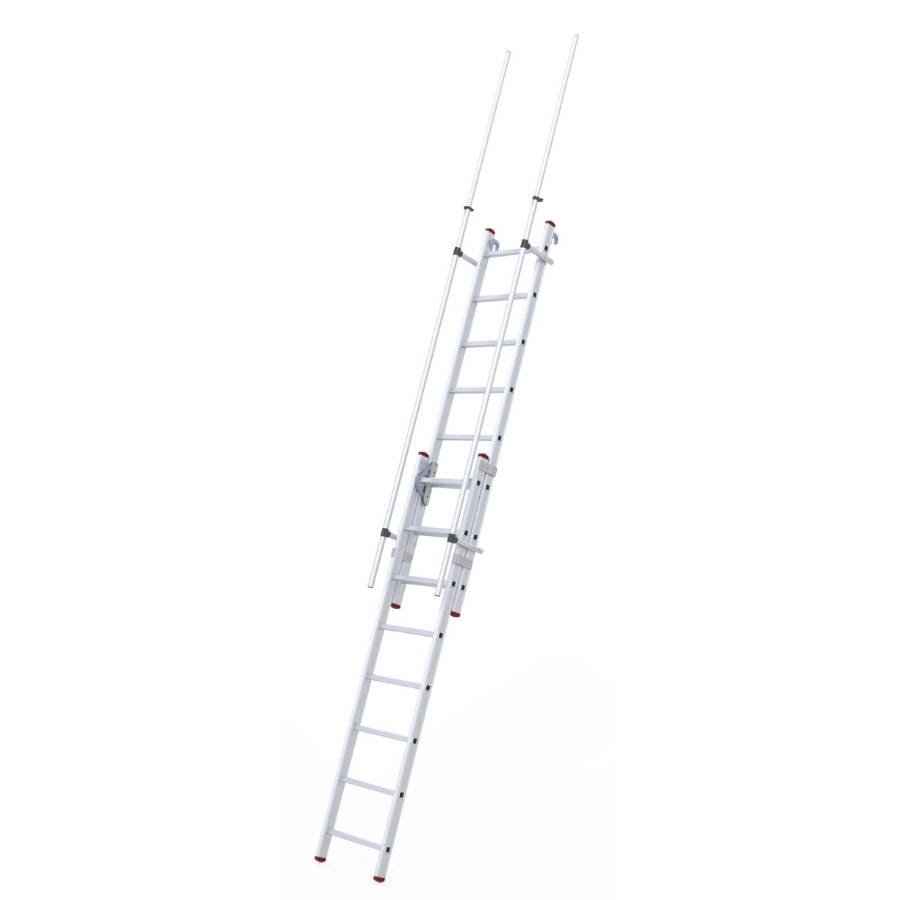

Sliding ladder for access to site cabins
A professional aluminium sliding ladder with 4.8 cm-deep steps spaced 28 cm apart. It has a 50 cm-wide front entry and provides safe support while descending. A rung-locking mechanism allows precise height adjustment. Fitted with two suspension hooks. Ideal for access to site cabins, waste containers and tanks.
The SLIDING LADDER is certified to European standard EN 131.
Jormax reserves the right to change its products or technical specifications without prior notice.
| Number of steps | 8+8 | 9+9 | 11+12 |
| Vertical height against wall (m) | 2.40 – 3.40 | 2.65 – 3.95 | 3.43 – 5.25 |
| Folded ladder height (m) | 2.57 | 2.85 | 3.69 |
| Overall ladder height (m) | 3.69 | 4.25 | 5.65 |
| Width (m) | 0.55 | 0.55 | 0.55 |
| Weight (kg) | 19.00 | 21.00 | 26.00 |
| Reference | 20908 | 20909 | 20910 |
Sliding ladder for access to site cabins
A professional aluminium sliding ladder with 4.8 cm-deep steps spaced 28 cm apart. It has a 50 cm-wide front entry and provides safe support while descending. A rung-locking mechanism allows precise height adjustment. Fitted with two suspension hooks. Ideal for access to site cabins, waste containers and tanks.
The SLIDING LADDER is certified to European standard EN 131.
Jormax reserves the right to change its products or technical specifications without prior notice.
| Feature | Specification |
|---|---|
| Number of steps | 2×8 to 11+12 |
| Rung spacing | 28 cm |
| Steps | 4.8 cm |
| 2 handrails retractable | 1.00 m |
| 2 suspension hooks | Ø6 cm |
| Front access width | 50 cm |
| Manual | User and maintenance manual included |
| Certified | EN131 |
| Label of identification | Included |
| Note: Product dimensions may vary by +/- 2 cm. | |
