| Number of steps | 2 x 6 | 2 x 10 | 2 x 14 |
|---|---|---|---|
| Overall folded height (m) | 1.88 | 2.98 | 4.10 |
| Minimum working height (m) | 2.56 | 3.66 | 7.78 |
| Maximum working height (m) | 3.60 | 5.50 | 7.50 |
| Weight (kg) | 19.00 | 27.00 | 38.00 |
| Reference | 20175 | 20176 | 20177 |
Double with heights upper.

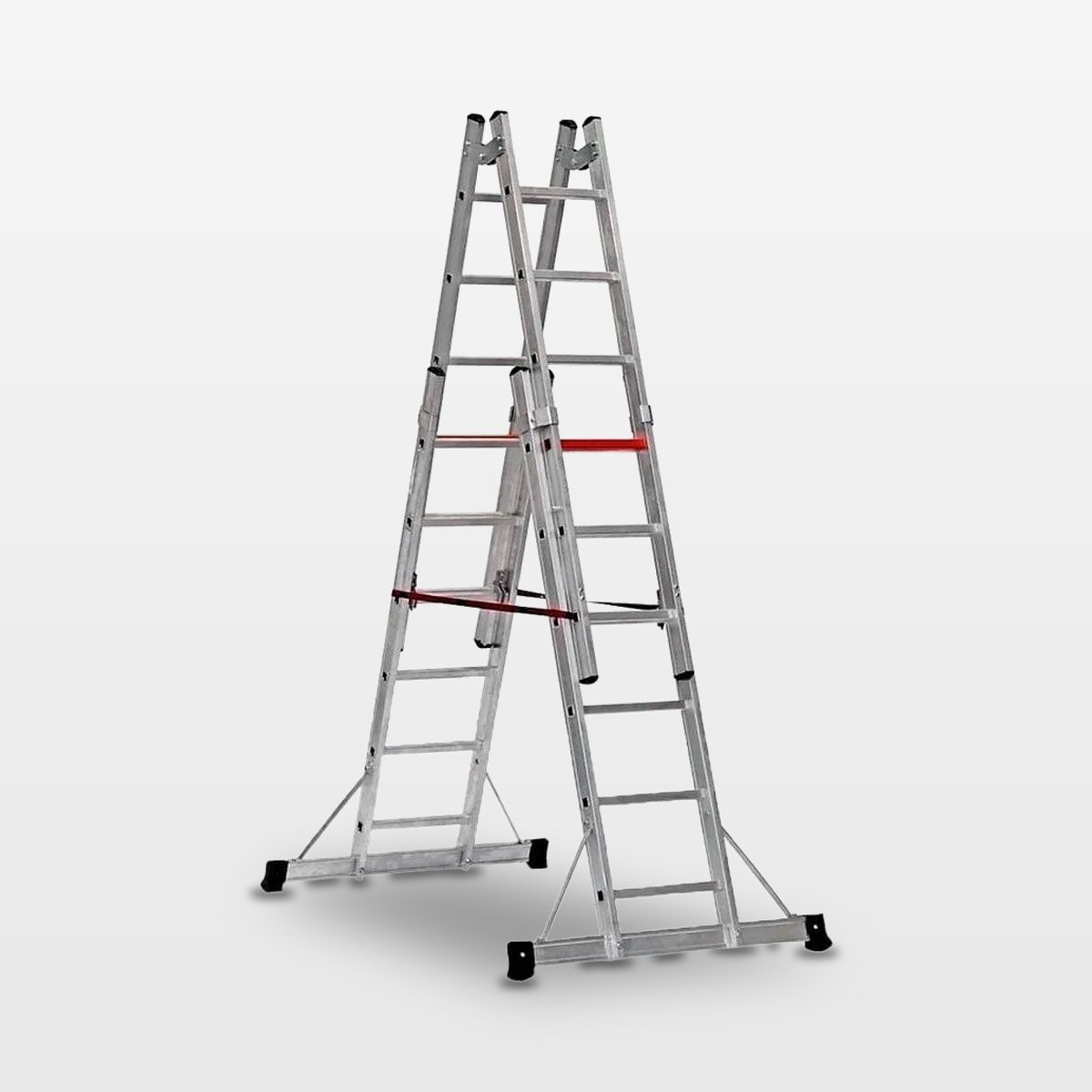

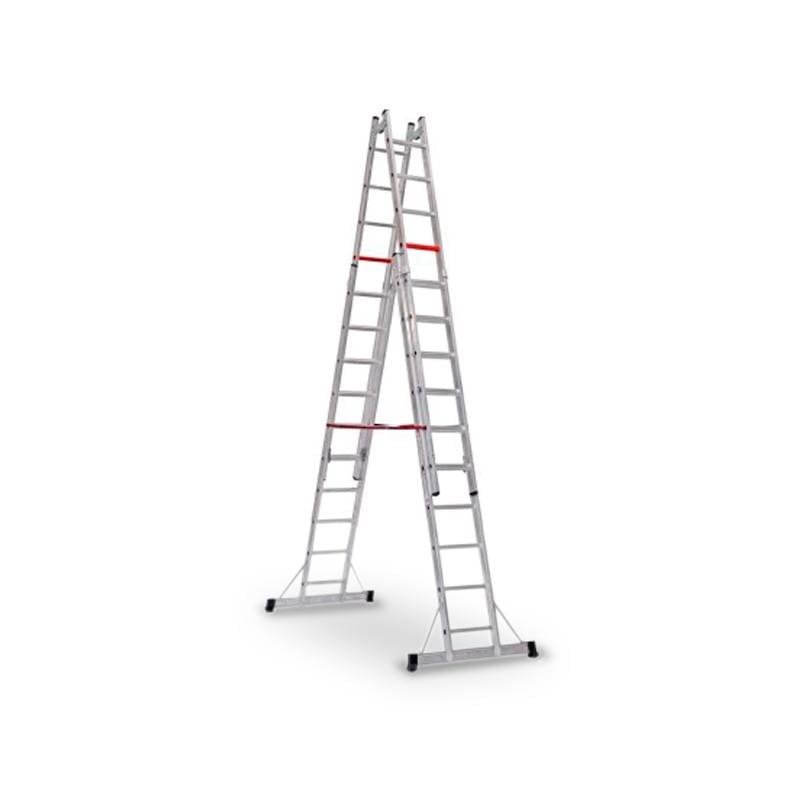

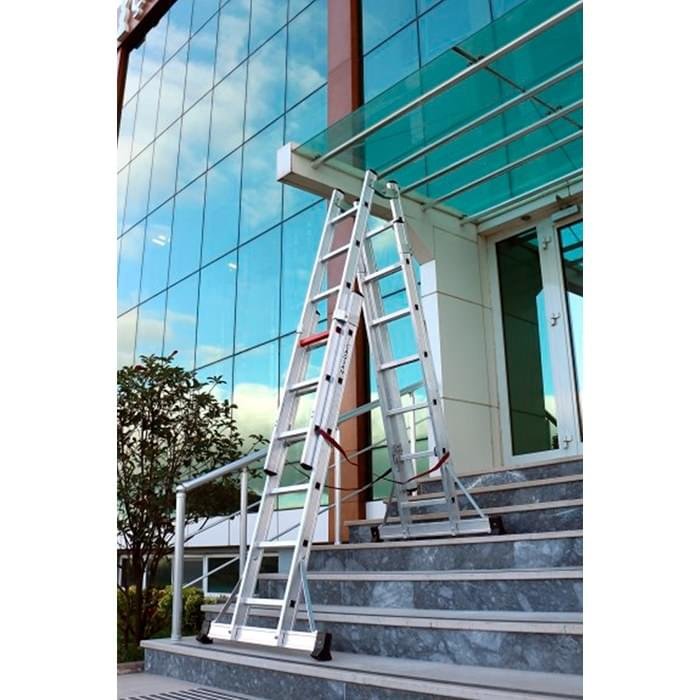

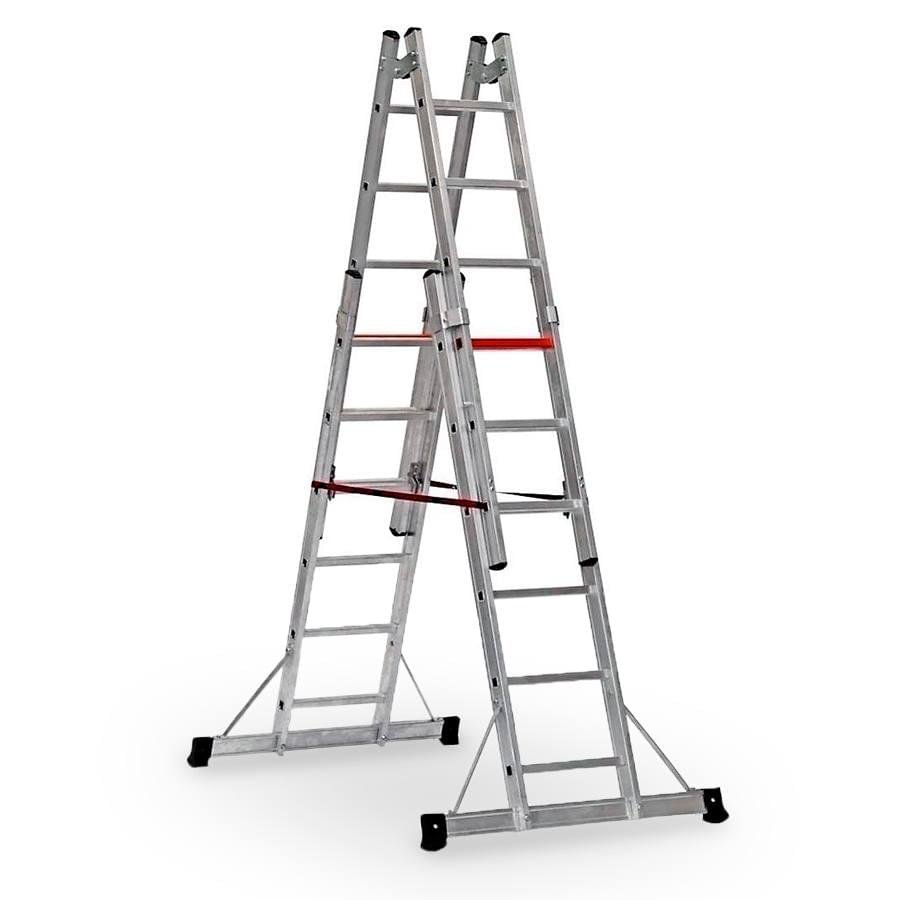

A professional two-section aluminium combination ladder in A-frame configuration, with rungs spaced 28 cm apart. Its sections can be adjusted independently to the required heights, allowing use on staircases and uneven ground. Ideal for professional work at height without the need for wall support.
Jormax reserves the right to change its products or technical specifications without prior notice.
| Number of steps | 2 x 6 | 2 x 10 | 2 x 14 |
|---|---|---|---|
| Overall folded height (m) | 1.88 | 2.98 | 4.10 |
| Minimum working height (m) | 2.56 | 3.66 | 7.78 |
| Maximum working height (m) | 3.60 | 5.50 | 7.50 |
| Weight (kg) | 19.00 | 27.00 | 38.00 |
| Reference | 20175 | 20176 | 20177 |
Double with heights upper.
A professional two-section aluminium combination ladder in A-frame configuration, with rungs spaced 28 cm apart. Its sections can be adjusted independently to the required heights, allowing use on staircases and uneven ground. Ideal for professional work at height without the need for wall support.
Jormax reserves the right to change its products or technical specifications without prior notice.
| Feature | Specification |
|---|---|
| Number of steps | 2×6 to 2×14 |
| Rung spacing | 28 cm |
| Width | 48 cm (front) + 42 cm (rear) |

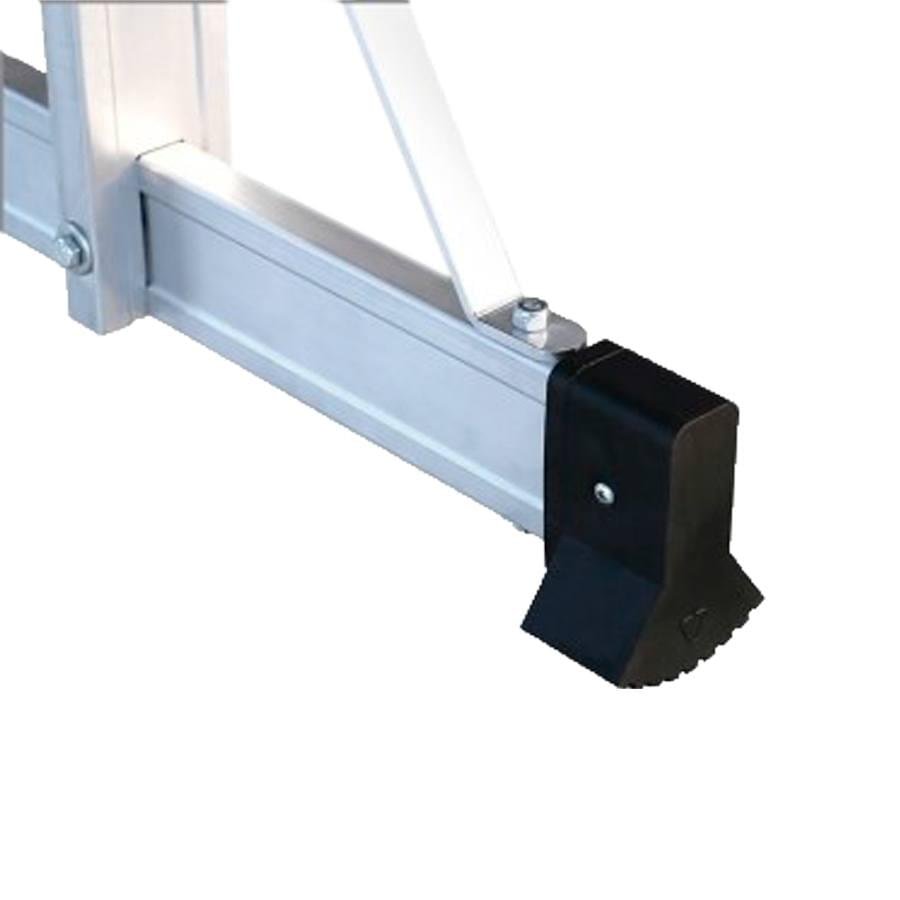

| Feet non-slip with design ergonomic | Yes |
| Internal nylon reinforcement at the stabiliser fitting | Yes |
| Metal fittings in steel with processing anti-corrosion | Yes |
| Anti-slip safety device | Yes |
| Manual | User and maintenance manual included |
| Label of identification | Included |
| Note: Product dimensions may vary by +/- 2 cm. | |
