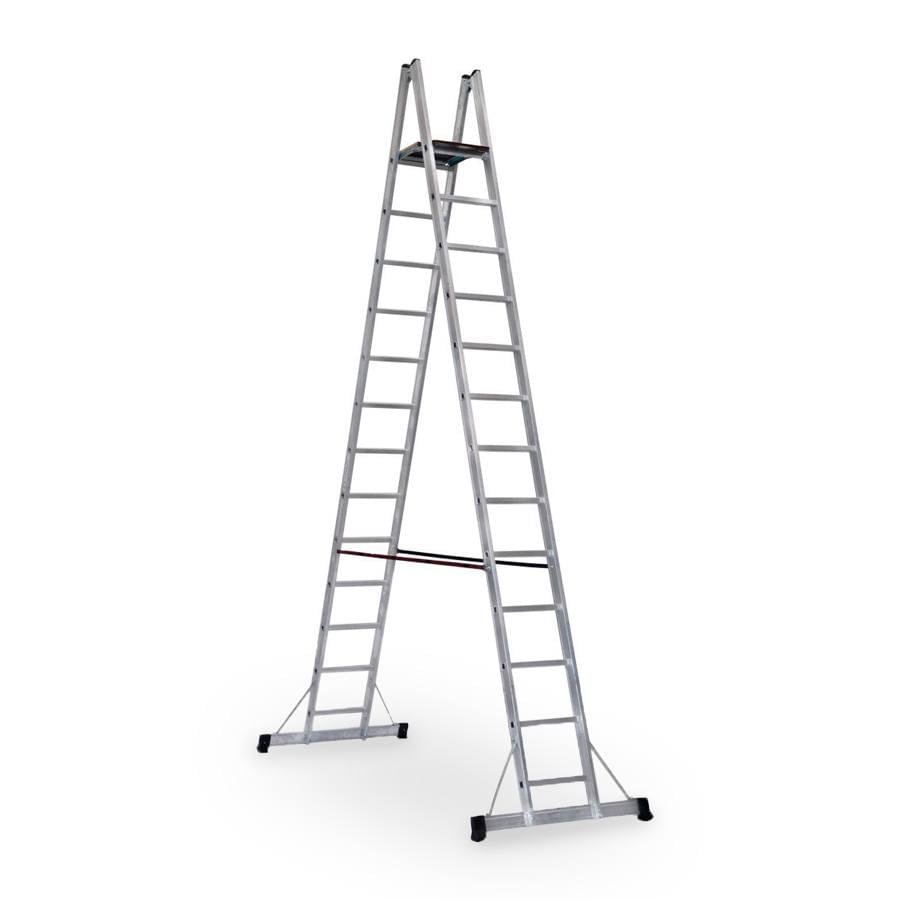

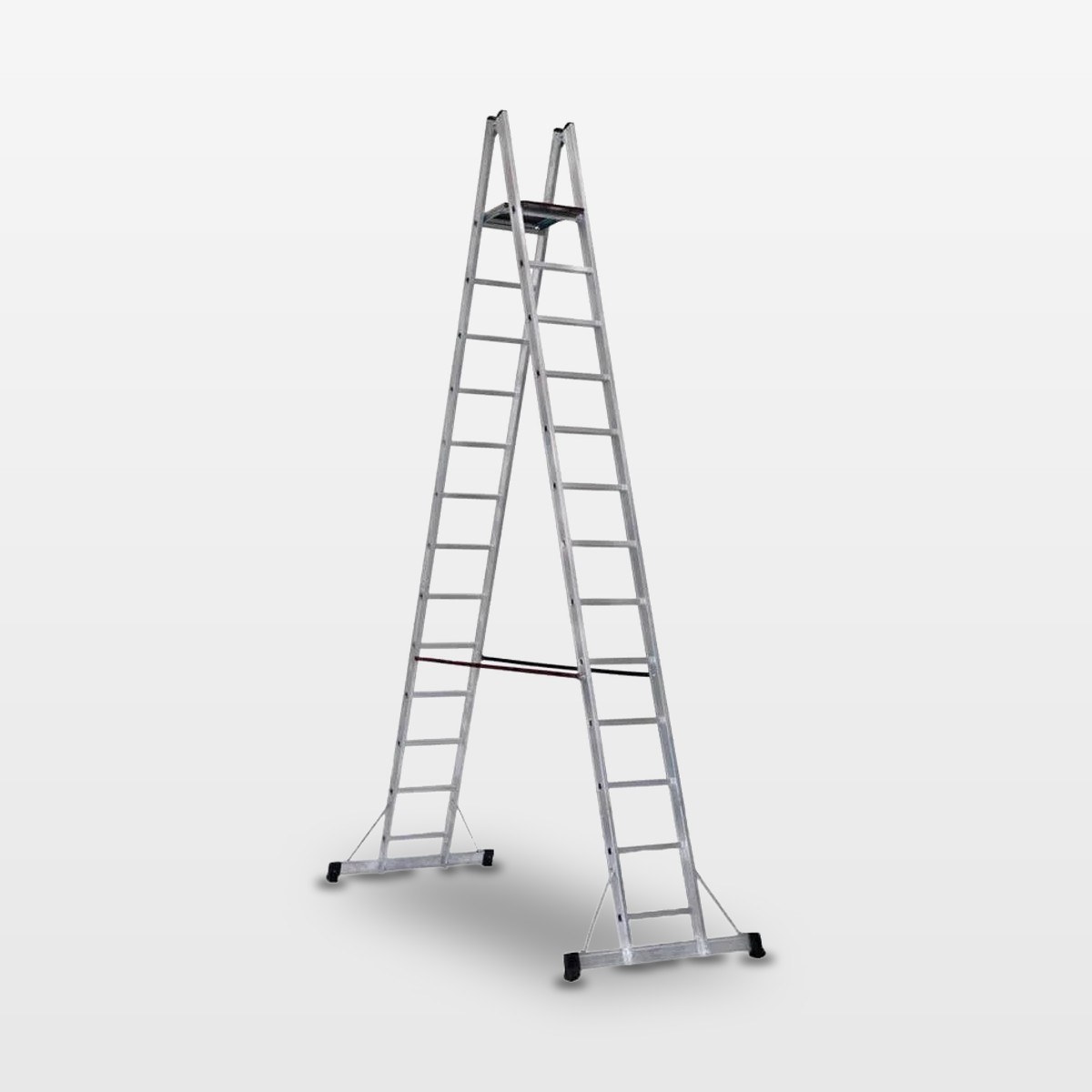

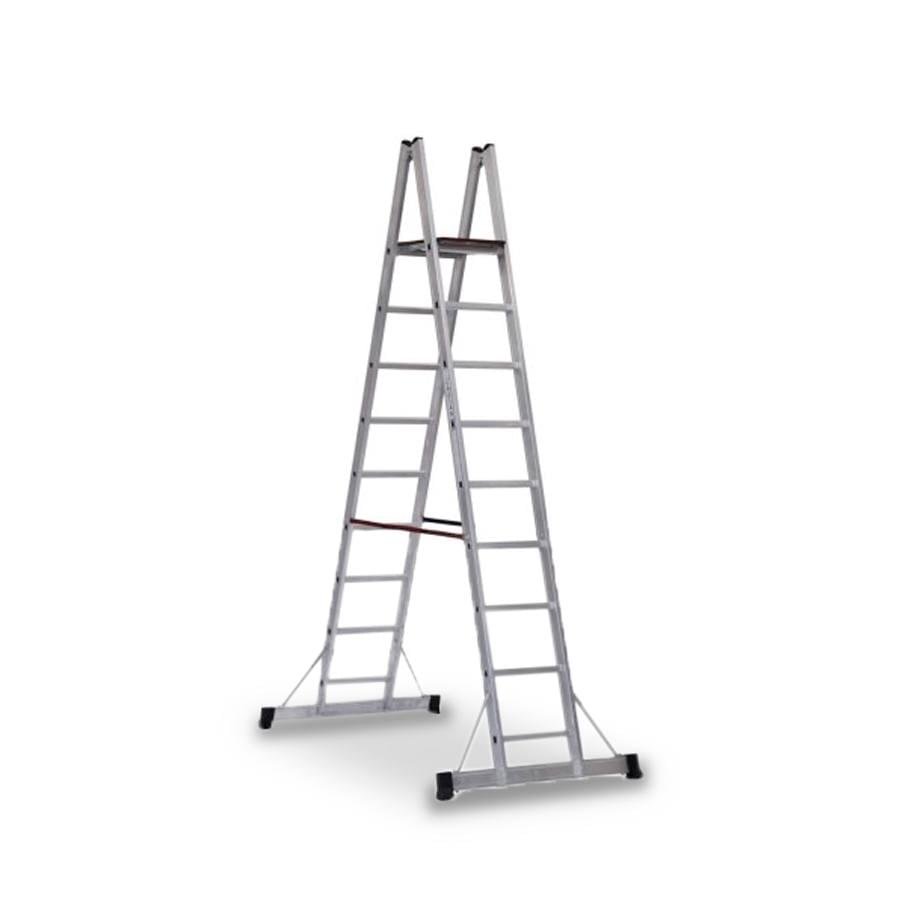

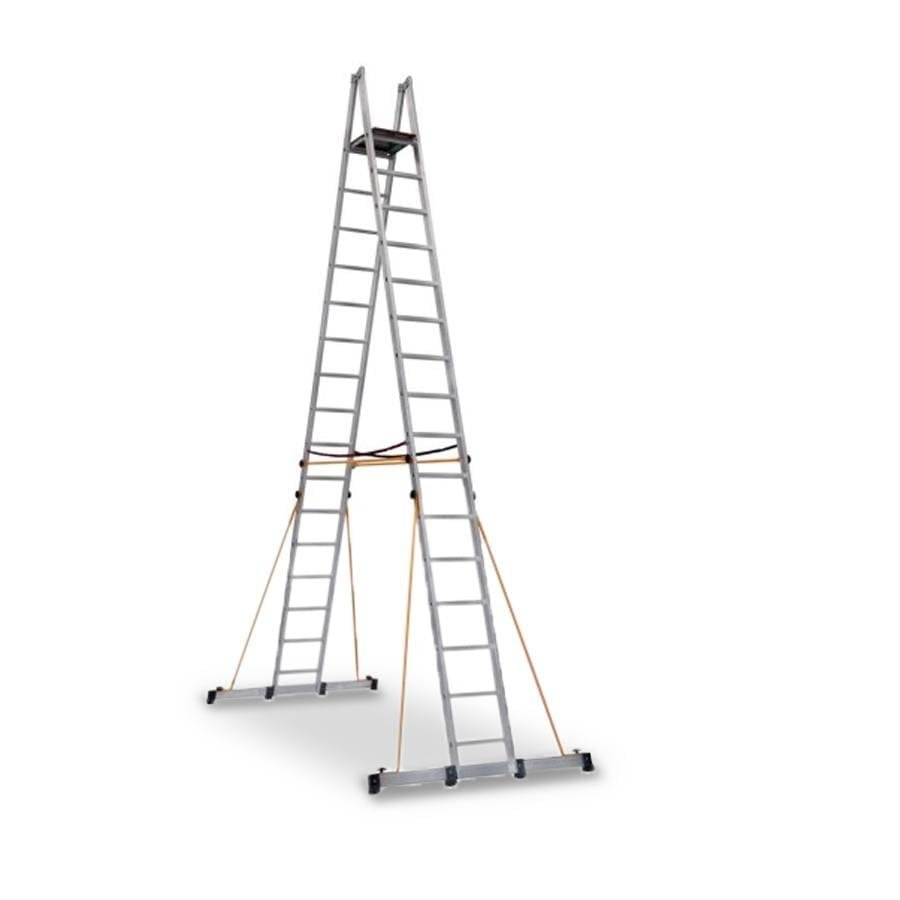

Two-section combination ladder in the A-frame position.
A professional two-section aluminium combination ladder in A-frame configuration, with rungs spaced 28 cm apart. Includes an upper support platform, a tool holder and an anti-opening bar for added safety. Ideal for professional work at height without needing to lean against a wall.
Jormax reserves the right to change its products or technical specifications without prior notice.
| Number of steps | 2 x 8 | 2 x 12 | 2 x 14 | 2 x 17 |
|---|---|---|---|---|
| Overall folded height (m) | 1.88 | 2.98 | 4.10 | 4.88 |
| Working height (m) | 3.88 | 3.98 | 5.10 | 5.88 |
| Front-section width (m) | 0.42 | 0.42 | 0.42 | 0.42 |
| Widest-section width (m) | 0.48 | 0.48 | 0.48 | 0.48 |
| Weight (kg) | 19.00 | 27.00 | 38.00 | 46.00 |
| Reference | 20178 | 20179 | 20180 | 20181 |
Two-section combination ladder in the A-frame position.
A professional two-section aluminium combination ladder in A-frame configuration, with rungs spaced 28 cm apart. Includes an upper support platform, a tool holder and an anti-opening bar for added safety. Ideal for professional work at height without needing to lean against a wall.
Jormax reserves the right to change its products or technical specifications without prior notice.
| Feature | Specification |
|---|---|
| Number of steps | 2×8 to 2×17 |
| Rung spacing | 28 cm |
| Width | 48 cm (front) + 42 cm (rear) |

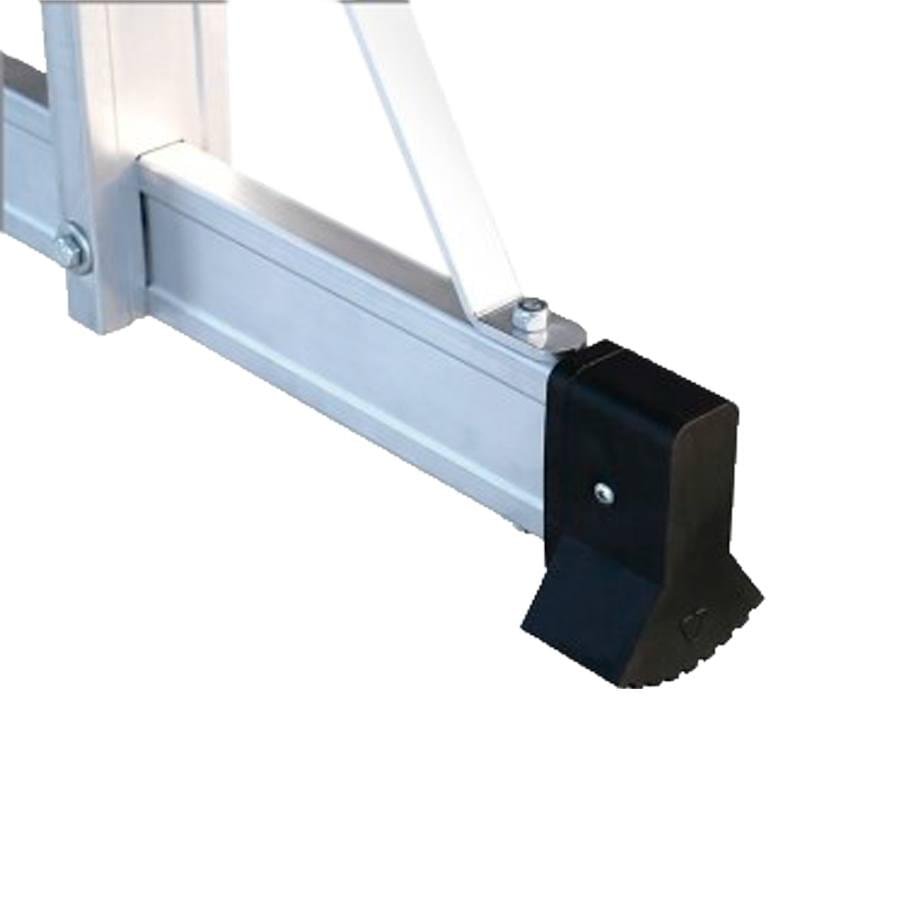

| Feet non-slip with design ergonomic | Yes |
| Internal nylon reinforcement at the stabiliser fitting | Yes |
| Metal fittings in steel with processing anti-corrosion | Yes |
| Anti-slip safety device | Yes |
| Manual | User and maintenance manual included |
| Label of identification | Included |
| Note: Product dimensions may vary by +/- 2 cm. | |
