MILLENIUM – andaime Jormax
MILLENIUM – andaime Jormax

MILLENIUM

Suitable for maintenance work on construction sites.

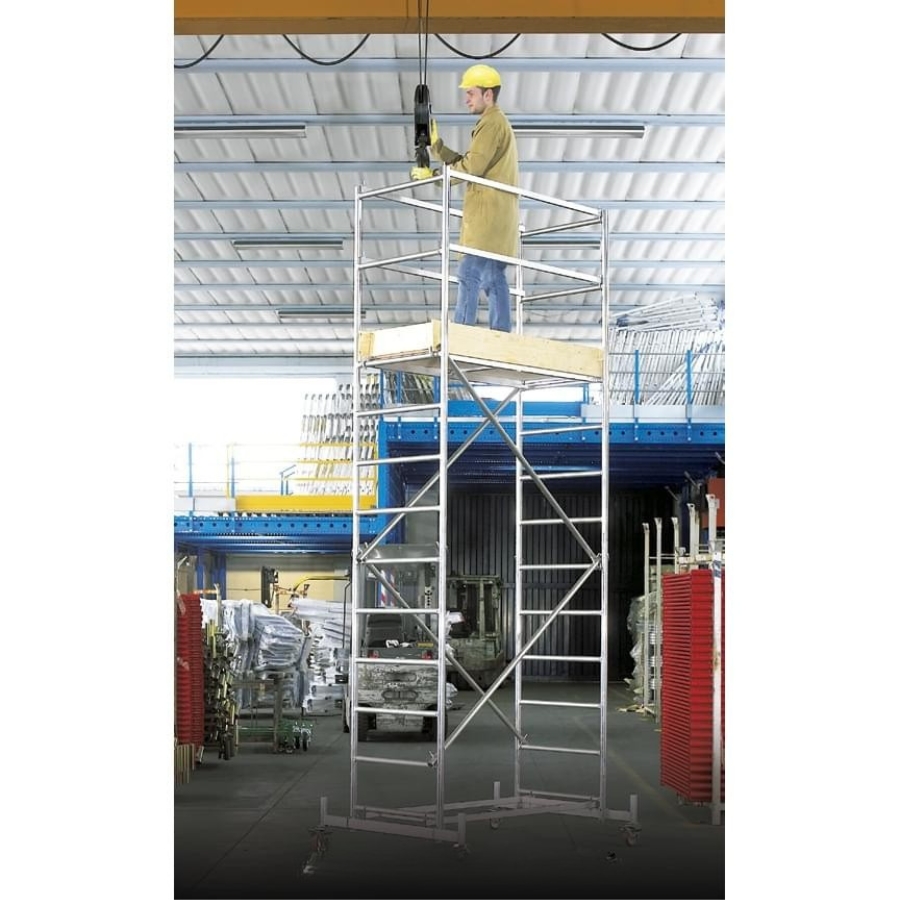

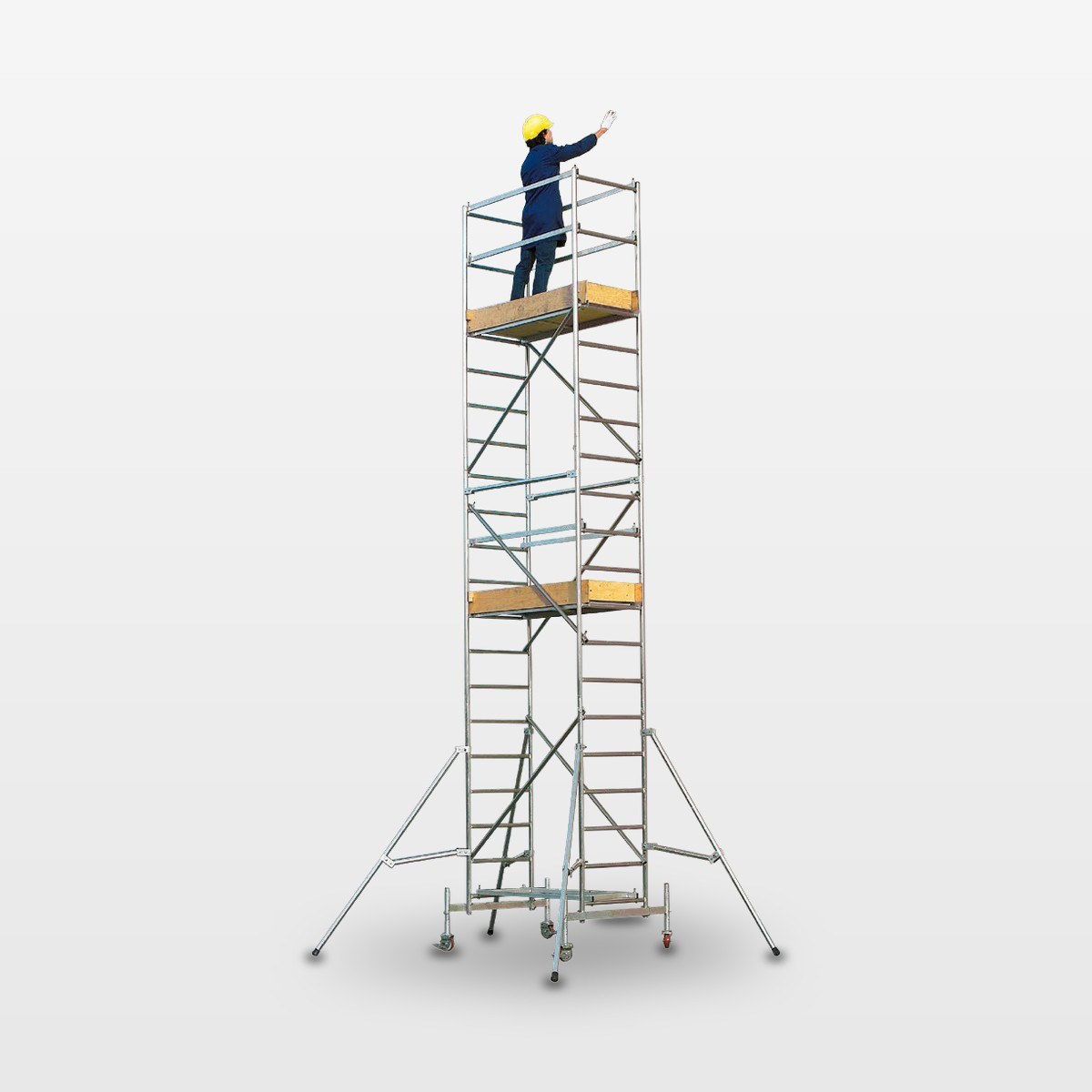

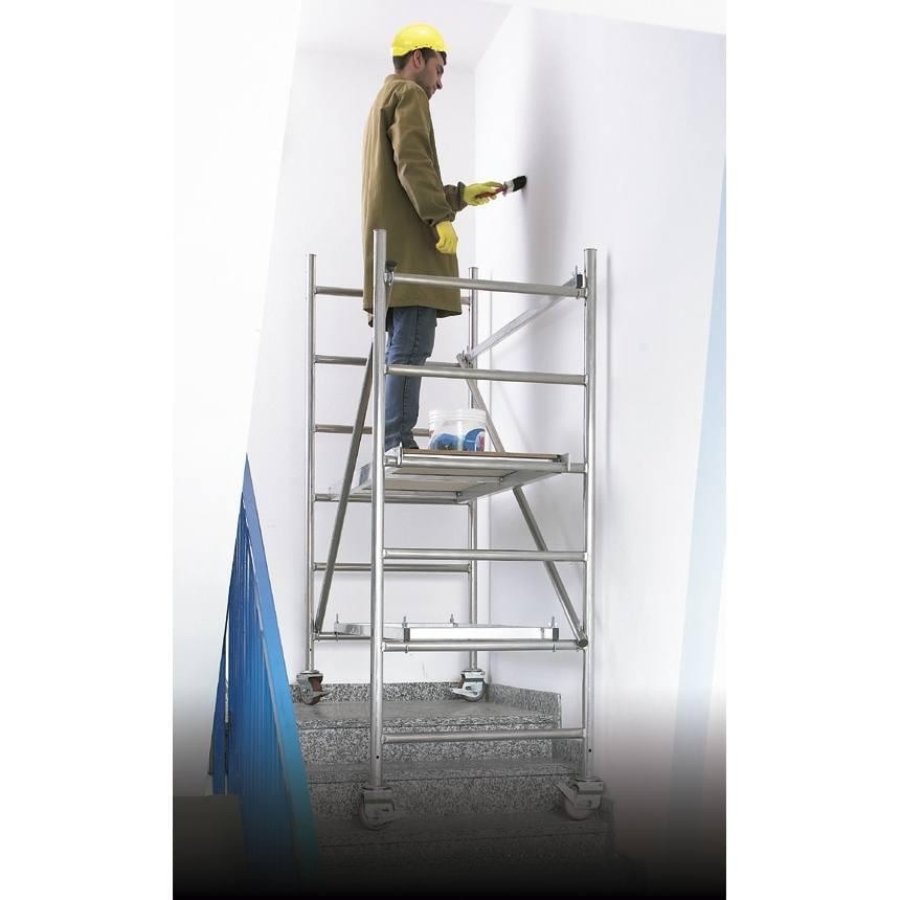

A professional scaffold made of lightweight 42 mm-diameter aluminium-alloy tubing. Modular sections provide working heights up to 9.23 m. Access is from inside the scaffold, via the rungs of the side frames. Easy to assemble without tools. Ideal for washing and maintenance work.
The MILLENIUM scaffold is certified to European standard EN 1004.
Jormax reserves the right to change its products or technical specifications without prior notice.

Platform height (m) 0.95 1.25 1.55 2.73 3.33 3.63 4.23 4.83 5.13 5.43 5.73 6.33 6.93 7.23
Overall height (m) 1.95 2.55 2.85 3.81 4.41 4.71 5.31 5.91 6.21 6.51 6.81 7.41* 8.01* 8.31*
Working height (m) 2.95 3.25 3.55 4.73 5.33 5.63 6.23 6.83 7.13 7.43 7.73 8.33 8.93 9.23
Number of platforms 1 1 1 1 2 2 2 2 2 2 3 3 3 3
Number of toeboards 0 0 0 1 1 1 1 1 1 1 1 1 1 1
Fixings Not Not Not Not Not Not Not Not Not Not Not Yes, outdoor Yes, outdoor Yes, outdoor
Weight (kg) 36.00 38.00 39.00 65.00 68.00 78.00 99.00 102.00 104.00 105.00 115.00 136.00 139.00 141.00
Modules THE+S1 THE+D2+S1+2H THE+D3+S1+2H THE+B THE+B+D2+P THE+B+D3+P THE+B+AND THE+B+C THE+B+D3+AND THE+B+C+D2 THE+B+C+D3+P THE+B+C+AND+Z THE+B+2C+Z THE+B+C+D3+AND+Z



Module A Module B Module C Module D2 Module D3 Module AND
Module height (m) 1.95 1.83 2.10 0.60 0.90 1.50
Weight (kg) 31.20 34.00 37.00 3.30 4.50 34.60
Reference 10323 10324 10325 10326 10326.1 10325.1

Description

Suitable for maintenance work on construction sites.

A professional scaffold made of lightweight 42 mm-diameter aluminium-alloy tubing. Modular sections provide working heights up to 9.23 m. Access is from inside the scaffold, via the rungs of the side frames. Easy to assemble without tools. Ideal for washing and maintenance work.
The MILLENIUM scaffold is certified to European standard EN 1004.
Jormax reserves the right to change its products or technical specifications without prior notice.

Feature Specification
Base dimensions up to 2.85 m overall height 1.60 x 0.80 m
Base dimensions above 2.85 m overall height 1.70 x 1.30 m (includes crossbars)
Platform dimensions 1.40 x 0.60 m
Maximum working height 9.23 m
Platform weight 13.80 kg

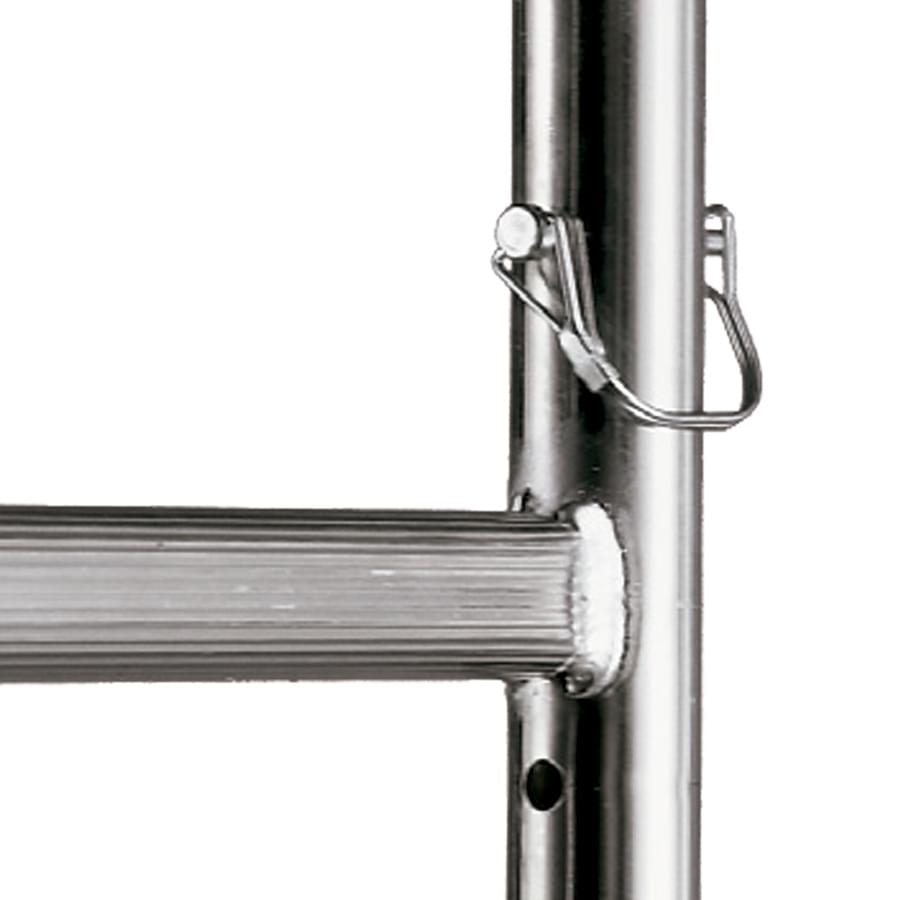

Rung spacing 30 cm
Load capacity 200 kg (2 people)

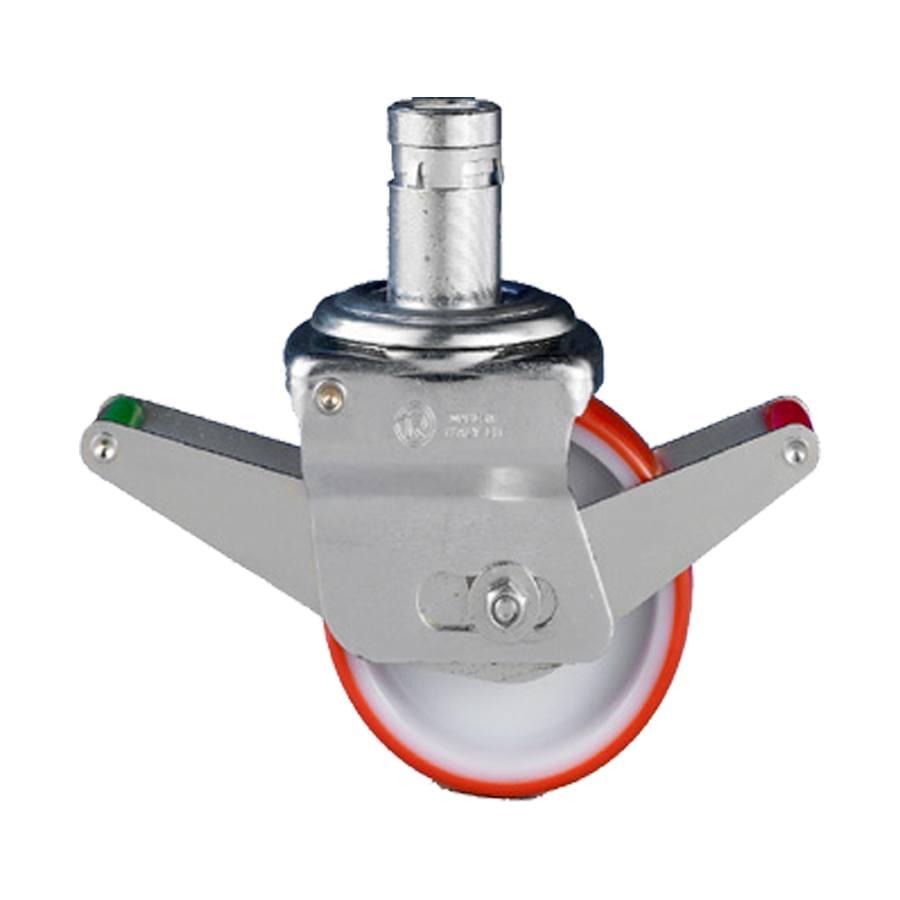

Wheels with brake Ø125 mm
Manual User and maintenance manual included
Certification EN1004
Note: Product dimensions may vary by +/- 2 cm.

Download da Ficha Técnica

This scaffold follows the assembly procedure specified in European standard EN 1004-1:2020:
• Distance from the ground to the platform < 3.40 m
• Distance between platforms successive < 2.25m
- Additional platforms fitted to Module P to make assembly and dismantling easier

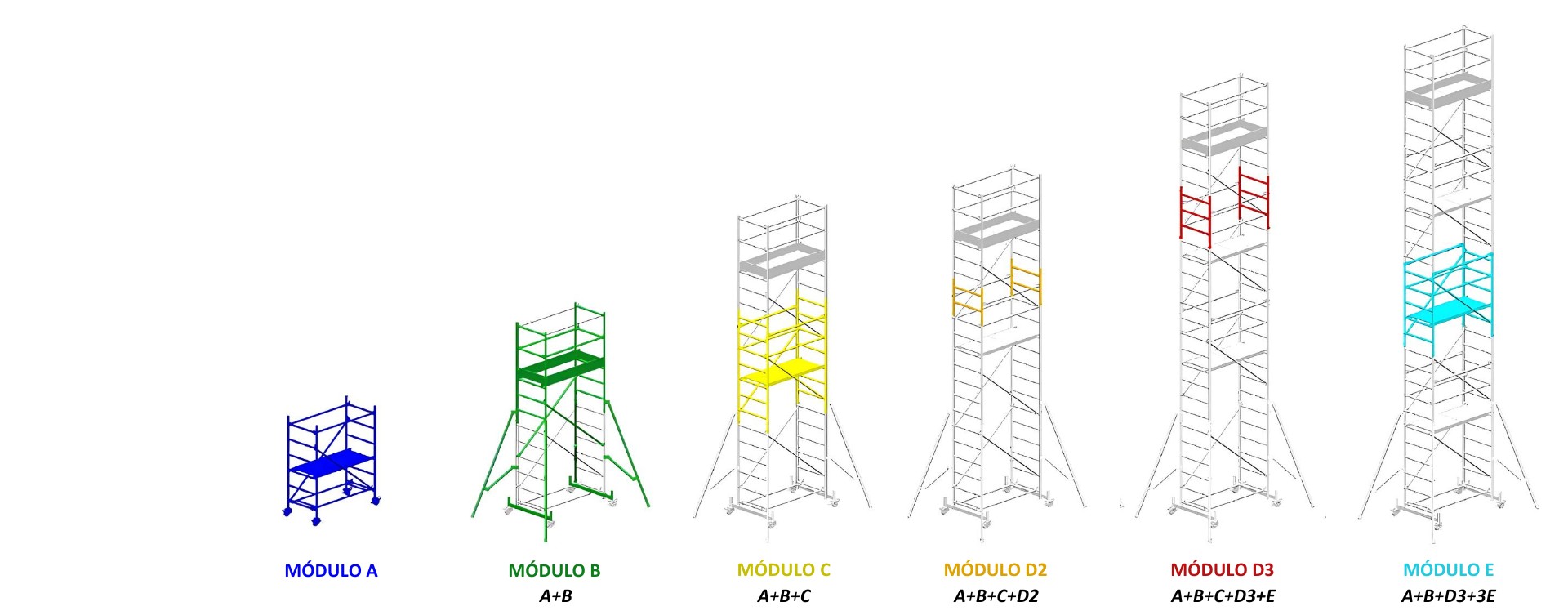

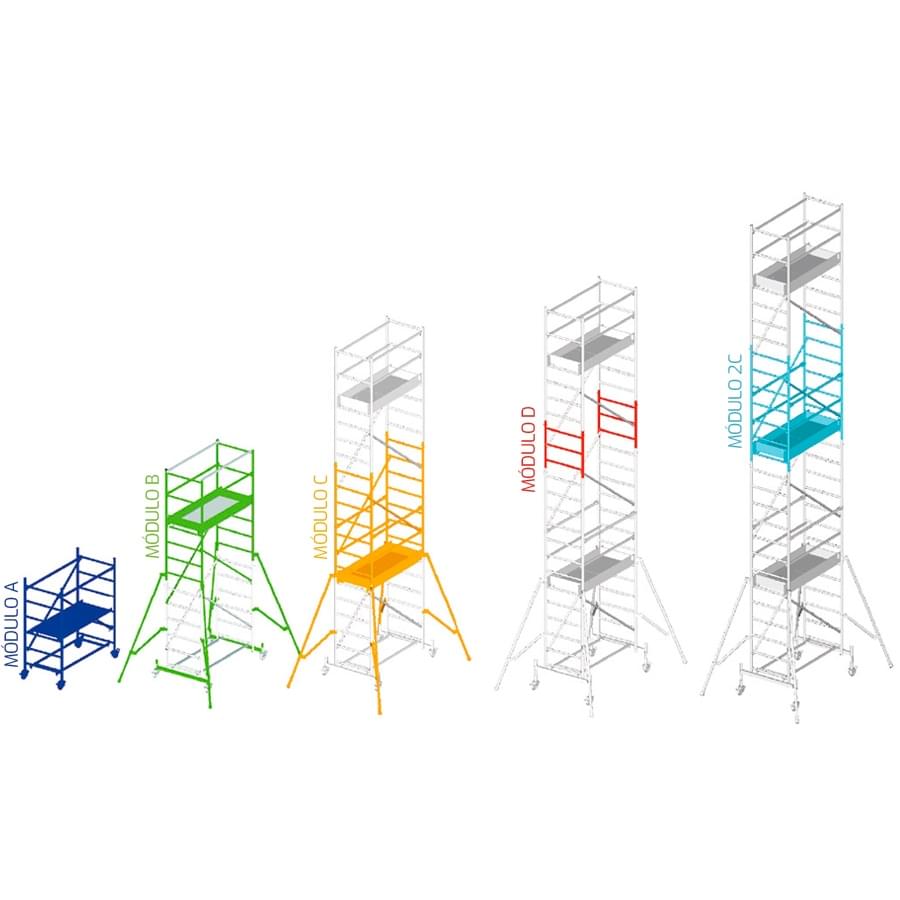

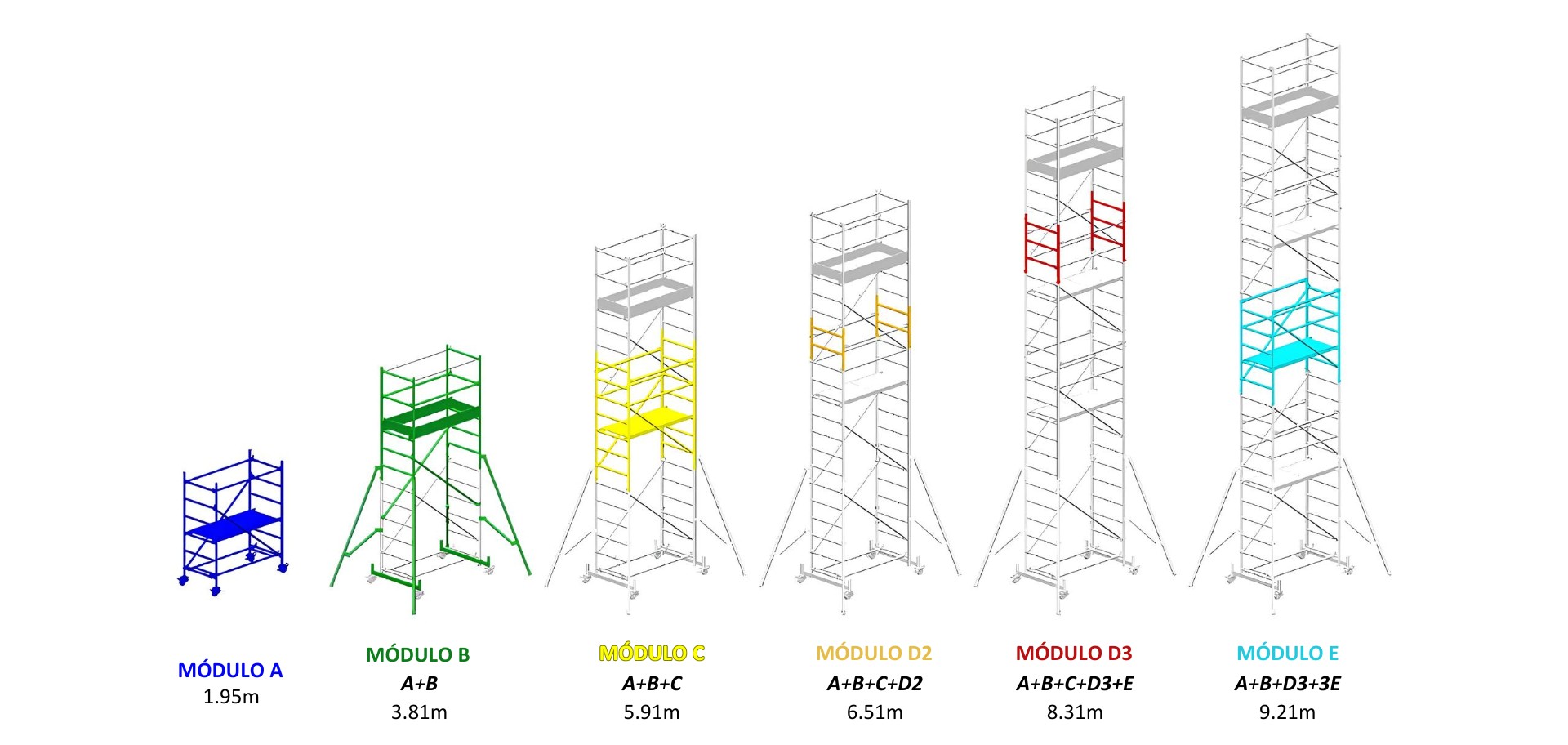

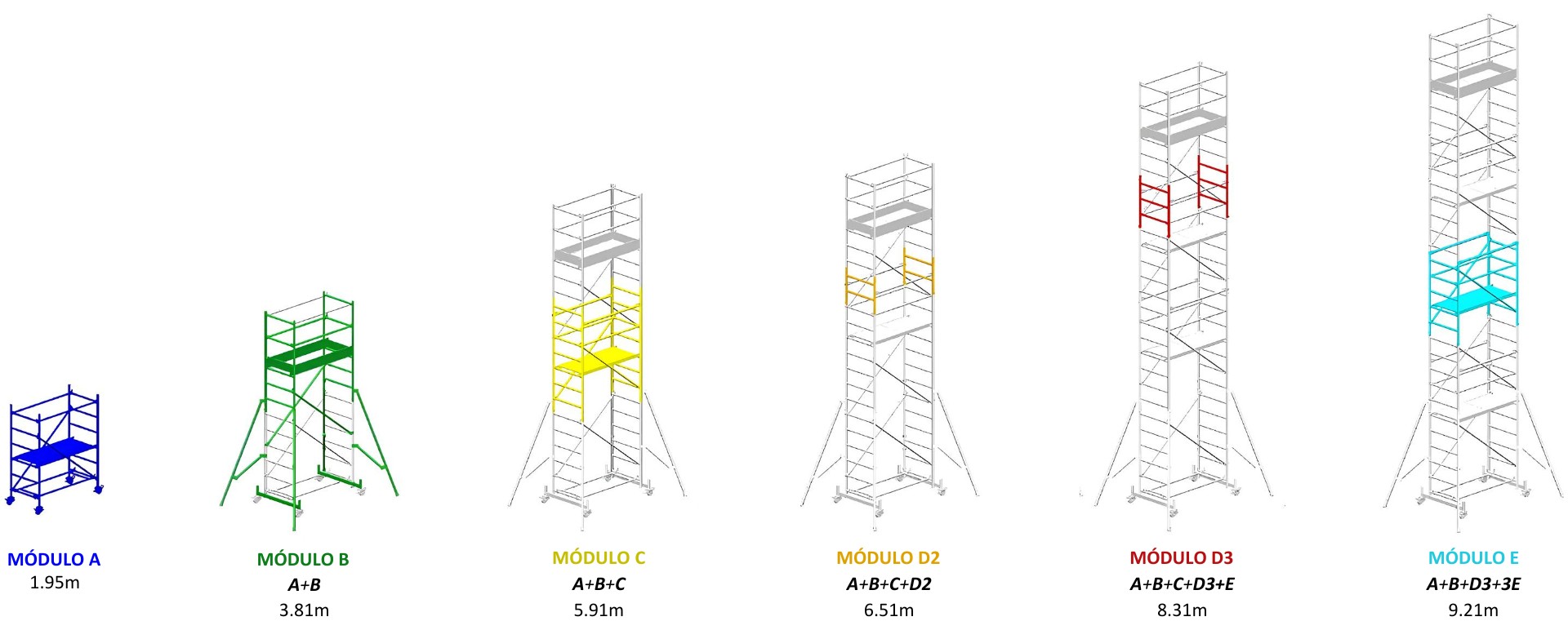

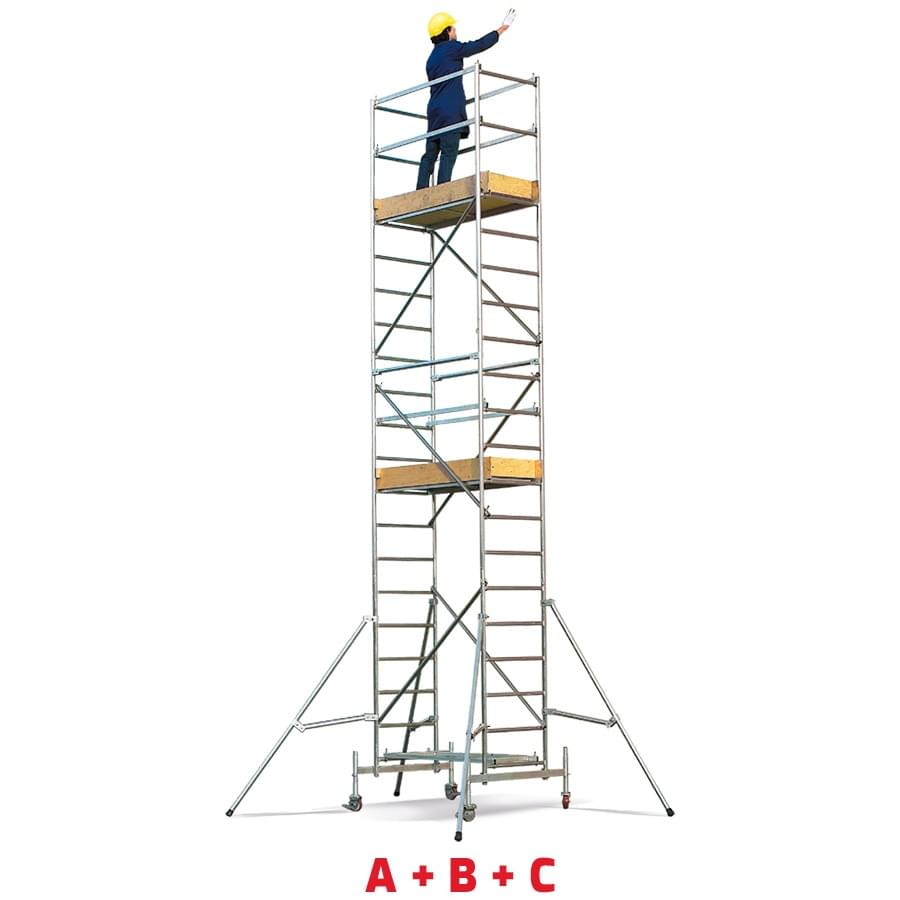

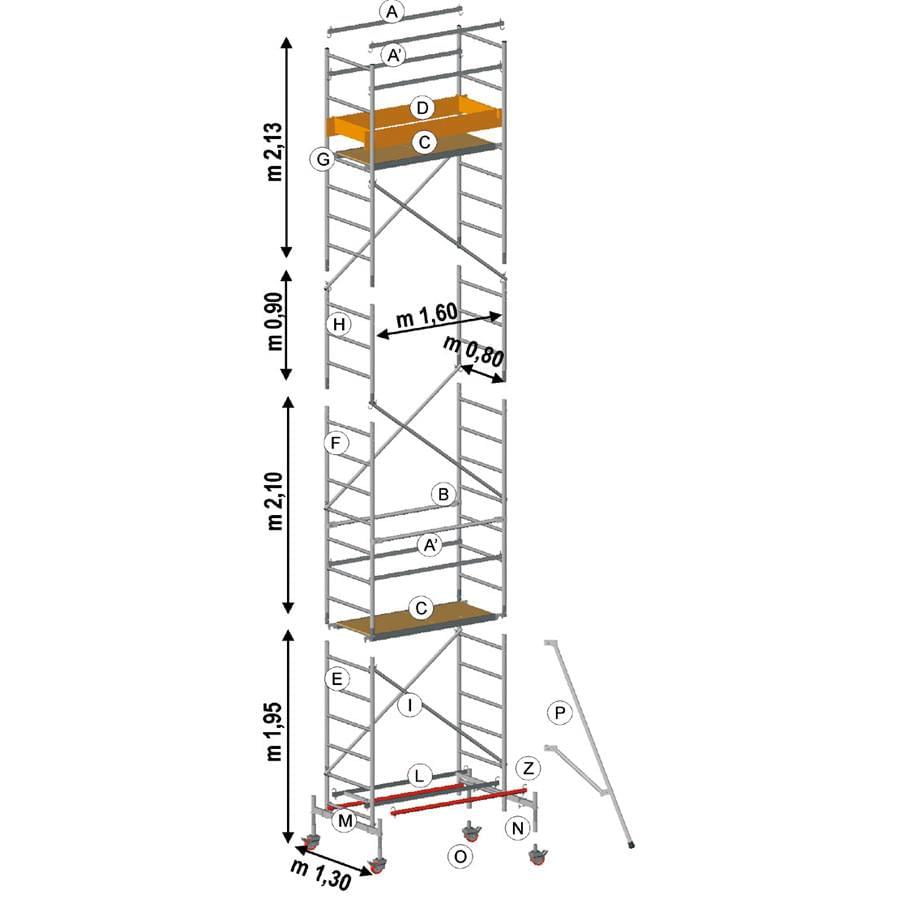

MODULES AND COMPONENTS:

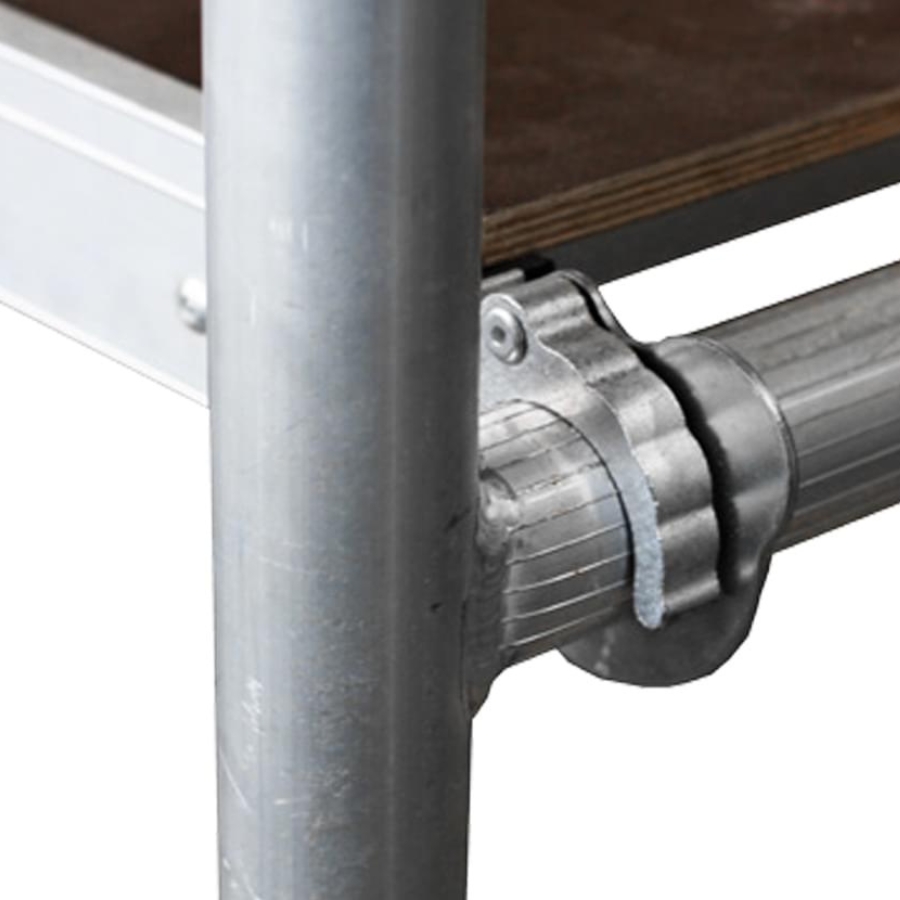

MODULE A: 2 base frames (6 rungs), 1 base structure with connecting hooks, 2 diagonal braces, 2 horizontal braces, 4 castors and 1 trapdoor platform;
MODULE B: 2 end frames (5 rungs), 2 additional 1.70 m base sections, 2 diagonal braces, 2 horizontal handrails, 1 toeboard kit and 4 stabilisers;
MODULE C: 2 intermediate frames (7 rungs), 2 diagonal braces, 4 horizontal braces (2 upper guardrails and 2 intermediate rails) and 1 trapdoor platform;
MODULE D2: 2 marcos intermediate (2 steps);
MODULE D3: 2 marcos intermediate (3 steps);
MODULE E: 2 intermediate frames (5 rungs), 2 diagonal braces, 4 horizontal braces (2 upper guardrails and 2 intermediate rails) and 1 trapdoor platform;
