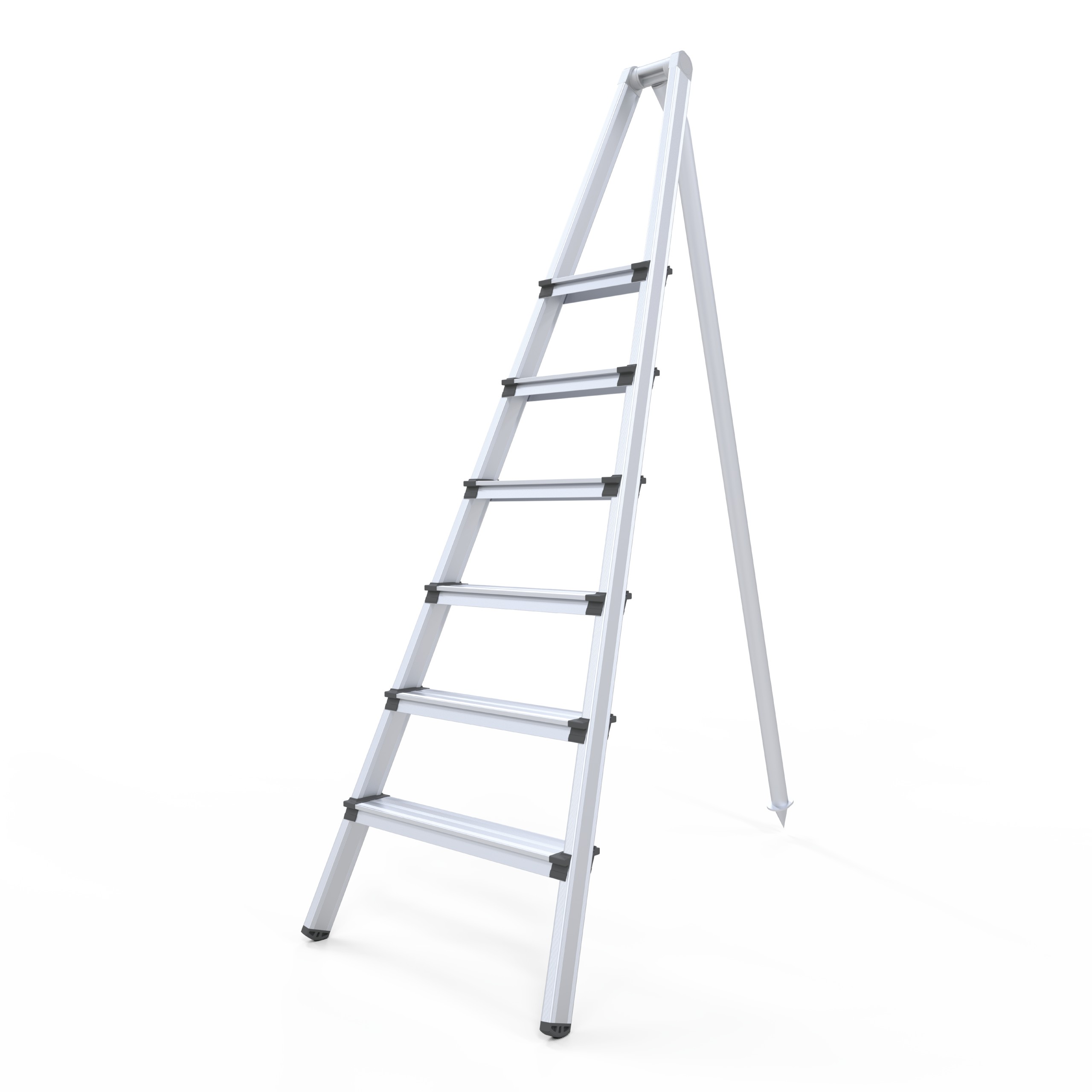

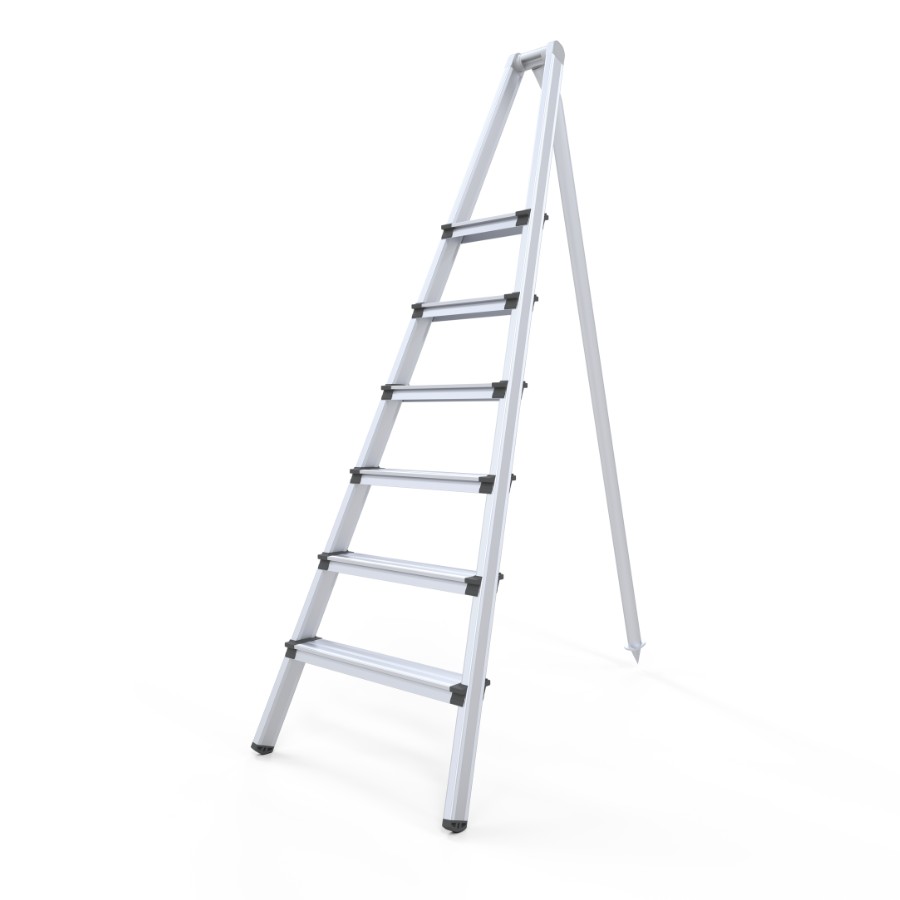

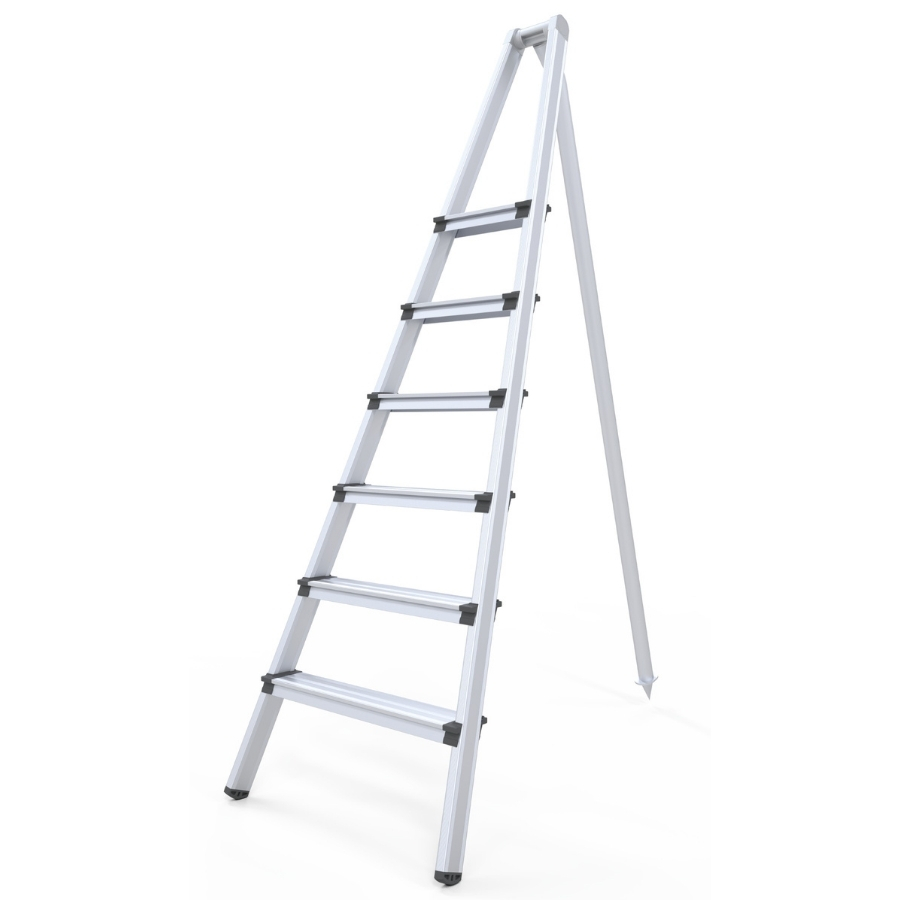

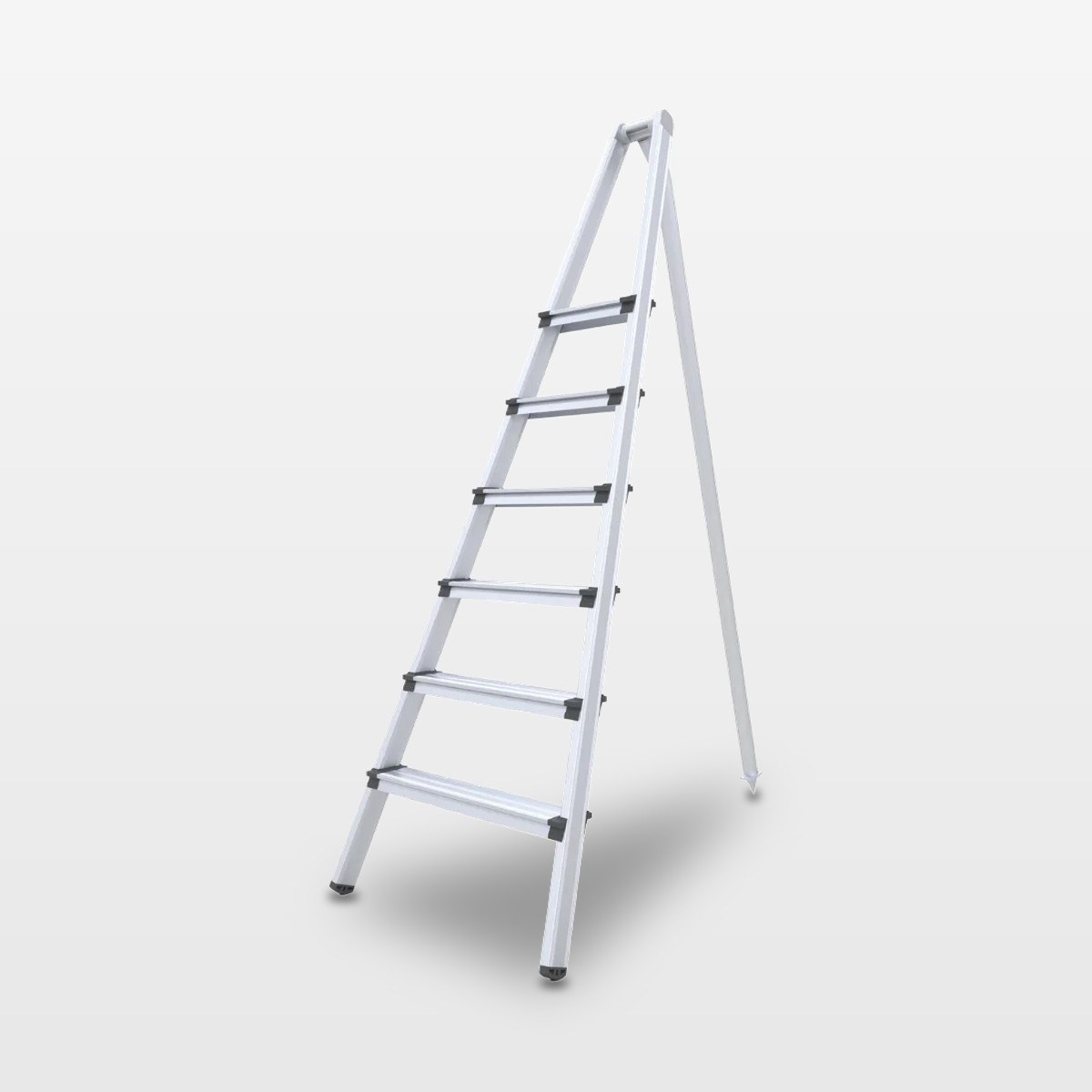

Tapered stepladder with a rear support bar.

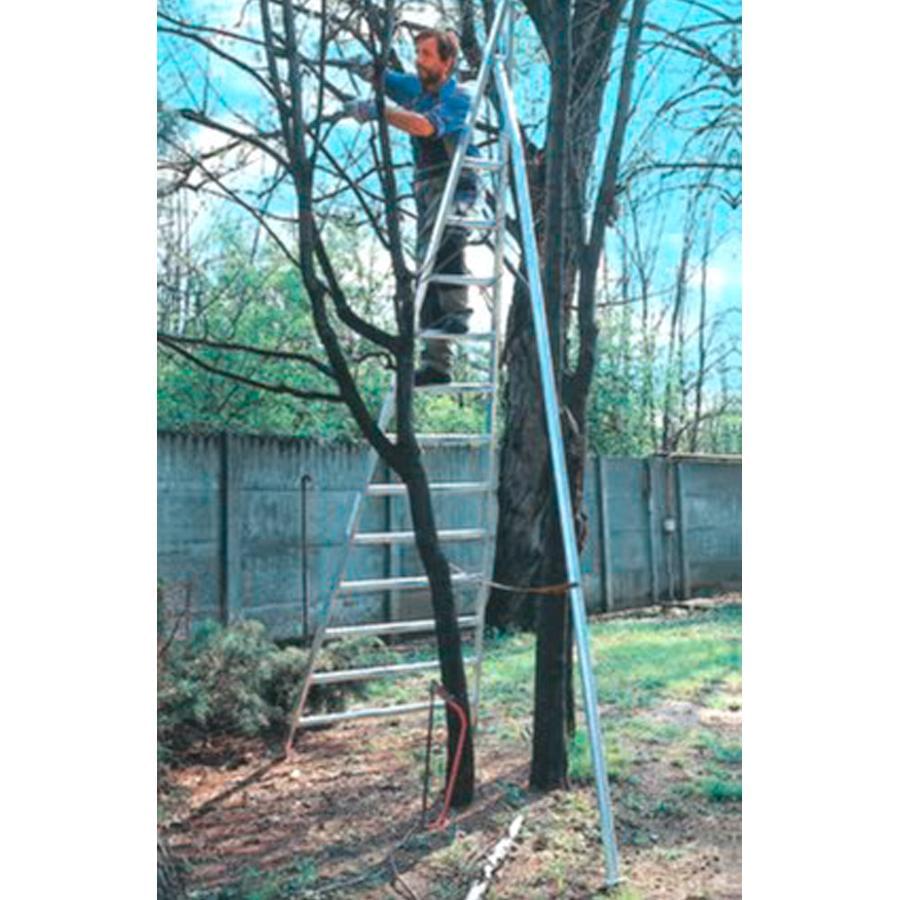

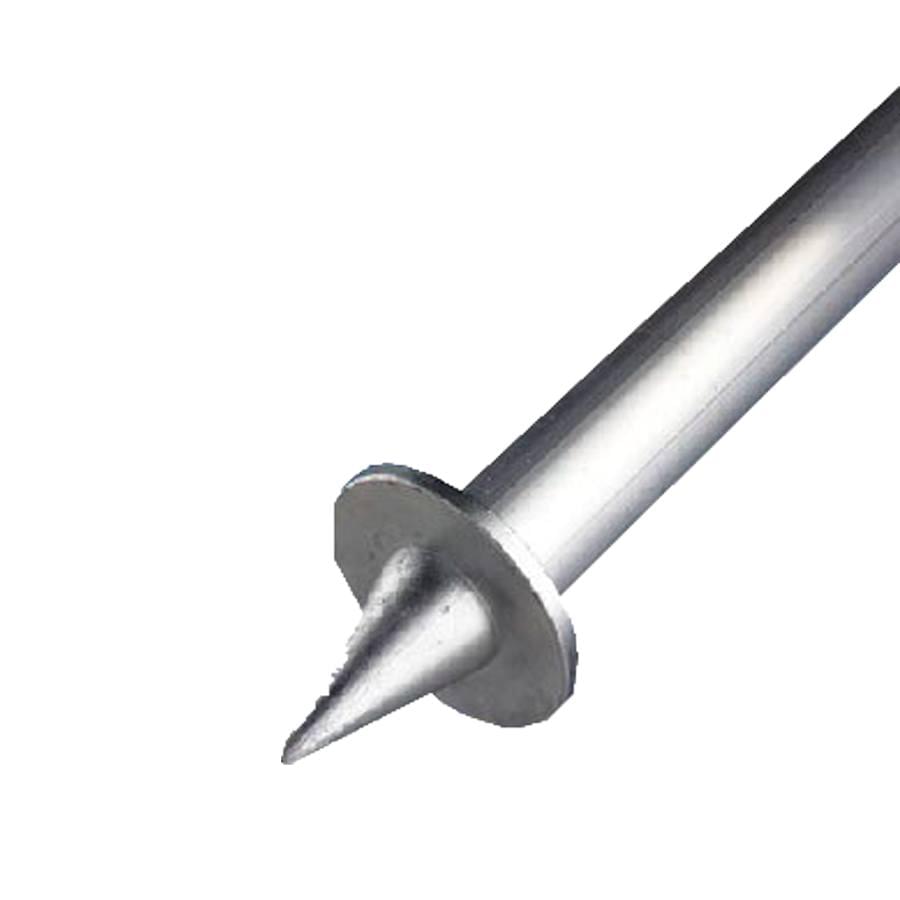

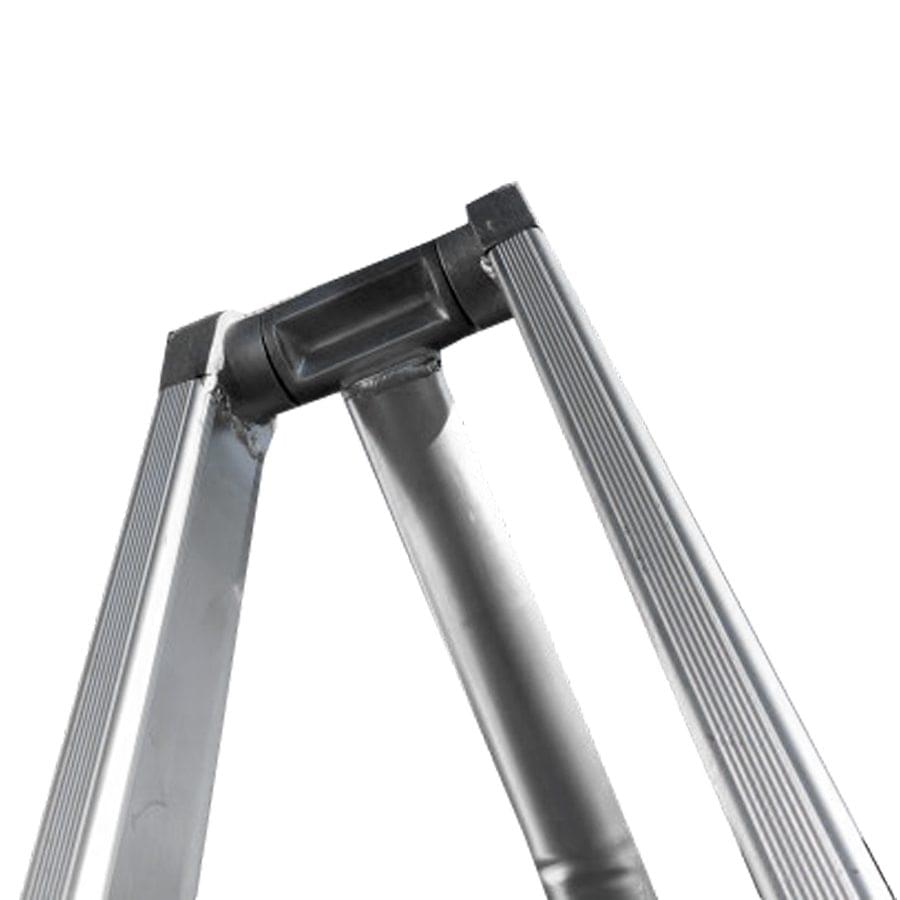

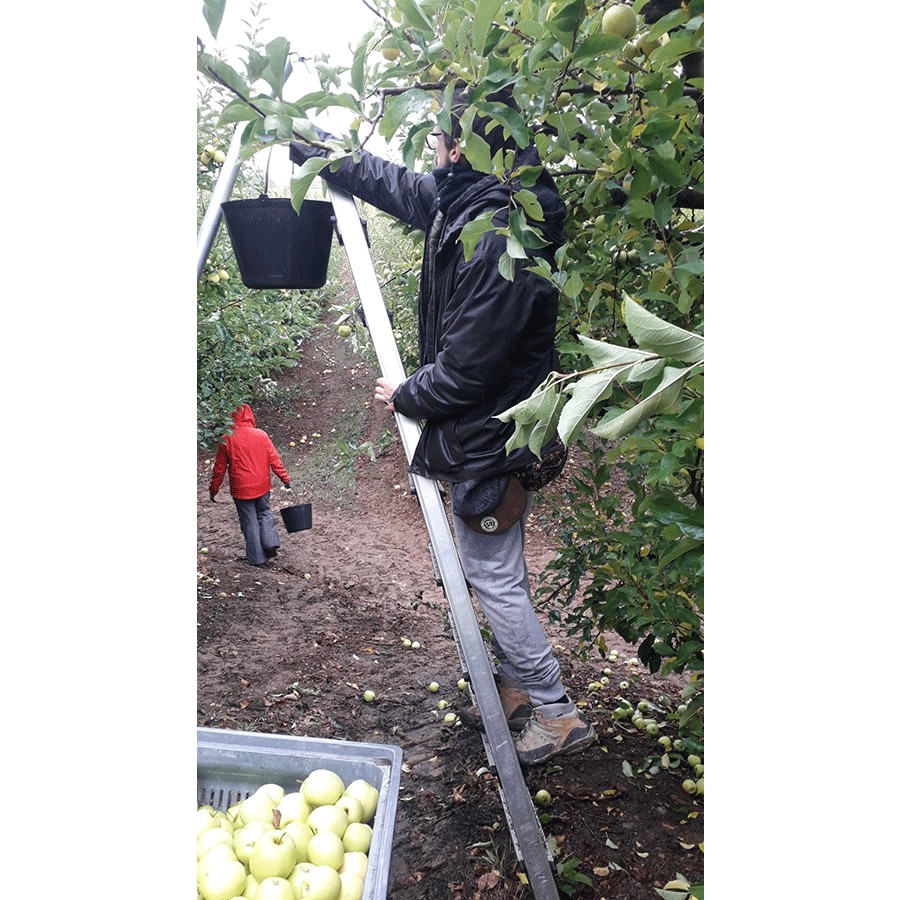

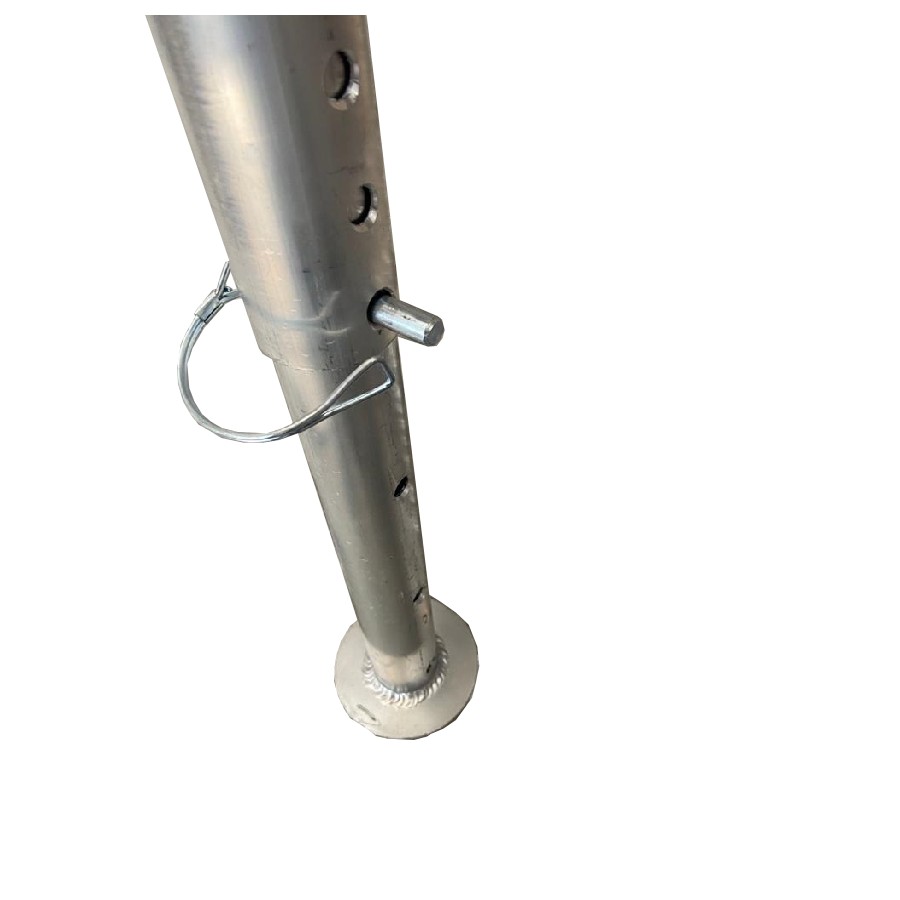

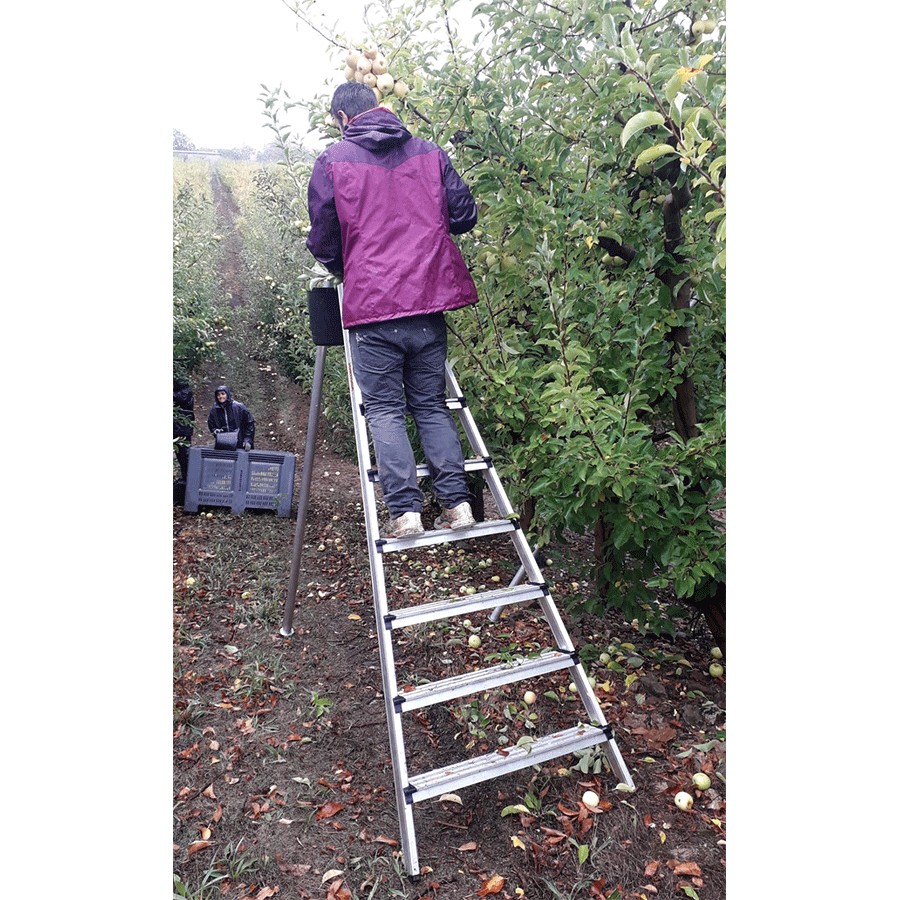

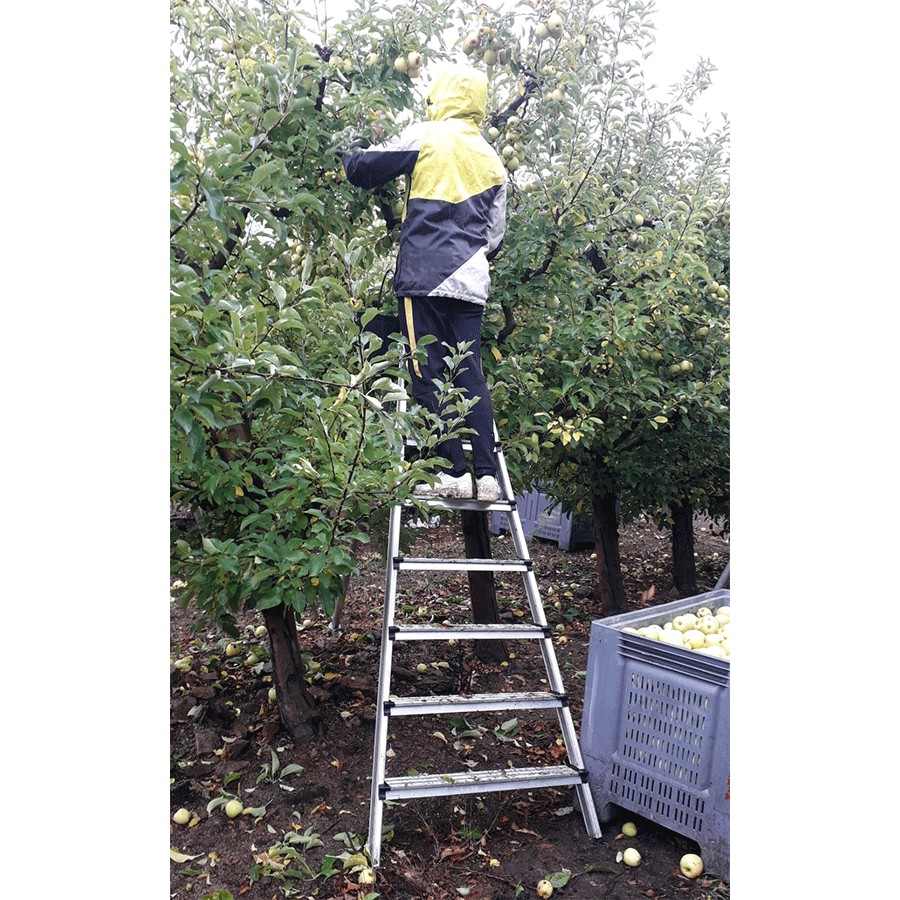

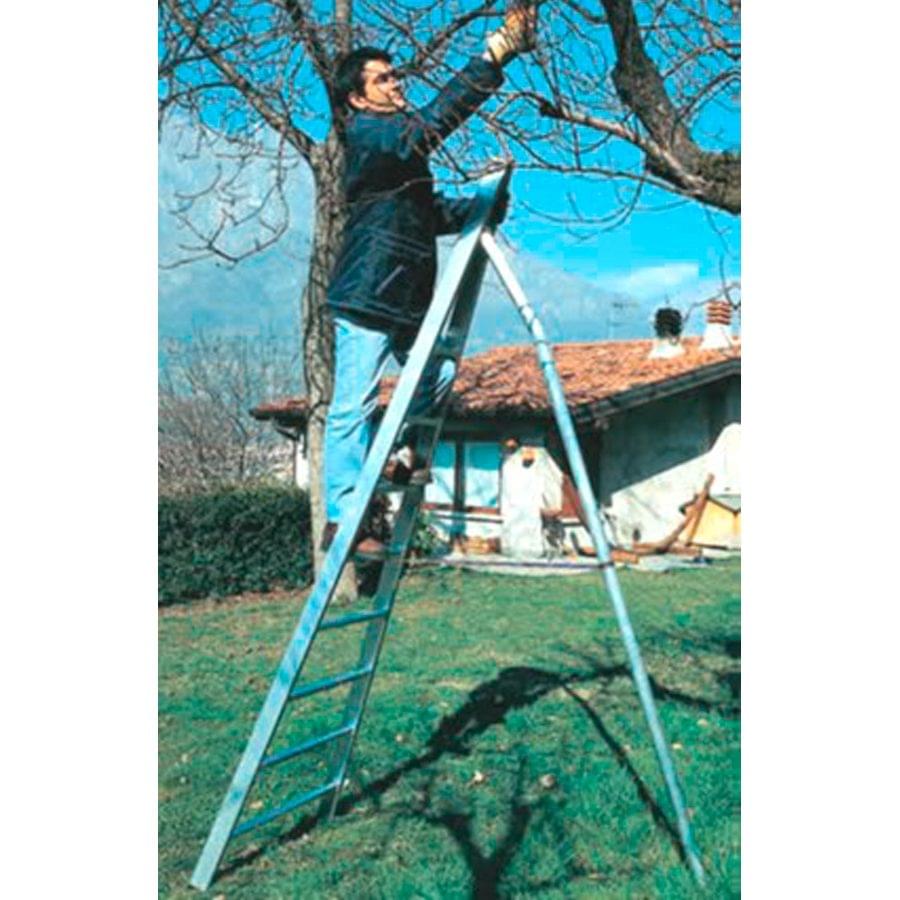

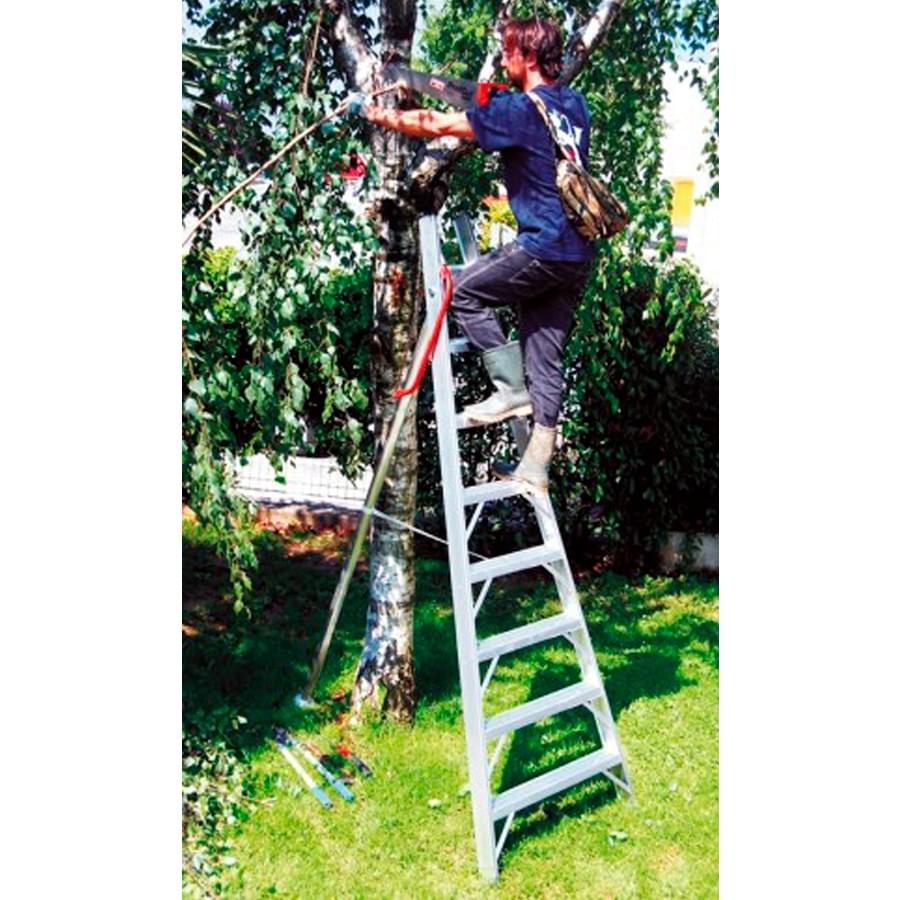

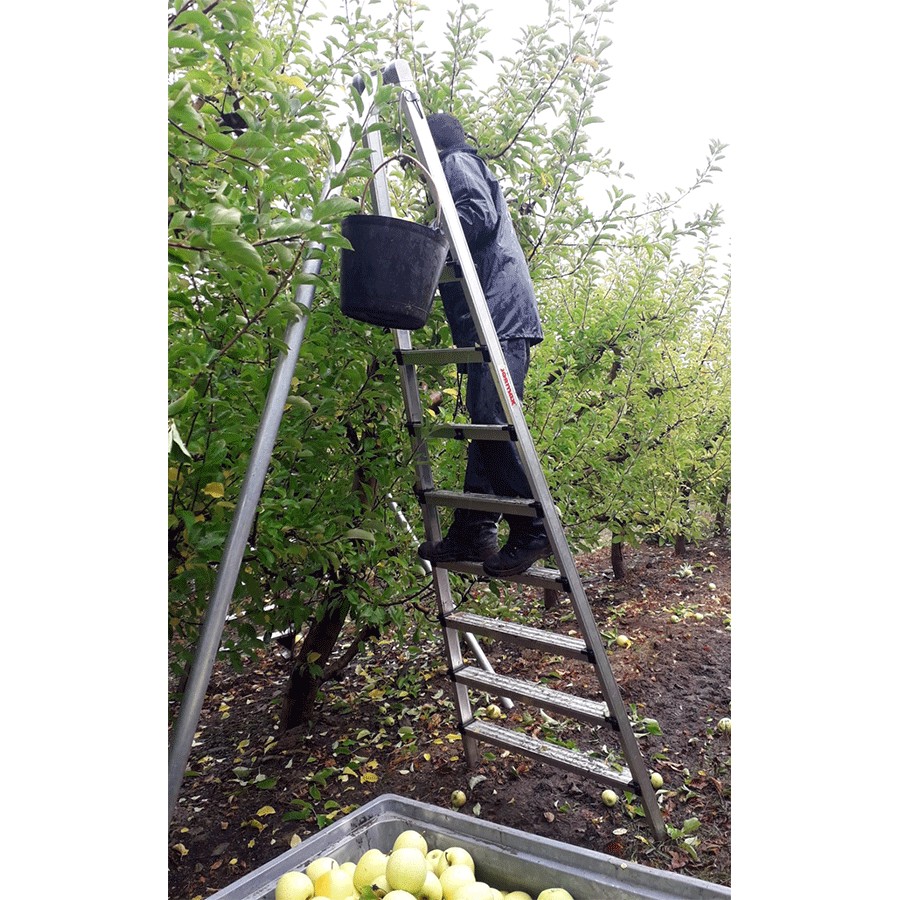

A professional single-sided aluminium stepladder with 10 cm-deep steps welded to the stiles and spaced 27 cm apart. Its tapered design makes it easy to position between tree branches, while the rear support bar provides stability. Designed especially for agricultural work such as fruit picking and pruning.
Jormax reserves the right to change its products or technical specifications without prior notice.
| Number of steps | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 12 | 14 |
| Overall height (m) | 1.58 | 1.85 | 2.12 | 2.39 | 2.66 | 2.93 | 3.20 | 3.74 | 4.28 |
| Overall folded height (m) | 1.71 | 1.98 | 2.25 | 2.52 | 2.79 | 3.06 | 3.33 | 3.87 | 4.41 |
| Width (m) | 0.61 | 0.68 | 0.75 | 0.82 | 0.89 | 0.96 | 1.03 | 1.17 | 1.31 |
| Weight (kg) | 5.00 | 7.00 | 9.00 | 11.00 | 13.00 | 15.00 | 17.00 | 21.00 | 25.00 |
| Reference | 10213.5 | 10213.2 | 10213.1 | 10213.3 | 10213 | 10213.4 | 10214 | 10215 | 10216 |
Tapered stepladder with a rear support bar.
A professional single-sided aluminium stepladder with 10 cm-deep steps welded to the stiles and spaced 27 cm apart. Its tapered design makes it easy to position between tree branches, while the rear support bar provides stability. Designed especially for agricultural work such as fruit picking and pruning.
Jormax reserves the right to change its products or technical specifications without prior notice.
| Feature | Specification |
|---|---|
| Number of steps | 4 to 14 |
| Rung spacing | 27 cm |
| Step depth | 10 cm |
| Non-slip feet | With design ergonomic |
| Manual | User and maintenance manual included |
| Label of identification | Included |
| Note: Product dimensions may vary by +/- 2 cm. | |
