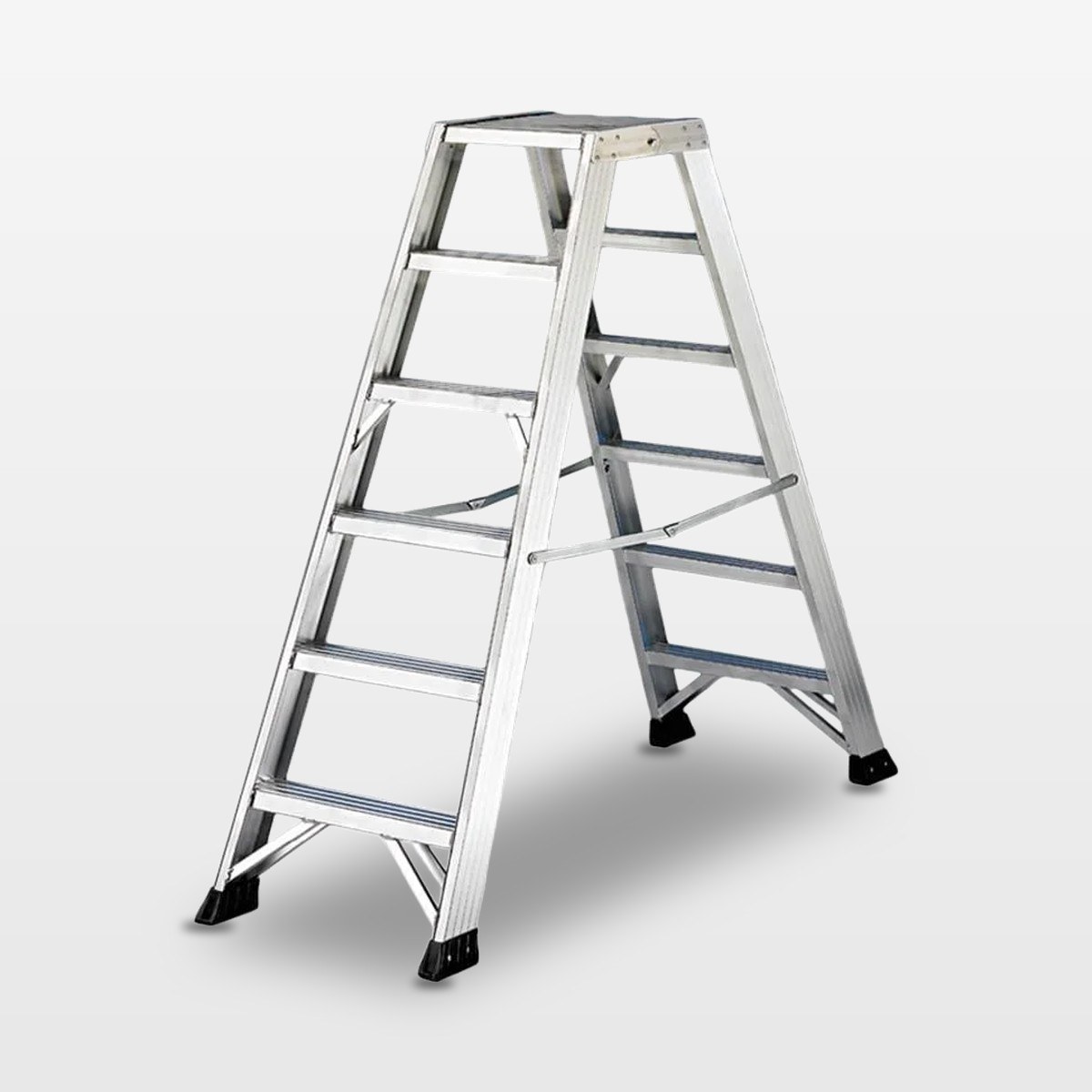

Stepladder of double-sided access with steps wide.
A professional double-sided stepladder made of ribbed aluminium, with 8 cm-deep steps riveted to the stiles and spaced 25 cm apart. Includes a larger 39 x 35 cm platform.
Ideal for any type of work.
The Industrial Duplo stepladder is certified to European standard EN 131.

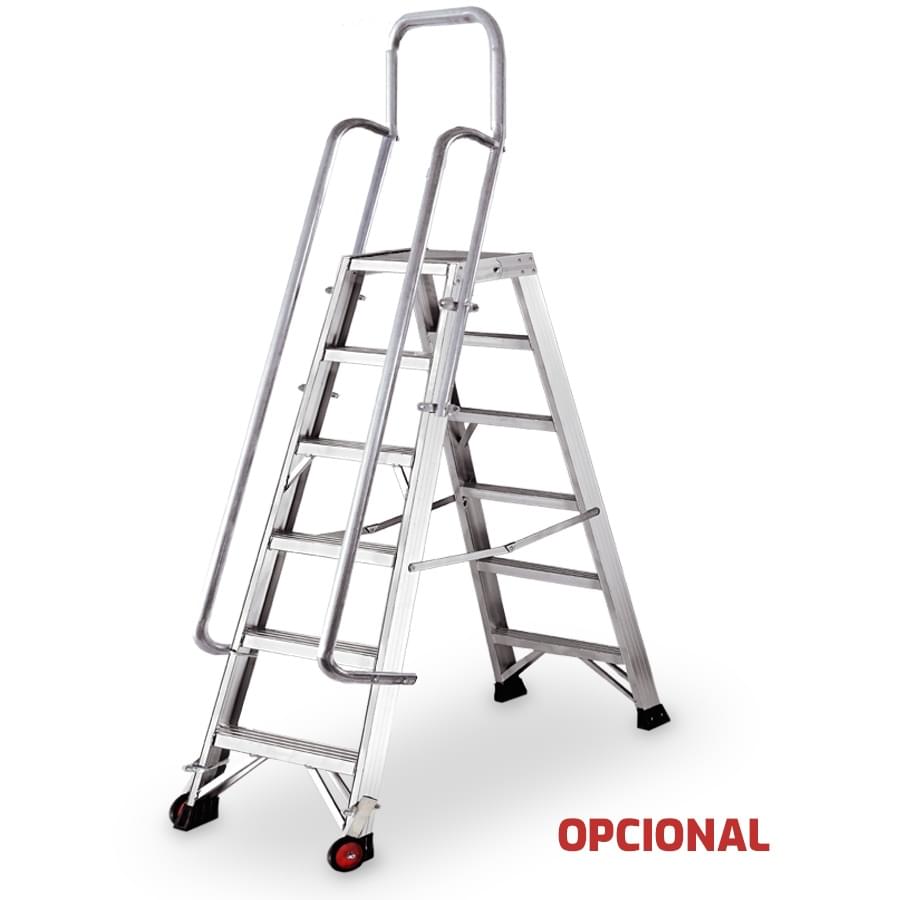

European standard EN 131 prohibits standing on the top two steps if no guardrail is fitted.
The platform counts as a step.
Jormax reserves the right to change its products or technical specifications without prior notice.
| Number of steps | 2×5 | 2×6 | 2×7 | 2×8 | 2×9 | 2×11 | 2×13 |
| Overall height (m) | 1.17 | 1.40 | 1.62 | 1.86 | 2.10 | 2.57 | 3.06 |
| Working height (m) | 2.67 | 2.90 | 3.12 | 3.36 | 3.60 | 4.07 | 4.56 |
| Overall folded height (m) | 1.32 | 1.57 | 1.81 | 2.07 | 2.32 | 2.82 | 3.31 |
| Width (m) | 0.49 | 0.51 | 0.54 | 0.56 | 0.59 | 0.64 | 0.69 |
| Folded width (m) | 0.32 | 0.32 | 0.32 | 0.32 | 0.32 | 0.32 | 0.32 |
| Weight (kg) | 7.00 | 9.00 | 10.00 | 11.00 | 13.00 | 15.00 | 18.00 |
| Reference | 10026 | 10027 | 10028 | 10029 | 10030 | 10031 | 10032 |
Stepladder of double-sided access with steps wide.
A professional double-sided stepladder made of ribbed aluminium, with 8 cm-deep steps riveted to the stiles and spaced 25 cm apart. Includes a larger 39 x 35 cm platform.
Ideal for any type of work.
The Industrial Duplo stepladder is certified to European standard EN 131.
European standard EN 131 prohibits standing on the top two steps if no guardrail is fitted.
The platform counts as a step.
Jormax reserves the right to change its products or technical specifications without prior notice.
| Feature | Specification |
|---|---|
| Number of steps | 2×5 to 2×13 |
| Rung spacing | 25 cm |

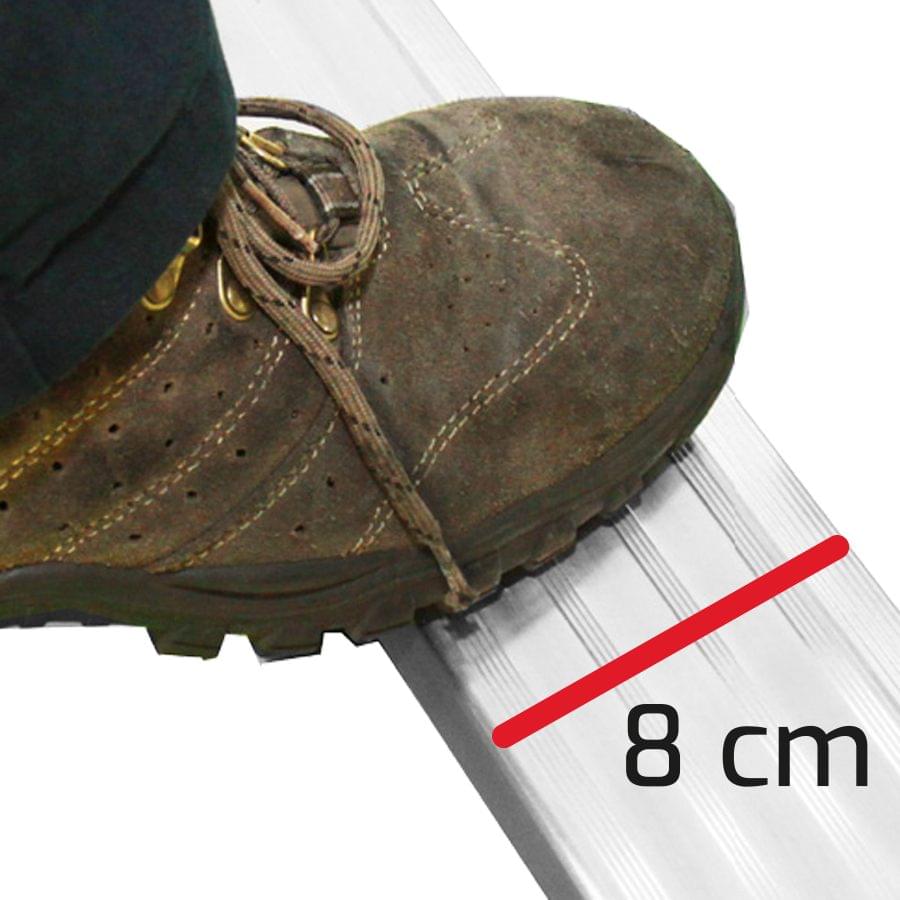

| Step depth | 8 cm |

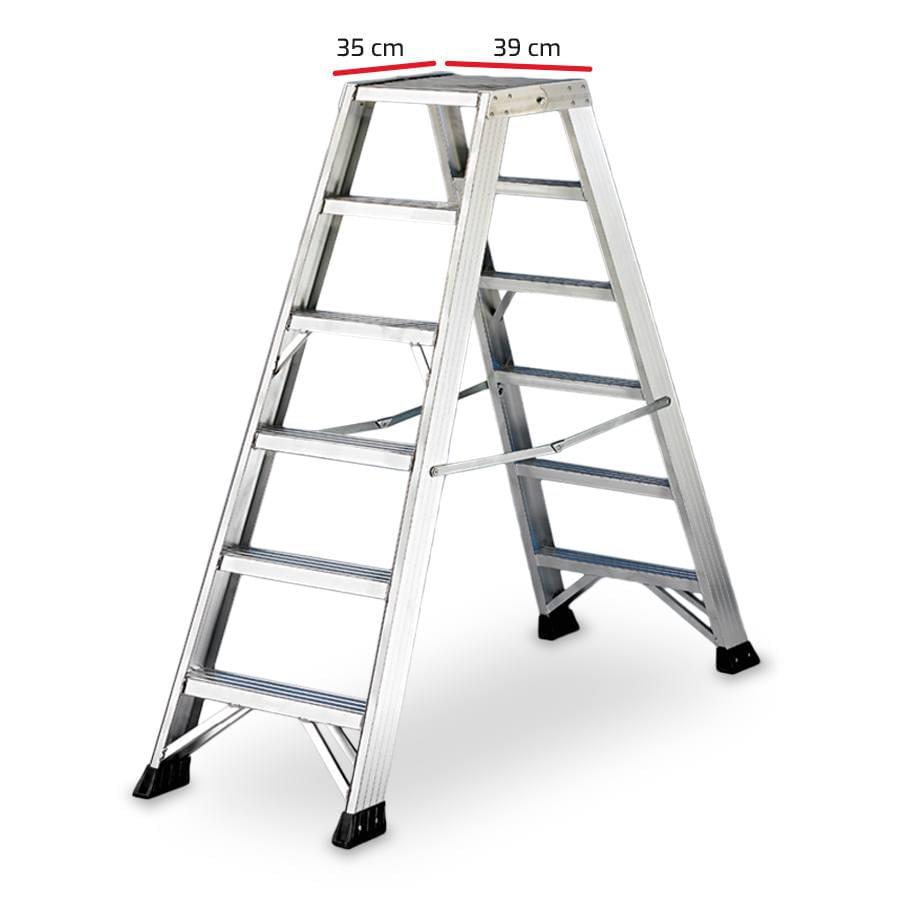

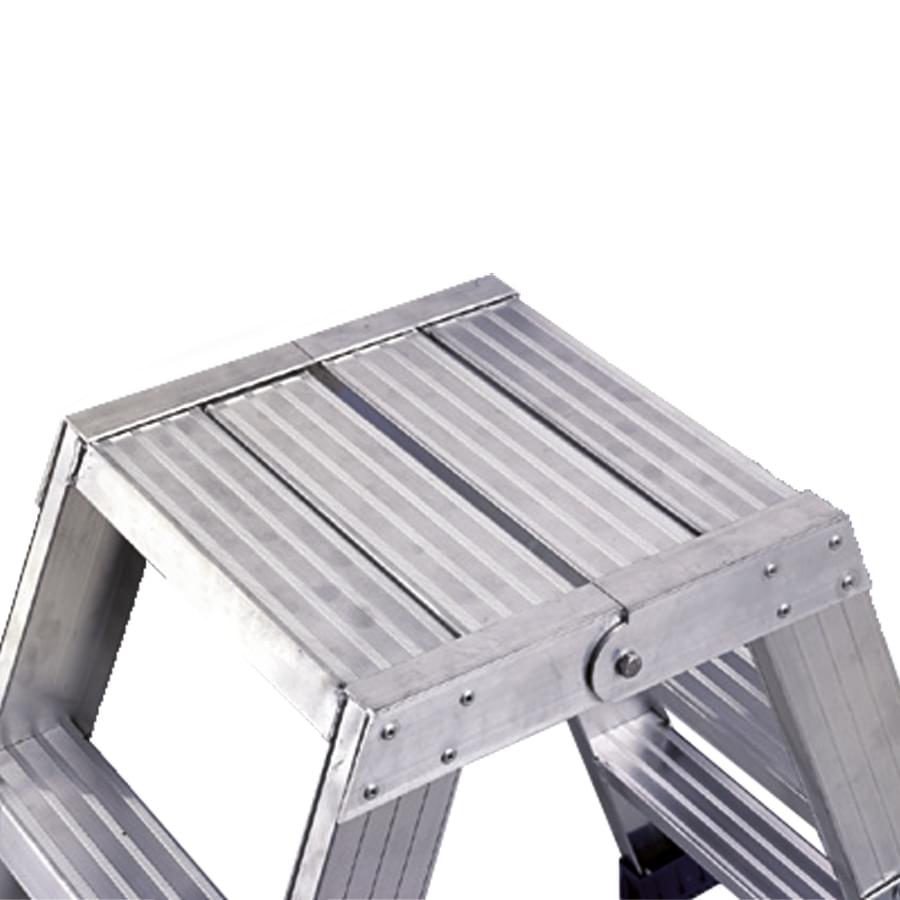

| Platform | 39×35 cm |
| Profile | 80×25 mm |
| Strap of safety | Anti-opening |

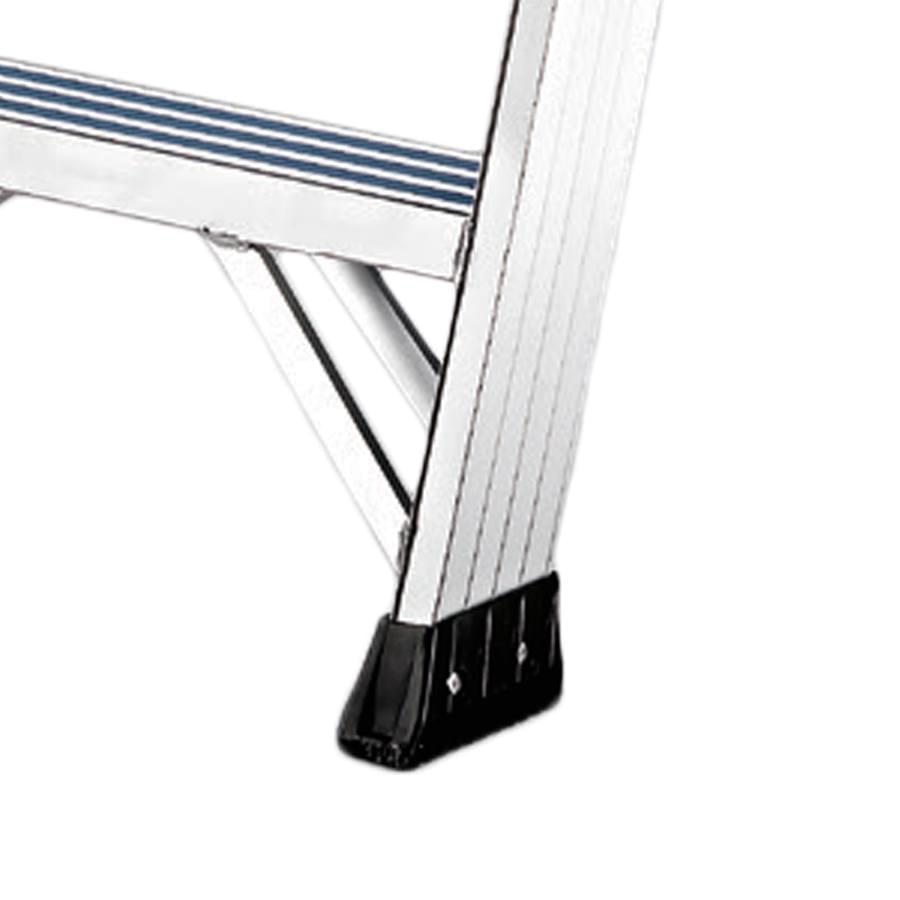

| Non-slip feet | With design ergonomic |
| Manual | User and maintenance manual included |
| Certification | Compliant with standard EN131 |
| Label of identification | Included |
| Note: Product dimensions may vary by +/- 2 cm. | |
Jormax
