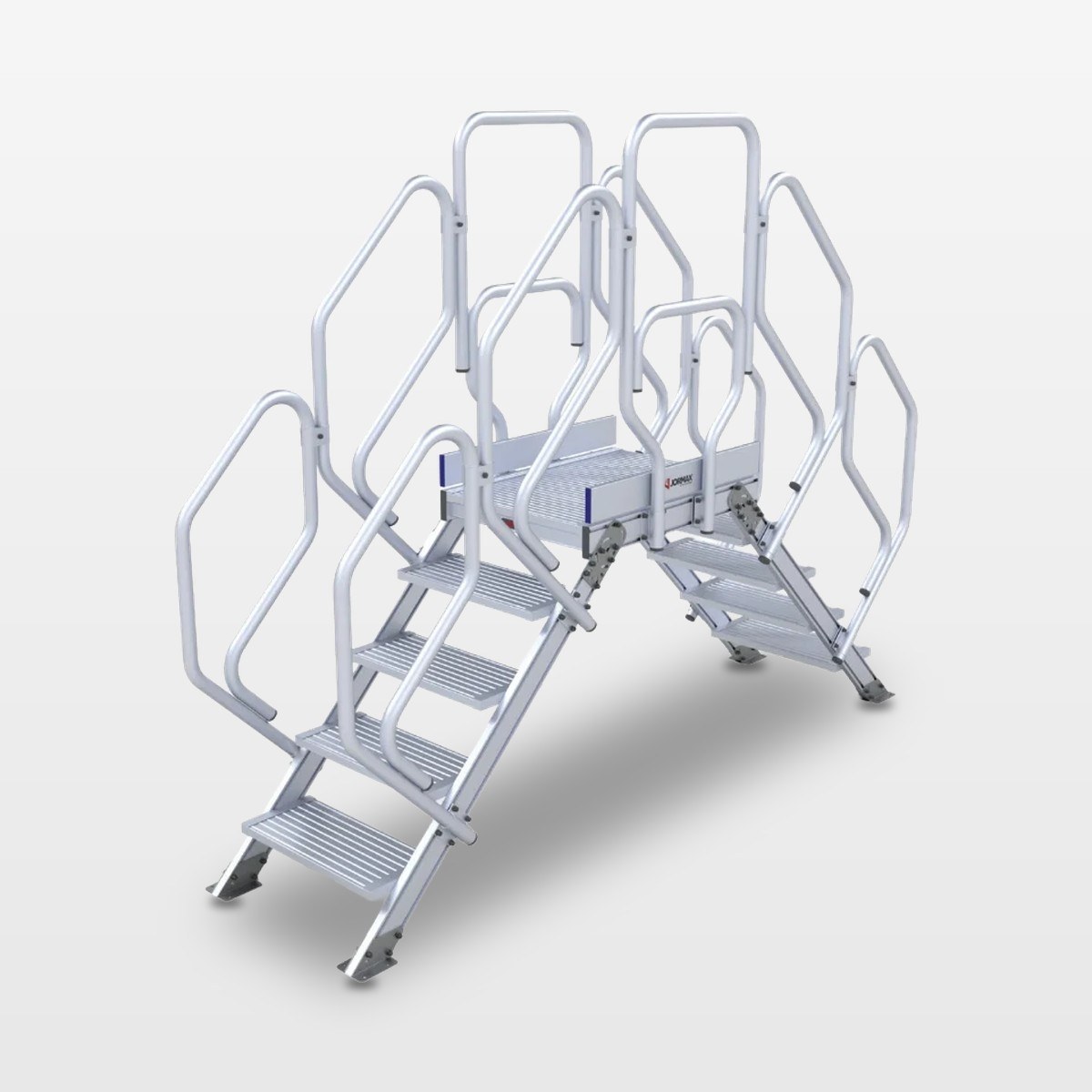

PONTE 45º – plataforma Jormax
PONTE 45º – plataforma Jormax

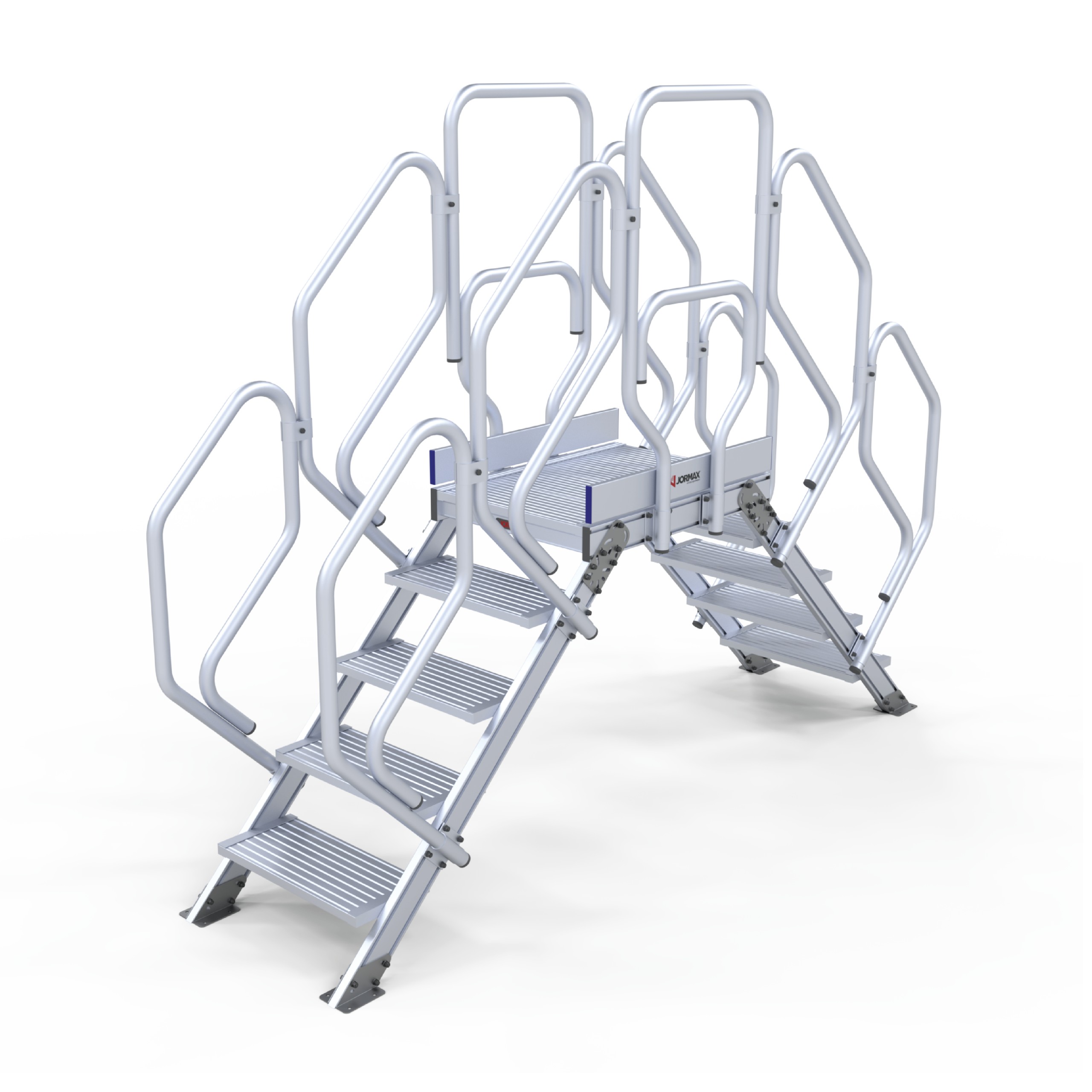

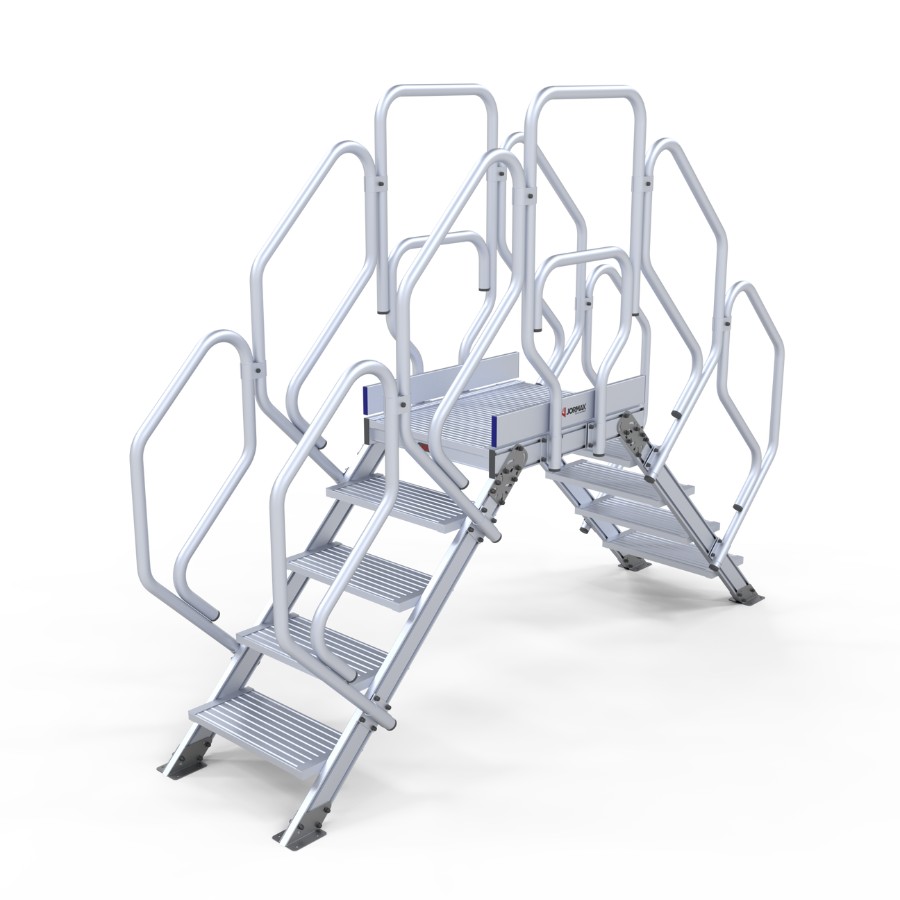

45-DEGREE CROSSOVER PLATFORM

Bridge passage of double-sided access.

A professional double-access crossover platform with a 45-degree incline, made of ribbed extruded aluminium. It has 24 cm-deep steps spaced 20 cm apart, access widths of 60, 80 or 100 cm, and protective toeboards and handrails. Ideal for a range of professional applications.
The 45-degree CROSSOVER PLATFORM is certified to European standard EN 14122.
Jormax reserves the right to change its products or technical specifications without prior notice.

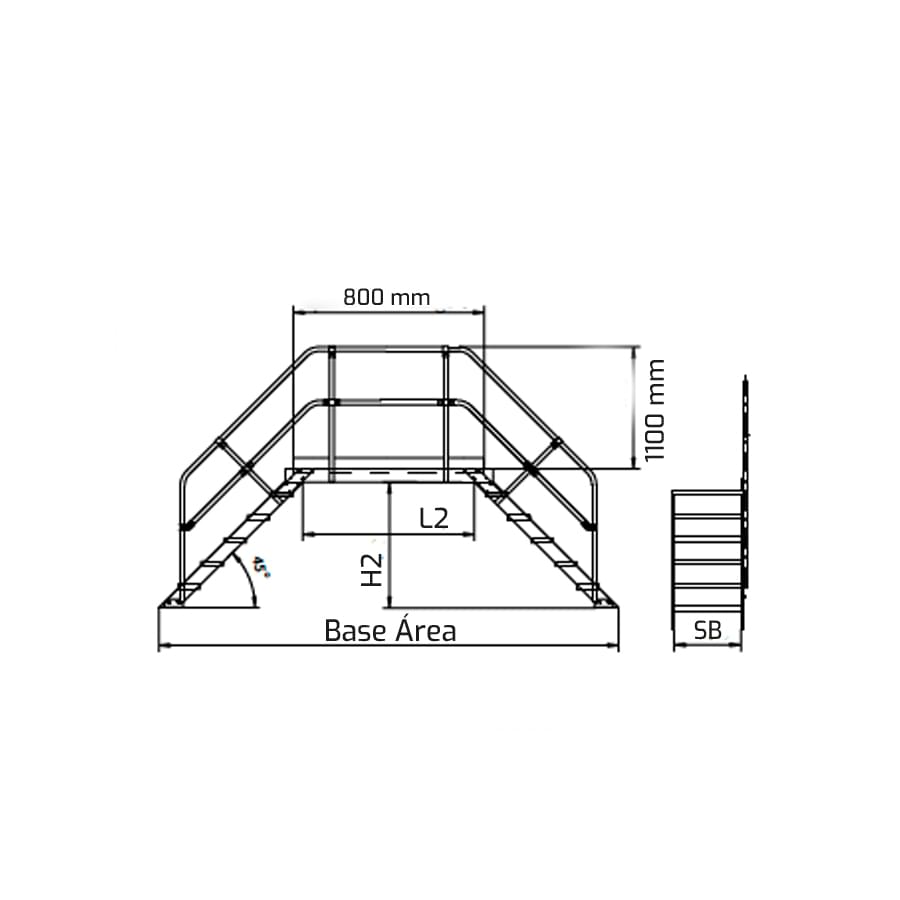

Number of steps 3 4 5 6 7 8 9 10 11
Platform height (m) 0.79 0.99 1.19 1.39 1.59 1.79 1.99 2.19 2.39
Dimension platform (m) 0.80 – 2.20 0.80 – 2.20 0.80 – 2.20 0.80 – 2.20 0.80 – 2.20 0.80 – 2.20 0.80 – 2.20 0.80 – 2.20 0.80 – 2.20
Length (m) 2.20 2.60 3.00 3.40 3.80 4.20 4.60 5.00 5.40
Reference
60-24cm 200933 200934 200935 200936 200937 200938 200939 200940 200941
80-24cm 200943 200944 200945 200946 200947 200948 200949 200950 200951
100-24cm 200953 200954 200955 200956 200957 200958 200959 200960 200961

Description

Bridge passage of double-sided access.

A professional double-access crossover platform with a 45-degree incline, made of ribbed extruded aluminium. It has 24 cm-deep steps spaced 20 cm apart, access widths of 60, 80 or 100 cm, and protective toeboards and handrails. Ideal for a range of professional applications.
The 45-degree CROSSOVER PLATFORM is certified to European standard EN 14122.
Jormax reserves the right to change its products or technical specifications without prior notice.

Feature Specification
Number of steps 3 to 11
Rung spacing 20 cm
Steps 24 cm
Platform 80×60, 80 or 100 cm
Stile profile 65×25 mm
Width 60, 80 or 100 cm;
Handrail height 1.10m
Toeboard height 9 cm
Access angle 45º
Manual User and maintenance manual included
Certification EN14122
Label of identification Included
Note: Product dimensions may vary by +/- 2 cm.
