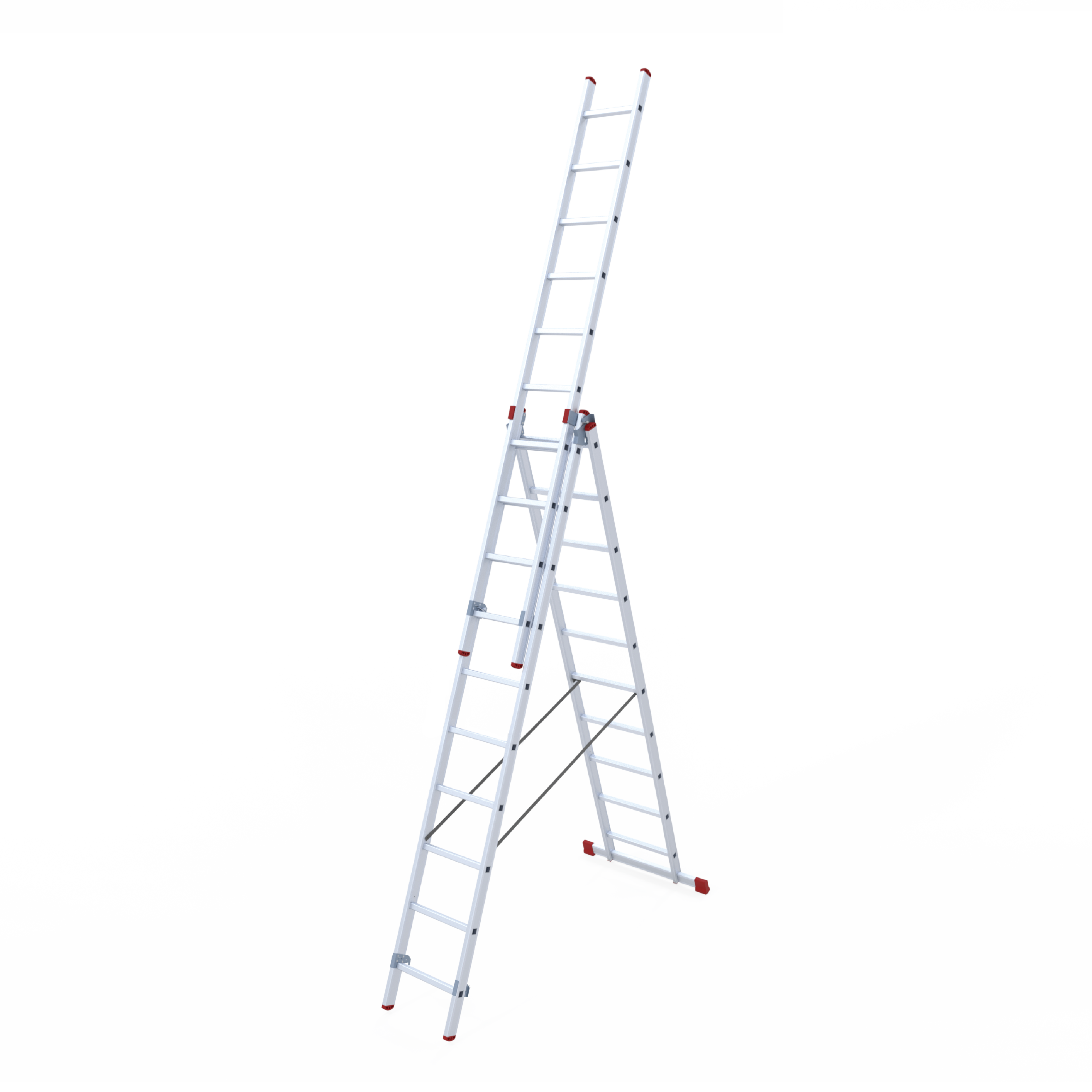

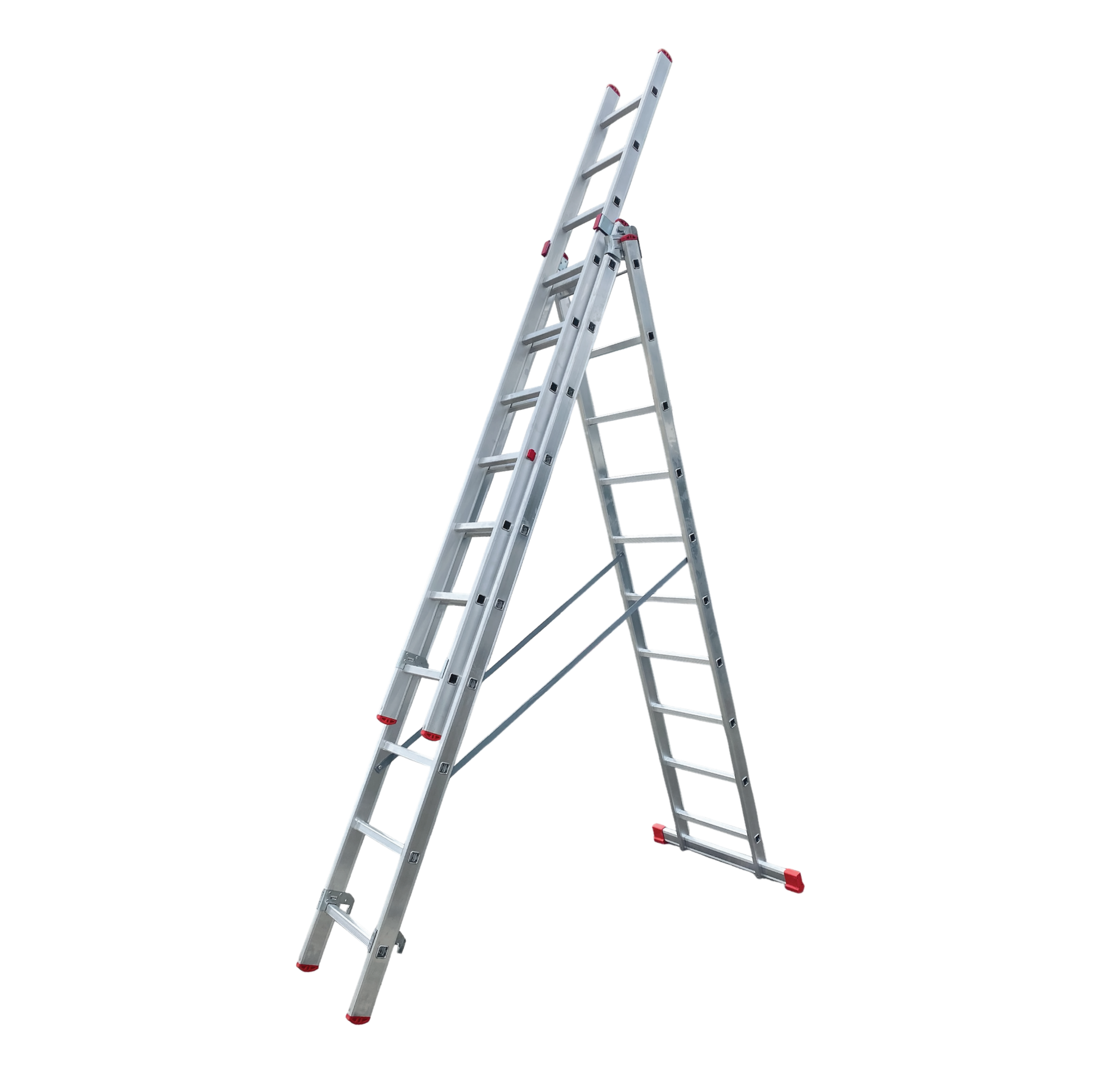

Three-section combination ladder: usable as a stepladder or leaning ladder.
A professional three-section combination ladder made of ribbed extruded aluminium, configurable as a stepladder or leaning ladder. Rungs are spaced 28 cm apart and secured by an advanced automatic interlocking system. Front-section width: 43 cm; widest-section width: 48 cm. Ideal for a wide range of professional tasks.
The MAXILADDER series is certified to European standard EN 131.
Jormax reserves the right to change its products or technical specifications without prior notice.
| Number of steps | 3 x 6 | 3 x 7 | 3 x 8 | 3 x 9 | 3 x 10 | 3 x 11 | 3 x 12 | 3 x 14 |
| Stepladder configuration height (m) | 2.69 | 3.22 | 3.49 | 4.02 | 4.59 | 4.86 | 5.37 | 5.89 |
| Overall extended height (m) | 4.00 | 4.84 | 5.12 | 5.68 | 6.56 | 6.85 | 7.97 | 8.53 |
| Folded ladder height (m) | 1.80 | 2.08 | 2.36 | 2.64 | 2.92 | 3.20 | 3.48 | 4.04 |
| Profile (mm) | 65 x 25 | 65 x 25 | 65 x 25 | 65 x 25 | 73 x 25 | 73 x 25 | 80 x 25 | 80 x 25 |
| Weight (kg) | 12.00 | 14.00 | 16.00 | 17.00 | 21.00 | 23.00 | 25.00 | 30.00 |
| Reference | 10187 | 10188 | 10189 | 10190 | 10191 | 10192 | 10193 | 10195 |
Three-section combination ladder: usable as a stepladder or leaning ladder.
A professional three-section combination ladder made of ribbed extruded aluminium, configurable as a stepladder or leaning ladder. Rungs are spaced 28 cm apart and secured by an advanced automatic interlocking system. Front-section width: 43 cm; widest-section width: 48 cm. Ideal for a wide range of professional tasks.
The MAXILADDER series is certified to European standard EN 131.
Jormax reserves the right to change its products or technical specifications without prior notice.
| Feature | Specification |
|---|---|
| Number of steps | 3×6 to 3×14 |
| Rung spacing | 28 cm |
| Width | 43 cm (front section) and 48 cm (wide section) |
| Wheels | Included |
| Safety strap | Anti-opening |
| Non-slip feet | Rubber |
| Folded width | 36.5 cm |
| Manual | User and maintenance manual included |
| Certified | EN131 |
| Identification label | Included |
| Note: Product dimensions may vary by +/- 2 cm. | |
WHAT IS THE DIFFERENCE BETWEEN THE MAXILADDER SUPER DOUBLE AND THE MAXILADDER TRIPLE?
Includes sliding wheels and greater height:
| Three-section | Super Three-section | |
| Stepladder configuration height (m) | 5.89 | 4.50 |
| Overall folded height (m) | 3.91 | 4.60 |
| Overall extended height (m) | 8.53 | 11.90 |
These are the maximum dimensions available for these ladders.
