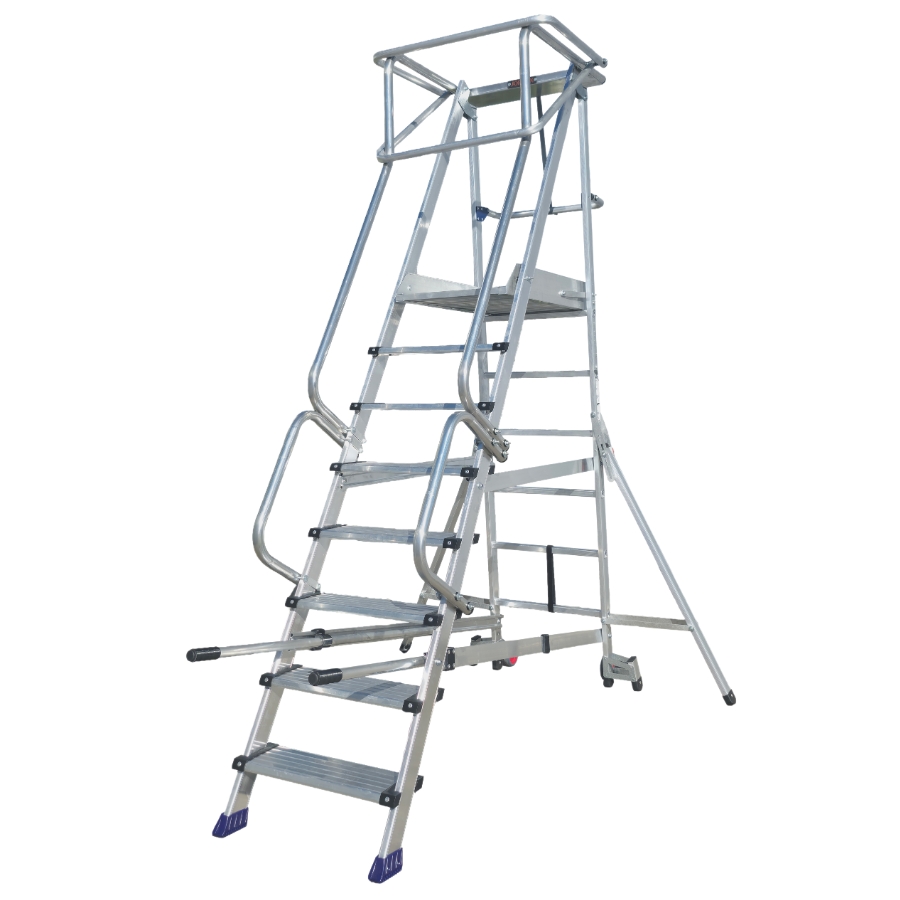

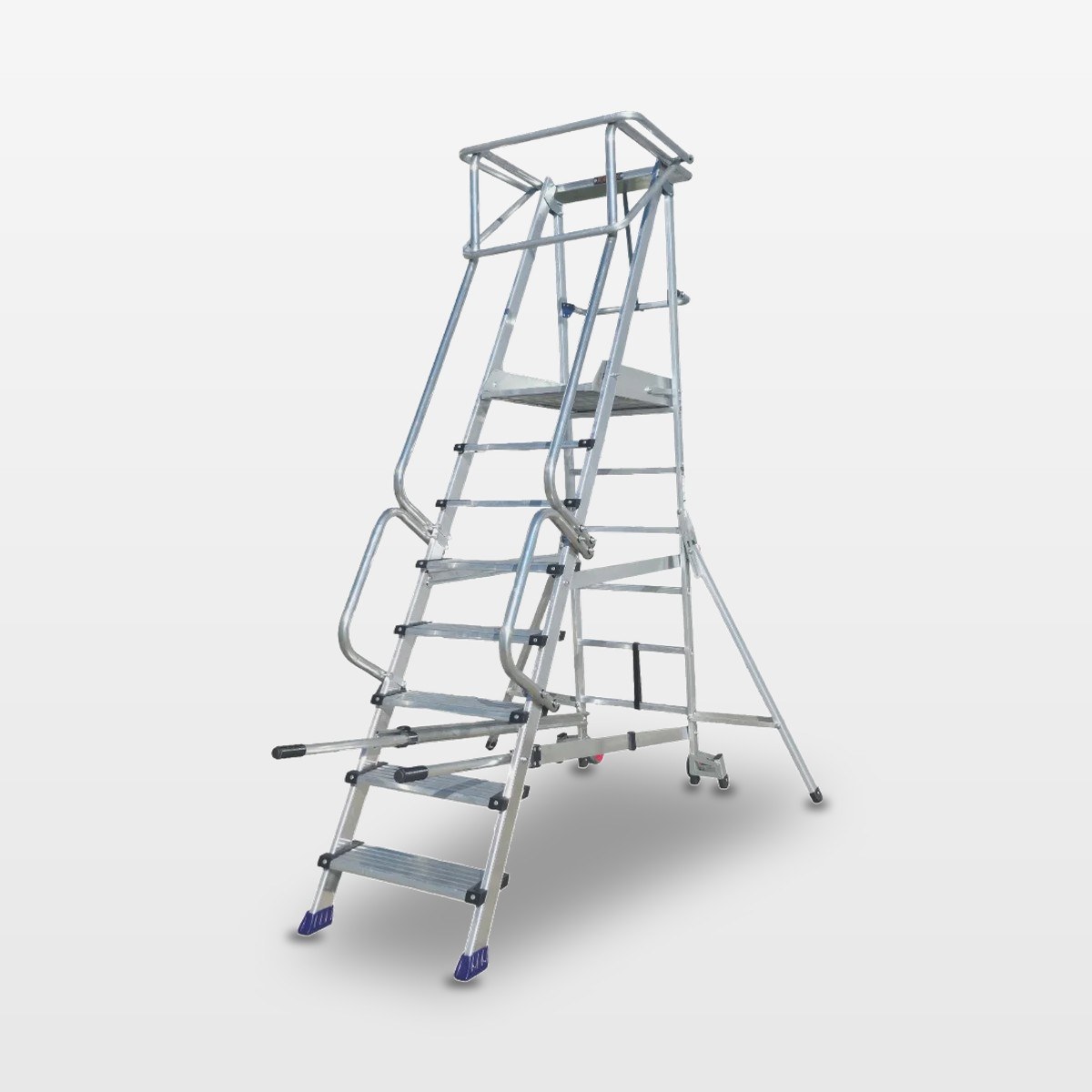

An adjustable professional platform with all-round 360-degree guardrails and an 88 x 46 cm platform.
A professional mobile platform made of heavy-duty aluminium, with steps spaced 22.5 cm apart. All-round 360-degree guardrails improve worker safety, comfort and mobility. A tool holder and wheels make it easy to move between tasks. Ideal for professional work at greater heights.
The R600 platform is certified to European standard EN 131-7.
Jormax reserves the right to change its products or technical specifications without prior notice.
| Number of steps | 4 | 6 | 8 | 10 | 12 | 14 |
| Platform height (m) | 0.85 | 1.30 | 1.75 | 2.20 | 2.65 | 3.10 |
| Overall height (m) | 1.93 | 2.38 | 2.83 | 3.28 | 3.73 | 4.18 |
| Overall folded height (m) | 2.23 | 2.75 | 3.27 | 3.79 | 4.31 | 4.83 |
| Working height (m) | 2.85 | 3.30 | 3.75 | 4.20 | 4.65 | 5.10 |
| Width (m) | 80 | 80 | 100 | 100 | 120 | 120 |
| Stabilisers | Not | Yes | Yes | Yes | Yes | Yes |
| Profile (mm) | 80 x 25 | 80 x 25 | 80 x 25 | 80 x 25 | 80 x 25 | 80 x 25 |
| Weight (kg) | 33.00 | 37.00 | 41.00 | 45.00 | 49.00 | 53.00 |
| Reference | 10964 | 10966 | 10968 | 10910 | 10912 | 10914 |
An adjustable professional platform with all-round 360-degree guardrails and an 88 x 46 cm platform.
A professional mobile platform made of heavy-duty aluminium, with steps spaced 22.5 cm apart. All-round 360-degree guardrails improve worker safety, comfort and mobility. A tool holder and wheels make it easy to move between tasks. Ideal for professional work at greater heights.
The R600 platform is certified to European standard EN 131-7.
Jormax reserves the right to change its products or technical specifications without prior notice.
| Feature | Specification |
|---|---|
| Number of steps | 4 to 14 |
| Rung spacing | 22.5 cm |
| Step depth | 16.5 cm |
| Platform | 88×46 cm |
| Guardrail height | 1.05 m |
| Guardrails | 360º |
| Stile profiles | 80×25 mm |
| Wheels | Ø125 mm |
| Feet | PVC |
| Access width | 46 cm |
| Overall height | 1.93 to 4.18 m |
| Manual | User and maintenance manual included |
| Label of identification | Included |
| Note: Product dimensions may vary by +/- 2 cm. | |
