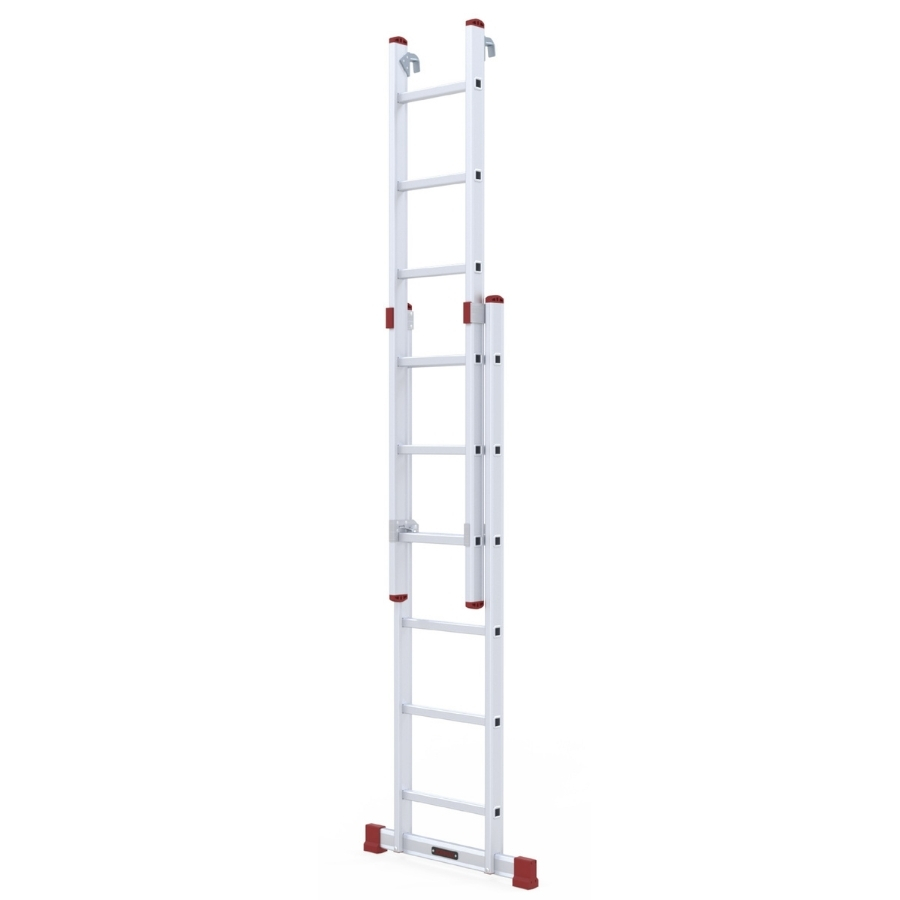

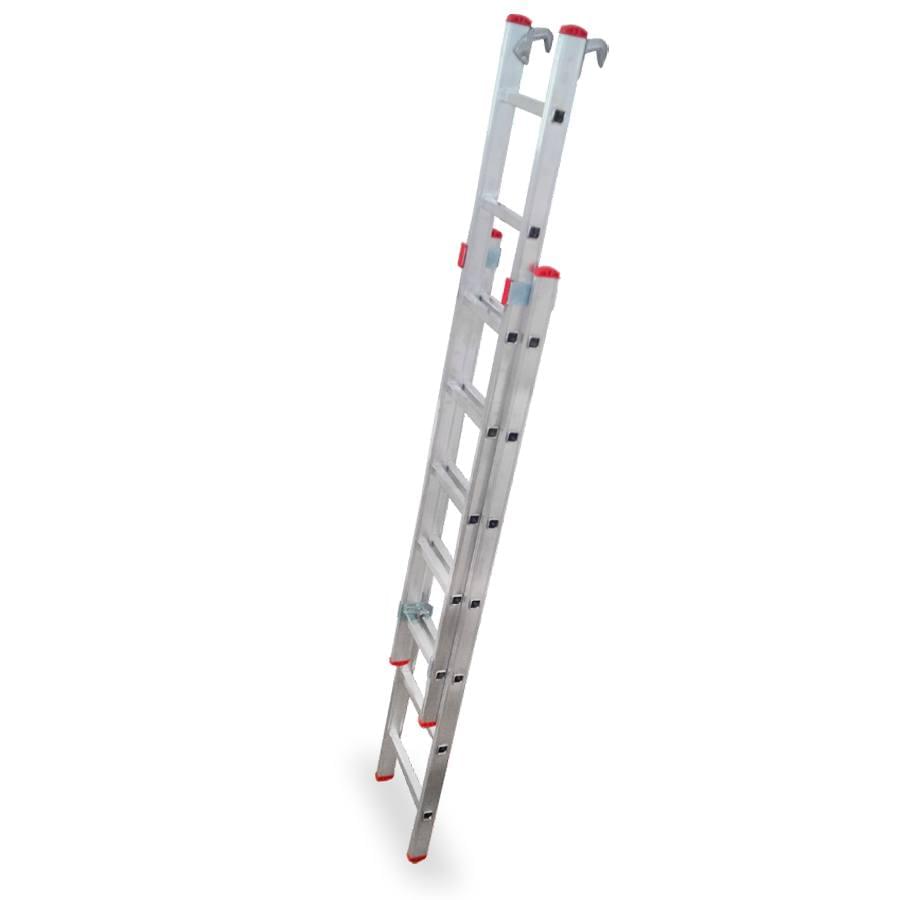

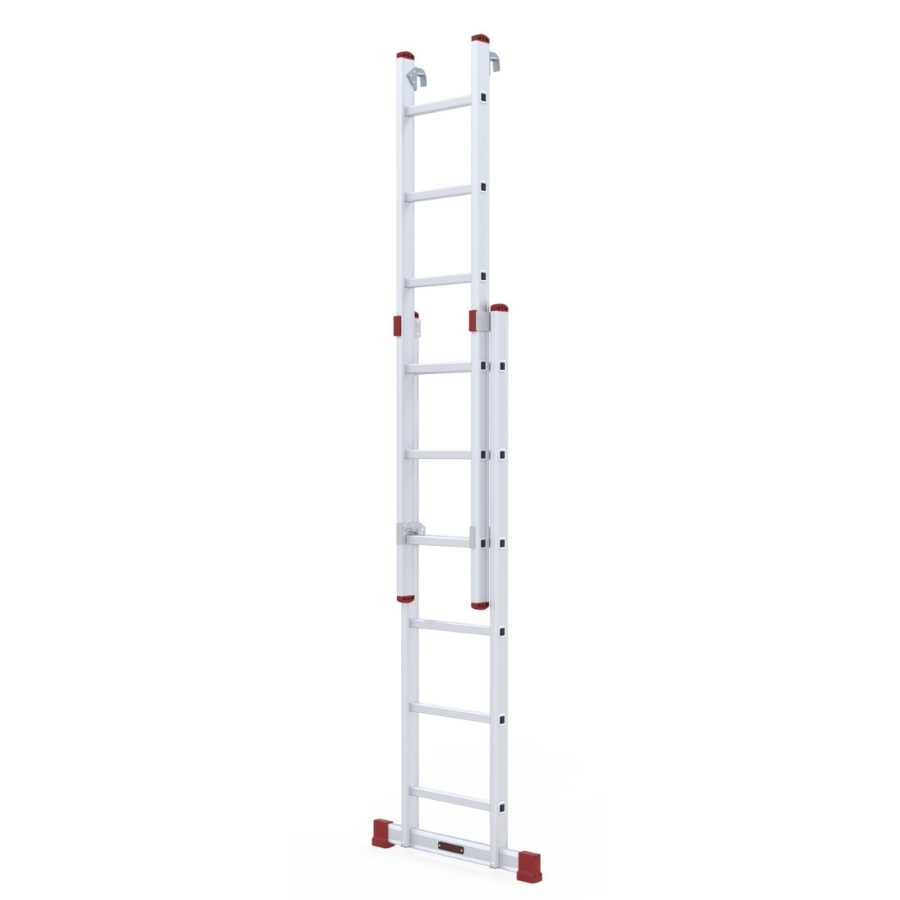

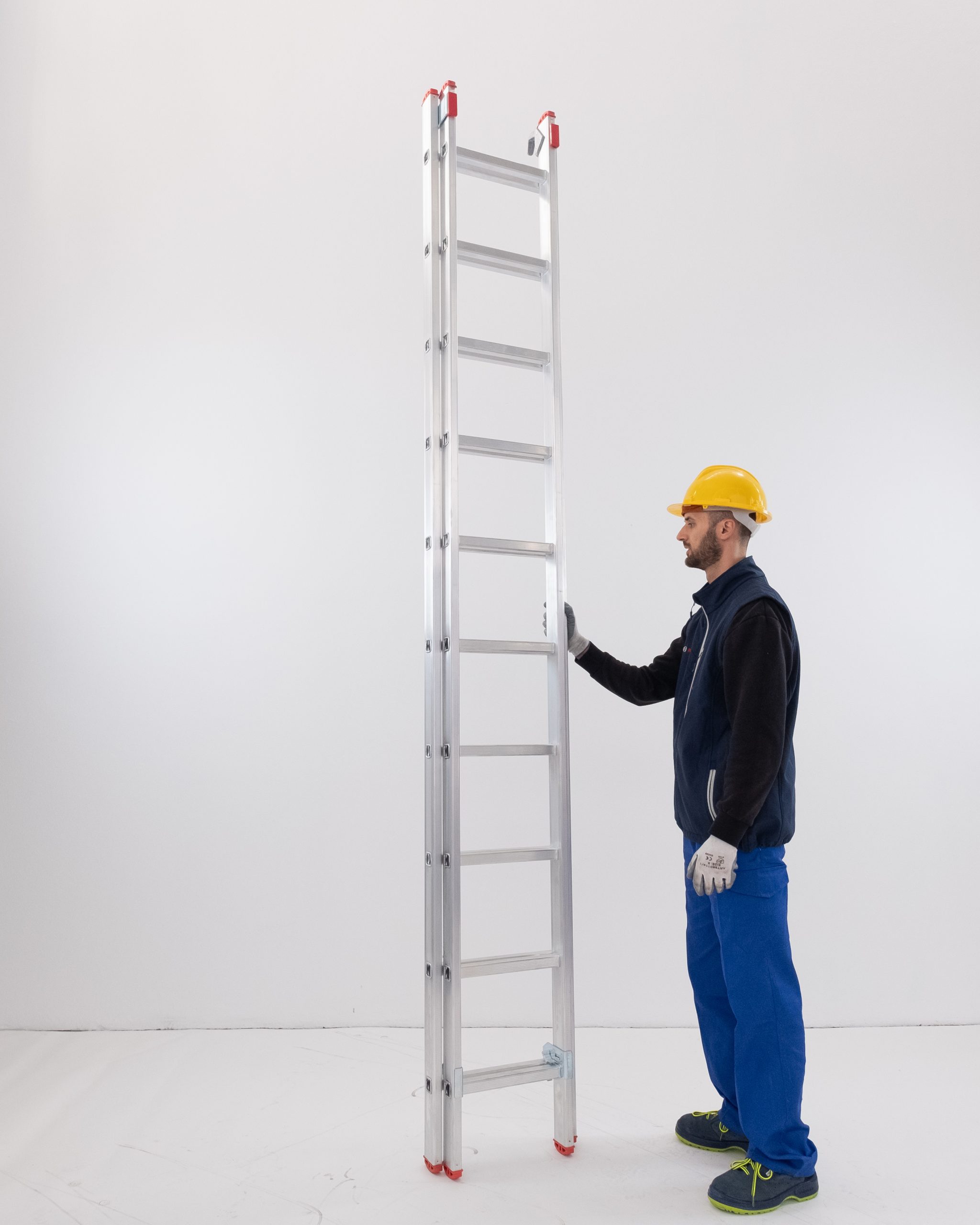

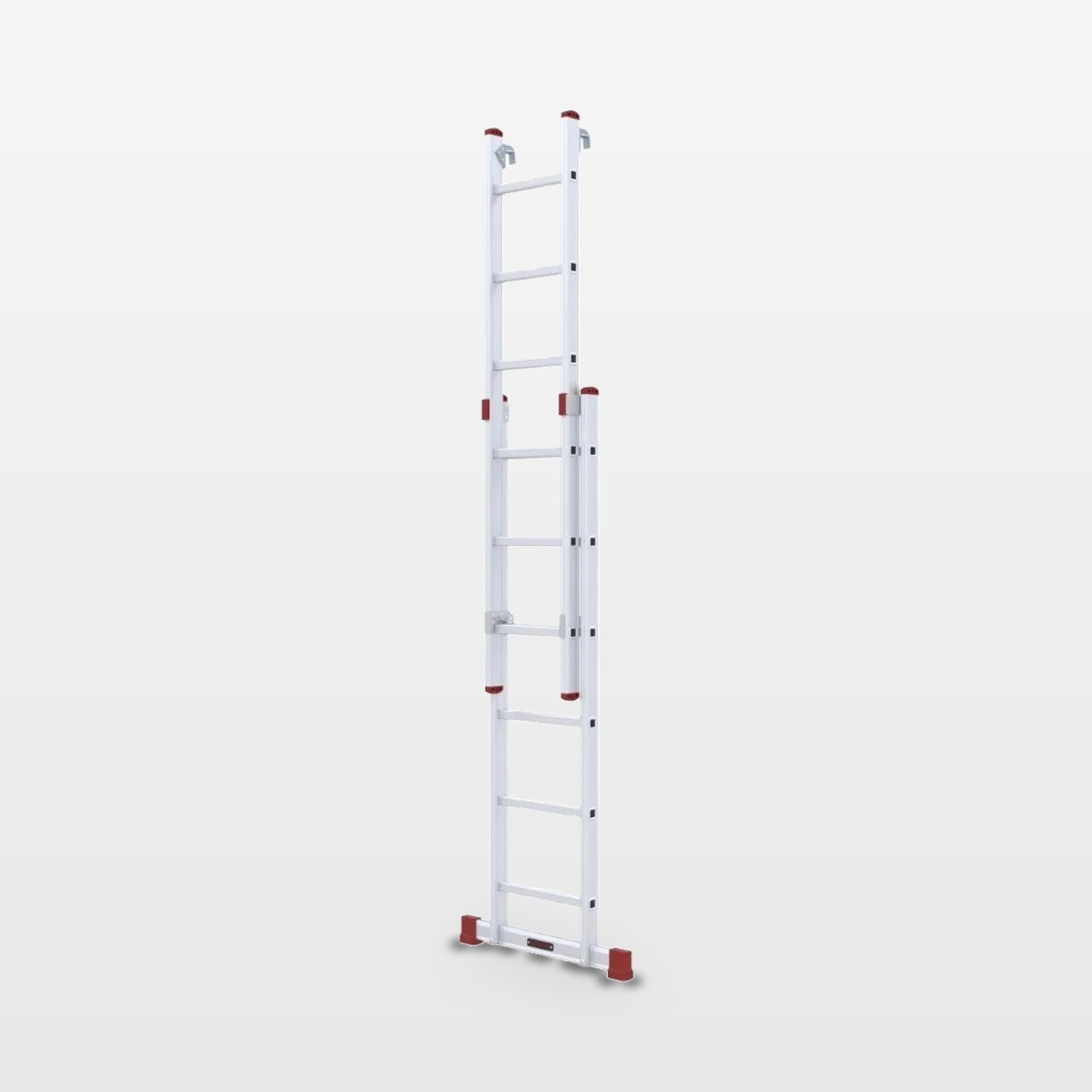

Two-section extension ladder with hooks.

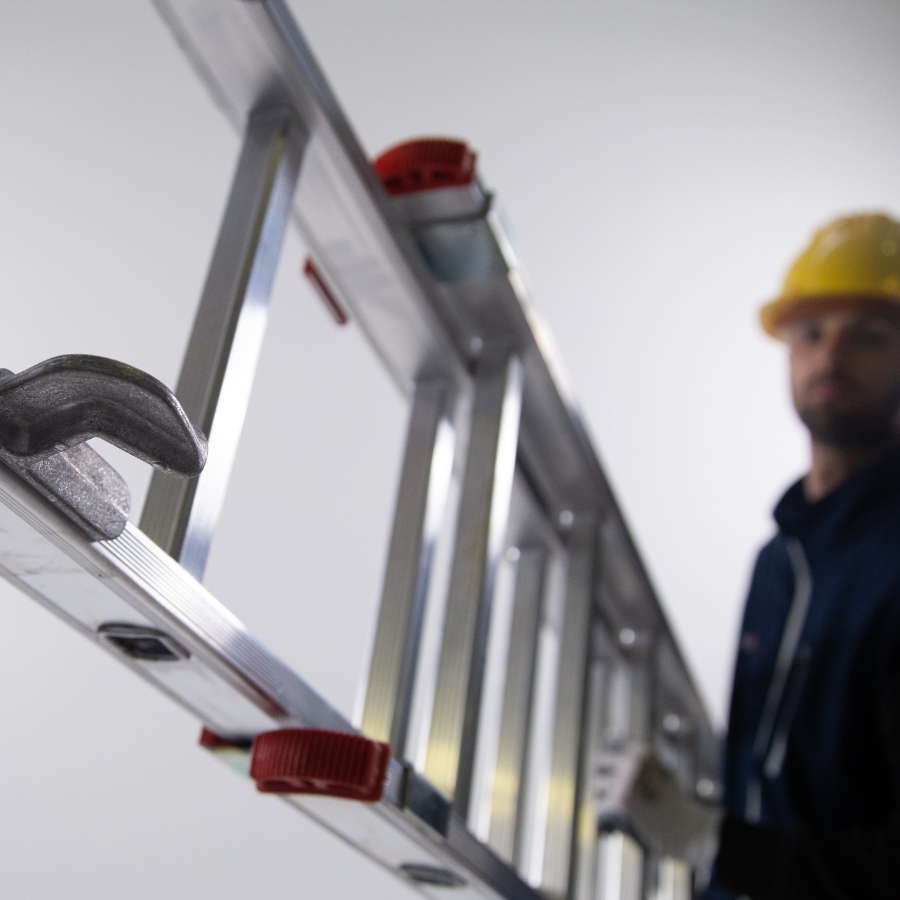

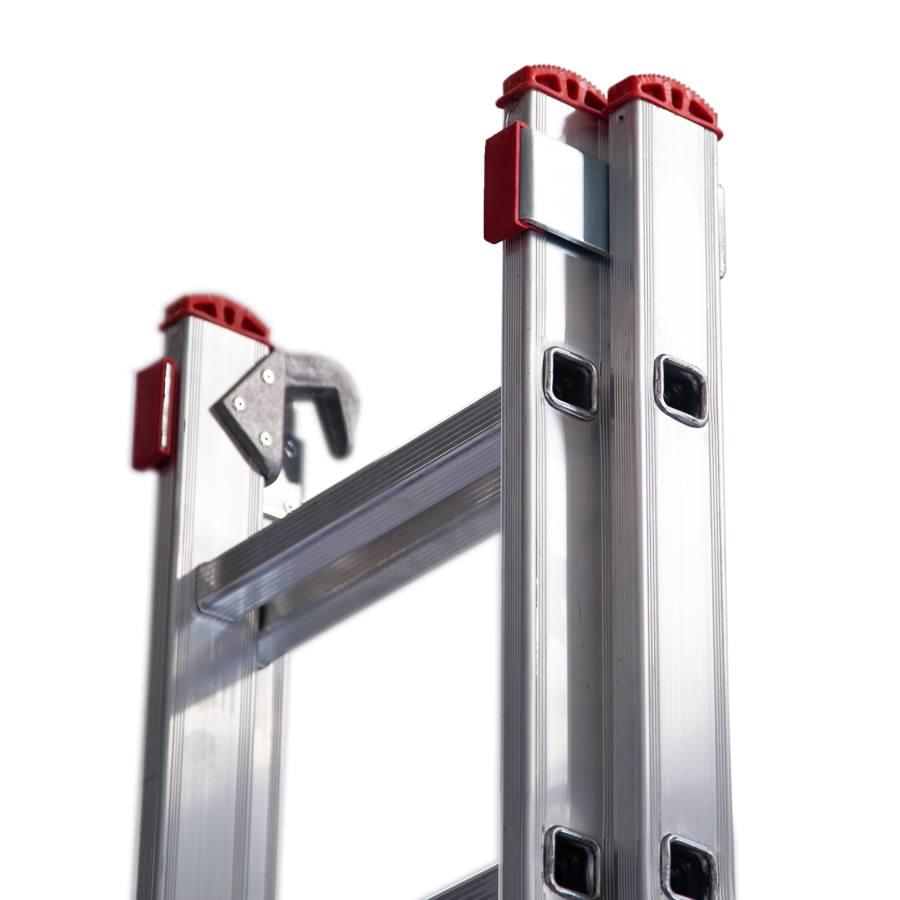

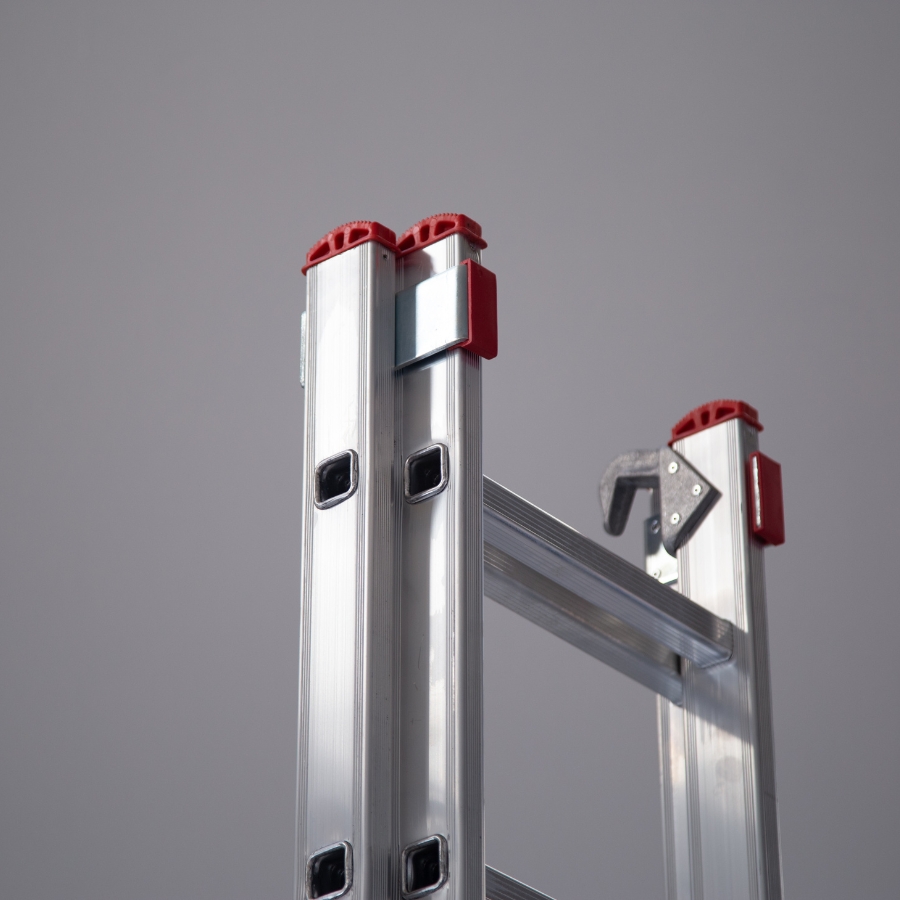

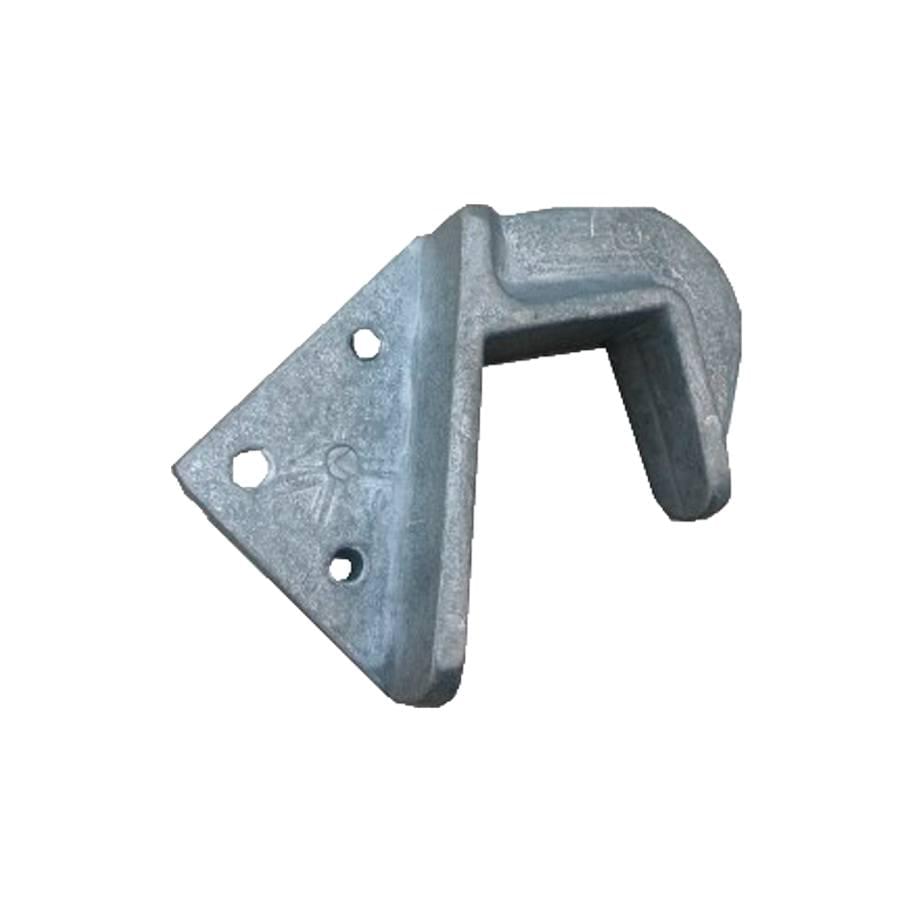

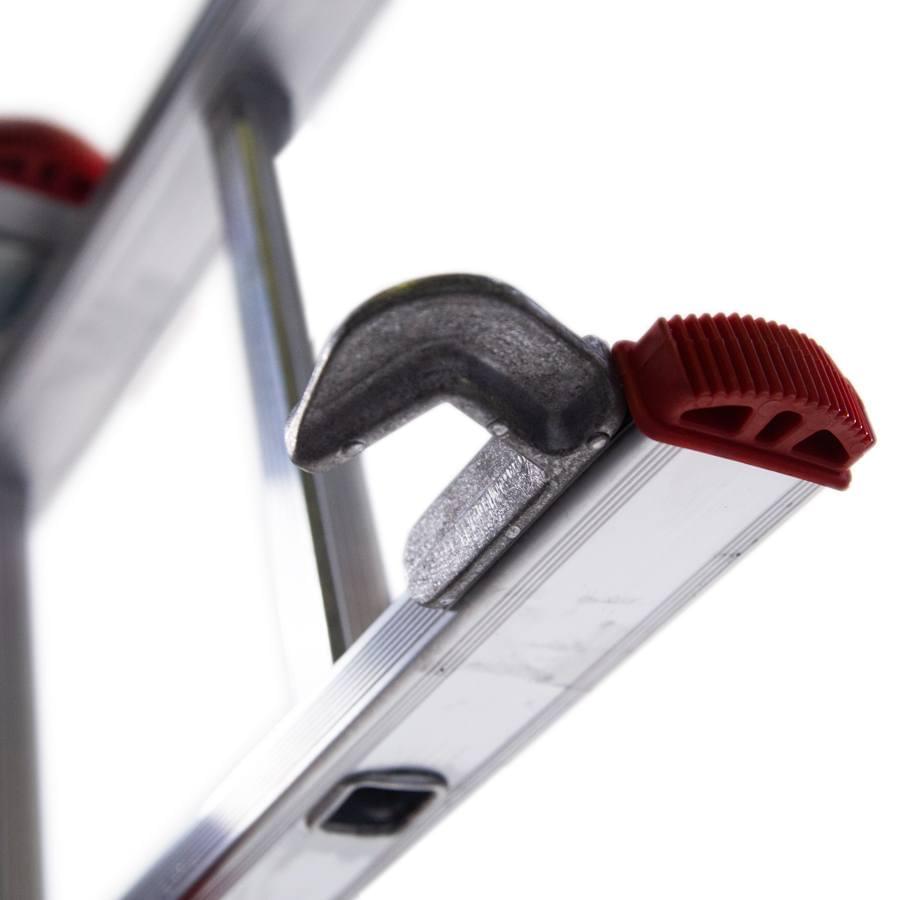

A professional two-section extendable ladder. It has 30 x 30 mm rungs spaced 28 cm apart, with widths of 35 cm for the first section and 43 cm for the second. Two cast-aluminium support hooks provide additional security. Ideal for occasional access to roofs, caged access ladders and shared residential buildings.
The MG-EXTEND ladder is certified to European standard EN 131.
Jormax reserves the right to change its products or technical specifications without prior notice.
| Number of steps | 2×6 | 2×7 | 2×8 | 2×9 | 2×10 | 2×11 | 2×12 | 2×13 |
|---|---|---|---|---|---|---|---|---|
| Overall folded height (m) | 1.80 | 2.08 | 2.36 | 2.64 | 2.92 | 3.20 | 3.48 | 3.76 |
| Overall extended height (m) | 2.62 | 3.18 | 3.74 | 4.30 | 4.86 | 5.42 | 5.98 | 6.54 |
| Profile (mm) | 65 x 25 | 65 x 25 | 65 x 25 | 65 x 25 | 65 x 25 | 65 x 25 | 65 x 25 | 73 x 25 |
| Weight (kg) | 9.00 | 10.00 | 11.00 | 12.00 | 13.00 | 14.00 | 15.00 | 16.00 |
| Reference | 10715 | 10716 | 10717 | 10718 | 10719 | 10720 | 10721 | 10722 |
Two-section extension ladder with hooks.
A professional two-section extendable ladder. It has 30 x 30 mm rungs spaced 28 cm apart, with widths of 35 cm for the first section and 43 cm for the second. Two cast-aluminium support hooks provide additional security. Ideal for occasional access to roofs, caged access ladders and shared residential buildings.
The MG-EXTEND ladder is certified to European standard EN 131.
Jormax reserves the right to change its products or technical specifications without prior notice.
| Feature | Specification |
|---|---|
| Number of steps | 2×6 to 2×13 |
| Rung spacing | 28 cm |
| Steps | 30×30 mm |

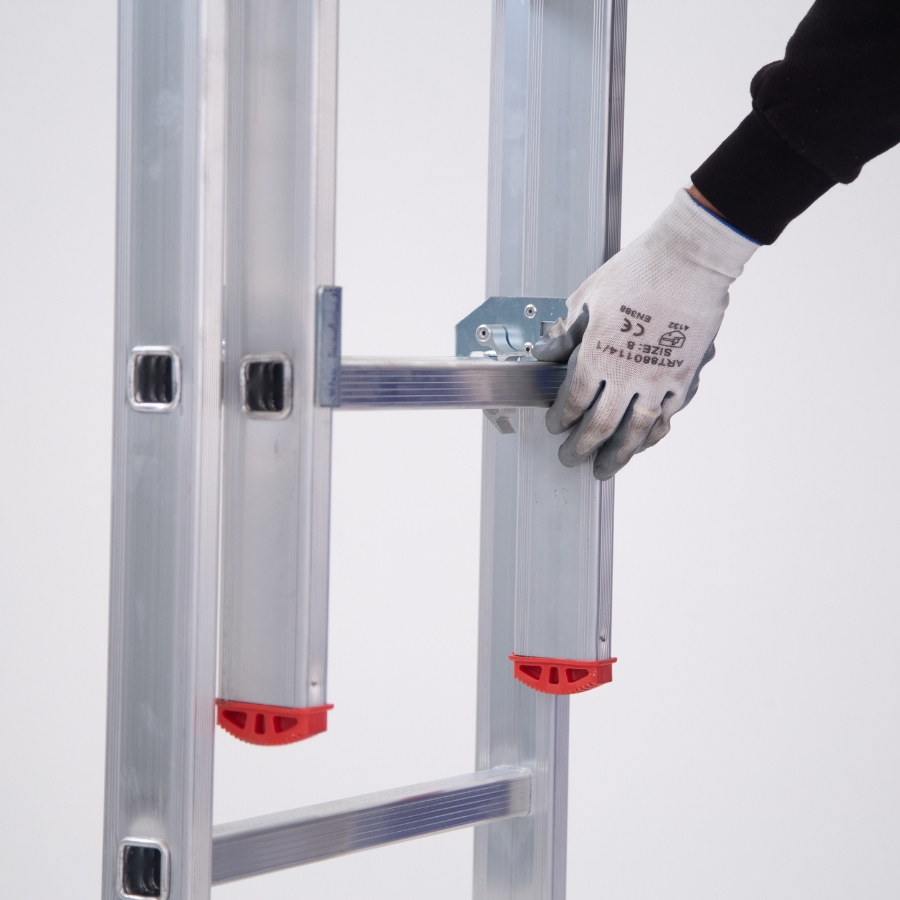

| Non-slip feet | Rubber |
| Width | 35+43 cm |
| Profile | 85×25 mm / 73×25 mm |

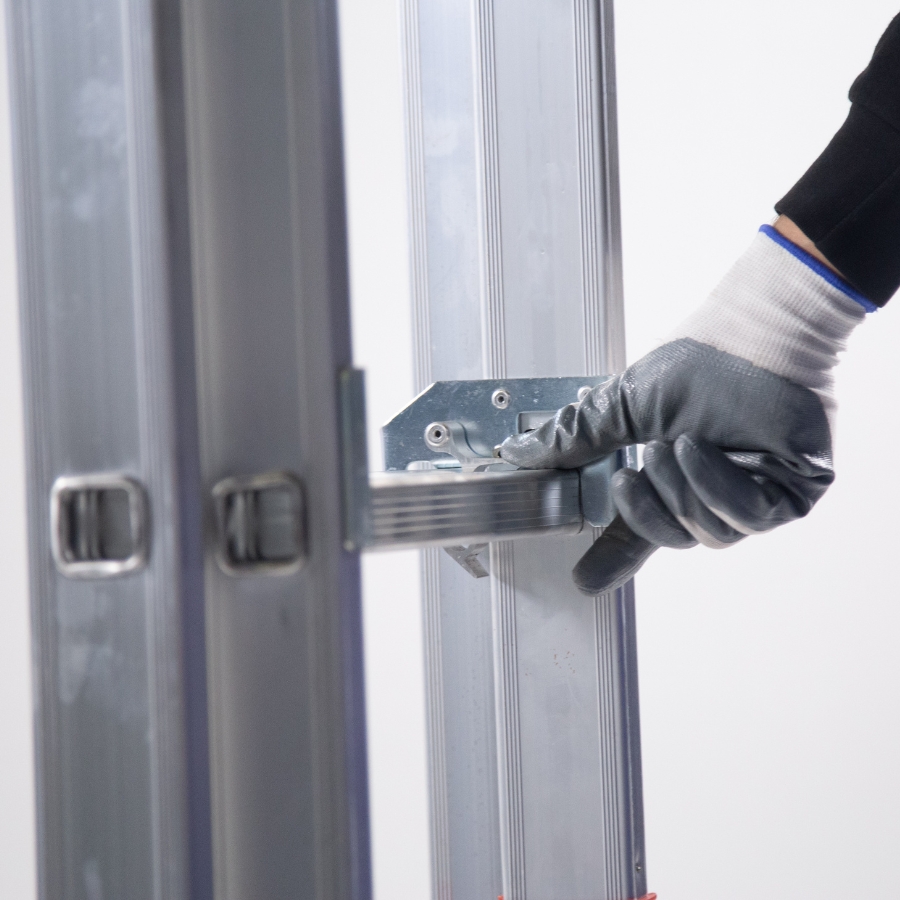

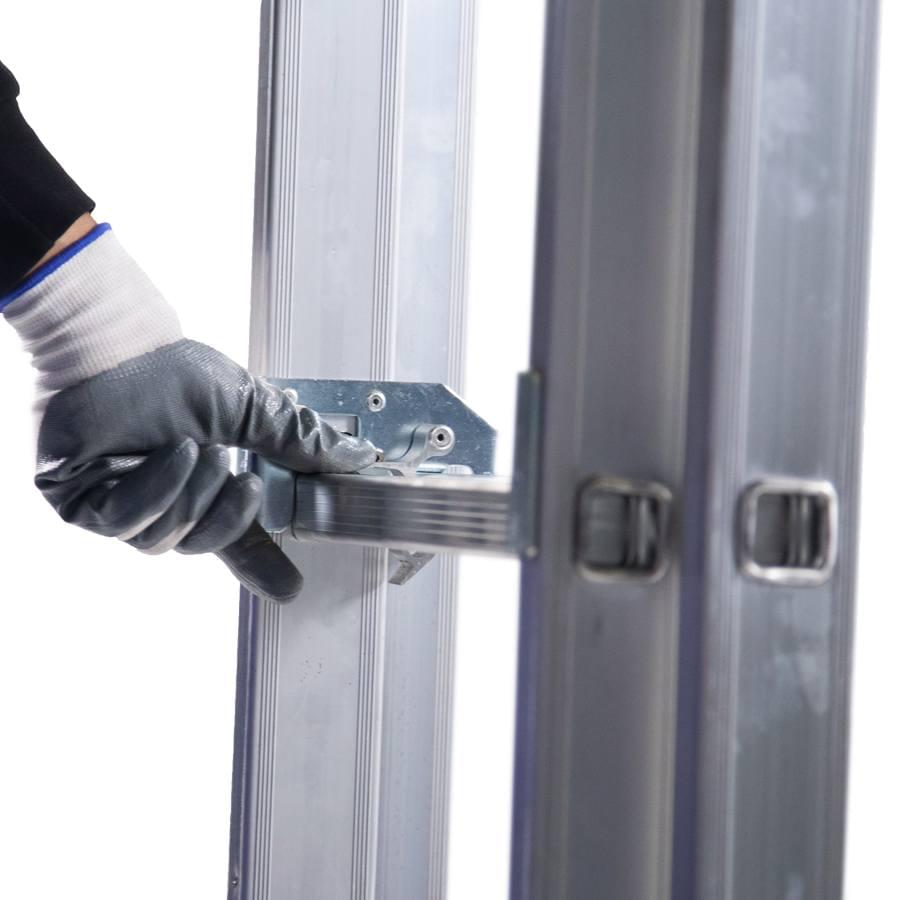

| Hook of safety | Safety device preventing the platform from opening accidentally |
| Manual | User and maintenance manual included |
| Certification | EN131 |
| Label of identification | Included |
| Note: Product dimensions may vary by +/- 2 cm. | |
