Suitable for maintenance work on construction sites.

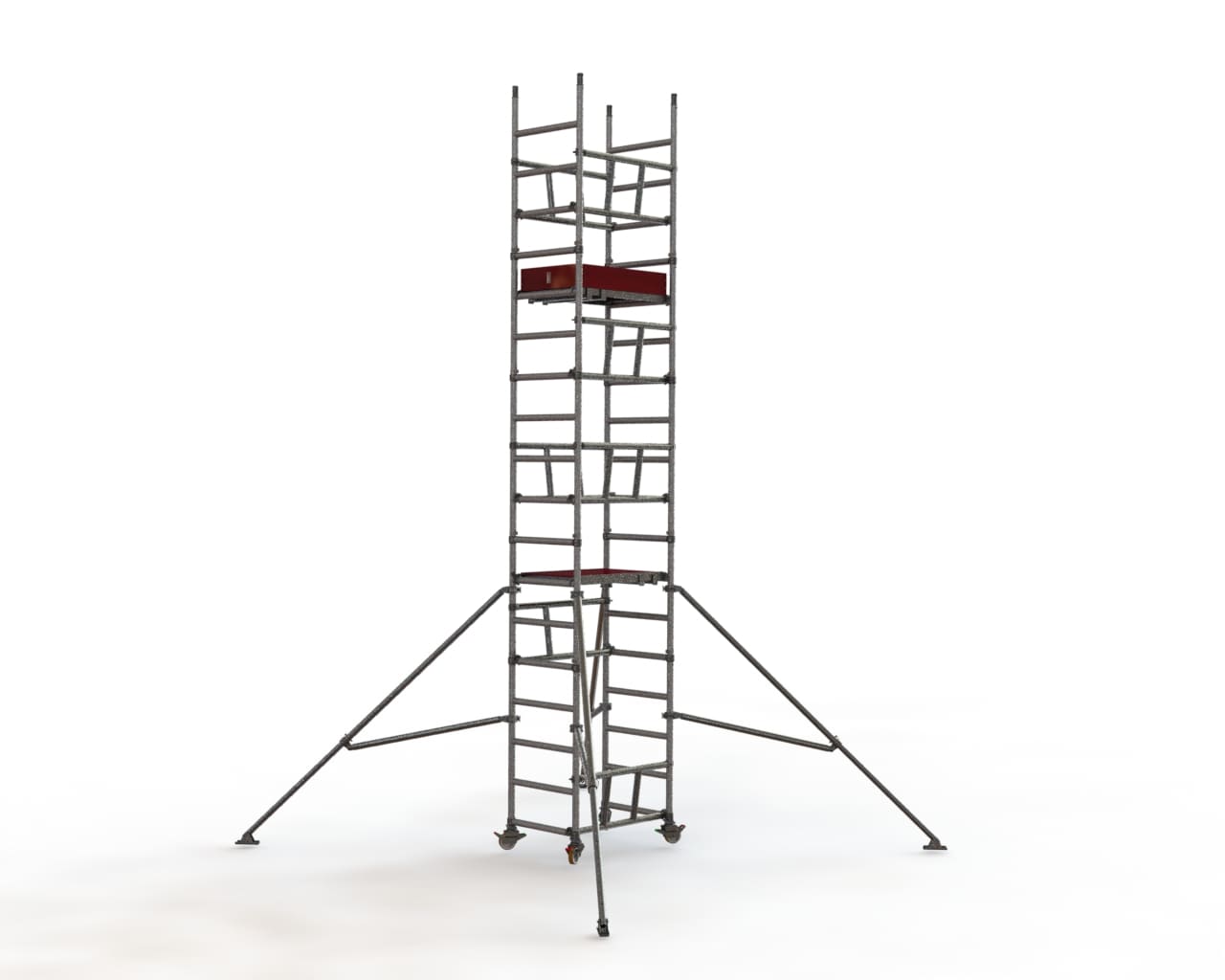

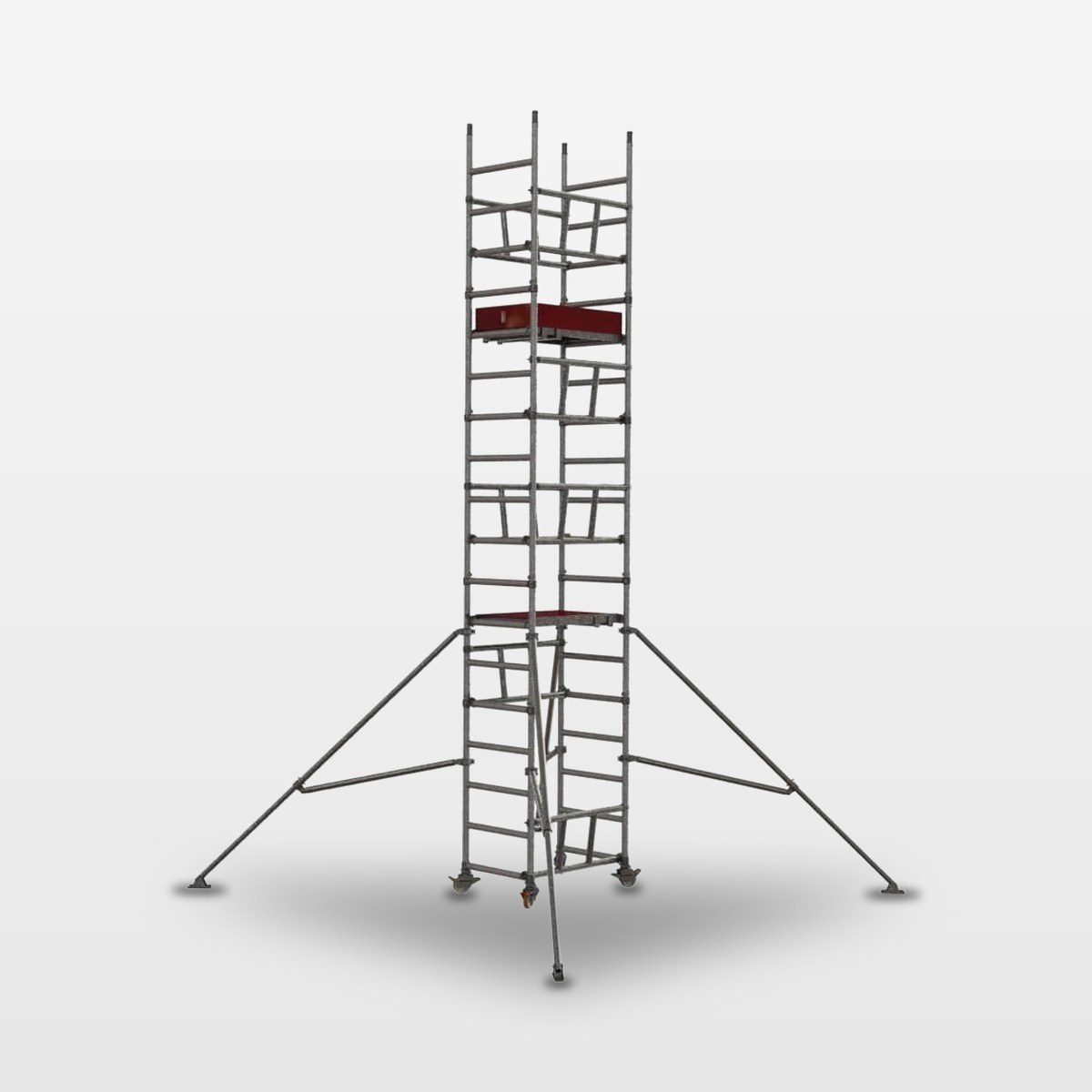

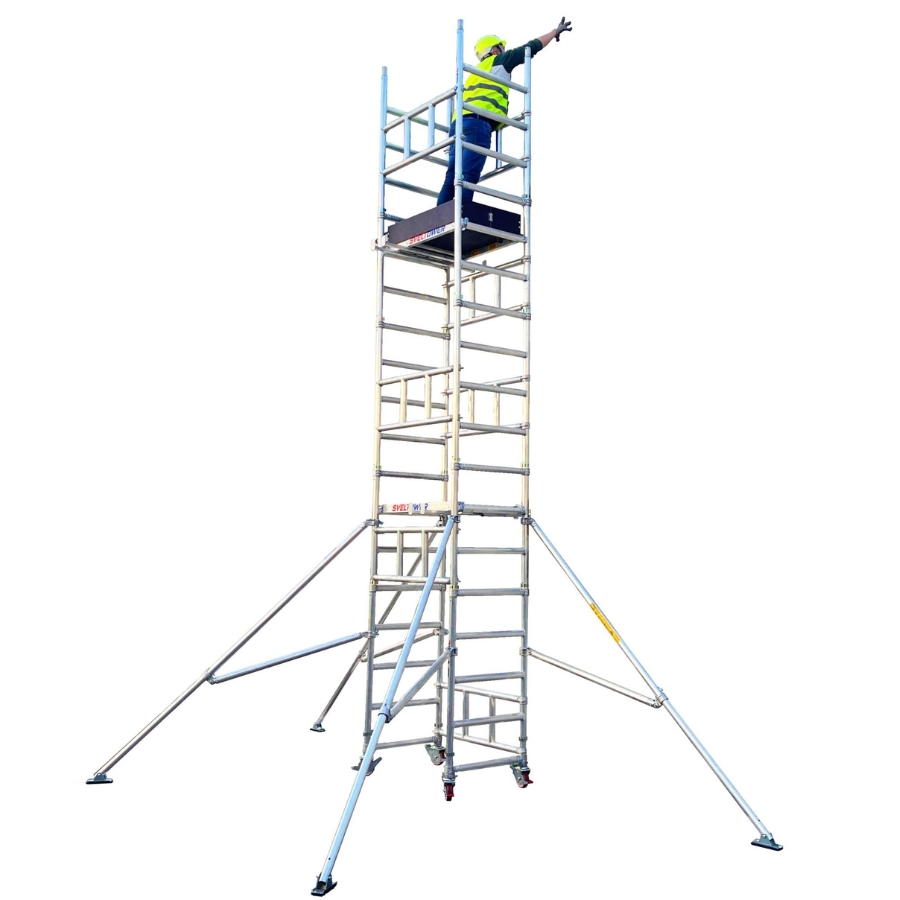

Ultra-compact professional aluminium scaffolding designed for quick, safe assembly by one person without returning to ground level during installation. JS Tower offers flexibility at different working heights and is ideal for indoor installations, painting and maintenance, with a working height of up to 6.00 metres.
The scaffold JS TOWER is certified to European standard EN1004.
Jormax reserves the right to change its products or technical specifications without prior notice.
| Platform height (m) | 0.87 | 1.17 | 1.77 | 2.07 | 2.97 | 3.27 | 3.87 | 4.17 |
| Overall height (m) | 1.87 | 2.17 | 2.77 | 3.07 | 3.97 | 4.27 | 4.87 | 5.17 |
| Working height (m) | 2.87 | 3.17 | 3.77 | 4.07 | 4.97 | 5.27 | 5.87 | 6.17 |
| Platform number | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 |
| Toeboard kit number | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of four-stage modules | 2 | 4 | 2 | 4 | 4 | 6 | 4 | 6 |
| Number of three-stage modules | 3 | 0 | 4 | 2 | 4 | 2 | 6 | 4 |
| Number of frames | 3 | 3 | 4 | 4 | 6 | 6 | 7 | 7 |
| Weight (kg) | 47.5 | 49 | 79 | 80.5 | 100.5 | 102 | 109 | 111 |
| Reference | 700001 | 700002 | 700003 | 700004 | 700005 | 700006 | 700007 | 700008 |
Suitable for maintenance work on construction sites.
Ultra-compact professional aluminium scaffolding designed for quick, safe assembly by one person without returning to ground level during installation. JS Tower offers flexibility at different working heights and is ideal for indoor installations, painting and maintenance, with a working height of up to 6.00 metres.
The scaffold JS TOWER is certified to European standard EN1004.
Jormax reserves the right to change its products or technical specifications without prior notice.
| Feature | Specification |
|---|---|
| Structure dimensions | 1,10 x 0,74 m |
| Base dimensions | 1,00 x 0,60 m (8,56 kg) |
| Maximum working height | 6,17 m |
| 4 Wheels with brake | Ø 125 mm (2,25 kg/wheel) |
| Rung spacing | 30 cm |
| 4 adjustable screw jacks | 150 mm (0.85 kg/screw jack) |
| Platform with trapdoor | Structure of aluminium, surface of wood |
| Overall height | 5,17 m (111 kg) |
| maximum height above ground level | 4,17 m |
| Manual | User and maintenance manual included |
| Certification | EN1004 |
| Note: Product dimensions may vary by +/- 2 cm. | |
ADVANTAGES
• Can be assembled by a single person;
• Assembly quick and safe (5 metres in less of 10 minutes);
• Rigid, lightweight, robust and strong;

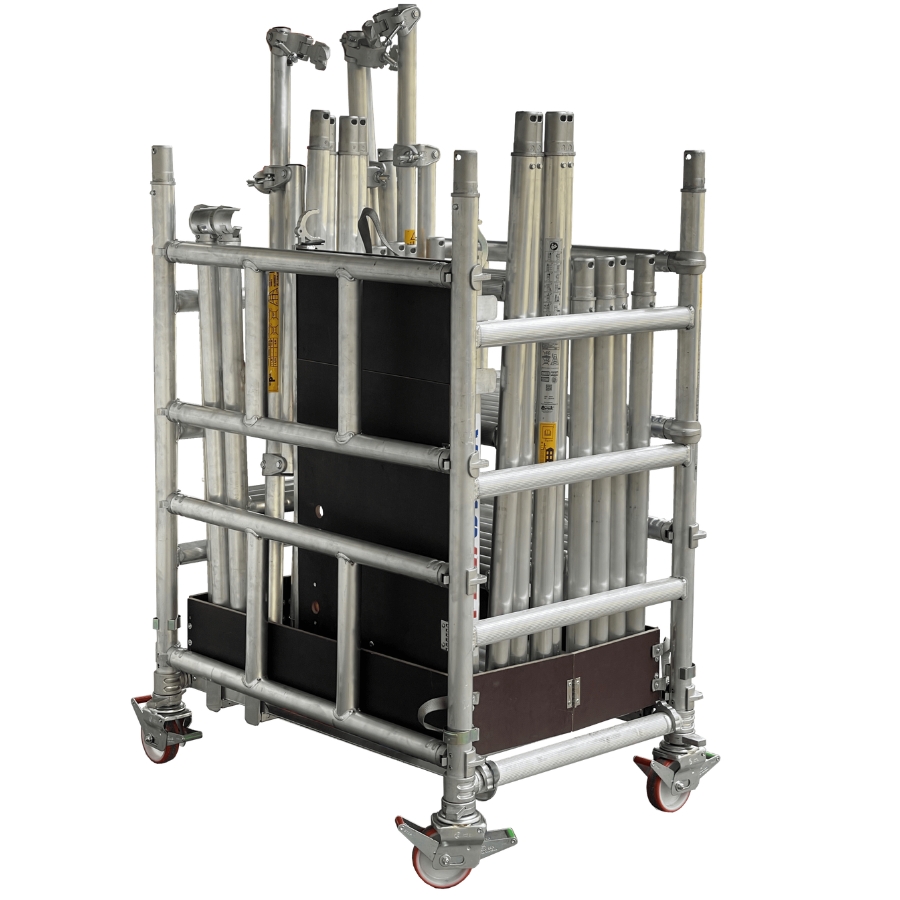

- The base doubles as a trolley to carry all components;
• Requires space minimum during The use, even in spaces small;
- Fits into commercial vehicles and lifts;
