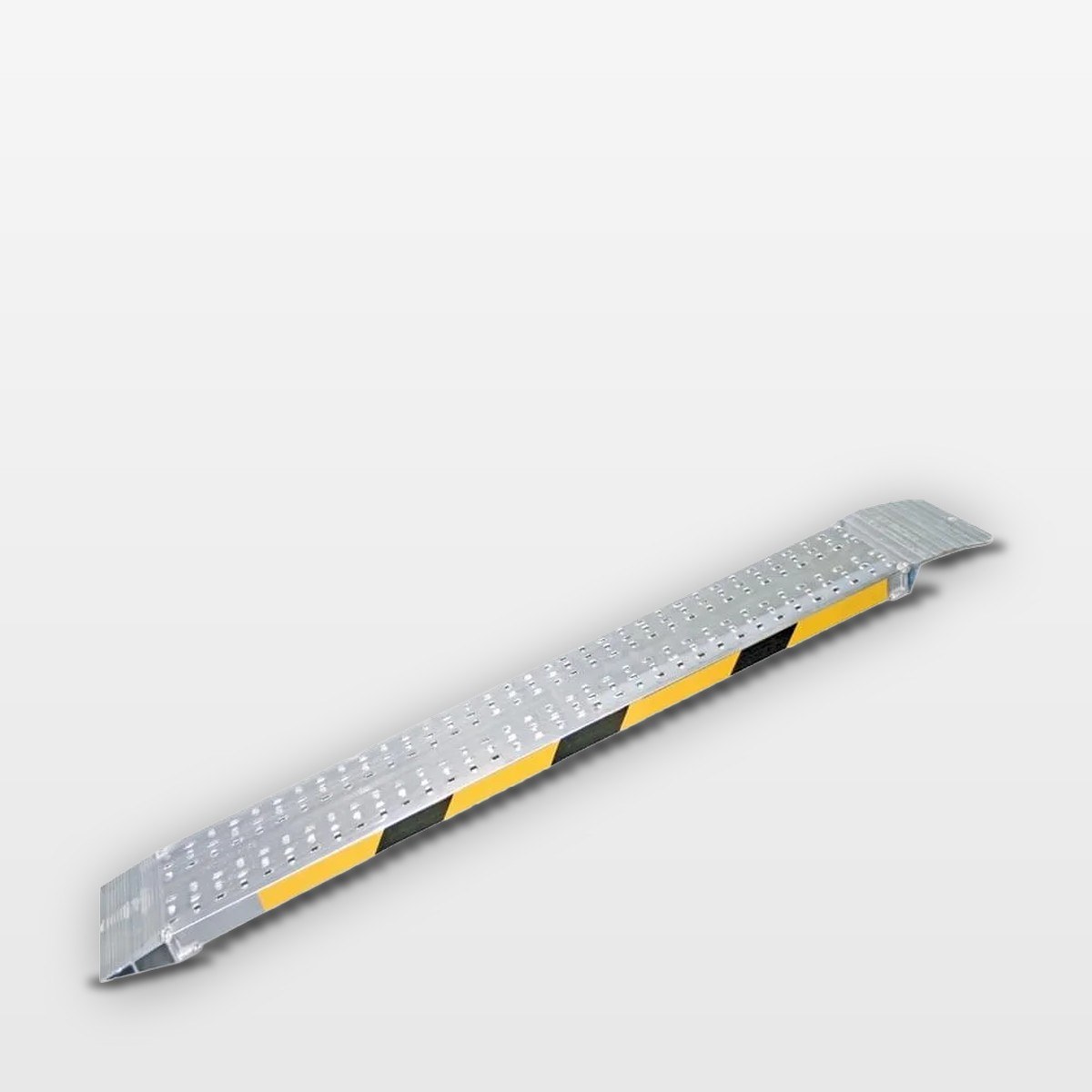

Ramp fixed of aluminium.
An aluminium vehicle loading ramp, available in several lengths and load capacities. Surface
perforated. Very lightweight and easy to handle. Ideal for motorcycles, quad bikes, small tractors, construction equipment and cleaning machines.
Jormax reserves the right to change its products or technical specifications without prior notice.
| Model | RL – 15 | RL – 20 | RL – 25 | RL – 30 |
| Length (m) | 1.50 | 2.00 | 2.50 | 3.00 |
| Width (m) | 0.20 | 0.20 | 0.20 | 0.20 |
| Concentrated load capacity (kg) | 522.00 | 357.00 | 250.00 | 175.00 |
| Load capacity with 0.50 m wheelbase (kg) | 756.00 | 472.00 | 316.00 | 216.00 |
| Load capacity with 0.75 m wheelbase (kg) | 936.00 | 548.00 | 356.00 | 240.00 |
| Load capacity with 1.00 m wheelbase (kg) | 1048.00 | 648.00 | 400.00 | 264.00 |
| Profile height (cm) | 3.50 | 3.50 | 3.50 | 3.50 |
| Weight (kg) | 4.00 | 5.00 | 6.00 | 8.00 |
| Reference | 10676 | 10677 | 10678 | 10679 |

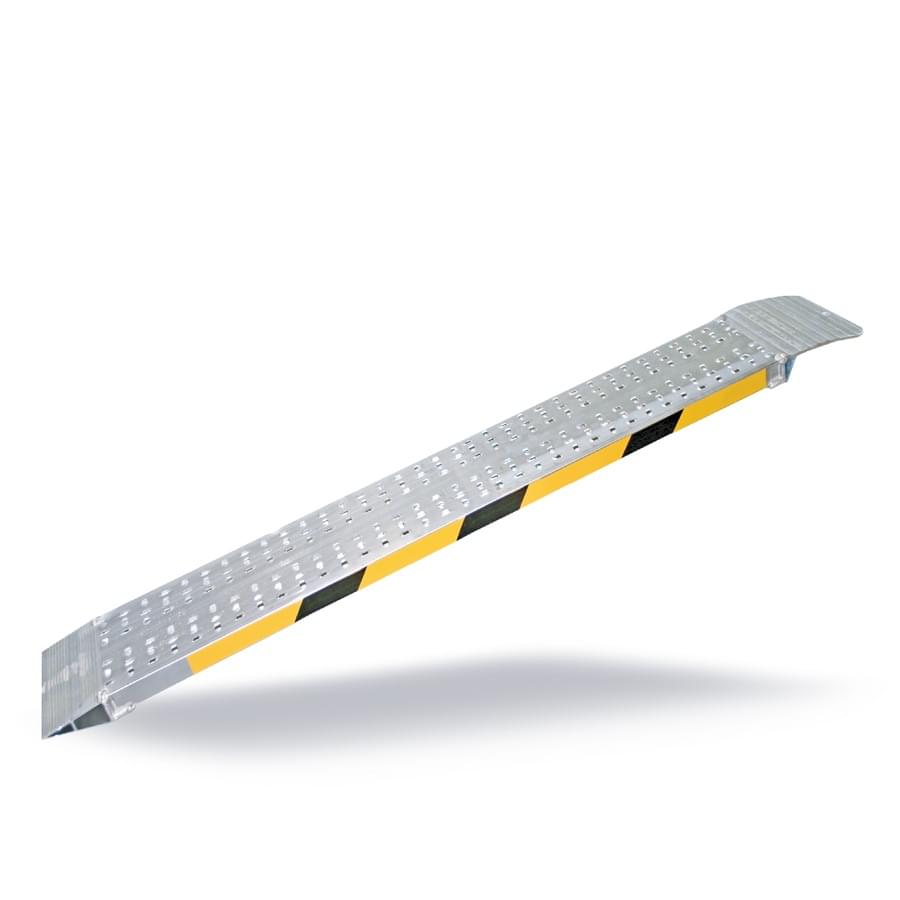

Ramp fixed of aluminium.
An aluminium vehicle loading ramp, available in several lengths and load capacities. Surface
perforated. Very lightweight and easy to handle. Ideal for motorcycles, quad bikes, small tractors, construction equipment and cleaning machines.
Jormax reserves the right to change its products or technical specifications without prior notice.
| Feature | Specification |
|---|---|
| Width | 20 cm |
| Length | 1.50 to 3.00 m |
| Weight | 4.00 to 8.00 kg |
Jormax
