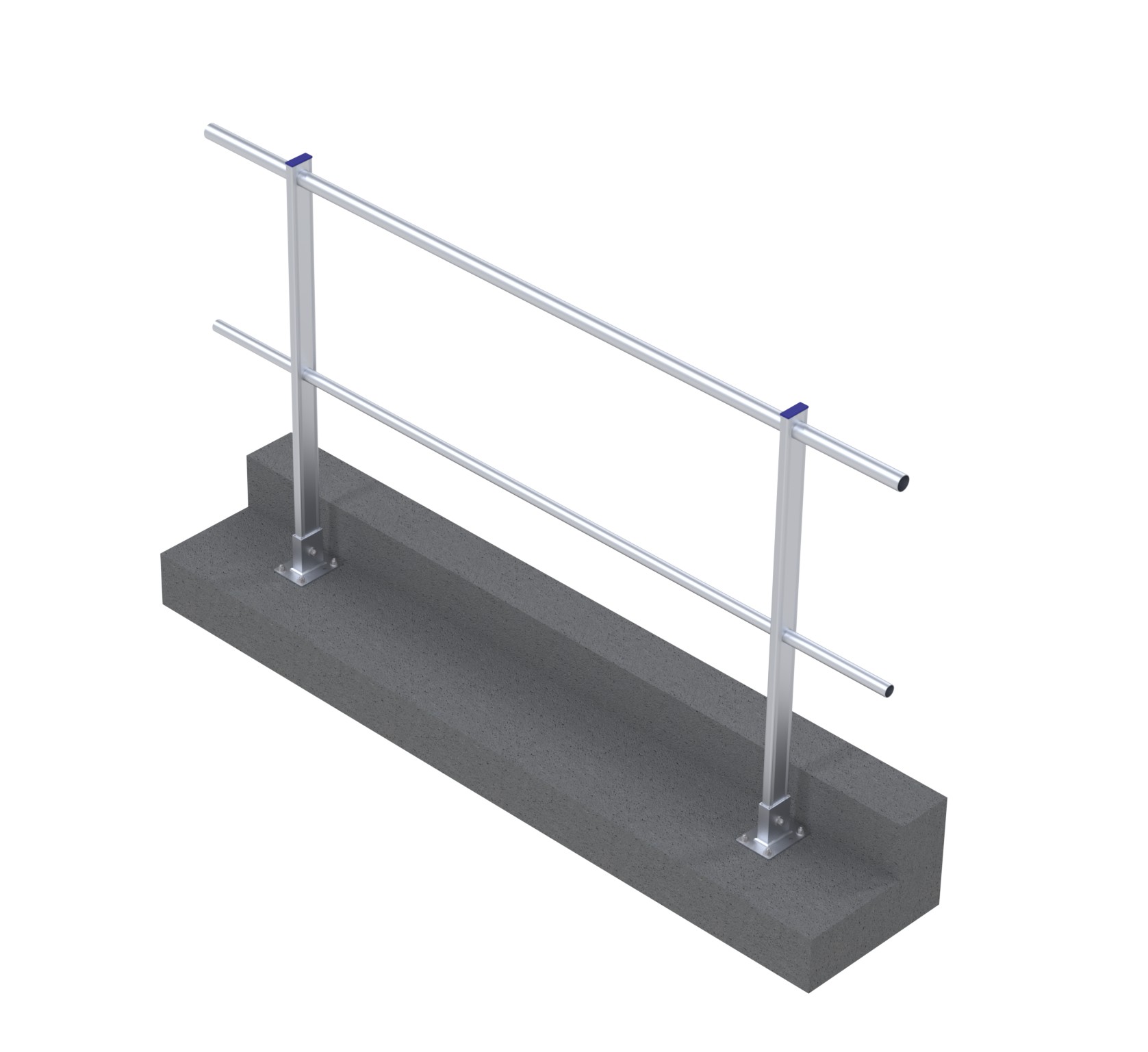

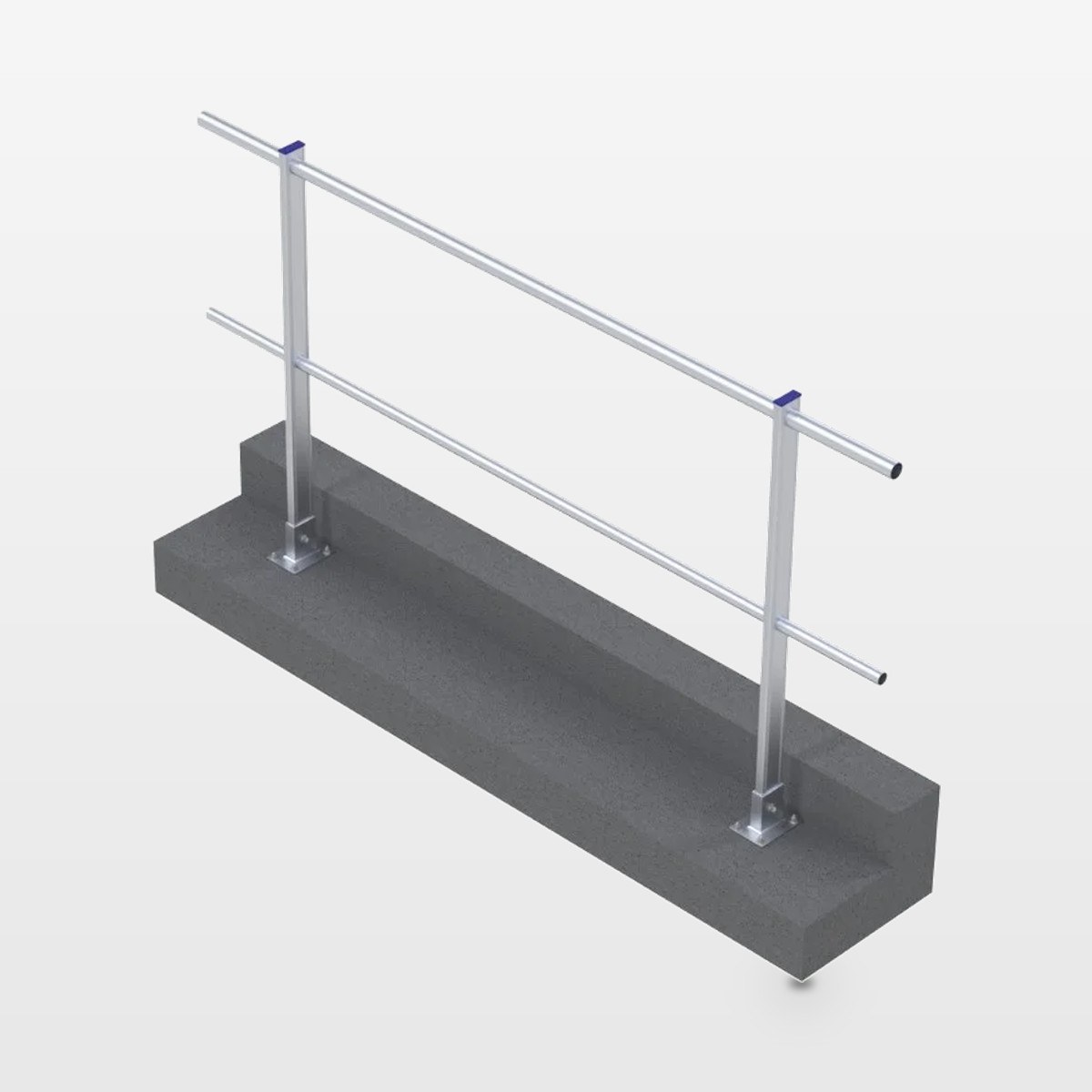

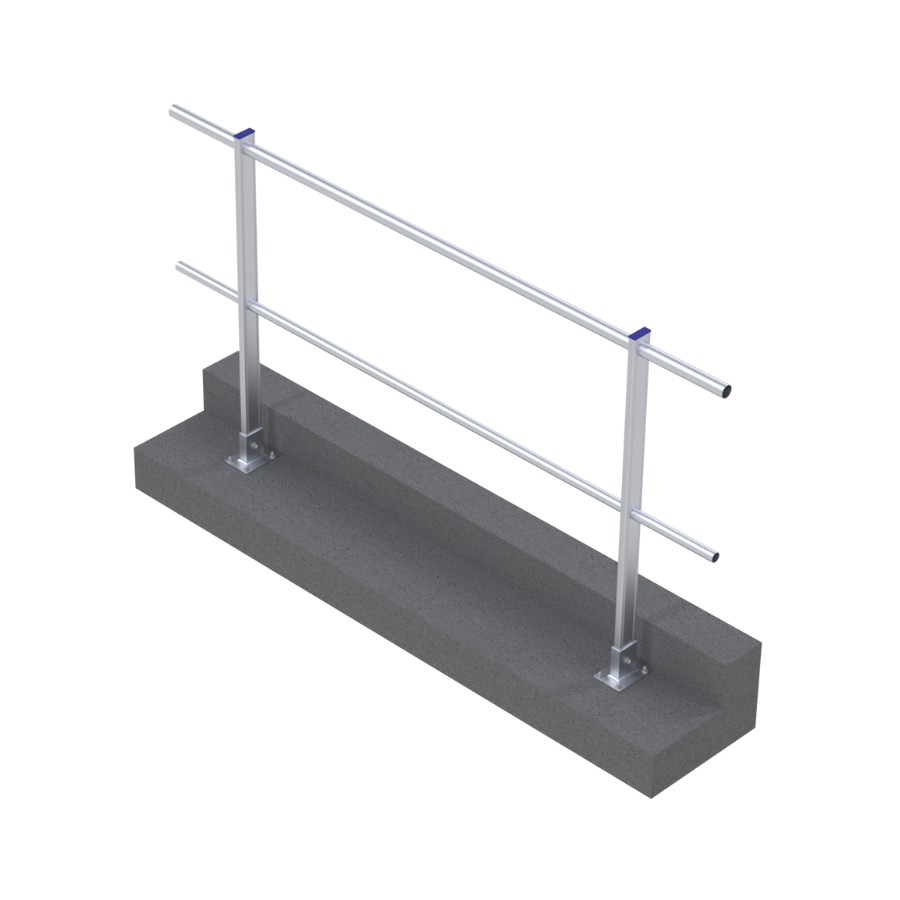

Permanent floor fixing.

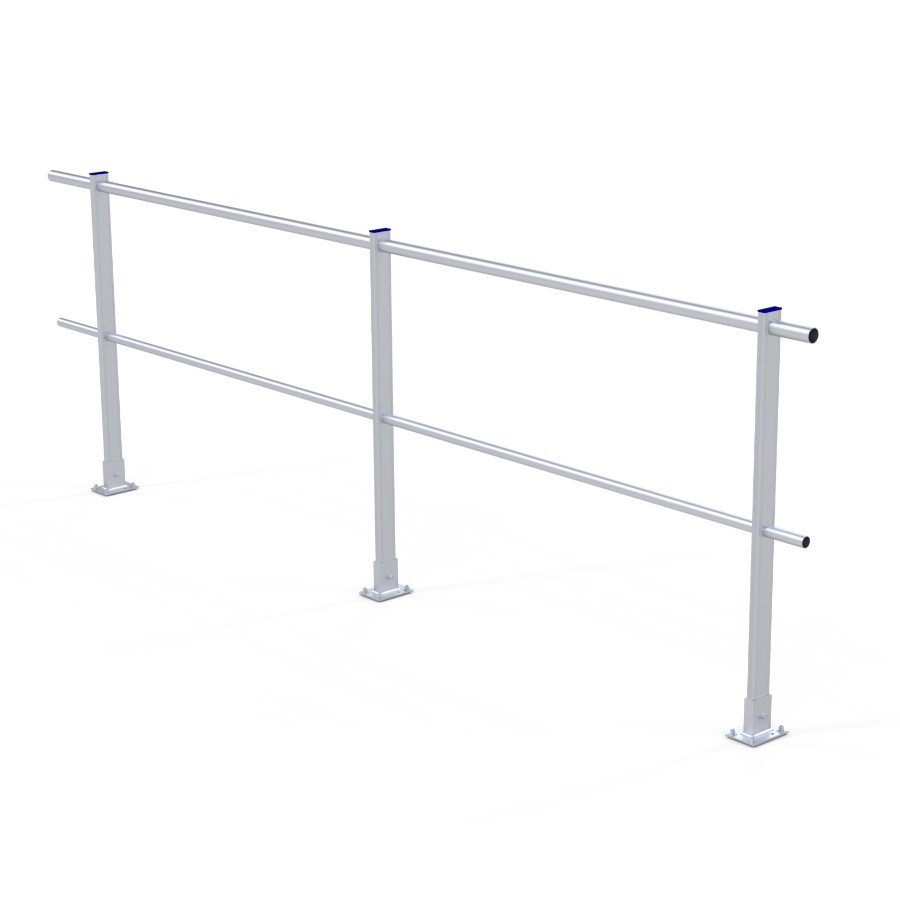

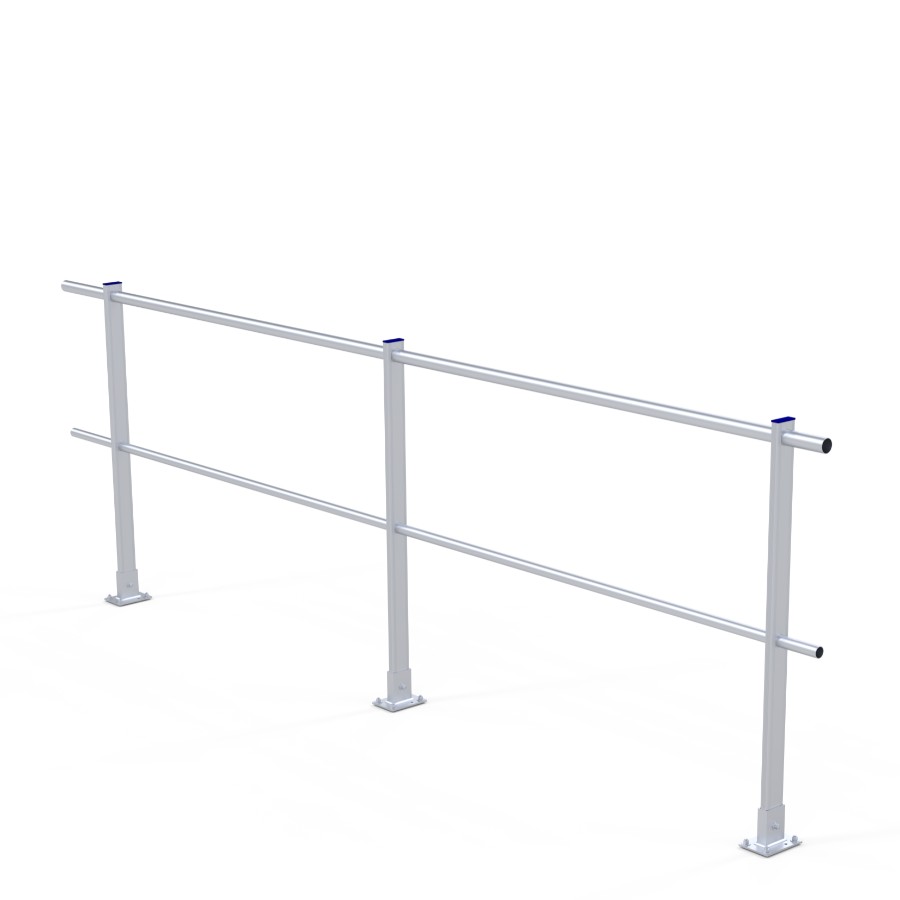

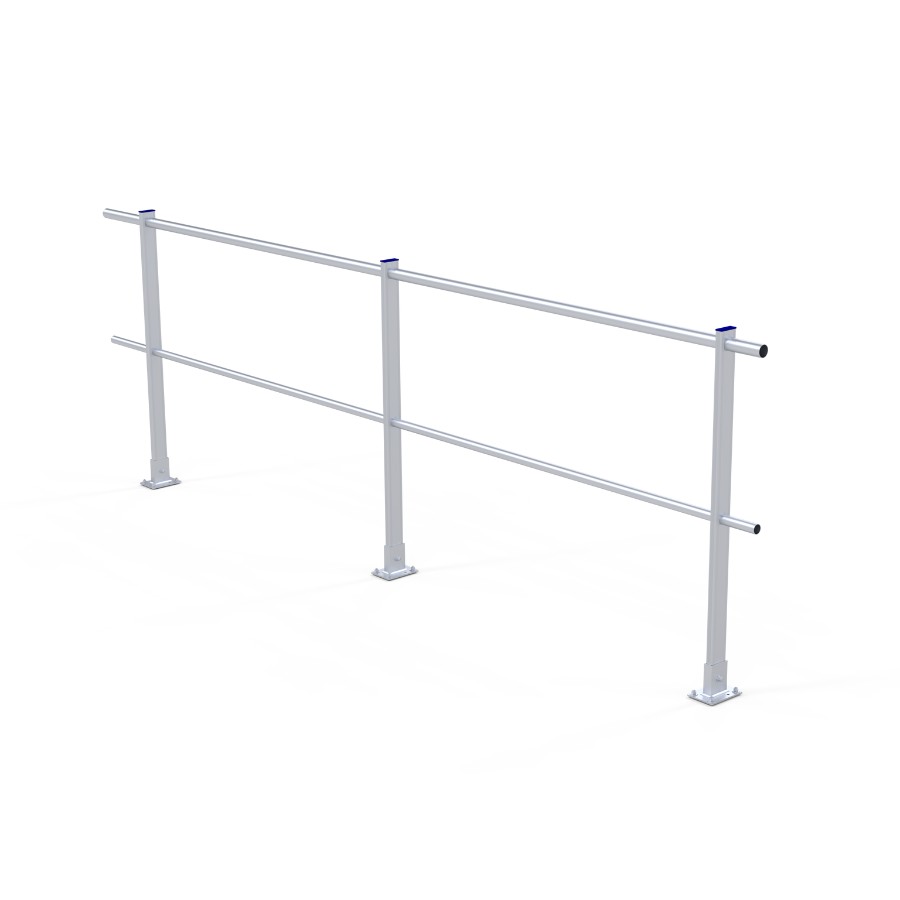

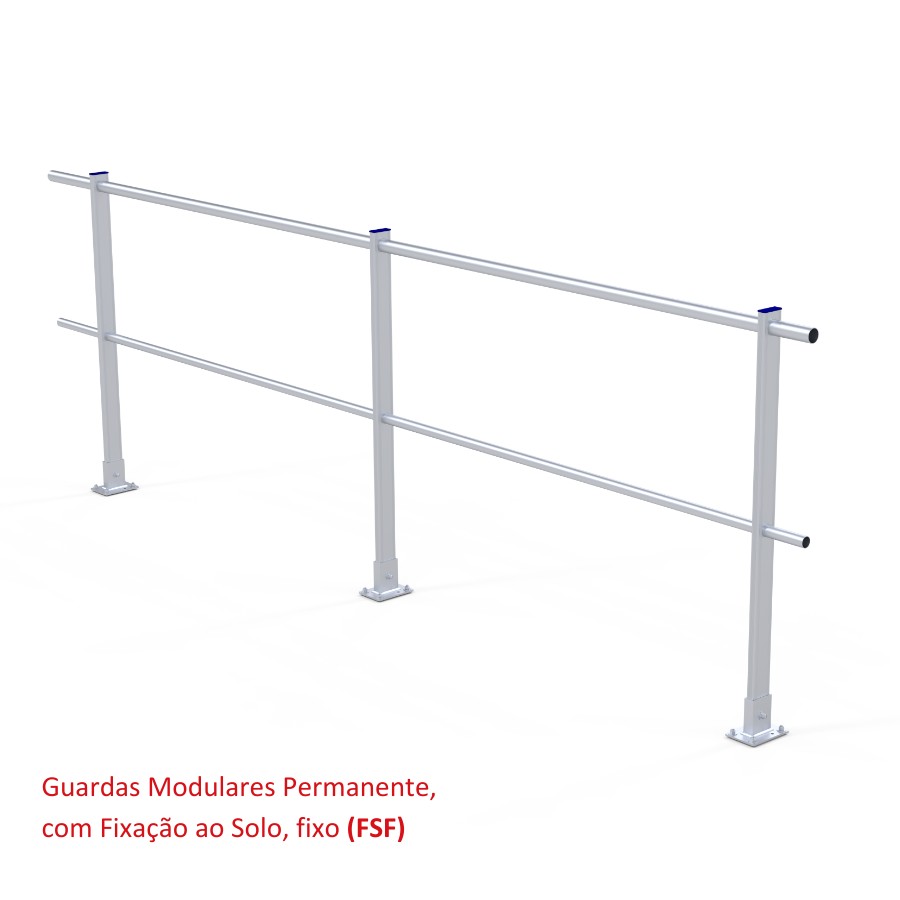

The fixed floor-mounted modular guardrail (FSF) can be installed with or without a toeboard, according to the customer's requirements.
The FIXED FLOOR-MOUNTED MODULAR GUARDRAIL is certified to European standards EN 13374, EN 14122-3 and NF E85-015:2019.
Jormax reserves the right to change its products or technical specifications without prior notice.
Can be attached with or without toeboard.
| Model | Fixed floor fixing (FSF), with a toeboard |

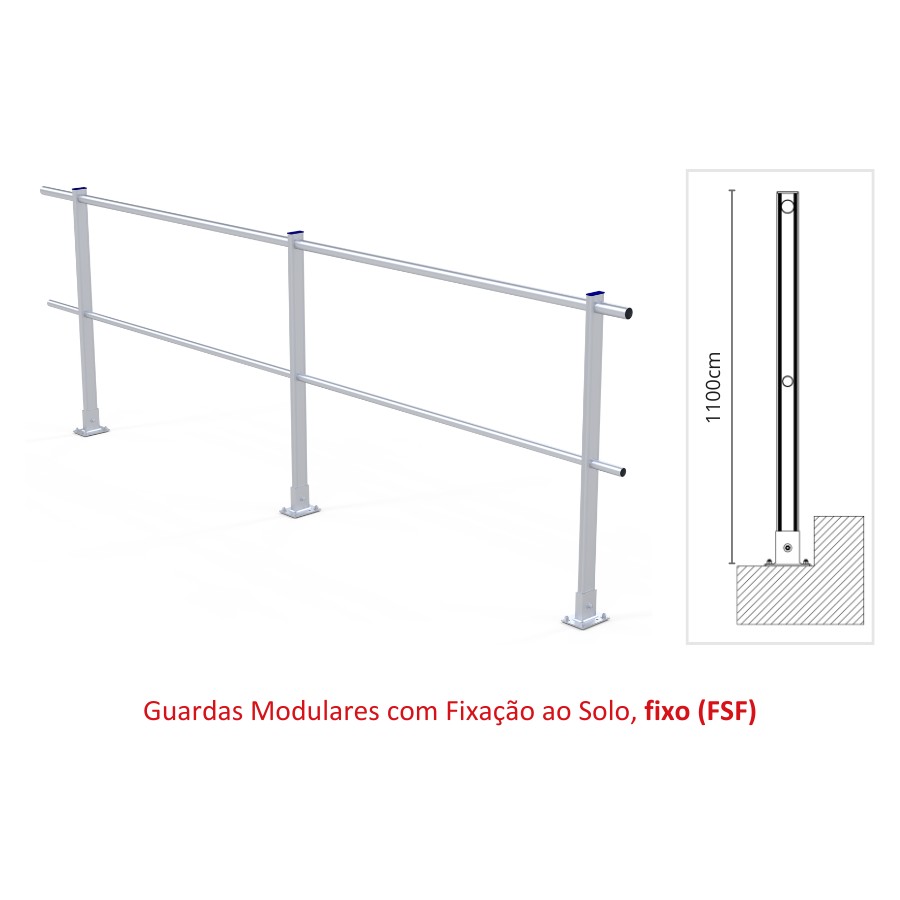

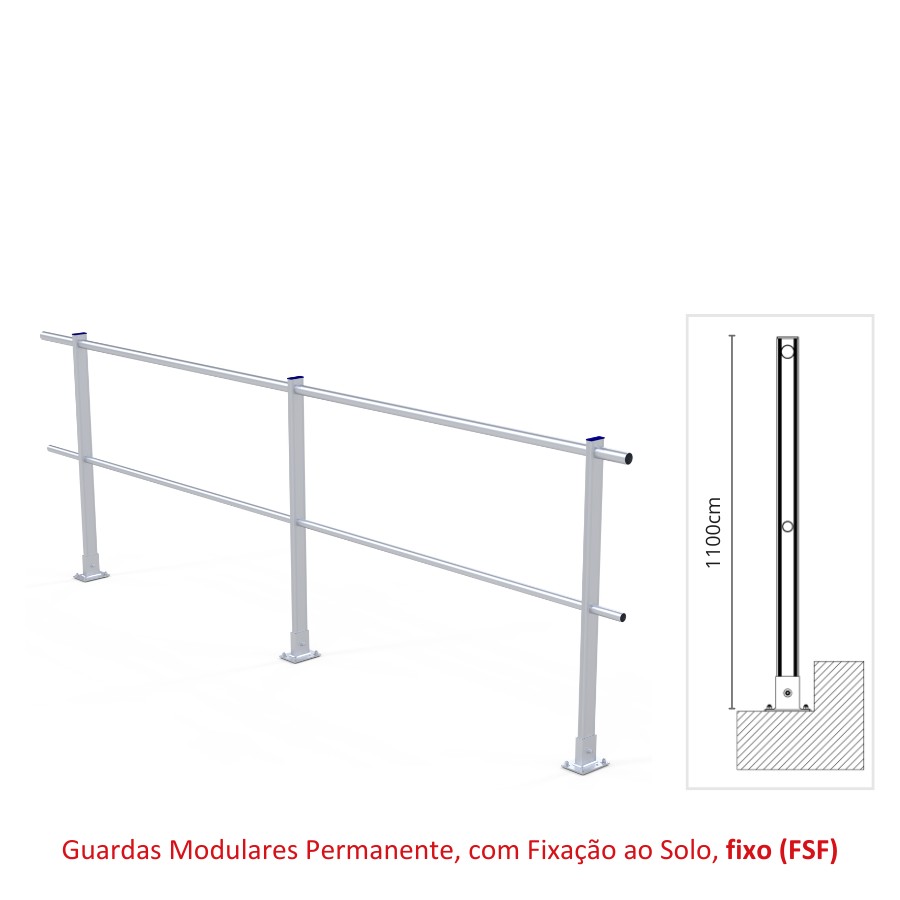

| Height (m) | 1.10 |
| Toeboard | With or without a toeboard, as required |
| Reference | 100306 |

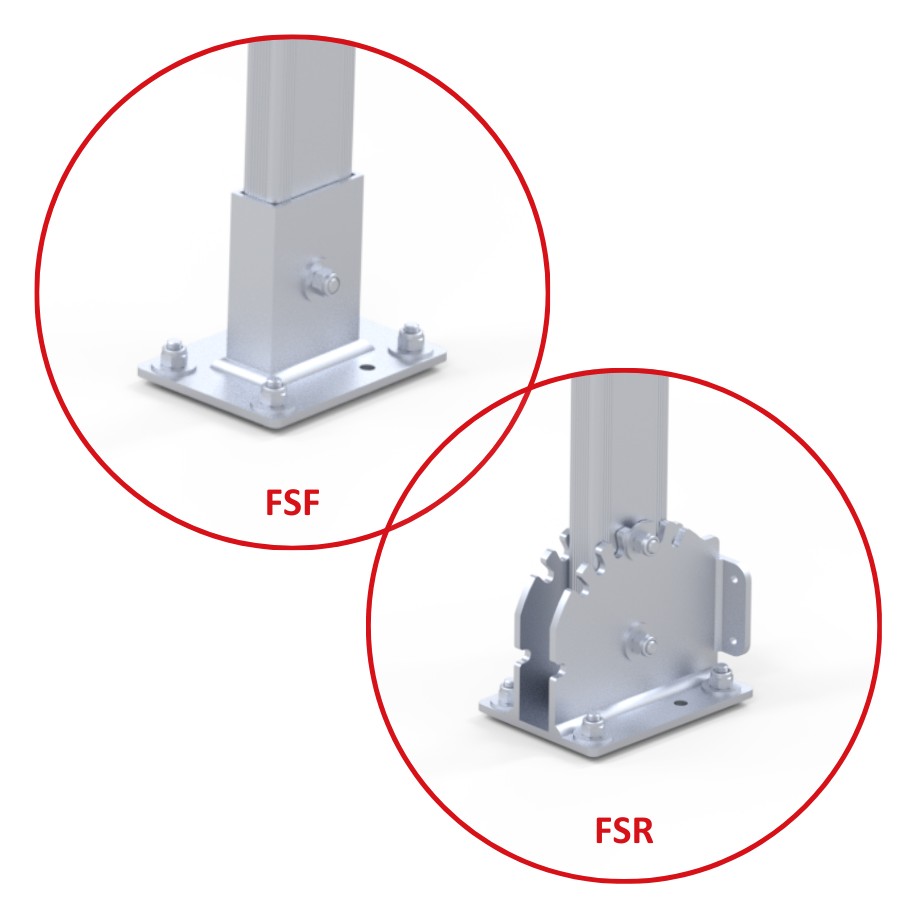

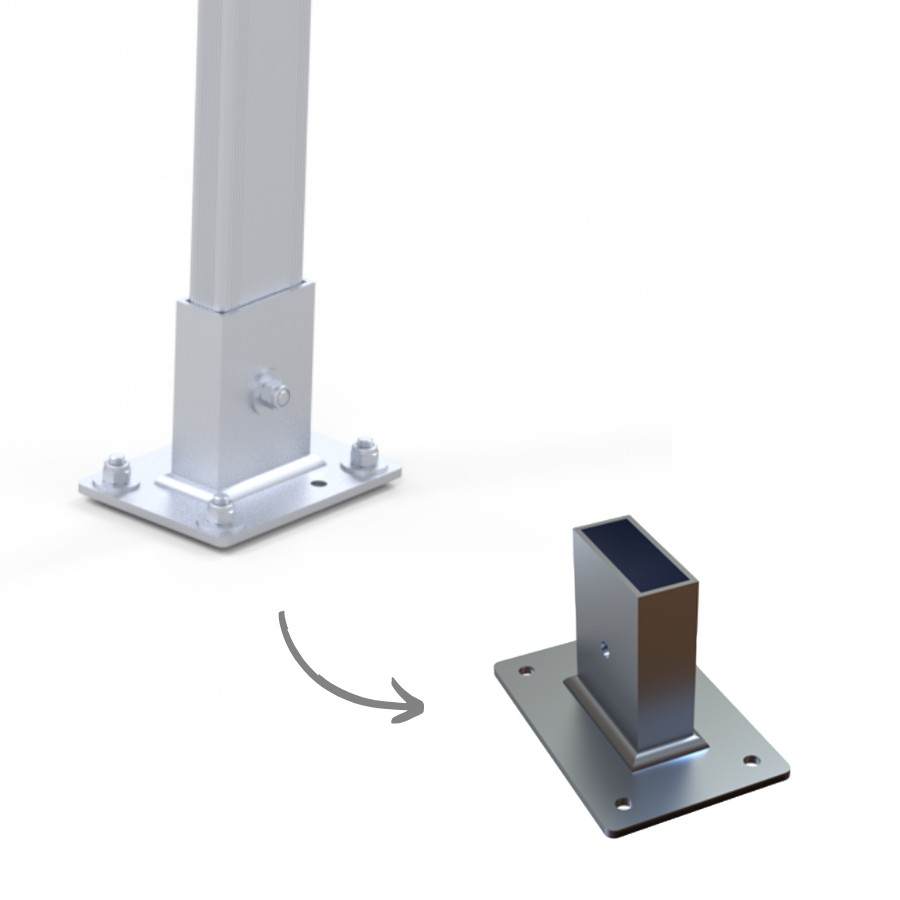

| Base (reference) | FSF base 100318 · FSF base with toeboard 100319 |

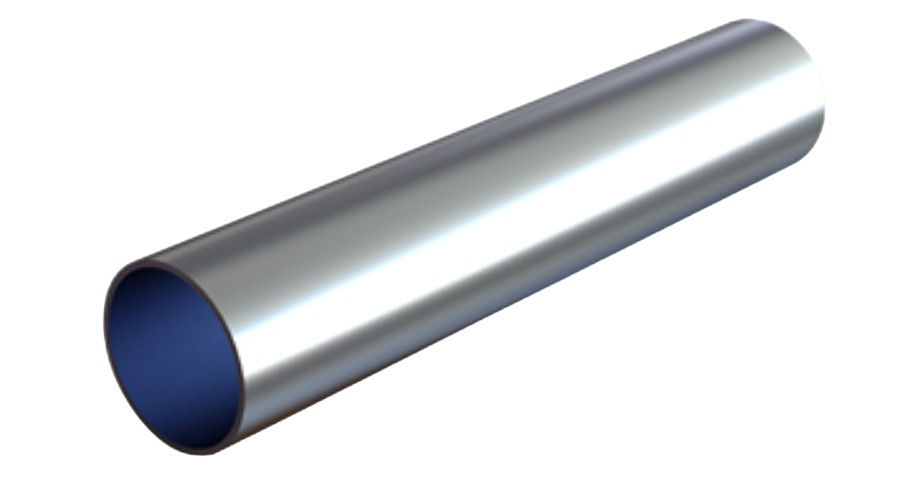

| Structural components | 32 mm-diameter tube, 1.00 m, ref. 100310; 40 mm-diameter tube, 1.00 m, ref. 100312; 65 × 25 cm upright, 1.10 m, ref. 100311; 100 × 20 cm toeboard, ref. 10690 |
Permanent floor fixing.
The fixed floor-mounted modular guardrail (FSF) can be installed with or without a toeboard, according to the customer's requirements.
The FIXED FLOOR-MOUNTED MODULAR GUARDRAIL is certified to European standards EN 13374, EN 14122-3 and NF E85-015:2019.
Jormax reserves the right to change its products or technical specifications without prior notice.
Can be attached with or without toeboard.
