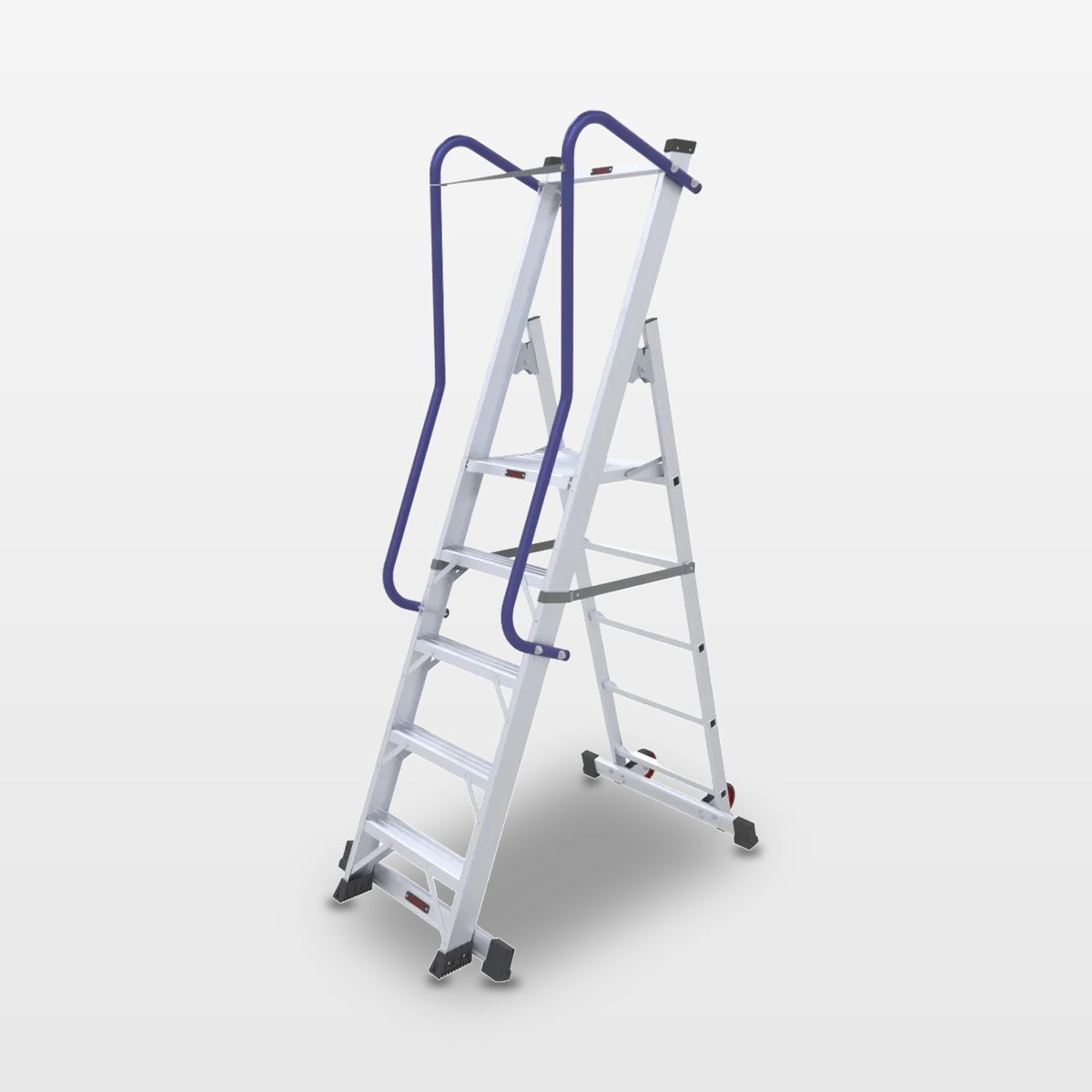

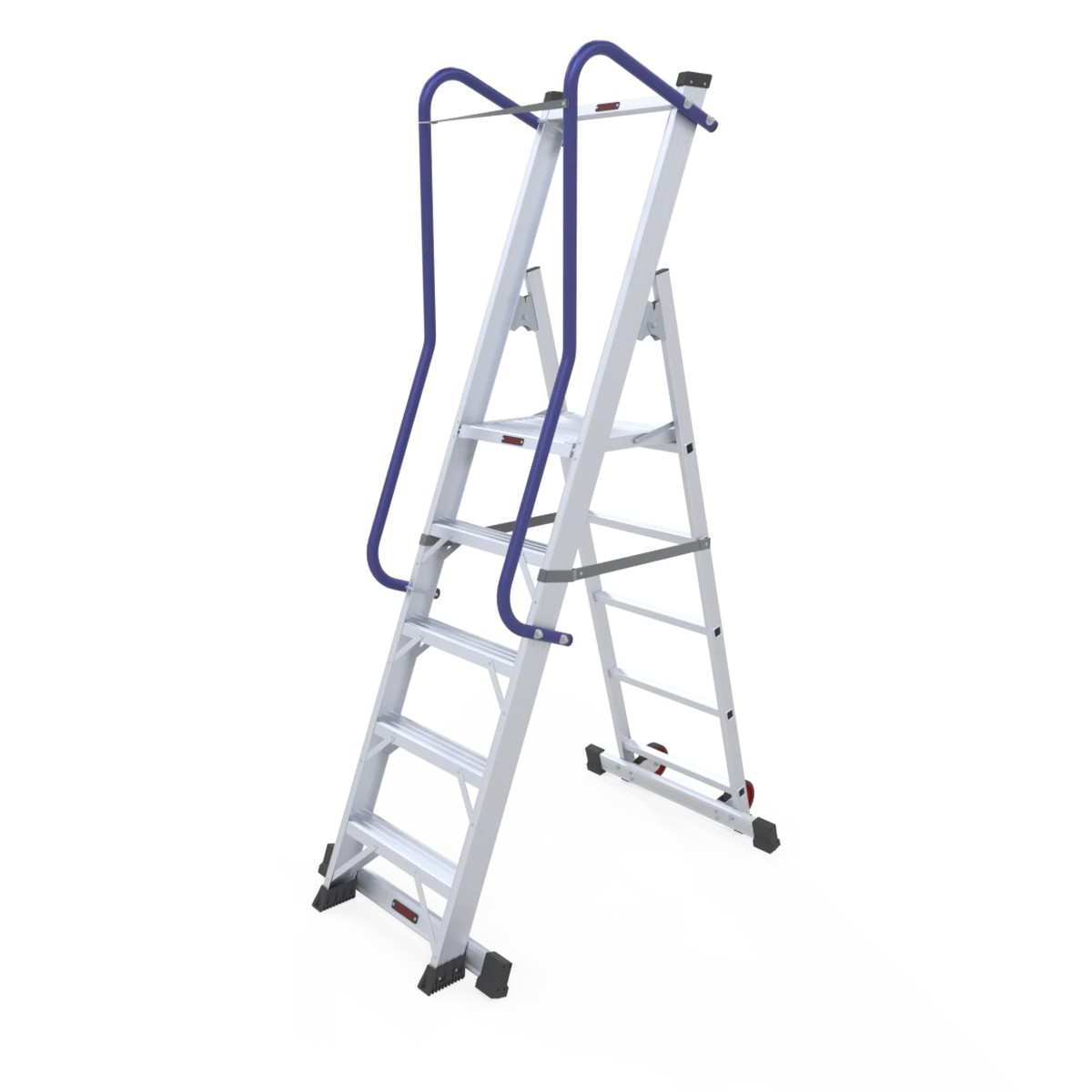

Individual work platform with all-round 360-degree body protection.
A professional individual work platform made of ribbed aluminium, with 8 cm-deep steps welded to the stiles and spaced 26 cm apart. Includes a 43 x 44 cm platform, an anti-opening mechanism and all-round 360-degree body protection. Ideal for professional use.
The DELTA platform is certified to European standard EN 131.
Jormax reserves the right to change its products or technical specifications without prior notice.
| Number of steps | 3 | 4 | 5 | 6 | 7 | 8 |
|---|---|---|---|---|---|---|
| Platform height (m) | 0.81 | 1.07 | 1.33 | 1.59 | 1.85 | 2.11 |
| Overall height (m) | 1.78 | 2.04 | 2.30 | 2.56 | 2.82 | 3.08 |
| Working height (m) | 2.81 | 3.07 | 3.33 | 3.59 | 3.85 | 4.11 |
| Width (m) | 0.58 | 0.58 | 0.58 | 0.58 | 0.66 | 0.66 |
| Weight (kg) | 12.50 | 13.70 | 15.00 | 16.00 | 17.30 | 18.50 |
| Reference | 13737 | 13738 | 13739 | 13740 | 13741 | 13742 |
Individual work platform with all-round 360-degree body protection.
A professional individual work platform made of ribbed aluminium, with 8 cm-deep steps welded to the stiles and spaced 26 cm apart. Includes a 43 x 44 cm platform, an anti-opening mechanism and all-round 360-degree body protection. Ideal for professional use.
The DELTA platform is certified to European standard EN 131.
Jormax reserves the right to change its products or technical specifications without prior notice.
| Feature | Specification |
|---|---|
| Number of steps | 3 to 8 |
| Rung spacing | 26 cm |
| Depth steps | 8 cm |
| Platform | 43×44 cm |
| Wheels of transport | Ø125 mm |
| Front stile profile | 80×25 mm |
| Rear stile profile | 57×27 mm |
| Protection of perimeter in 4 sides | 83 cm |
| Handrails bolted | Yes |
| Safety straps to prevent accidental opening | Yes |
| Hinges of opening of steel | Yes |
| Ergonomic non-slip PVC feet | Yes |
| Manual | User and maintenance manual included |
| Certification | EN131 |
| Label of identification | Included |
| Note: Product dimensions may vary by +/- 2 cm. | |
