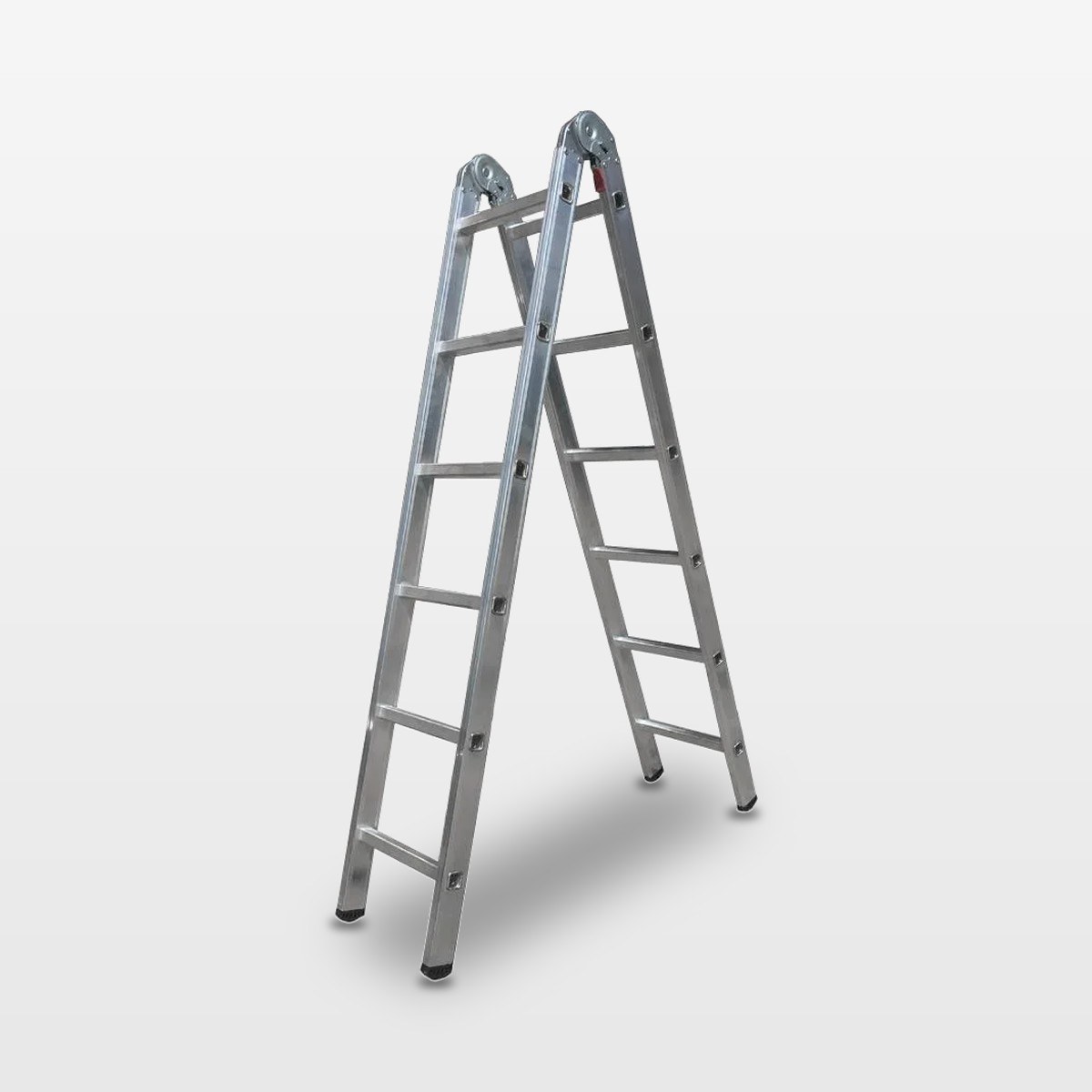

Articulated aluminium ladder, convertible into two configurations.

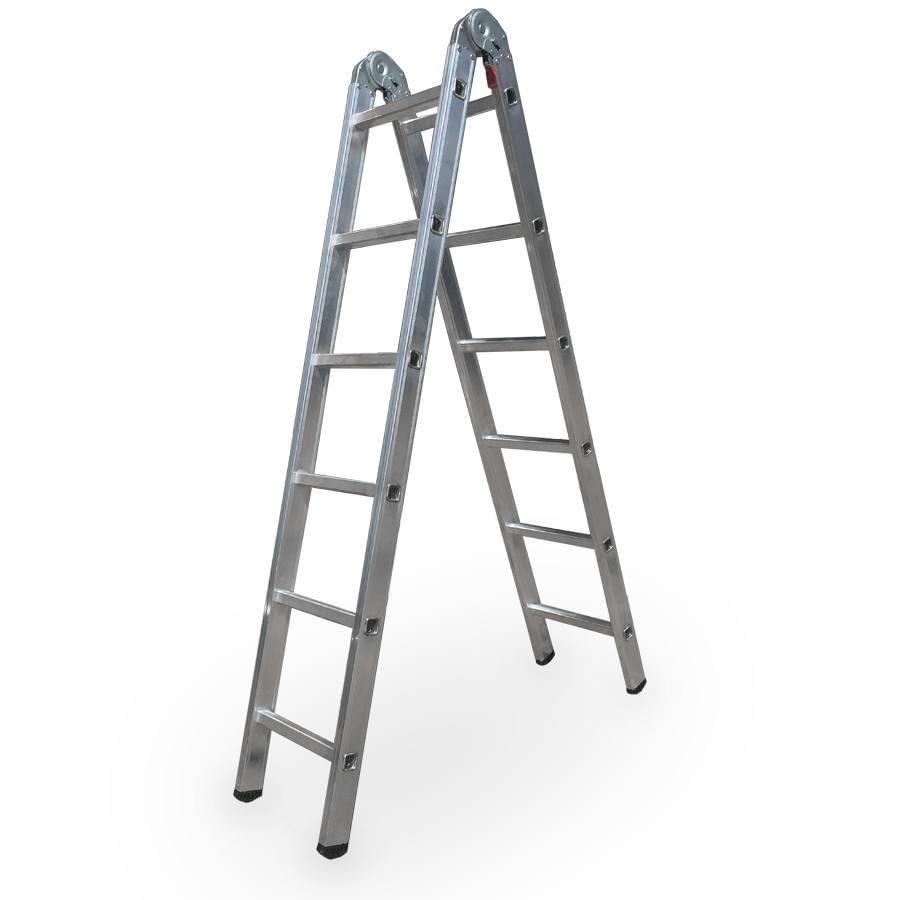

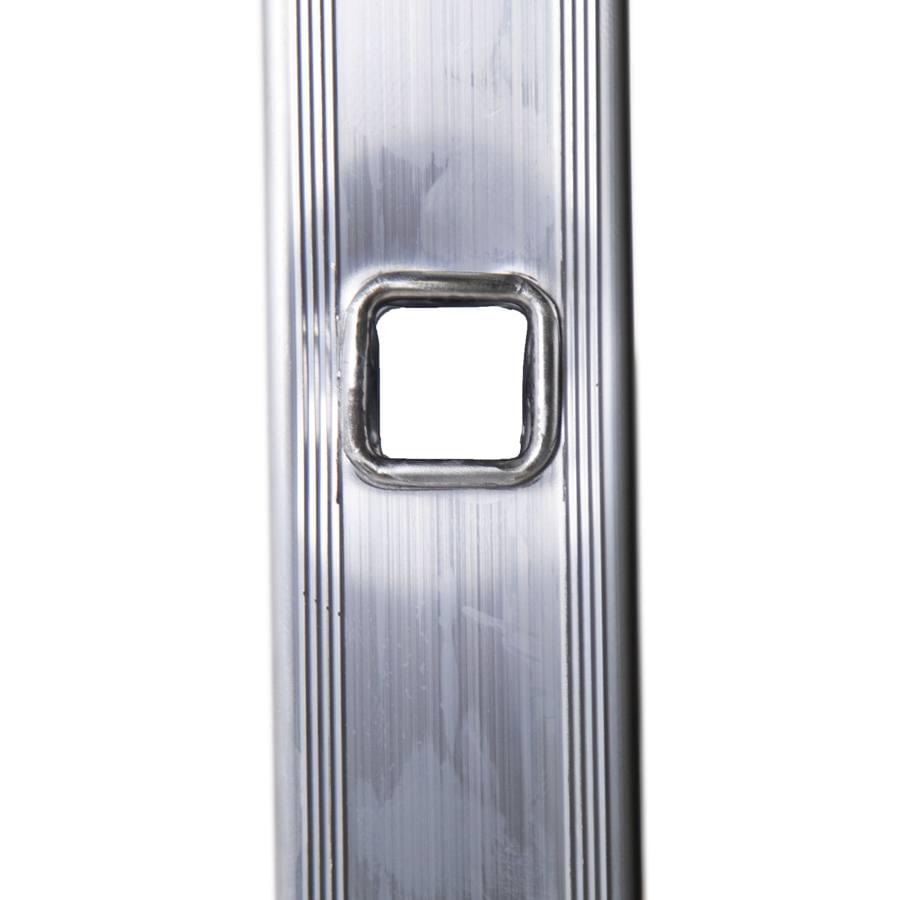

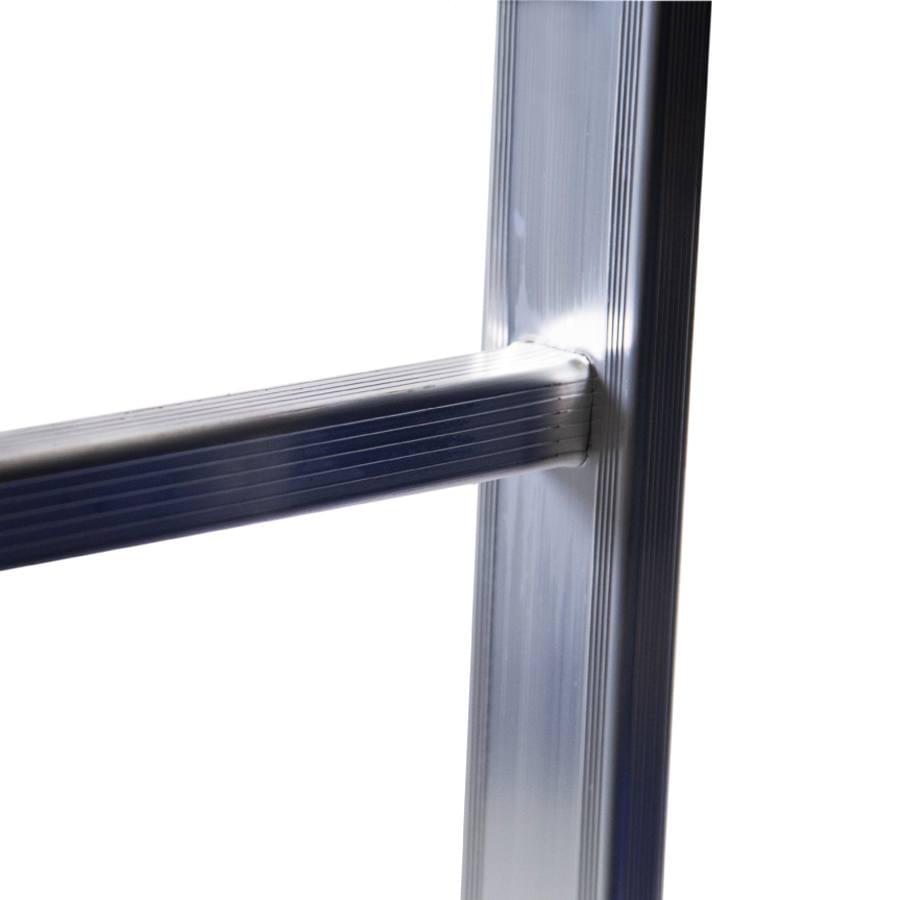

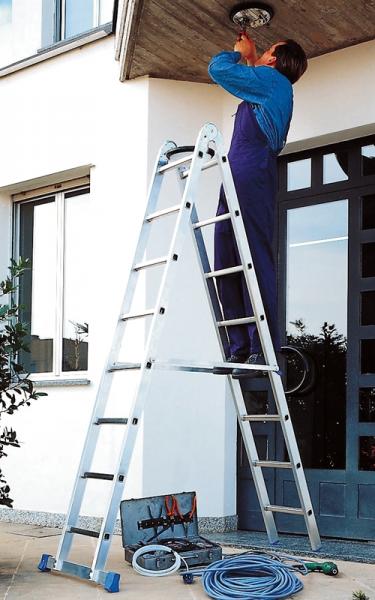

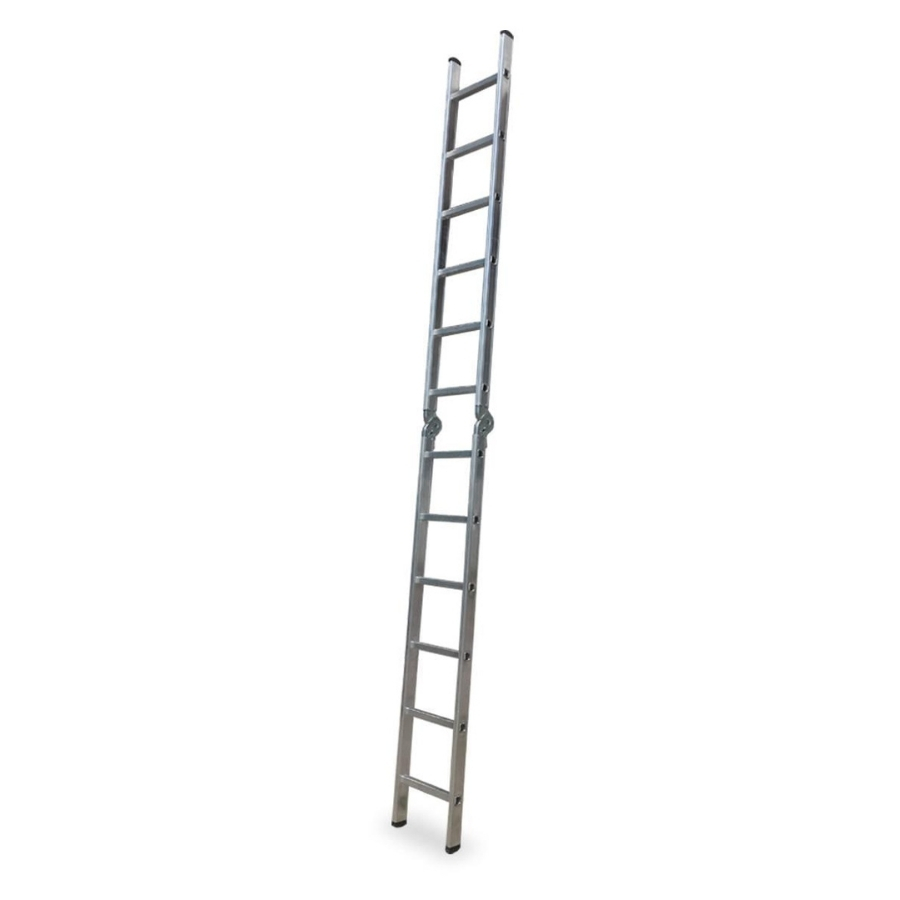

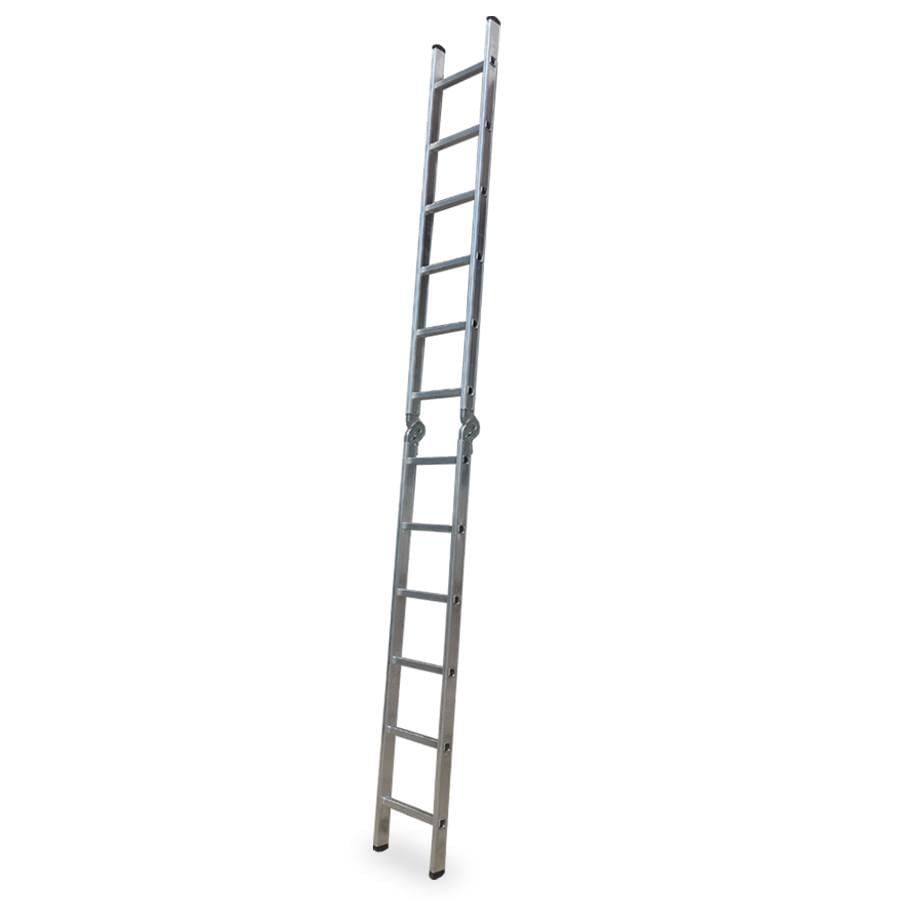

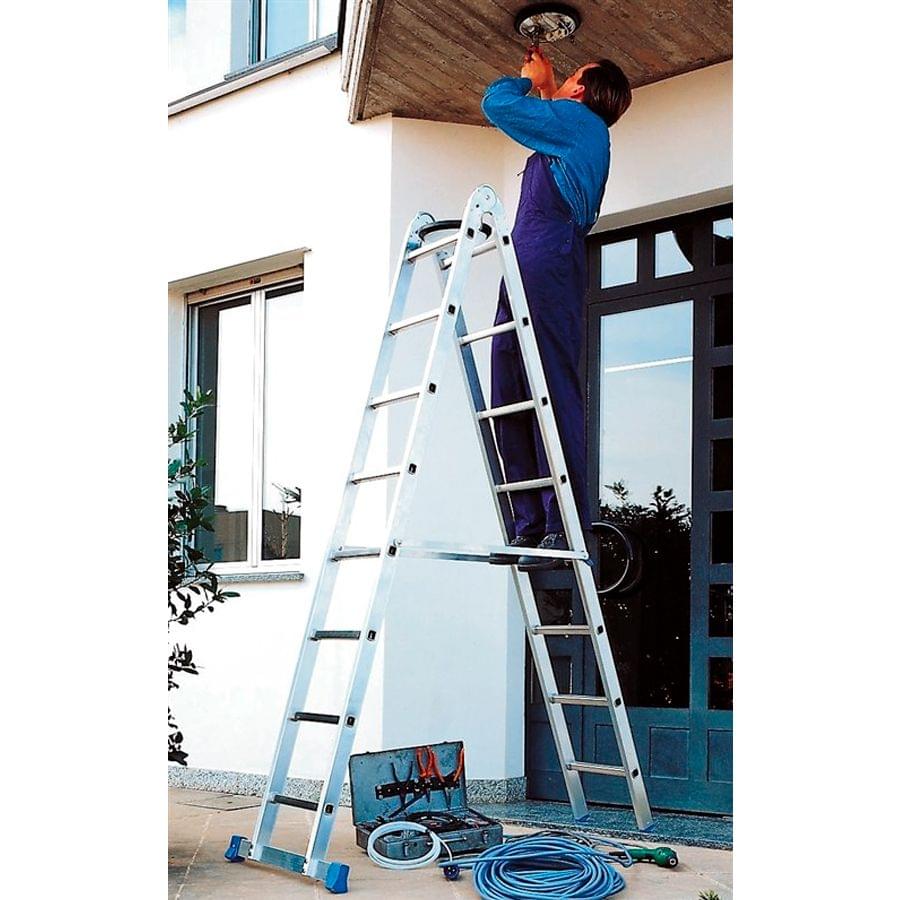

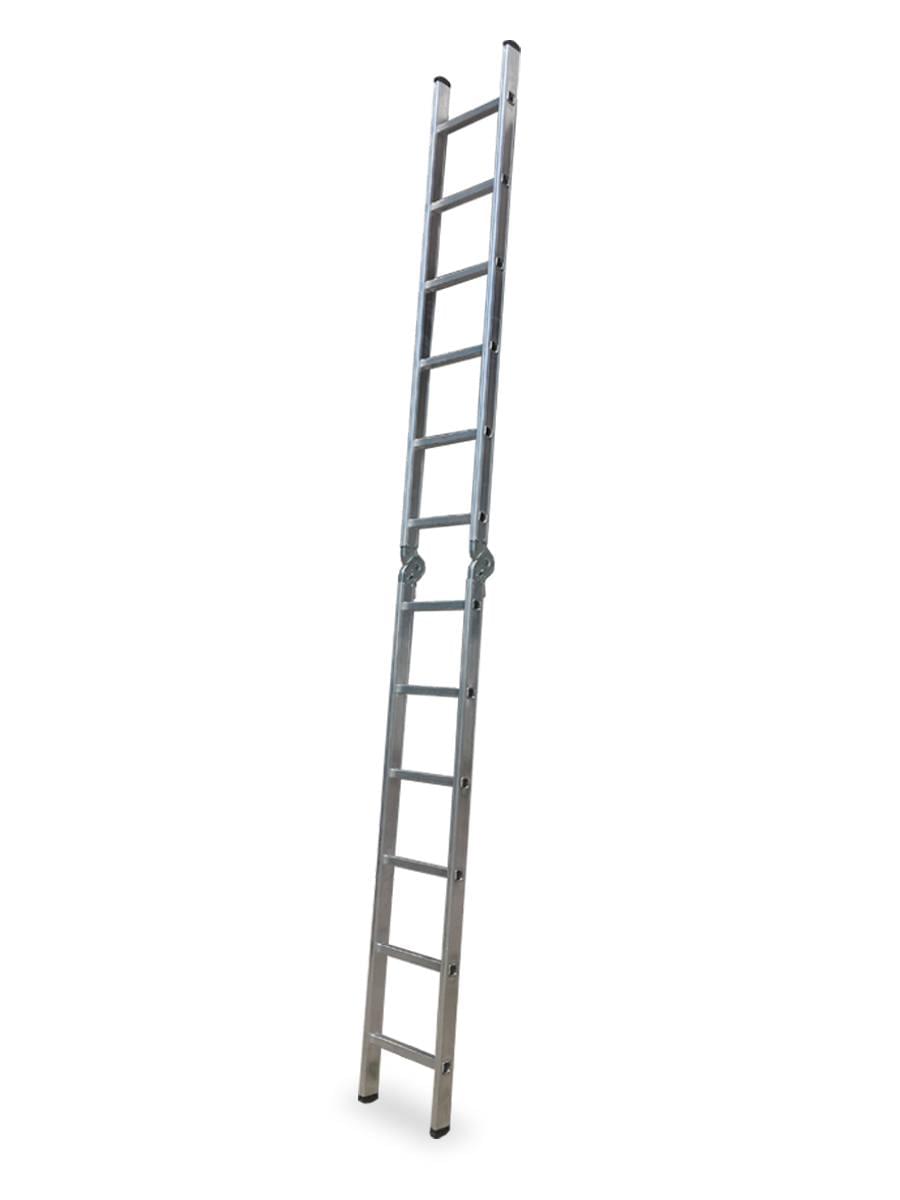

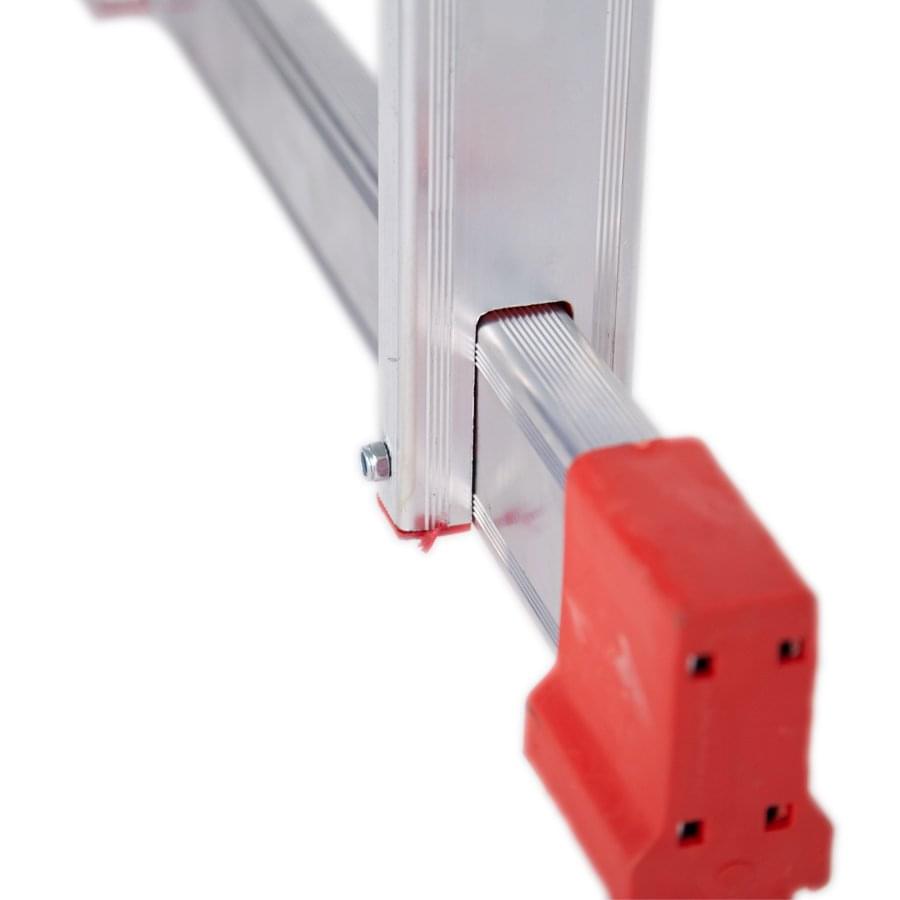

An articulated aluminium ladder that converts into two configurations: a stepladder or a leaning ladder. It has 30 × 30 mm rungs spaced 28 cm apart and an overall width of 36 cm. Practical, robust and easy to handle, it includes an aluminium stabiliser bar. Suitable for simple tasks in confined spaces.
The ARTICULATED ladder is certified to European standard EN 131.
Jormax reserves the right to change its products or technical specifications without prior notice.
| Number of steps | 2×4 | 2×5 | 2×6 | 2×7 | 2×8 |
|---|---|---|---|---|---|
| Stepladder configuration height (m) | 1.27 | 1.54 | 1.81 | 2.08 | 2.35 |
| Folded ladder height (m) | 1.37 | 1.64 | 1.91 | 2.18 | 2.45 |
| Extended ladder height (m) | 2.53 | 3.09 | 3.65 | 4.21 | 4.78 |
| Folded width (m) | 0.21 | 0.21 | 0.21 | 0.21 | 0.21 |
| Weight (kg) | 7.00 | 8.00 | 9.00 | 10.00 | 11.00 |
| Reference | 10234 | 10235 | 10236 | 10237 | 10238 |
Articulated aluminium ladder, convertible into two configurations.
An articulated aluminium ladder that converts into two configurations: a stepladder or a leaning ladder. It has 30 × 30 mm rungs spaced 28 cm apart and an overall width of 36 cm. Practical, robust and easy to handle, it includes an aluminium stabiliser bar. Suitable for simple tasks in confined spaces.
The ARTICULATED ladder is certified to European standard EN 131.
Jormax reserves the right to change its products or technical specifications without prior notice.
| Feature | Specification |
|---|---|
| Number of steps | 2×4 to 2×8 |
| Rung spacing | 28 cm |
| Steps | 30×30 mm |
| Width | 36 cm |
| Profile | 65×25 mm |

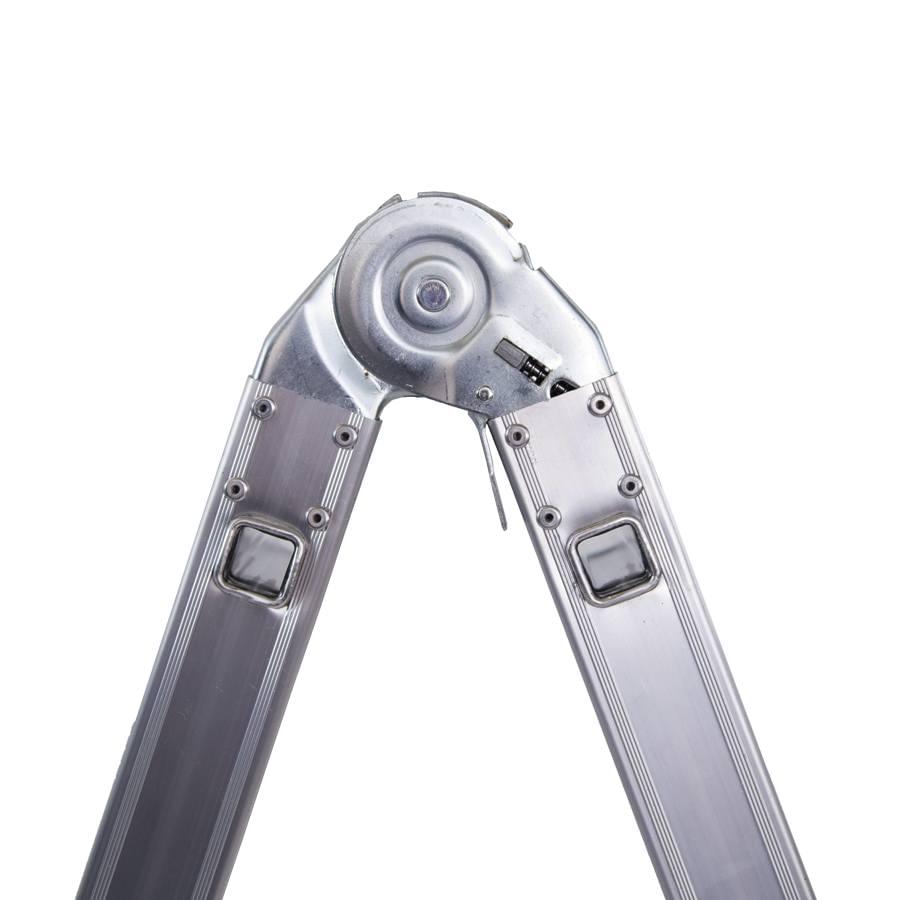

| Hinges | Steel with anti-corrosion treatment |
| Base | Stabilising |
| Manual | User and maintenance manual included |
| Certification | EN131 |
| Label of identification | Included |
| Note: Product dimensions may vary by +/- 2 cm. | |
