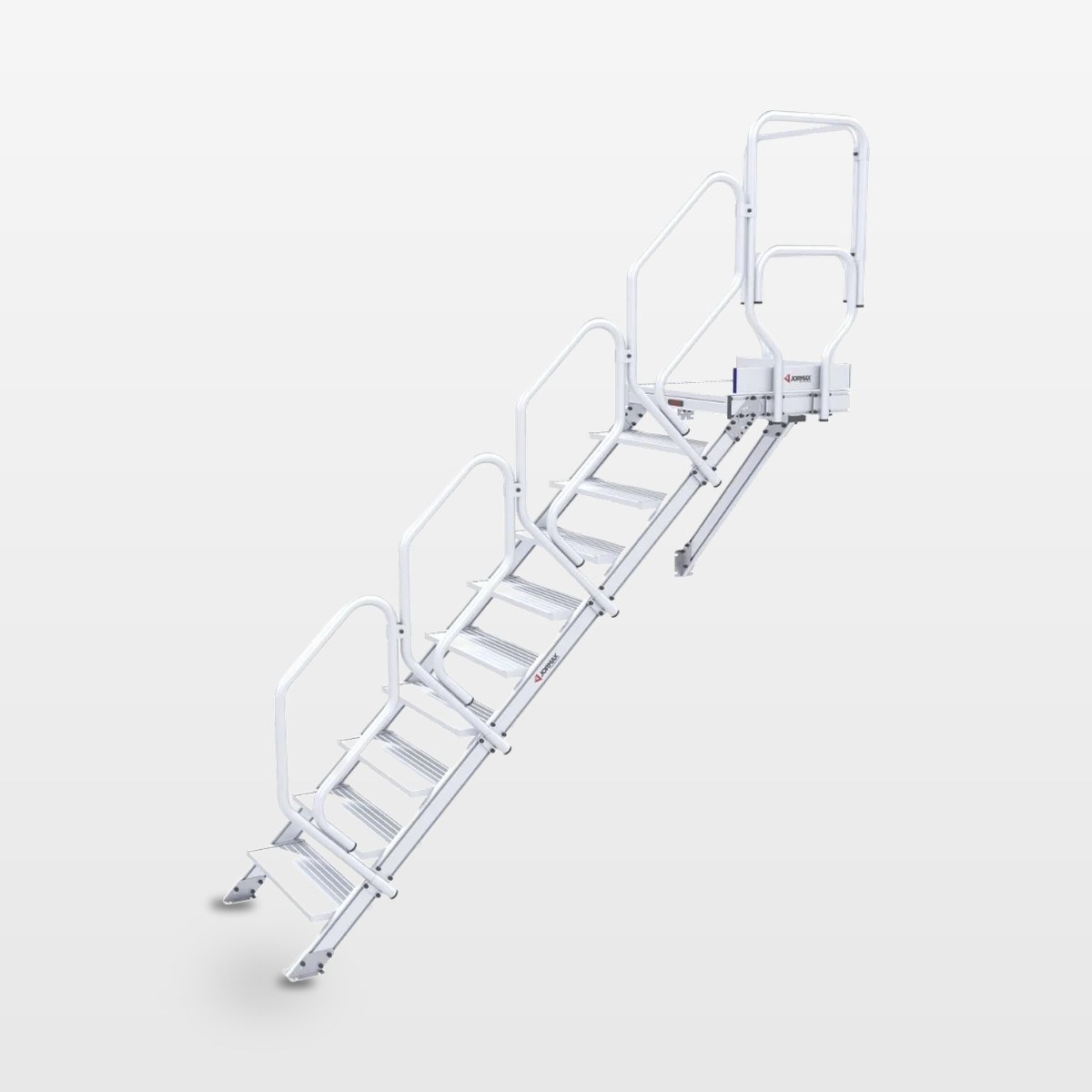

LADDER ACCESS WITH PLATFORM 45º

Of 45° with ascent extra comfortable.

A professional 45-degree access stairway made of ribbed extruded aluminium, with 24 cm-deep steps spaced 20 cm apart. Easy to assemble and available in widths of 60, 80 or 100 cm, providing a broad and comfortable route of access.
100 cm, providing a wide, comfortable access stairway. Ideal for reaching different elevated work areas.
The 45-DEGREE ACCESS LADDER WITH PLATFORM is certified to European standard EN 14122.
Jormax reserves the right to change its products or technical specifications without prior notice.

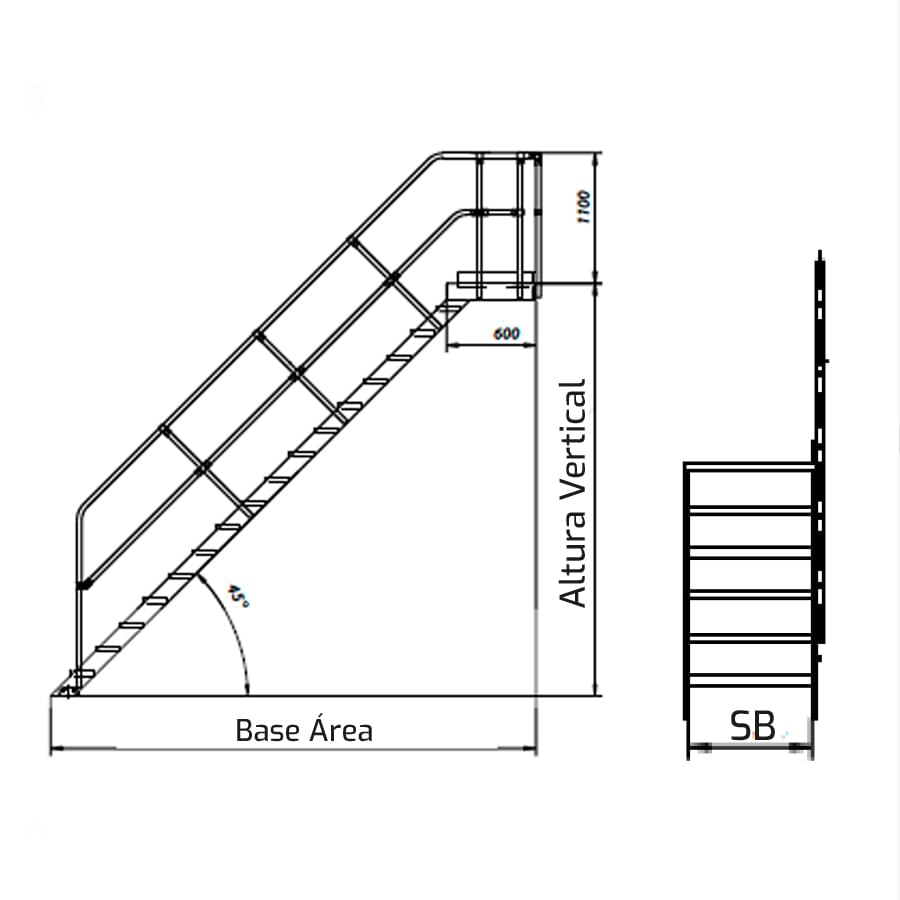

Number of steps 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18
L1 (m) 0.80 1.00 1.20 1.40 1.60 1.80 2.00 2.20 2.40 2.60 2.80 3.00 3.20 3.40 3.60
B1 (m) 1.37 1.57 1.77 1.97 2.17 2.37 2.57 2.77 2.97 3.17 3.37 3.57 3.77 3.97 4.17
Reference
60-24cm 200424 200425 200426 200427 200428 200429 200430 200431 200432 200433 200434 200435 200436 200437 200438
80-24cm 200444 200445 200446 200447 200448 200449 200450 200451 200452 200453 200454 200455 200456 200457 200458
100-24cm 200464 200465 200466 200467 200468 200469 200470 200471 200472 200473 200474 200475 200476 200477 200478
2º handrail 200504 200505 200506 200507 200508 200509 200510 200511 200512 200513 200514 200515 200516 200517 200518

Description

Of 45° with ascent extra comfortable.

A professional 45-degree access stairway made of ribbed extruded aluminium, with 24 cm-deep steps spaced 20 cm apart. Easy to assemble and available in widths of 60, 80 or 100 cm, providing a broad and comfortable route of access.
100 cm, providing a wide, comfortable access stairway. Ideal for reaching different elevated work areas.
The 45-DEGREE ACCESS LADDER WITH PLATFORM is certified to European standard EN 14122.
Jormax reserves the right to change its products or technical specifications without prior notice.

Feature Specification
Number of steps 4 to 18
Rung spacing 20 cm
Steps 24 cm
Width 60, 80 or 100 cm
Handrail outside diameter 40 mm
Platform 60×60/80/100 cm
Overall height 1.90 to 4.70 m
Wall-mounted hook support Required, but must be ordered separately
Handrail height 1.10 m
Manual User and maintenance manual included
Certification EN14122
Label of identification Included
Note: Product dimensions may vary by +/- 2 cm.
